Toyota CAMRY 前门锁和车门把手 — Figure 6703

Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 20 PNC and OE references.

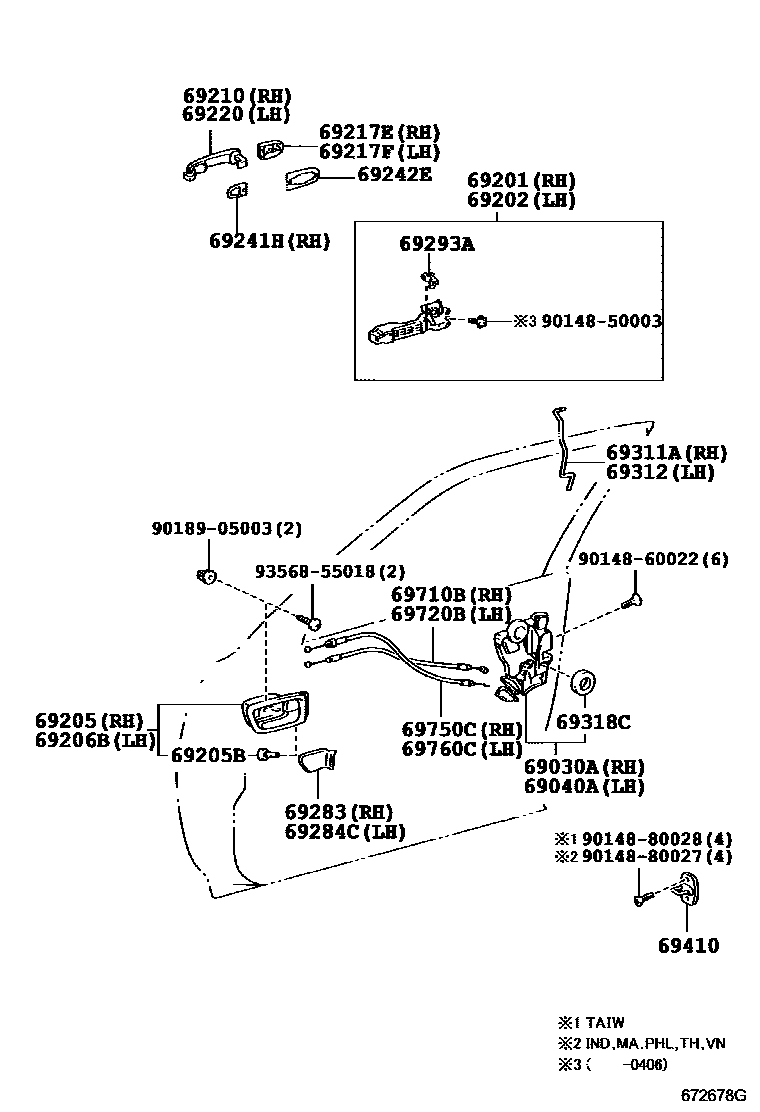

Toyota CAMRY 前门锁和车门把手 EPC diagram — 672678G
前门锁和车门把手 — 672678G (200203 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-06060 · 69030-33231 · 69030-33241
69040ALeft front door door lock assembly with motor69040-06060 · 69040-33231 · 69040-33241
69201Right door outer handle sub-assembly69201-06010 · 69201-06020
69202Left door outer handle sub-assembly69202-06010 · 69202-06020
69205BCushion pad (for inner front door handle)90541-04014
69210Right front door outer handle assembly69210-02070 · 69210-06040 · 69210-06900 · 69210-06905
69217ERight front door outer handle cover69217-06020 · 69217-06900 · 69217-12010 · 69217-12901
69217FLeft front door outer handle cover69217-06020 · 69217-06900 · 69217-12050 · 69217-42020
69220Left front door outer handle assembly69210-02070 · 69210-06040 · 69210-06900 · 69210-06905
69241HFront door exterior handle pad69241-06020 · 69241-42020
69242EFront door rear outer handle pad69242-06020 · 69242-42010
69293AFront door outer handle buckle69293-12030 · 69293-12040 · 69293-33010 · 69293-33020
69311ARight front door lock opening lever69311-06030 · 69311-33050
69312Left front door lock opening lever69312-06030 · 69312-33050
69318Cdoor lock harness seal69318-51010
69410Front door lock plate assembly69410-06010 · 69410-33010
69710BRight front door lock remote control cable assembly69710-06030 · 69710-33040
69720BLeft front door lock remote control cable assembly69710-06030 · 69710-33040
69750CRight front door inner lock cable assembly69750-06020 · 69750-33010
69760CLeft front door inner lock cable assembly69750-06020 · 69750-33010
