Toyota CAMRY 前门板和前门玻璃 — Figure 6701

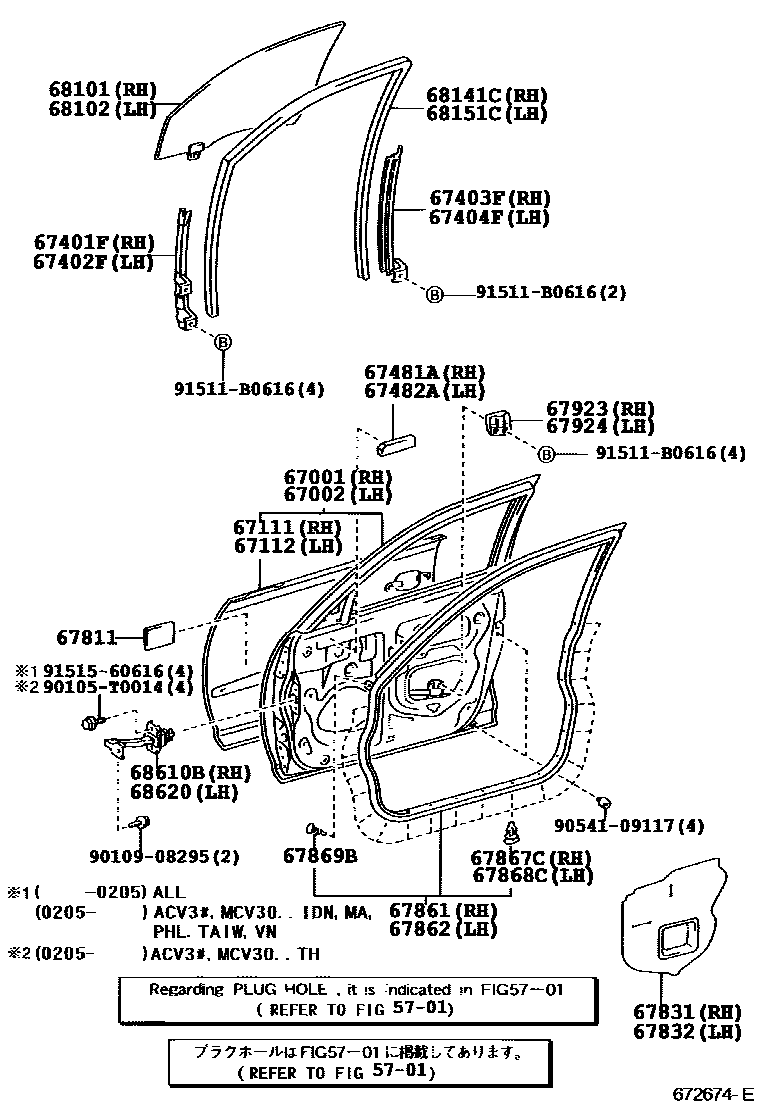

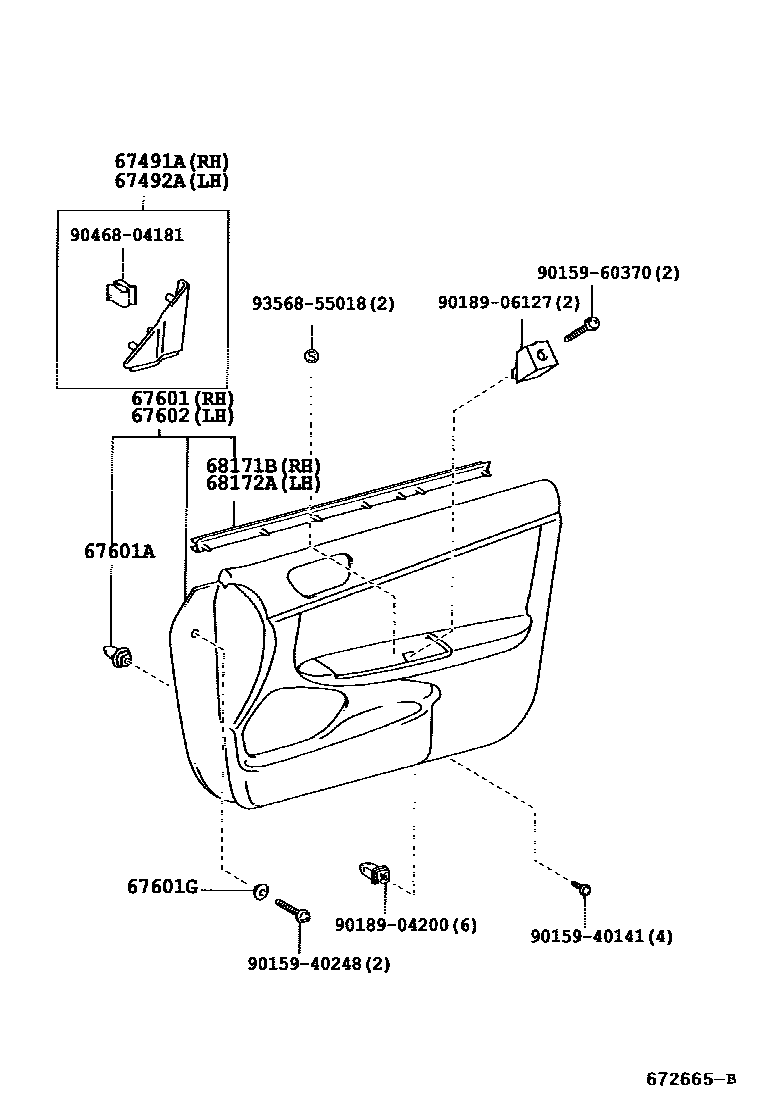

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-06060 · 67001-06061 · 67001-06070 · 67001-06071 · 67001-06080 |
| 67002 | Left front door panel sub-assembly | 67002-06060 · 67002-06061 · 67002-06070 · 67002-06071 · 67002-06080 |
| 67111 | Outer right front door panel | 67111-06060 · 67111-33050 · 67111-33051 |
| 67112 | Outer left front door panel | 67112-06050 · 67112-33050 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-33040 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-33040 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-06020 · 67403-33020 · 67403-33040 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-06020 · 67404-33020 · 67404-33040 |
| 67481A | Right front door front lower door frame seal | 67481-33040 |
| 67482A | Left front door front lower door frame seal | 67482-33040 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-06030 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-06030 |
| 67601A | Fixings (for front door trim) | 90467-10161 |
| 67811 | Front door silencer pad | 67811-33040 |
| 67831 | Right front door access hole cover | 67831-06050 · 67831-06051 |
| 67832 | Left front door access hole cover | 67832-06050 · 67832-06051 |
| 67861 | Right front door seal | 67861-06030 · 67861-06031 |
| 67862 | Left front door seal | 67862-06030 · 67862-06031 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-20030 |
| 67923 | Front door No. 1 reinforcement cushion pad | 67923-33040 |
| 67924 | Front door No. 2 reinforcement cushion pad | 67924-33020 |
| 68101 | Right front door glass sub-assembly | 68101-06040 · 68101-06050 · 68101-06060 · 68101-06070 |
| 68102 | Left front door glass sub-assembly | 68102-06040 · 68102-06050 · 68102-06060 · 68102-06070 |
| 68141C | Right front door glass lift channel | 68141-06030 · 68141-06031 · 68141-06032 · 68141-06090 |
| 68151C | Left front door glass lift channel | 68151-06020 · 68151-06021 · 68151-06022 · 68151-06080 |
| 68171B | Right front door glass inner sealing strip | 68171-06020 · 68171-06021 |
| 68172A | Left front door glass inner sealing strip | 68172-06020 · 68172-06021 |
| 68610B | Right front door opening limiter assembly | 68610-06030 · 68610-33050 |
| 68620 | Left front door opening limiter assembly | 68620-06030 · 68620-33050 |
