Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

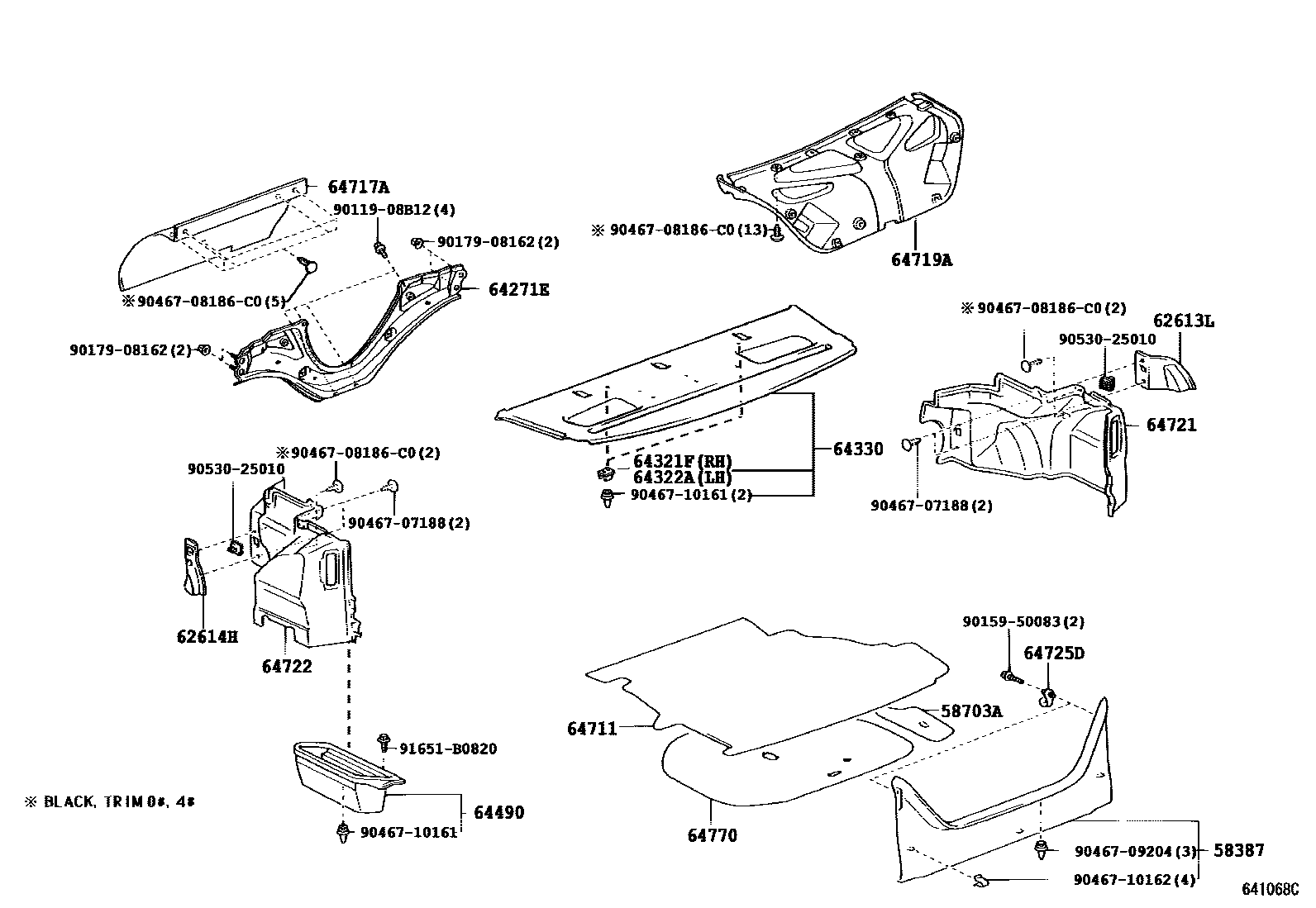

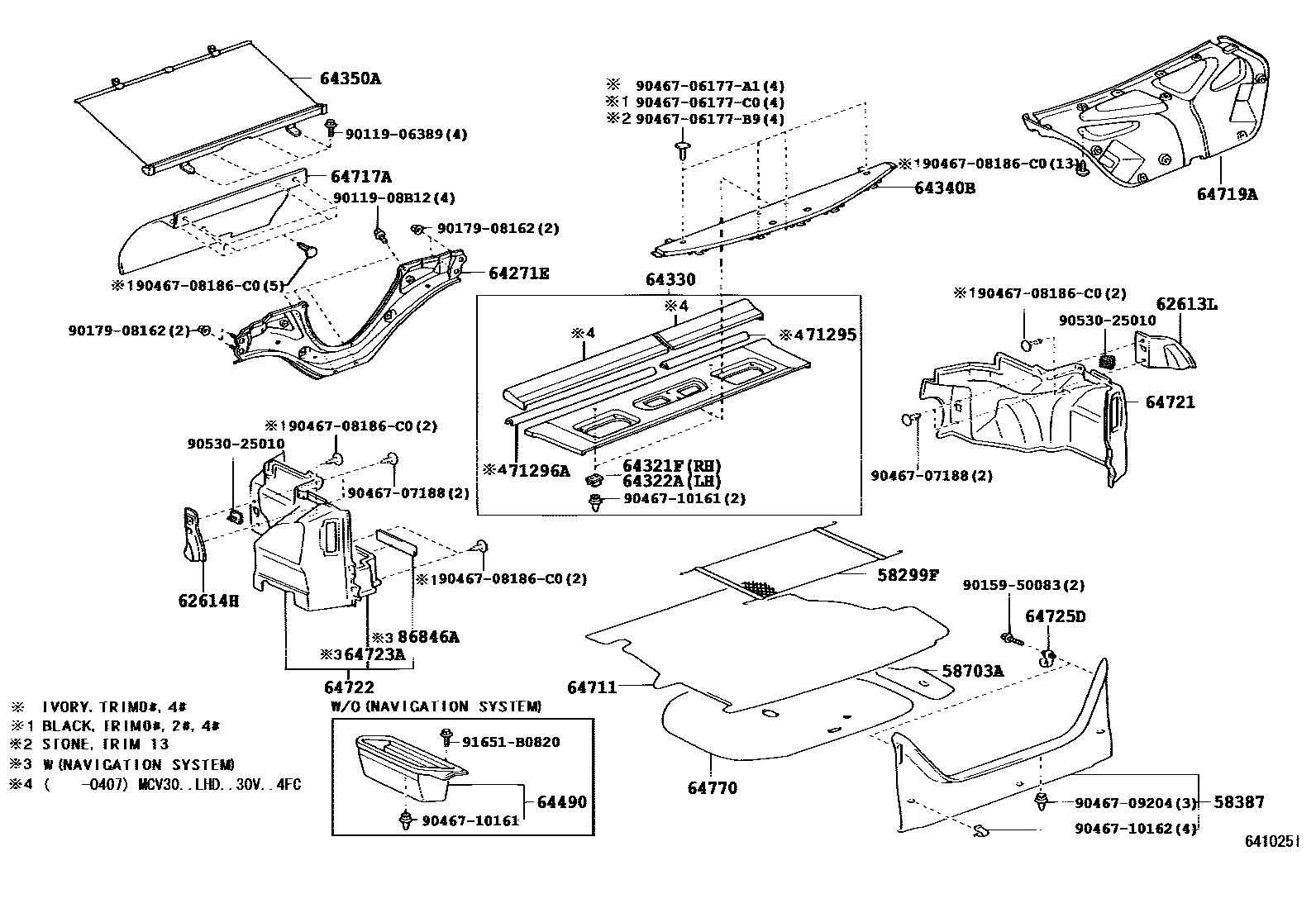

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58299F | Luggage rack net | 58299-06010 |
| 58387 | Rear floor decorative panel | 58387-06050 · 58387-06070 |
| 58703A | Trunk door right side decorative cover sub-assembly | 58703-06050 |
| 62613L | No. 2 right wheel cover vibration isolation pad | 62613-33010 |
| 62614H | No. 2 left wheel cover vibration isolation pad | 62614-33010 |
| 64271E | compartment partition | 64206-06010 |
| 64321F | Glove box decorative panel right bracket | 64323-06020 |
| 64322A | Glove box decorative panel left bracket | 64323-06020 |
| 64350A | Rear window sun visor assembly | 64350-06010 · 64350-06020 |
| 64725D | Luggage decorative hook No. 1 | 64725-06020 |
| 64770 | Spare tire cover assembly | 64770-06090 · 64770-06091 · 64770-06100 · 64770-06110 · 64770-06140 · 64770-06150 · 64770-33060 |
| 71295 | Right rear seat back panel | 71295-06040 |
| 71296A | Rear left seat back panel | 71296-06040 |
