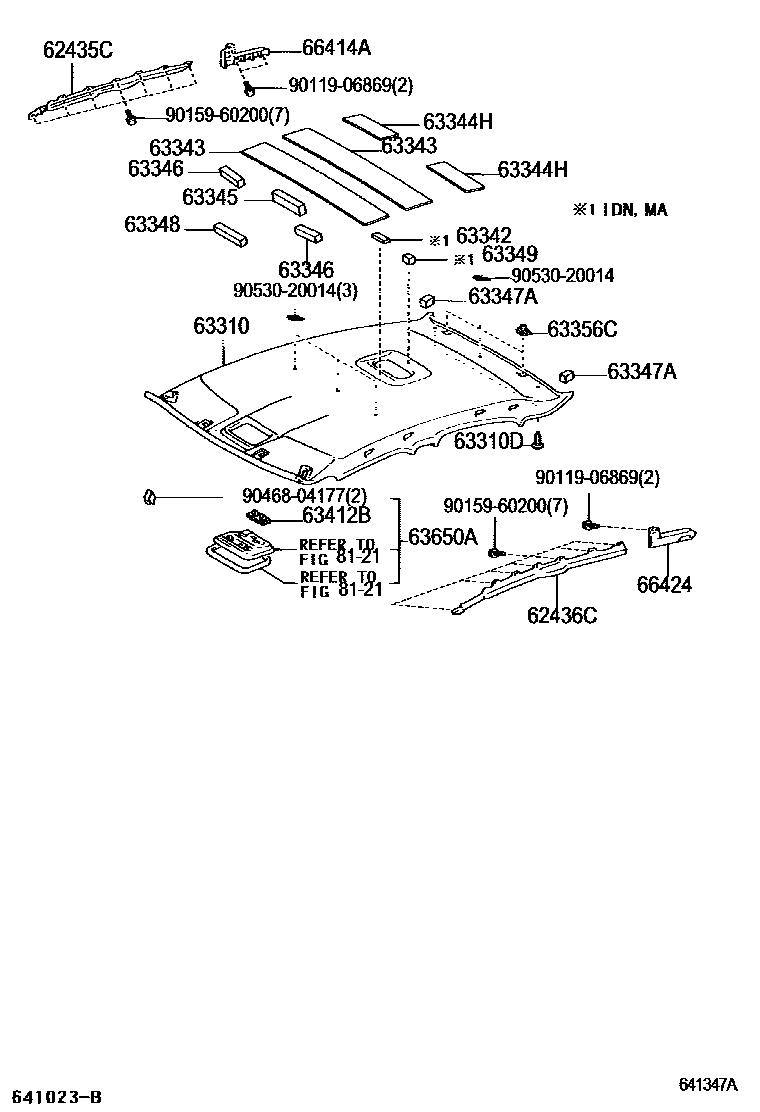

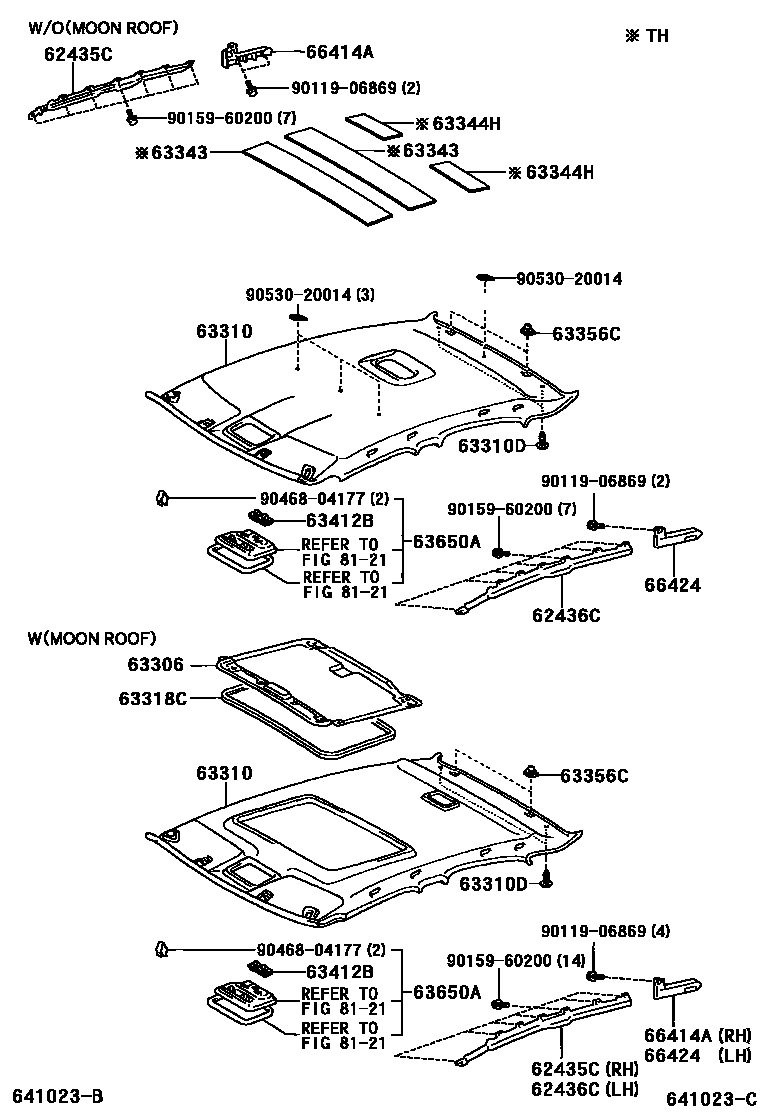

Toyota CAMRY 车顶内衬和消声垫 — Figure 6402
Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62435C | Roof right side rail decorative pad | 62435-33010 |
| 62436C | Roof left side rail decorative pad | 62436-33010 |
| 63342 | No. 2 roof muffler pad | 63342-06040 |
| 63343 | No. 3 roof muffler pad | 63343-06040 |
| 63344H | No. 4 roof silencer mat | 63344-06050 |
| 63345 | No. 5 roof silencer mat | 63345-06020 · 63345-06021 |
| 63346 | No. 6 roof silencer mat | 63346-06010 |
| 63347A | No. 7 roof silencer mat | 63347-06010 |
| 63348 | No. 8 roof silencer mat | 63345-06030 |
| 63349 | No. 9 roof silencer mat | 63349-06010 |
| 63412B | roof console fixings | 63412-33010 |
| 66414A | Right rear longitudinal member spacer | 66414-06010 · 66414-33010 |
| 66424 | Left rear longitudinal member spacer | 66424-06010 · 66424-33010 |
