Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401

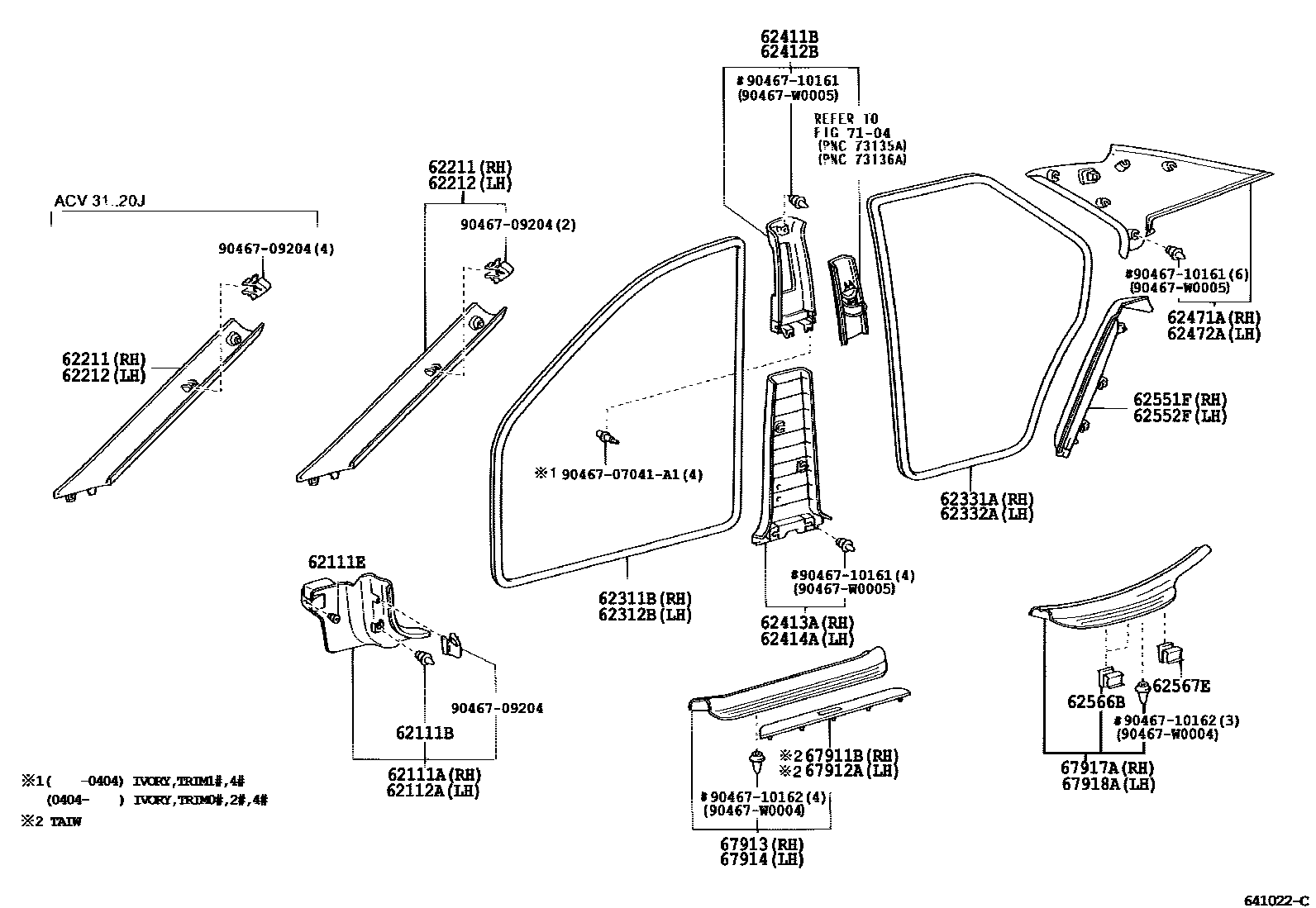

Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-10161 |
| 62111E | Front wall side trim panel fixings | 90467-06147 |
| 62566B | No. 1 door inner sill protection strip clip | 62566-06010 · 62566-32010 |
| 62567E | No. 2 door inner sill guard strip clip | 62567-06020 · 62567-33040 |
| 67911B | Right front door outer wear plate | 67921-06020 |
| 67912A | Left front door outer wear plate | 67922-06010 |
