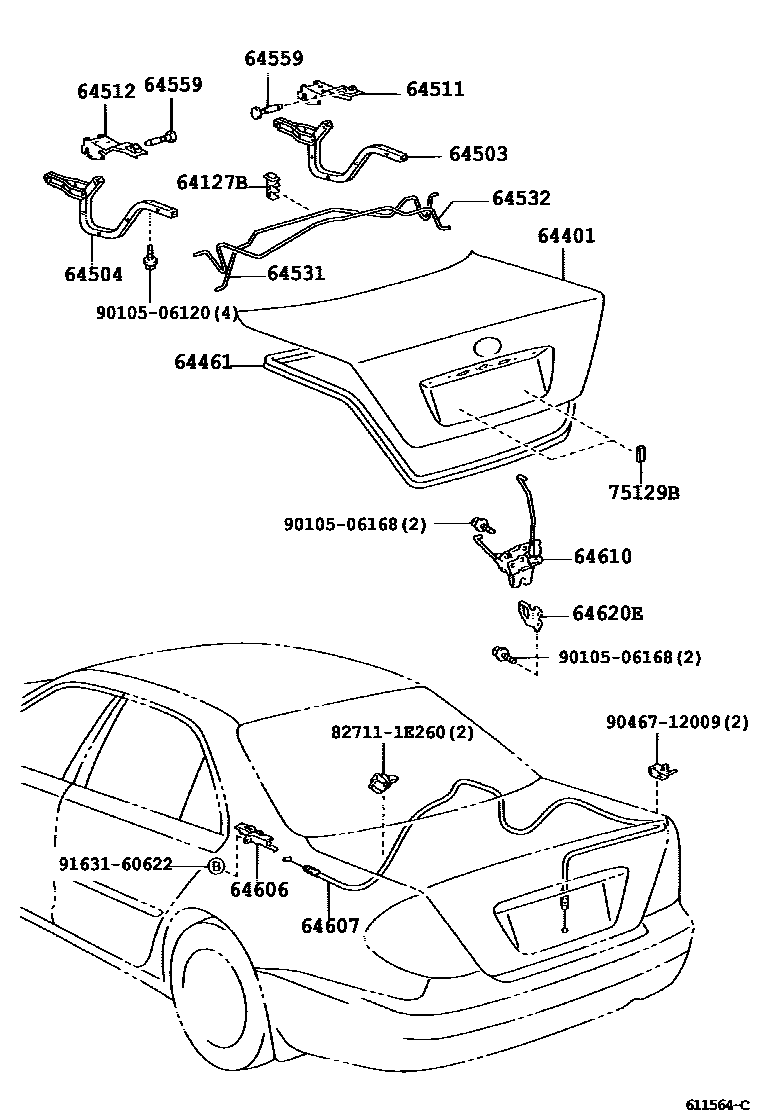

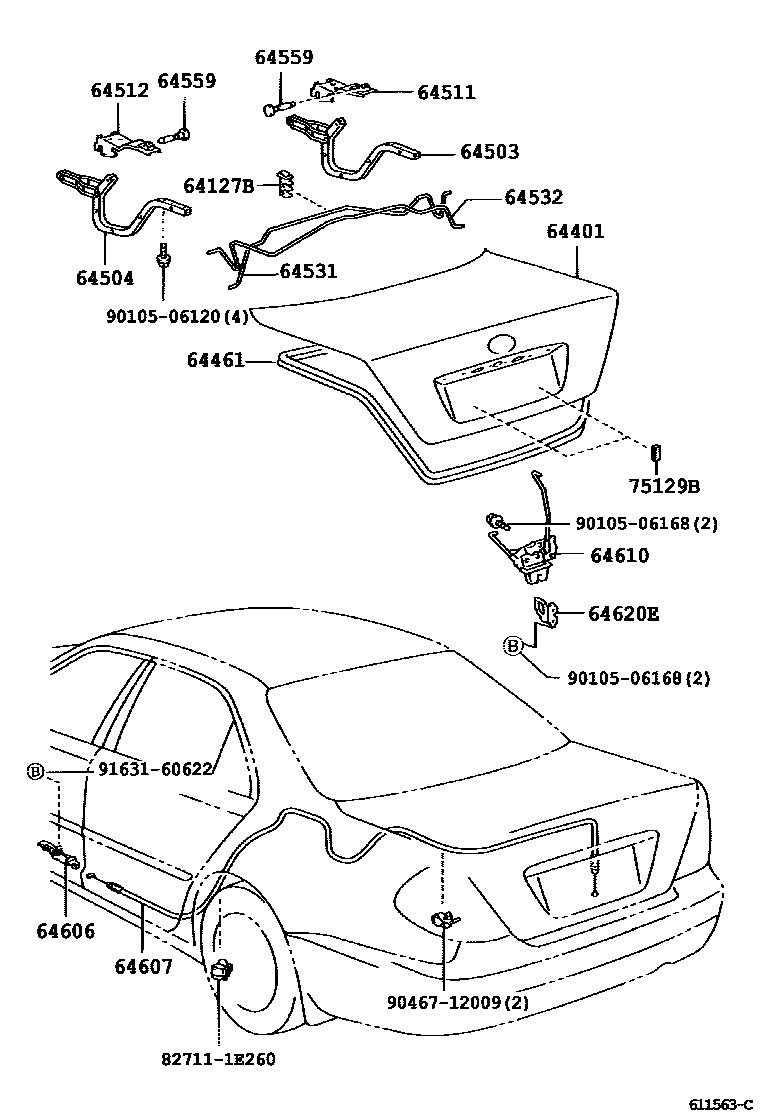

Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105
Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33041 |
| 64401 | Trunk door panel sub-assembly | 64401-06130 · 64401-06150 · 64401-06190 · 64401-06200 · 64401-06210 · 64401-06220 · 64401-06250 |
| 64461 | Trunk door seal | 64461-06030 · 64461-06040 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-33070 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-33070 |
| 64511 | Trunk door right hinge bracket | 64511-06020 · 64511-06030 |
| 64512 | Trunk door left hinge bracket | 64512-06020 · 64512-06030 |
| 64531 | Trunk door right hinge torsion bar | 64531-06030 |
| 64532 | Trunk door left hinge torsion bar | 64532-06030 · 64532-06050 |
| 64559 | Trunk door hinge pin | 64559-32020 |
| 64606 | Trunk door lock opening lever sub-assembly | 64606-06010 · 64606-53010 · 64606-53020 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-06030 · 64607-06040 |
| 64610 | Trunk door lock assembly | 64600-33090 · 64600-33091 · 64610-33070 · 64610-33071 |
| 64620E | Trunk door lock assembly | 64621-53010 |
| 75129B | rear license plate cushion | 75129-13020 |
