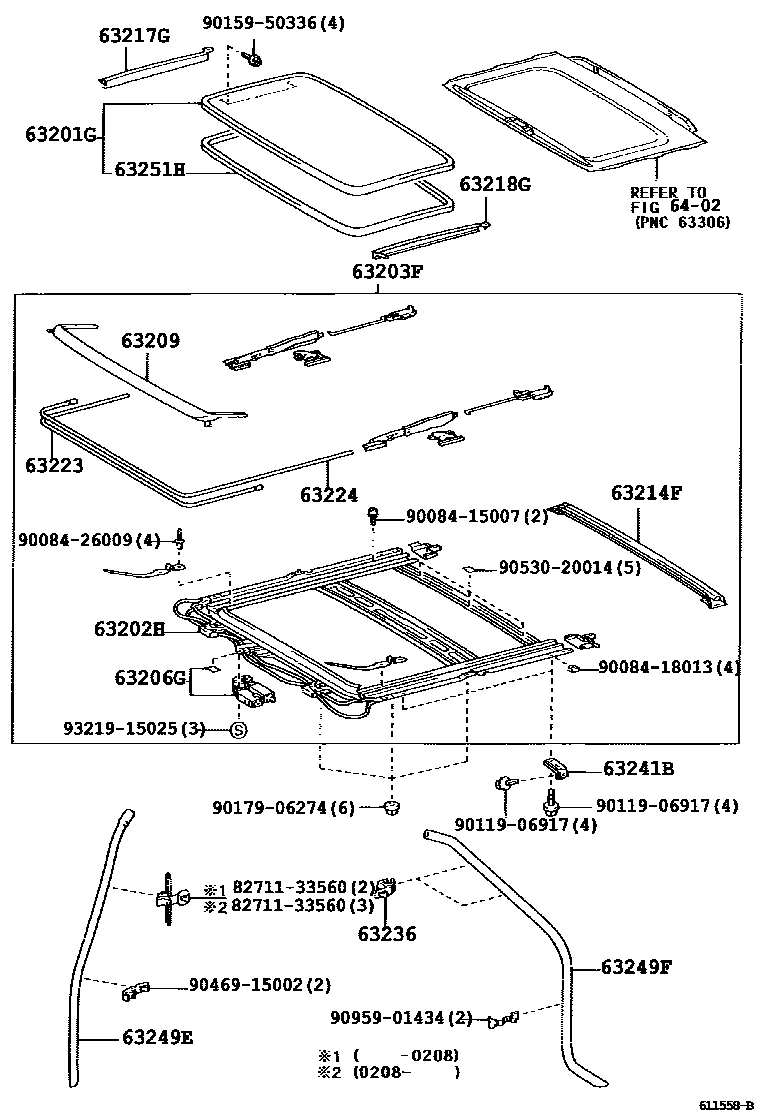

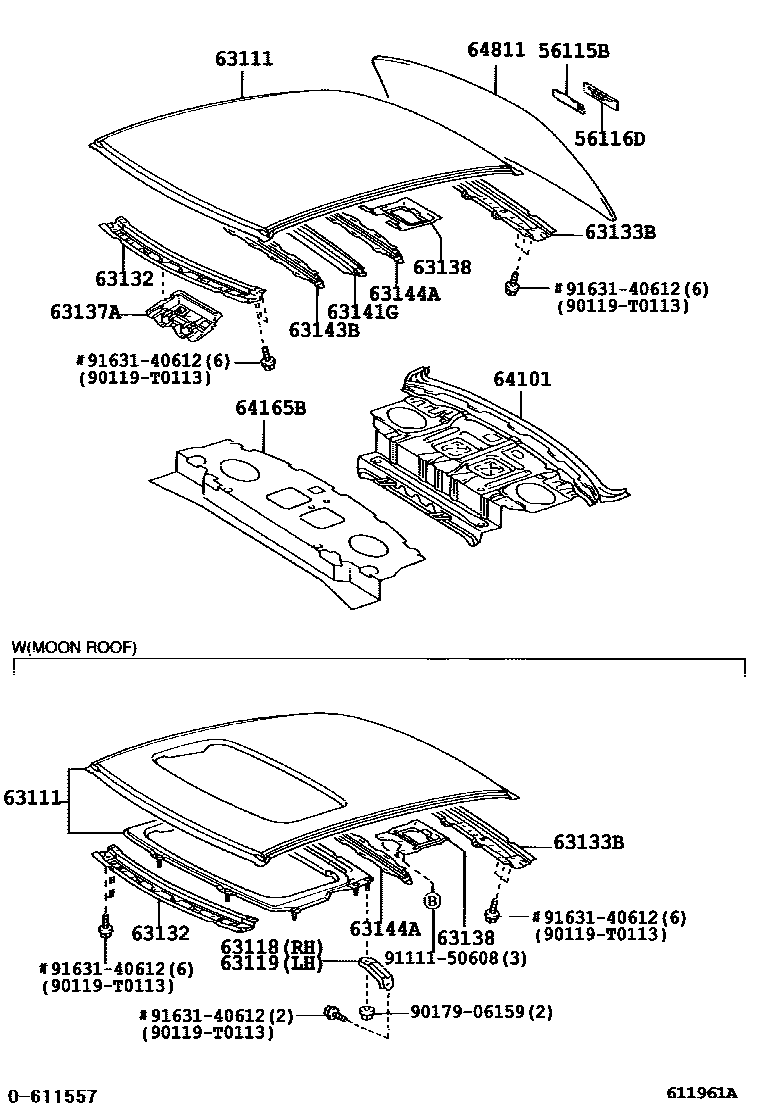

Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104
Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-02020 · 56115-30100 |
| 56116D | No. 2 stopper for back window glass | 56116-02020 · 56116-22050 |
| 63111 | roof panel | 63104-06900 · 63111-06410 · 63111-06913 · 63111-33190 |
| 63118 | Right roof panel bracket | 63118-33010 |
| 63119 | Left roof panel bracket | 63118-33010 |
| 63132 | Windshield inner roof panel | 63132-06020 |
| 63133B | back window frame | 63133-06020 |
| 63137A | No. 1 ceiling light bracket | 63137-33070 |
| 63138 | No. 2 ceiling light bracket | 63138-06010 · 63138-06020 |
| 63141G | No. 1 roof panel reinforcement | 63141-33050 |
| 63143B | No. 3 roof panel reinforcement | 63143-33050 |
| 63144A | No. 4 roof panel reinforcement | 63144-06050 · 63144-33080 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-06050 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-06020 |
| 63206G | Sliding sunroof driving gear sub-assembly | 63260-AA020 |
| 63209 | Roof deflector sub-assembly | 63209-06010 |
| 63214F | Roof rear drain channel | 63214-06010 |
| 63217G | Right sliding sunroof trim | 63217-06020 |
| 63218G | Sliding sunroof trim, left | 63218-06010 |
| 63223 | Right sliding sunroof transmission cable | 63224-06010 |
| 63224 | Left sliding sunroof transmission cable | 63224-06010 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-33020 |
| 63241B | Sliding sunroof frame bracket No. 1 | 63241-06020 |
| 63249E | Sliding skylight drain hose | 63249-06030 |
| 63249F | Sliding skylight drain hose | 63249-06040 |
| 63251H | Sliding skylight seal | 63251-06030 |
| 64101 | Upper back panel sub-assembly | 64101-06070 · 64101-06080 · 64101-06090 · 64101-06100 |
| 64165B | No. 1 upper back panel hole cover | 64165-06020 · 64165-06030 · 64165-06050 · 64165-06060 |
| 64811 | back window glass | 64811-06140 · 64811-06150 |
