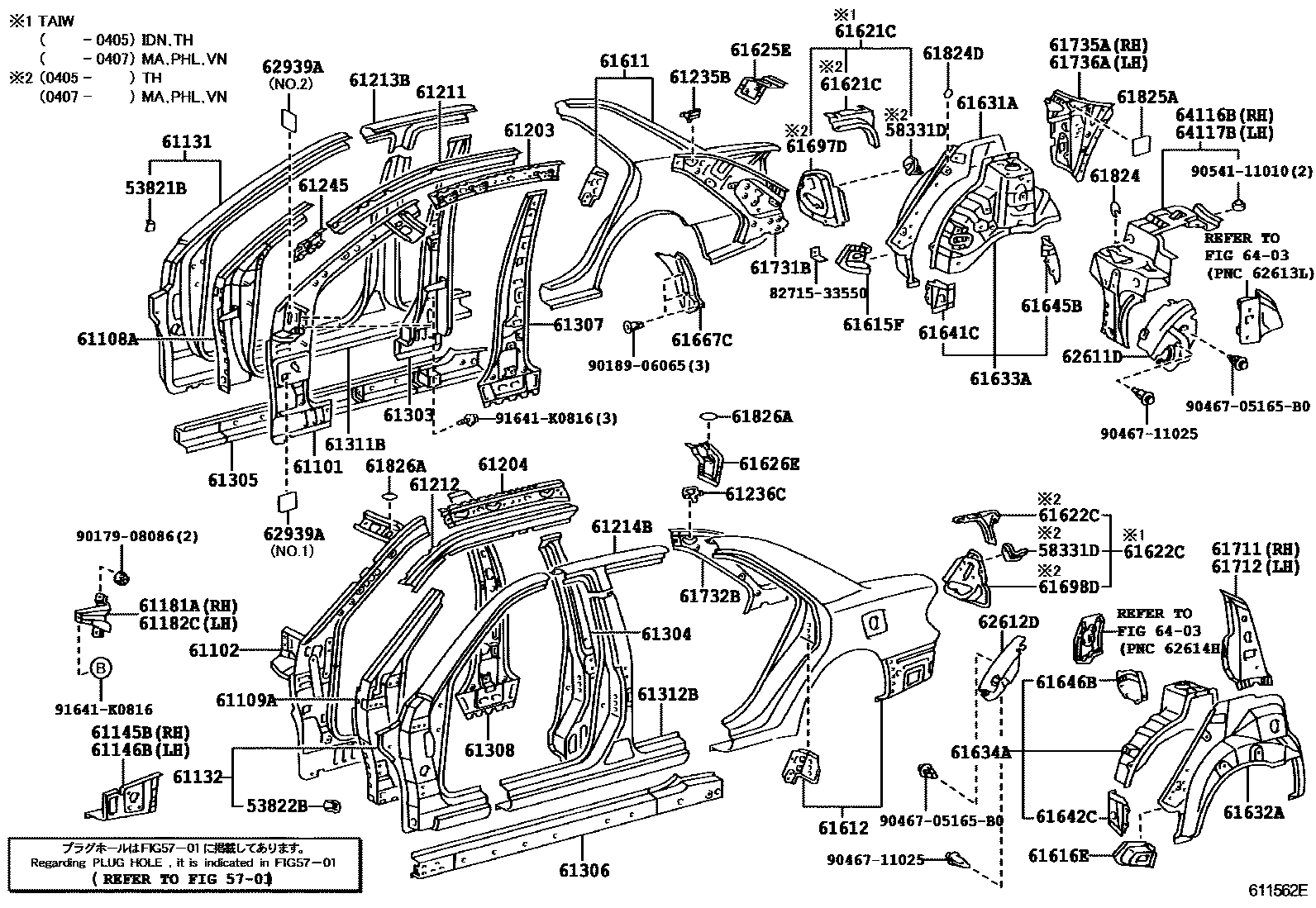

Toyota CAMRY 侧梁 — Figure 6101
Toyota CAMRY EPC diagram 6101, 侧梁, with 1 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-16010 |
| 53822B | Left front fender rear support | 53821-16010 |
| 58331D | No. 1 suitcase decorative panel bracket | 58331-33010 |
| 61101 | Right front wall side panel sub-assembly | 61101-06040 · 61101-06050 |
| 61102 | Left front wall side panel sub-assembly | 61102-06060 · 61102-06070 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-33120 · 61108-33130 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-33120 · 61109-33130 |
| 61131 | Right body outer front upper pillar | 61131-33010 |
| 61132 | Left body outer front upper pillar | 61132-33010 |
| 61145B | Right body front pillar lower corner panel | 61145-33030 |
| 61146B | Left body front pillar lower corner panel | 61146-33030 |
| 61181A | Instrument right side bracket | 61181-33010 |
| 61182C | Instrument left bracket | 61182-33010 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-06010 · 61203-06020 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-06010 · 61204-06020 |
| 61211 | Roof right outer longitudinal beam | 61211-33020 |
| 61212 | Roof left outer longitudinal beam | 61212-33020 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-33050 · 61213-33080 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-33050 · 61214-33080 |
| 61235B | Auxiliary handle bracket | 61235-33020 |
| 61236C | Auxiliary handle bracket | 61235-33020 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-33010 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-33040 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-33040 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-33030 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-33030 |
| 61307 | Right body inner center pillar sub-assembly | 61307-06010 |
| 61308 | Left body inner center pillar sub-assembly | 61308-06010 |
| 61311B | Right body outer center pillar | 61311-06010 |
| 61312B | Left body outer center pillar | 61312-06010 |
| 61611 | Right side hoarding | 61601-06050 · 61601-06080 |
| 61612 | left side panel | 61602-06060 · 61602-06080 |
| 61615F | Right side enclosure outer panel reinforcement | 61615-33050 |
| 61616E | Left side enclosure outer panel reinforcement | 61616-33050 |
| 61621C | Luggage right opening slot | 61621-06901 · 61621-06902 · 61621-06904 · 61621-33030 |
| 61622C | Luggage trunk left opening slot | 61622-06901 · 61622-06902 · 61622-06903 · 61622-33030 |
| 61625E | Right rear side panel inner panel extension | 61625-06040 |
| 61626E | Left rear side panel inner panel extension | 61626-06040 |
| 61631A | Right wheel cover outer panel | 61631-06030 · 61631-06040 |
| 61632A | Left side wheel cover outer panel | 61632-06030 · 61632-06040 |
| 61633A | Right wheel housing lining panel | 61607-06030 |
| 61634A | Left side wheel housing lining panel | 61608-06030 |
| 61641C | Right front side wheel housing corner panel | 61641-33030 |
| 61642C | Left front side wheel housing corner panel | 61642-33030 |
| 61645B | Right rear side wheel housing corner panel | 61645-33020 |
| 61646B | Left rear side wheel housing corner panel | 61646-33020 |
| 61667C | No. 1 side panel seal | 61667-33070 |
| 61697D | Right side enclosure end cover | 61697-06050 |
| 61698D | Left side enclosure end cover | 61698-06050 |
| 61711 | Roof right side outer panel | 61711-33040 |
| 61712 | Roof left outer panel | 61712-33040 |
| 61731B | Roof right inner panel | 61731-06050 · 61731-06060 |
| 61732B | Roof left inner panel | 61732-06040 · 61732-06050 |
| 61735A | Right rear roof inner panel | 61735-33050 |
| 61736A | Left rear roof inner panel | 61736-33050 |
| 61824 | Noise Control Panel No. 1 | 61824-33020 |
| 61824D | Noise Control Panel No. 1 | 61825-30020 |
| 61825A | Noise Control Panel No. 2 | 61825-30020 |
| 61826A | Noise Control Panel No. 3 | 61824-0D020 · 61824-12040 |
| 62611D | Right wheel cover pad | 62611-33030 |
| 62612D | Left side wheel cover pad | 62612-33030 |
| 62939A | Side ventilation silencers | 62939-32020 · 62939-32030 |
| 64116B | Right rear upper reinforcement | 64201-06900 · 64201-06901 · 64201-06902 · 64201-06904 |
| 64117B | Left rear upper reinforcement | 64202-06900 · 64202-06902 · 64202-06904 |
