Toyota CAMRY 中央扶手箱和支架 — Figure 5806

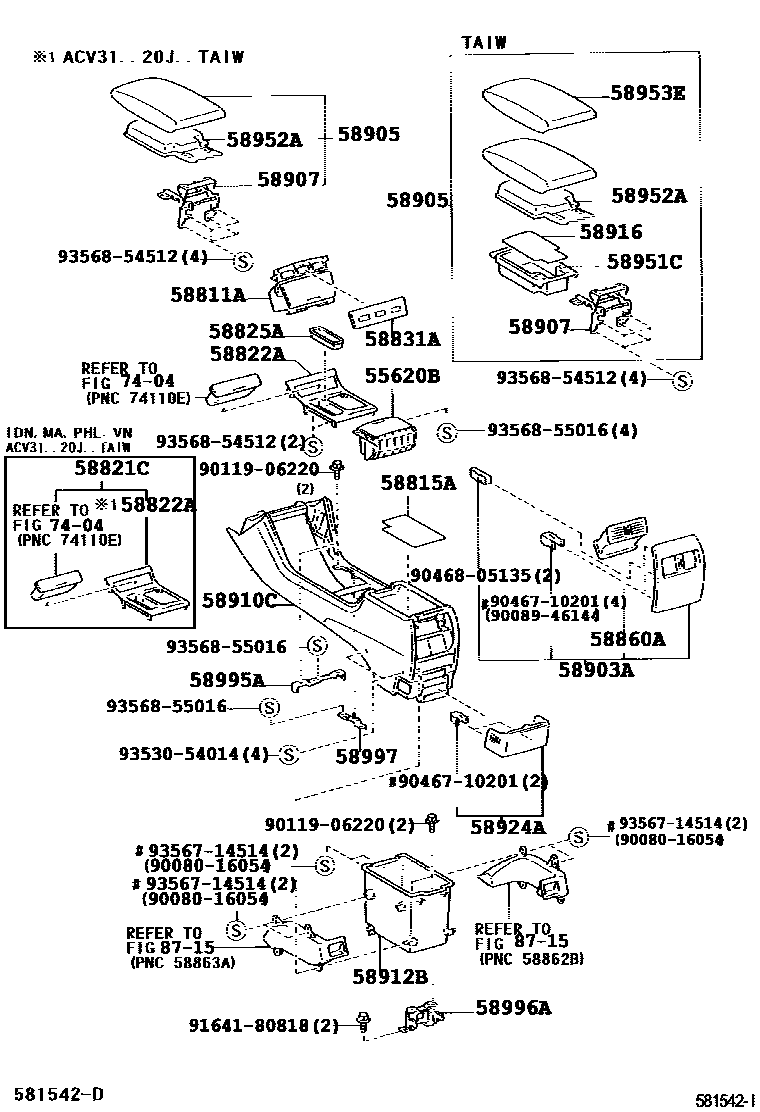

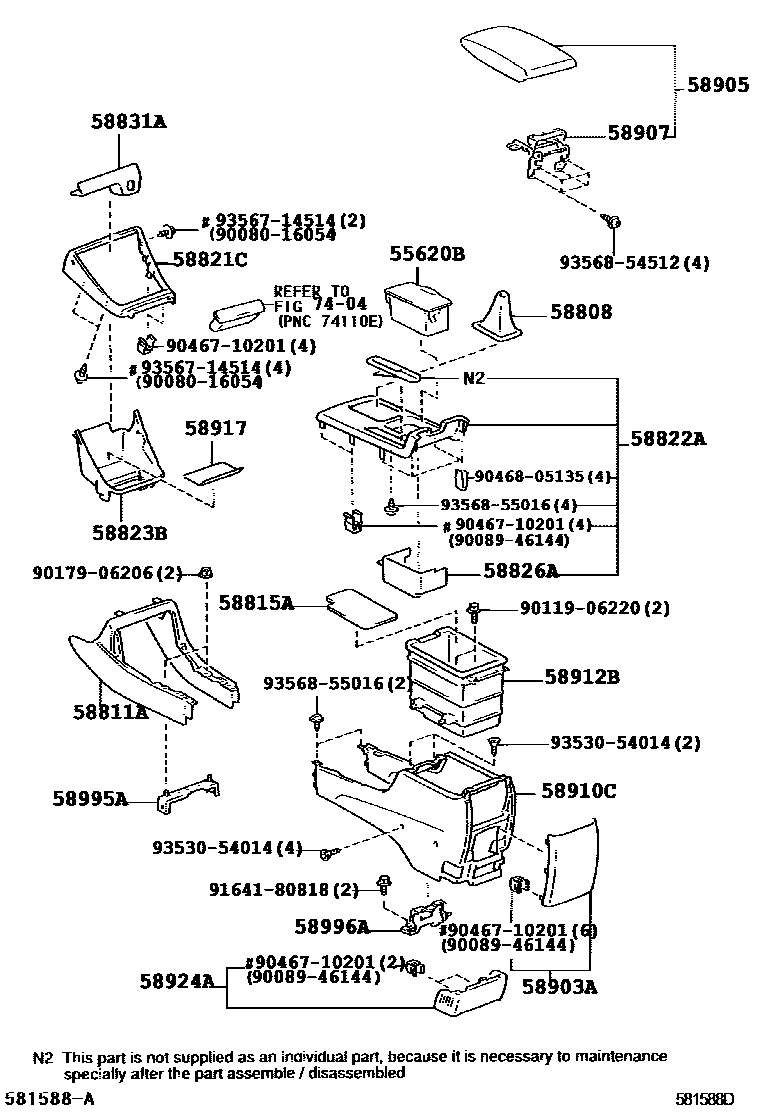

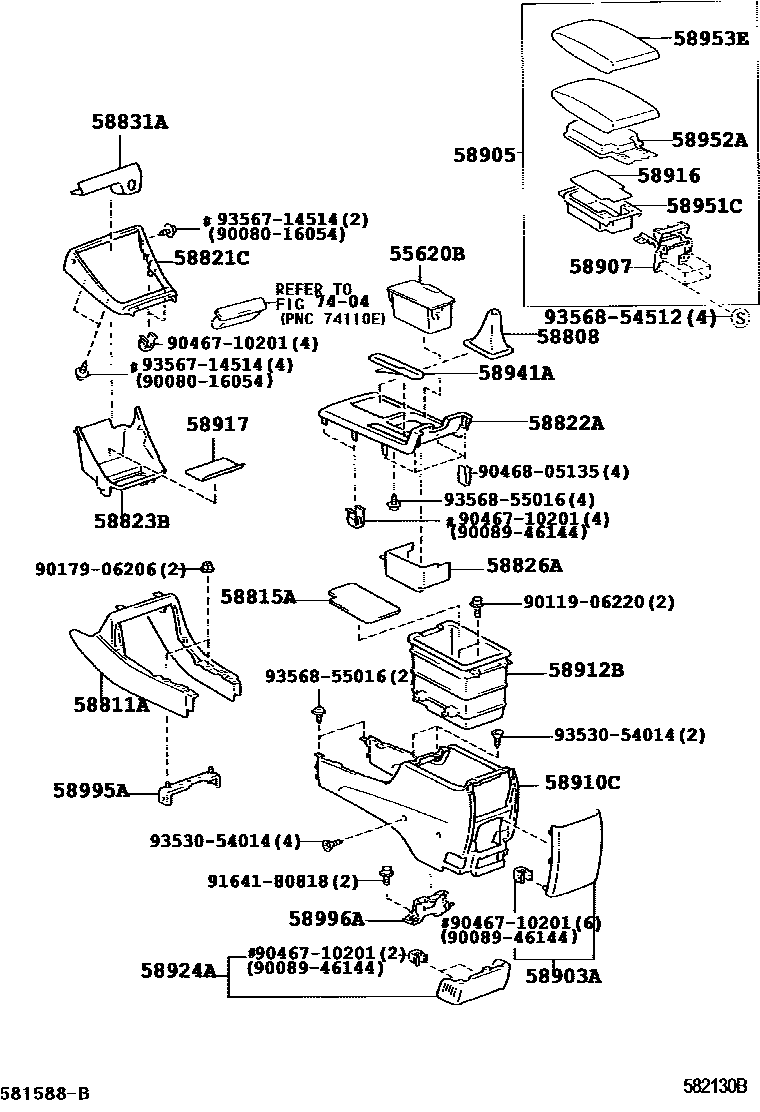

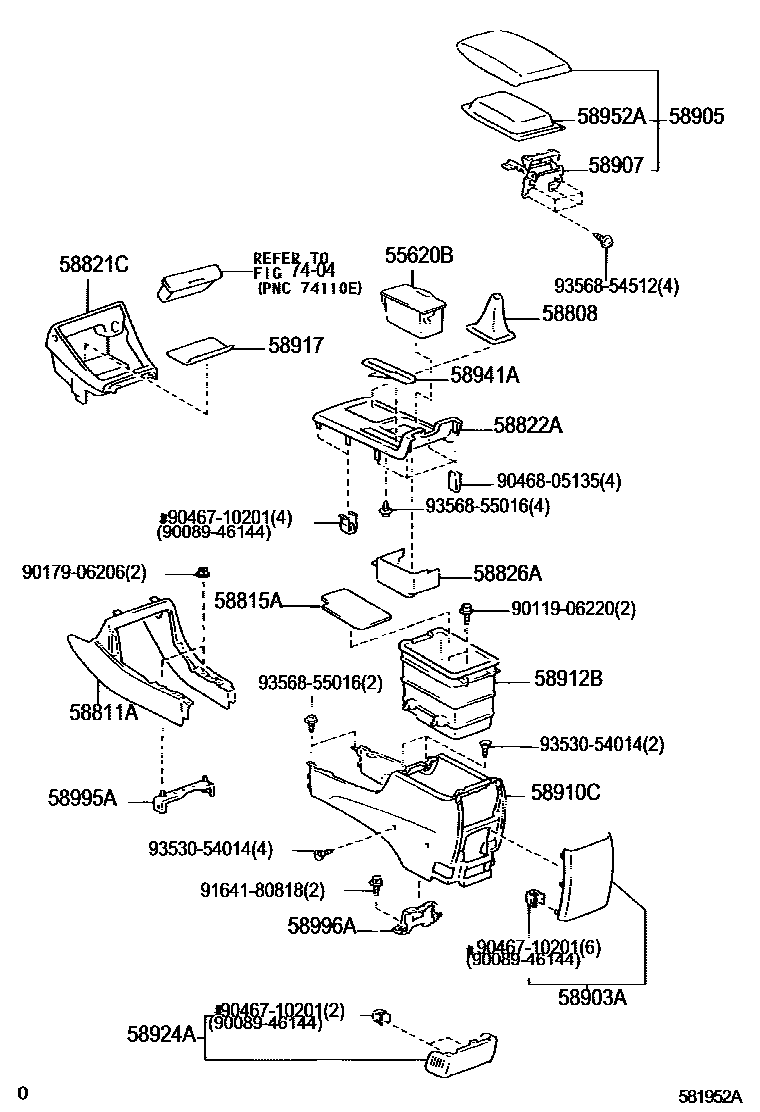

Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55620B | Dashboard cup holder | 55620-06020 · 55620-06030 · 55620-06040 · 55620-33100 · 55620-33150 |
| 58811A | front armrest box | 58802-06010 · 58802-06020 · 58802-06030 |
| 58815A | Armrest box felt pad | 58815-06010 |
| 58821C | Armrest box upper panel | 58804-33550 · 58805-06010 · 58805-06020 · 58821-33300 · 58821-33360 · 58821-33440 |
| 58822A | Rear armrest box upper panel | 58805-33030 · 58805-33031 · 58822-06010 · 58822-06020 · 58822-06030 · 58822-06040 · 58822-06050 · 58822-06060 · 58822-33080 |
| 58823B | Armrest box cover | 58823-33010 · 58823-33030 |
| 58825A | Armrest box groove | 58825-06010 |
| 58826A | Groove under armrest box | 58826-33010 |
| 58831A | Front armrest box upper panel decorative parts | 58831-06010 · 58831-06020 · 58831-06030 · 58831-06040 · 58831-06050 · 58831-06060 · 58831-06070 · 58831-06080 · 58831-06090 · 58831-06100 · 58831-06110 · 58831-06130 · 58831-06140 · 58831-06150 · 58831-06210 · 58831-06220 · 58831-06230 · 58831-33020 · 58831-33040 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-33080 |
| 58912B | Rear lower armrest box | 58912-06030 · 58912-33100 |
| 58916 | Armrest box bottom pad | 58916-06040 · 58916-33070 |
| 58917 | Armrest box bottom pad No. 2 | 58917-33060 · 58917-33070 |
| 58941A | Parking brake hole cover | 58941-33071 |
| 58951C | Armrest box cover | 58951-06050 · 58951-33050 |
| 58952A | Armrest box inner cover | 58952-06010 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-06020 · 58995-33030 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-06020 · 58996-33030 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-06020 |
