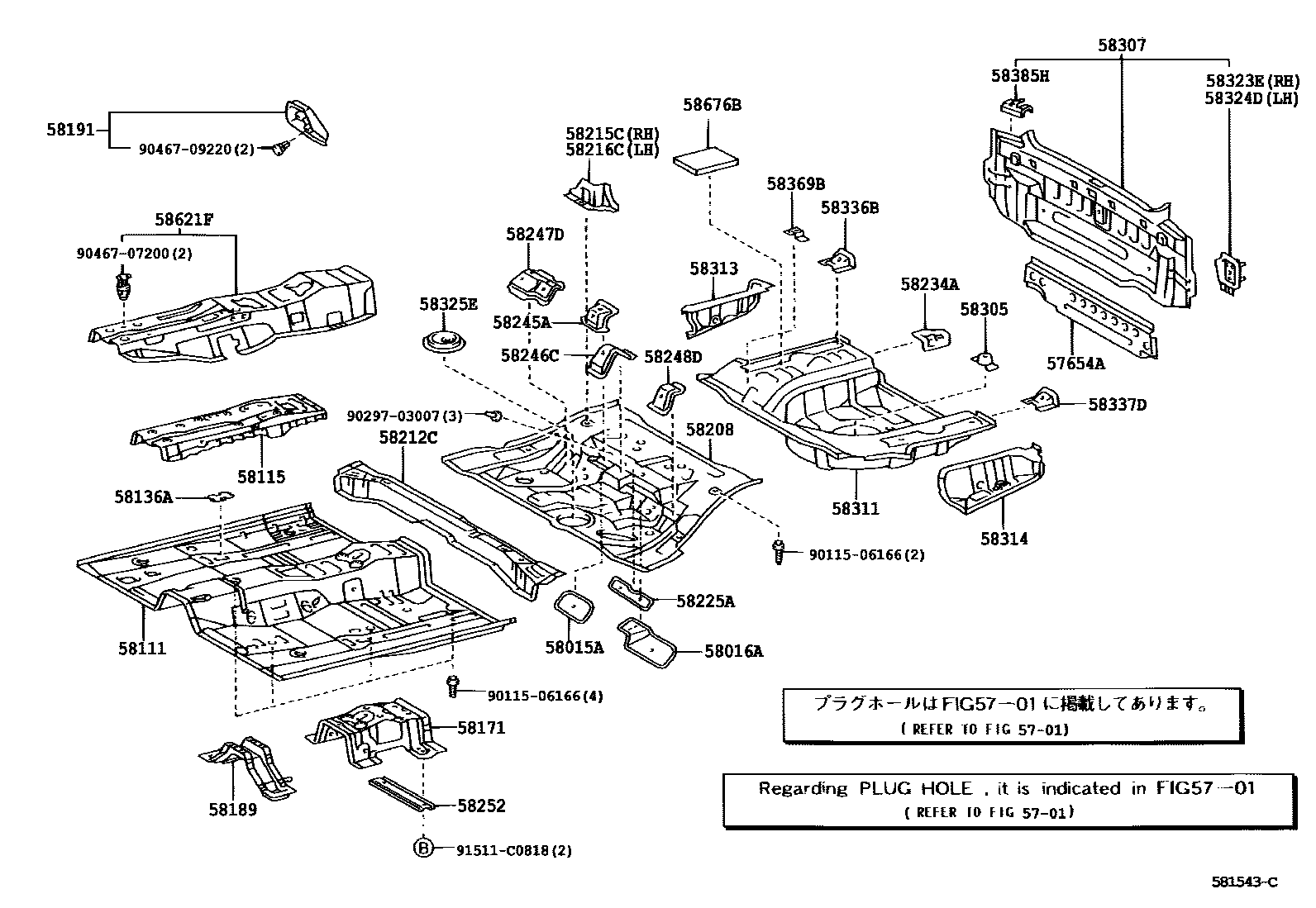

Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801
Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57654A | Rear floor beam No. 3 | 57654-33010 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-33020 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-33040 |
| 58111 | front floor pan | 58111-06902 |
| 58115 | Front floor reinforcement | 58013-06030 · 58115-06040 |
| 58136A | Front floor access hole cover | 58136-33010 |
| 58171 | Parking brake base reinforcement | 58107-33060 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-33030 |
| 58191 | Front floor footrest | 58191-33040 · 58192-33030 |
| 58208 | central floor base | 58211-06090 |
| 58212C | Center floor front floor | 58212-06070 · 58212-06080 · 58212-33010 |
| 58215C | Center floor No. 2 right reinforcement | 58215-33040 |
| 58216C | Center floor No. 2 left reinforcement | 58216-33030 |
| 58225A | central mounting bracket | 58225-33010 |
| 58234A | Exhaust pipe mounting bracket | 58234-41010 |
| 58245A | Rear center seat hinge No. 1 bracket | 58245-06020 |
| 58246C | Rear center seat hinge No. 2 bracket | 58246-06020 |
| 58247D | Rear right seat outer hinge bracket | 58247-06020 |
| 58248D | Rear left seat outer hinge bracket | 58248-06020 |
| 58252 | rear floor bracket | 58252-33020 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-33010 |
| 58307 | Body lower back panel sub-assembly | 58307-06050 · 58307-06060 · 58307-06080 · 58307-06090 |
| 58311 | rear floor pan | 58311-33060 |
| 58313 | Rear floor right panel | 58305-33050 |
| 58314 | rear floor left panel | 58306-33020 |
| 58323E | Rear bumper arm right bracket reinforcement | 58323-33060 |
| 58324D | Rear bumper arm left bracket reinforcement | 58324-33040 |
| 58325E | Rear floor access hole cover | 58325-33020 |
| 58336B | Rear floor pan reinforcement | 58336-33010 |
| 58337D | Rear floor bottom left reinforcement | 58337-33020 |
| 58369B | No. 3 fuel pipe bracket | 58369-32010 |
| 58385H | Rear bumper cover No. 1 bracket | 58385-06020 |
| 58621F | Center console silencer No. 1 | 58621-06040 · 58621-06050 |
| 58676B | Rear floor No. 1 right muffler pad | 58676-33010 |
