Toyota CAMRY 发动机盖锁和铰链 — Figure 5303

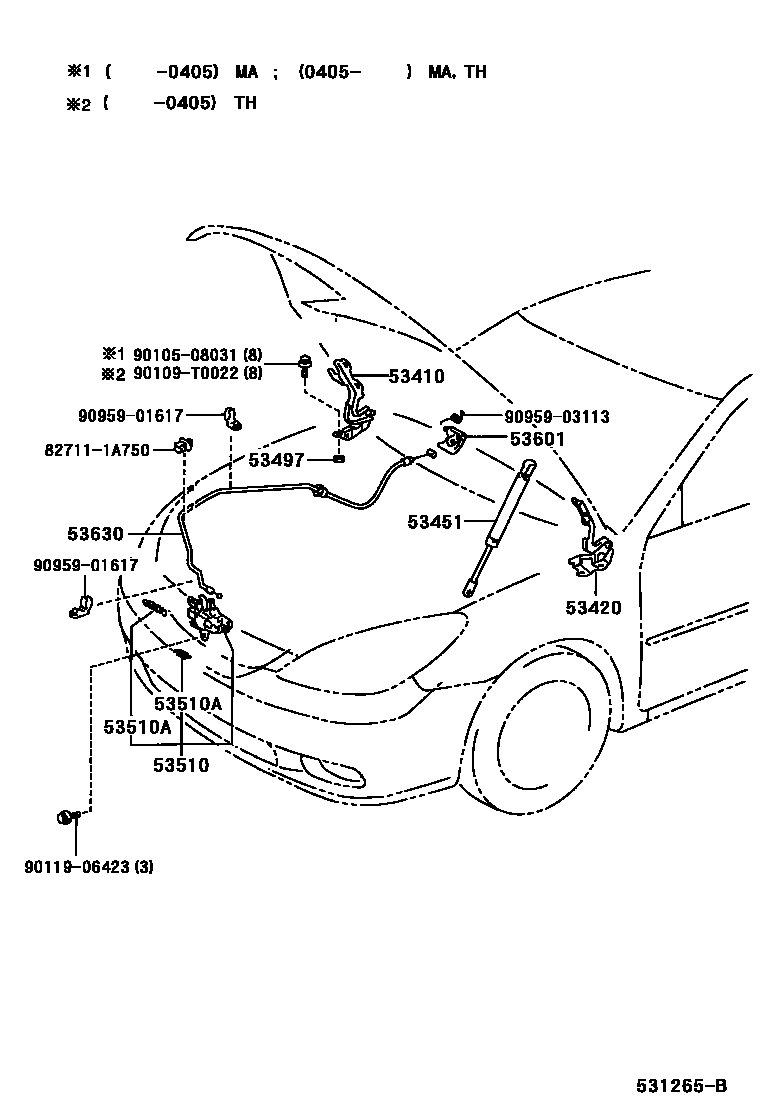

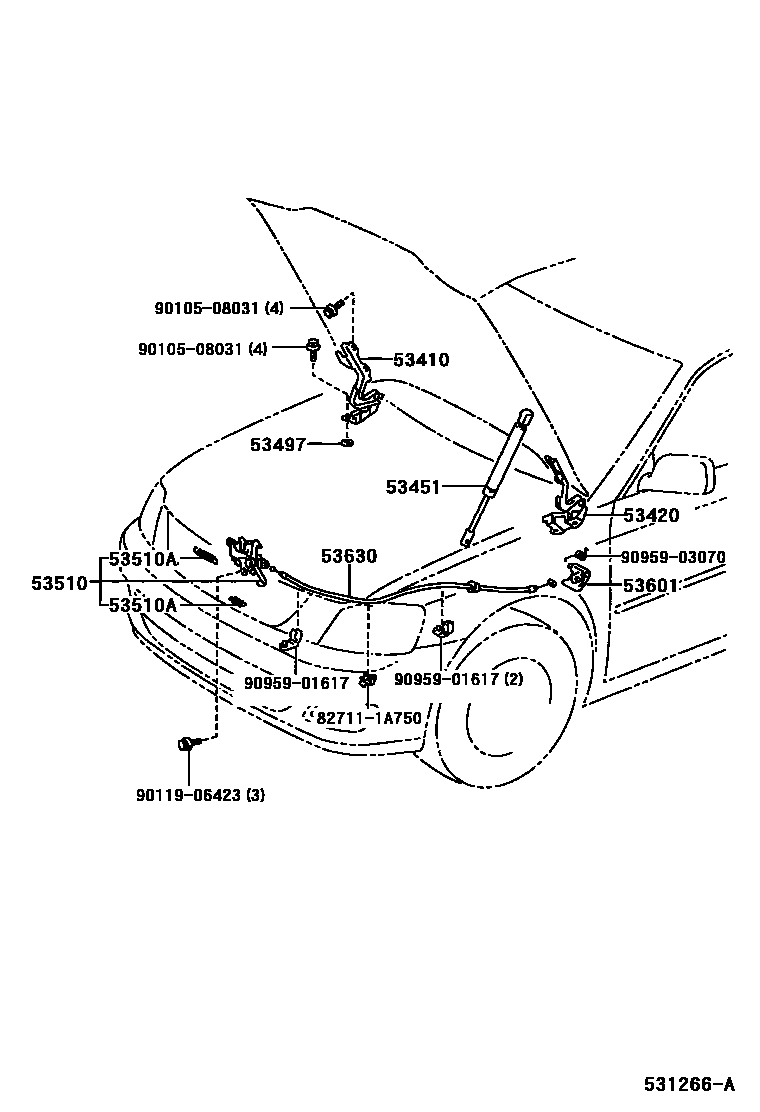

Toyota CAMRY EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-06060 · 53410-33120 |
| 53420 | Engine cover left hinge assembly | 53420-06090 · 53420-33120 |
| 53451 | Engine cover support rod | 53440-AA011 · 53440-AA013 |
| 53497 | No. 1 engine cover hinge gasket | 53497-20070 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-06030 · 53510-06031 · 53510-06040 · 53510-06041 · 53510-06070 · 53510-06080 · 53510-06090 |
| 53510A | Tension spring (for hood lock) | 90506-09052 · 90506-09055 · 90506-12063 · 90506-18067 |
| 53630 | Engine hood lock control cable assembly | 53630-06040 · 53630-06050 |
