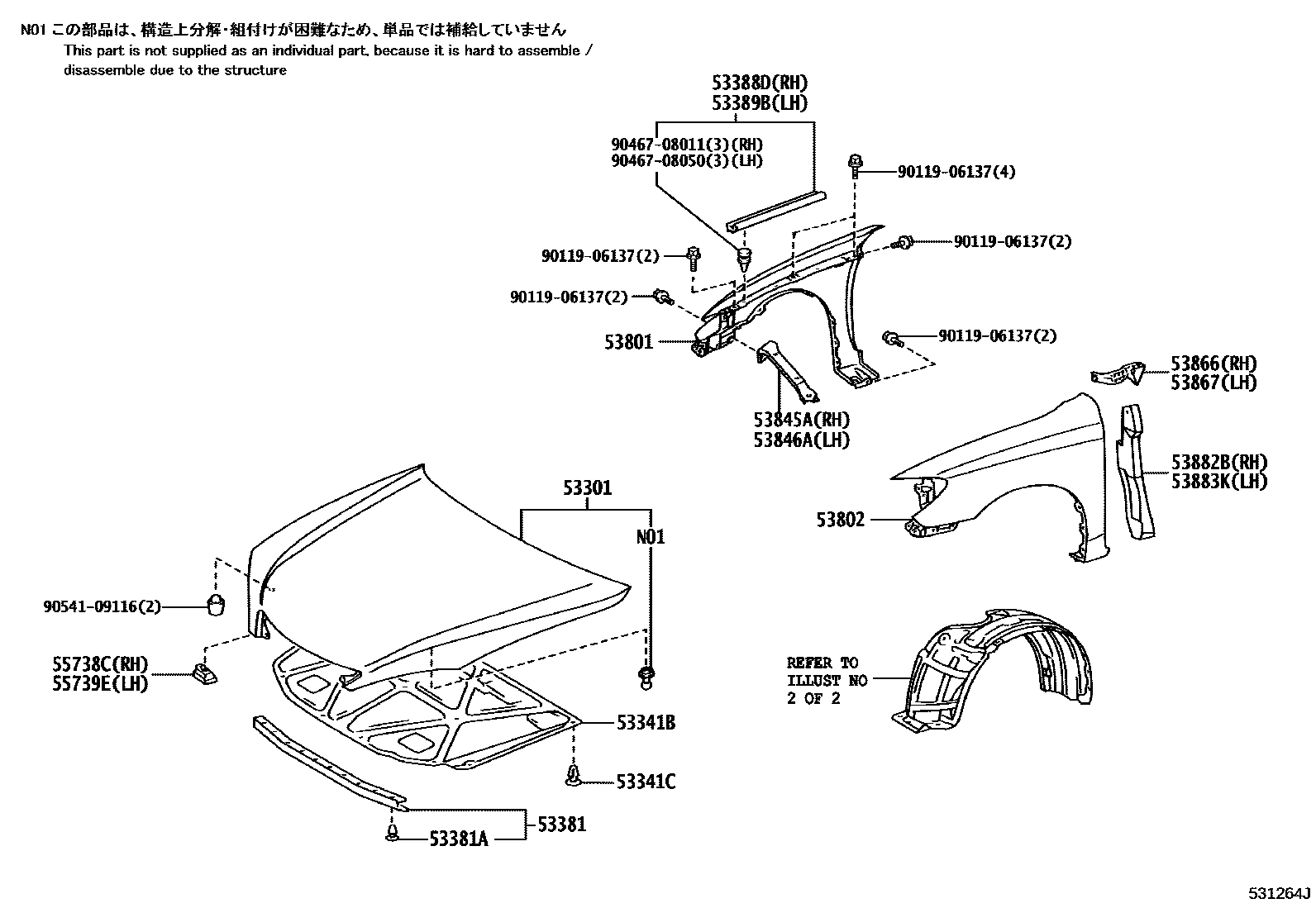

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749D | pin fixing clip | 47749-58010 |
| 53301 | Engine cover sub-assembly | 53301-06040 · 53301-06060 · 53301-06070 |
| 53341B | engine cover gasket | 53341-06070 · 53341-06080 · 53341-06090 · 53341-06100 |
| 53341C | Clip (for engine cover gasket) | 90467-09030 |
| 53381 | Engine cover to radiator bracket seal | 53381-06030 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90080-46010 |
| 53388D | Engine cover to right front fender seal | 53388-06010 · 53388-33030 |
| 53389B | Engine cover to left front fender seal | 53389-06010 · 53389-33040 |
| 53801 | Right front fender sub-assembly | 53801-06080 |
| 53802 | Left front fender sub-assembly | 53802-06080 · 53802-06100 |
| 53845A | Right front fender fender stay | 53845-33060 |
| 53846A | Left front fender fender stay | 53846-33050 |
| 53866 | Right front fender to cowl side seal | 53866-33040 |
| 53867 | Left front fender to cowl side seal | 53867-33040 |

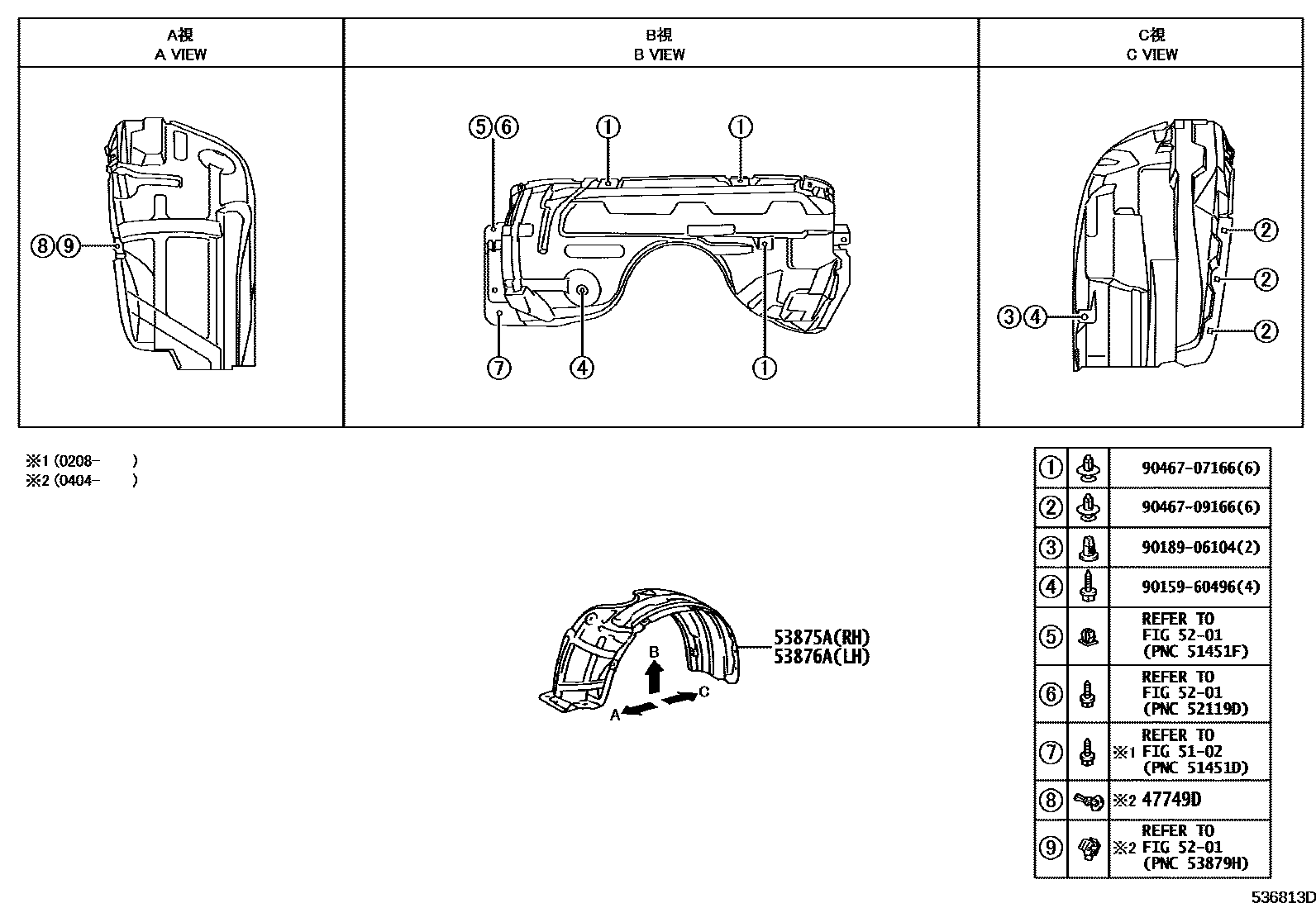

| 53875A | Right front fender lining | 53875-06050 · 53875-06051 |
| 53876A | Left front fender lining | 53876-06050 · 53876-06051 |
| 53882B | Right front fender seal | 53882-33020 |
| 53883K | Left front fender seal | 53883-33020 |
| 55738C | Engine cover right block | 55738-33030 |
| 55739E | Engine cover left block | 55739-33030 |
