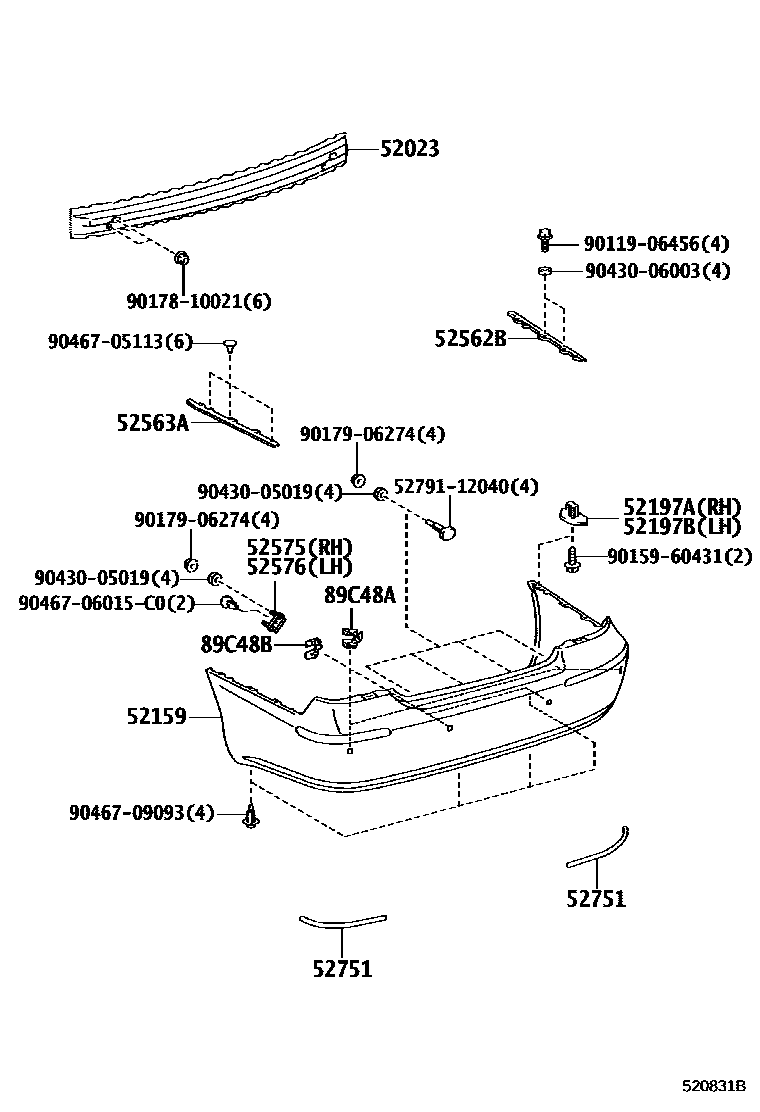

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-06030 |
| 52159 | rear bumper cover | 52159-06902 · 52159-06903 · 52159-06904 · 52159-06908 |
| 52197A | Rear bumper right seal support | 52197-16020 |
| 52197B | Rear bumper left seal support | 52197-16020 |
| 52562B | Rear bumper upper right fixing bracket | 52562-06010 |
| 52563A | Rear bumper upper left fixing bracket | 52563-06010 |
| 52575 | Rear bumper right side fixing bracket | 52575-33100 |
| 52576 | Rear bumper left side fixing bracket | 52575-33100 |
| 52751 | Rear bumper protection strip | 52751-06010 |
| 89C48A | Ultrasonic sensor rear corner fixing bracket | 89348-50010 |
| 89C48B | Ultrasonic sensor rear central fixing bracket | 89348-50010 |
