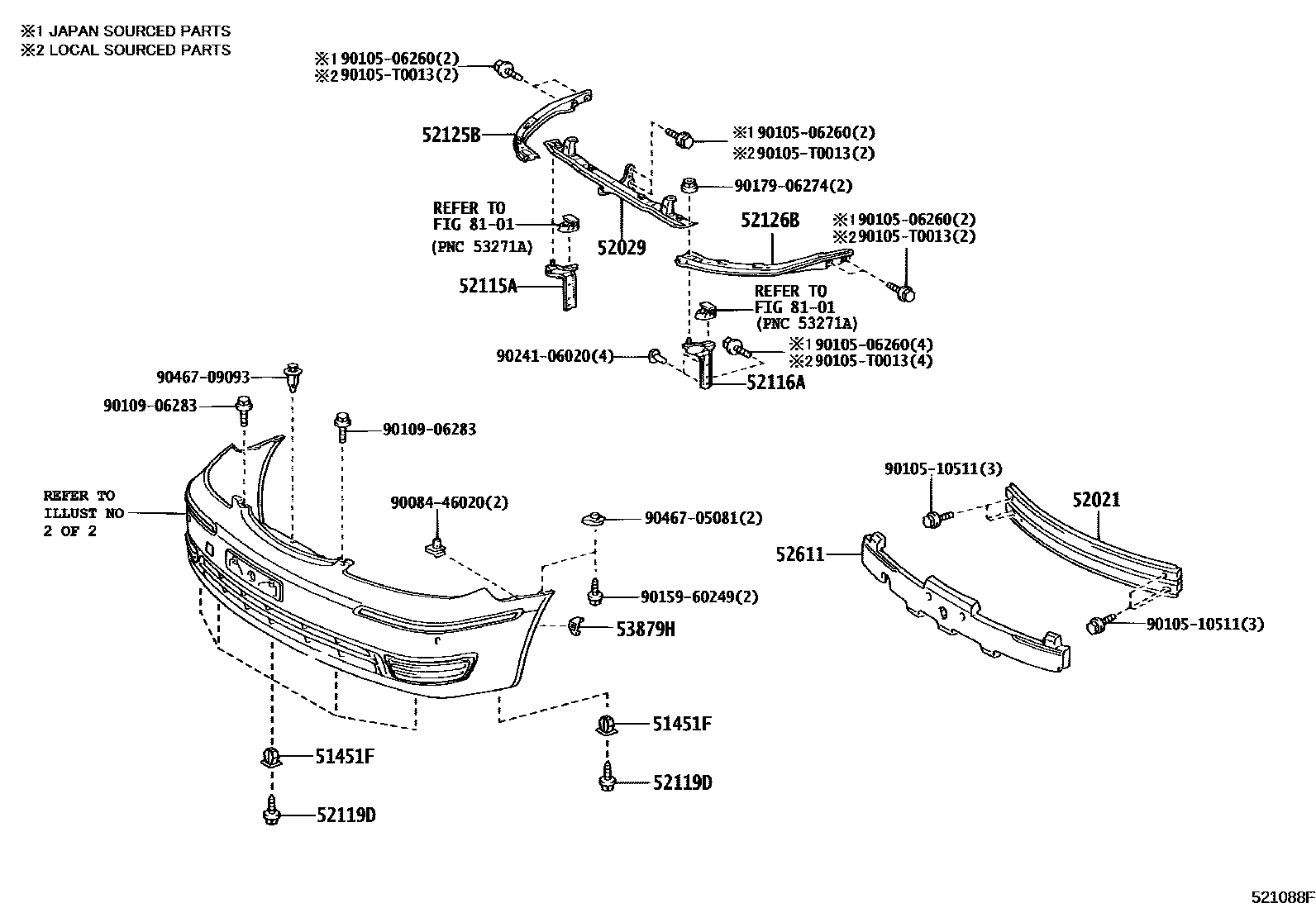

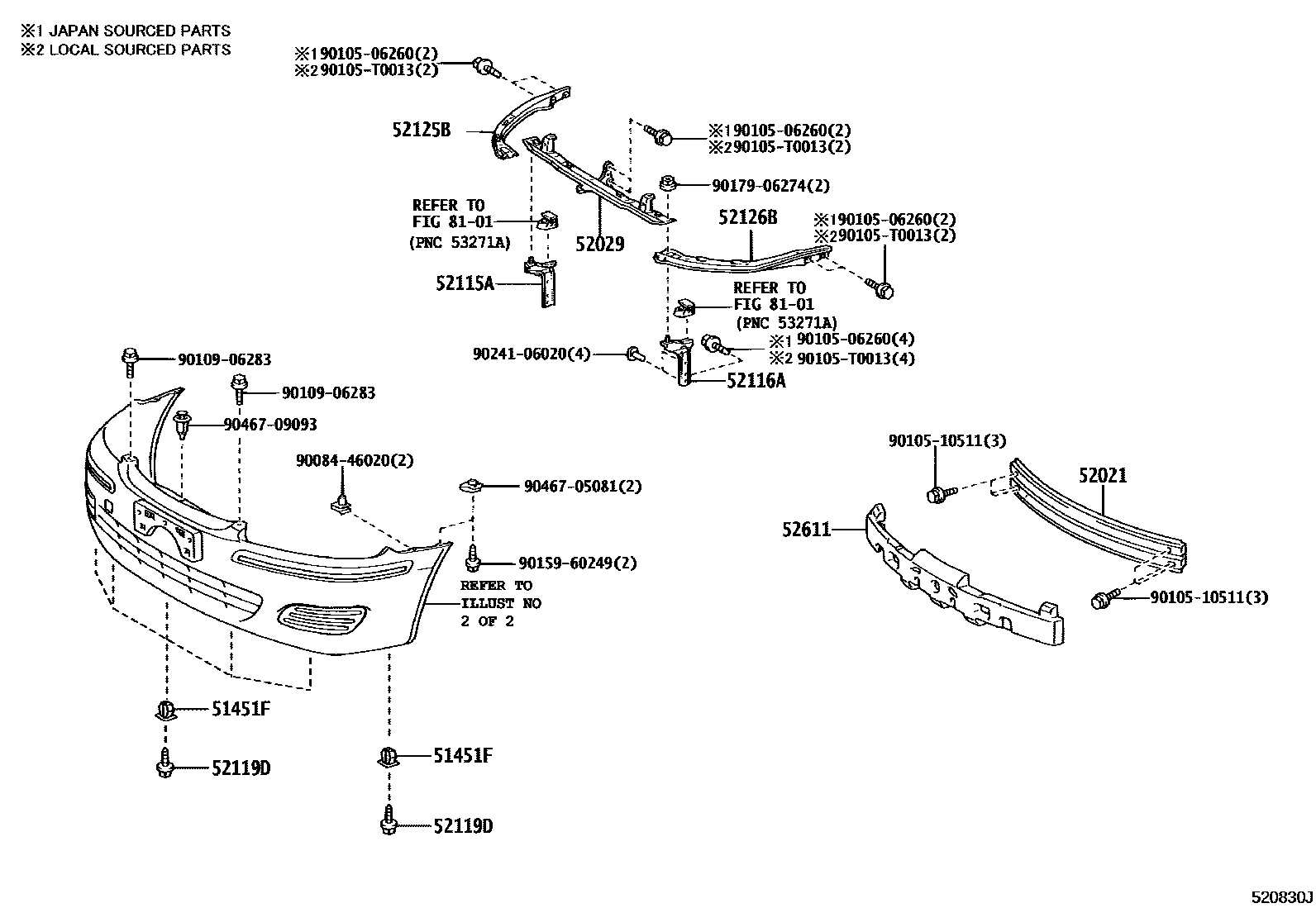

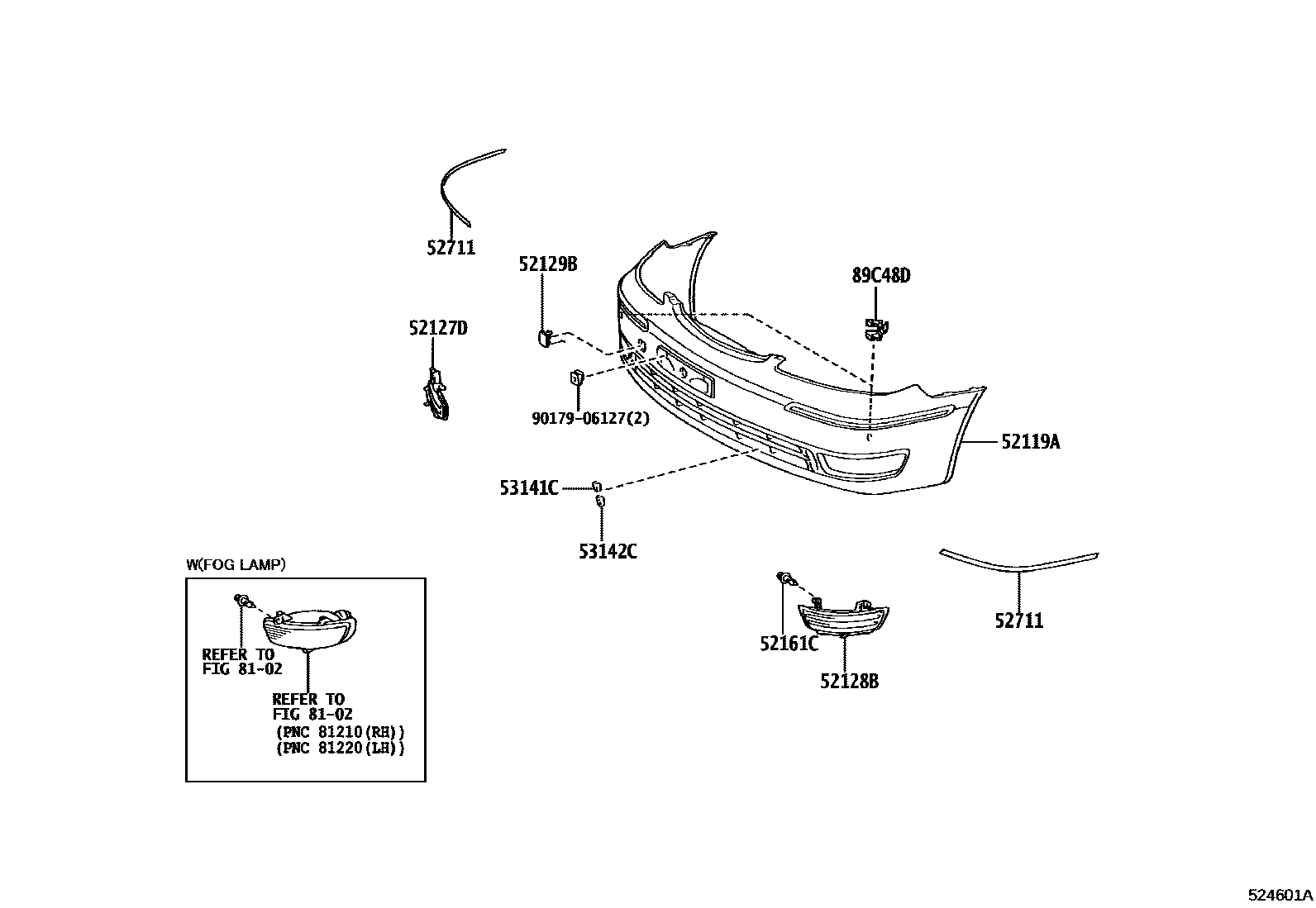

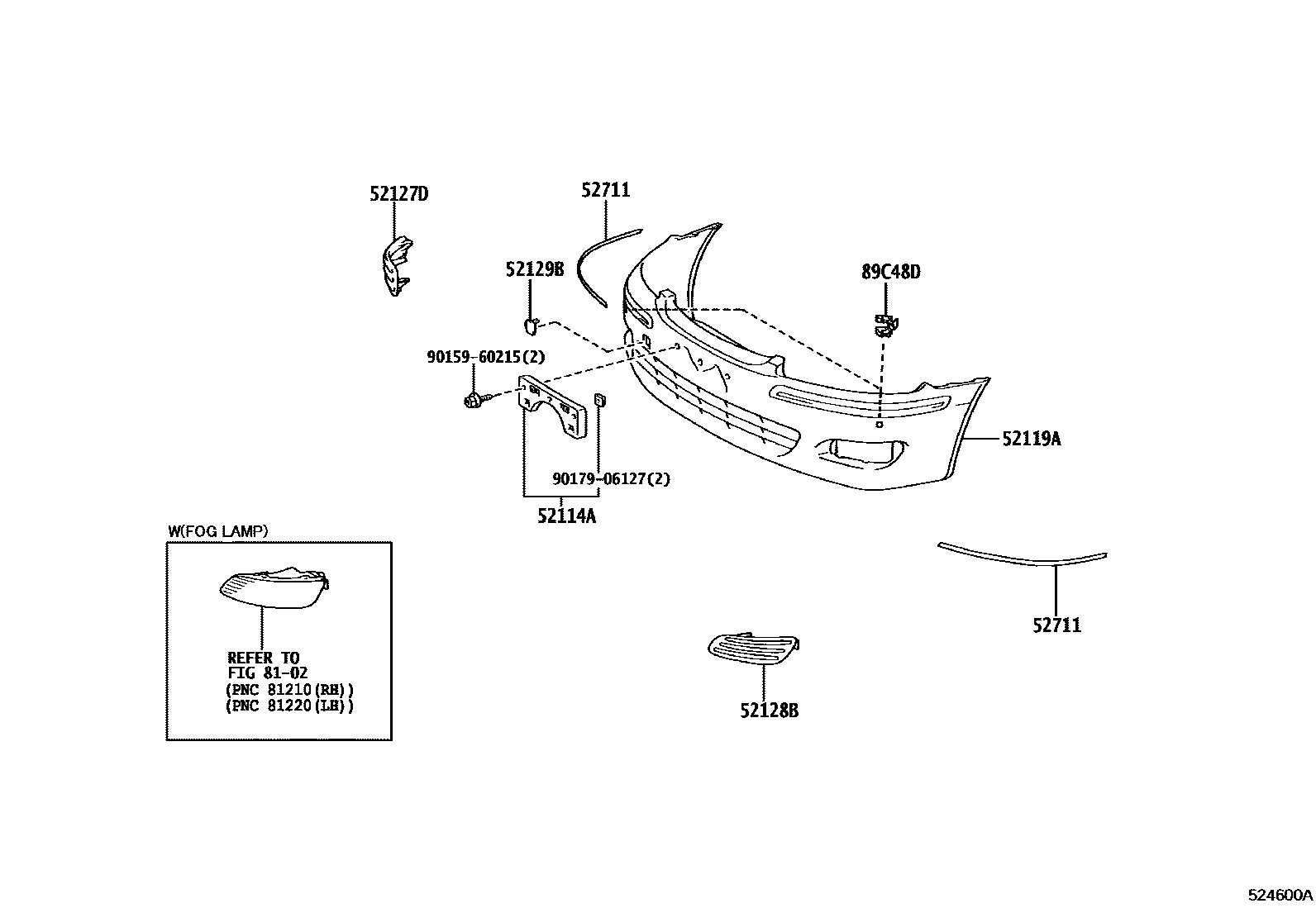

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451F | Gasket No. 1 | 90189-06193 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-06020 |
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-06020 · 52029-06030 |
| 52114A | Front bumper extension mounting bracket | 52114-06010 · 52114-33150 |
| 52115A | Front bumper right side bracket | 52115-06020 · 52115-06030 |
| 52116A | Front bumper left bracket | 52116-06020 · 52116-06030 |
| 52119A | front bumper cover | 52119-06902 · 52119-06903 · 52119-06911 · 52119-06912 · 52119-06913 · 52119-06914 |
| 52119D | Screw No. 1 | 90159-60431 |
| 52125B | Front bumper reinforcement right extension section | 52125-06030 · 52125-06040 |
| 52126B | Front bumper reinforcement left extension section | 52126-06030 · 52126-06040 |
| 52127D | Front bumper right hole cover | 52127-06901 · 52127-06902 |
| 52128B | Front bumper left hole cover | 52128-06901 · 52128-06902 |
| 52129B | Front bumper lower cover | 52129-06900 · 52129-06901 |
| 52161C | front bumper insert | 52161-16010 |
| 52611 | front bumper energy absorber | 52611-06030 · 52611-06040 |
| 52711 | Front bumper protection strip | 52711-06030 |
| 53141C | Radiator grille trim | 53141-06010 · 53141-06020 |
| 53142C | Radiator grille trim part 2 | 53142-06010 · 53142-06020 |
| 53879H | Front fender lining fixing parts | 53879-58010 |
| 89C48D | Front angle ultrasonic sensor holder | 89348-50010 |
