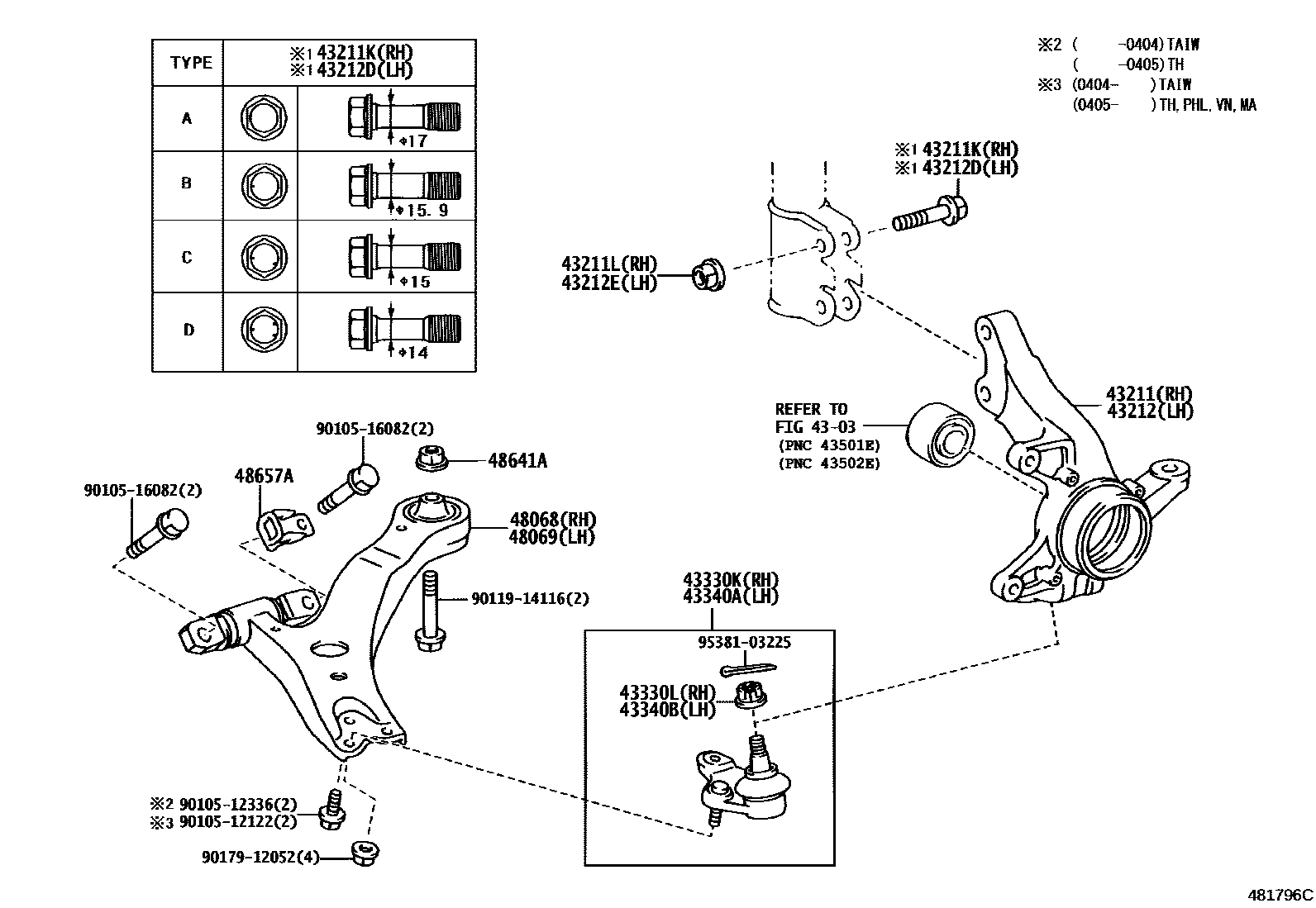

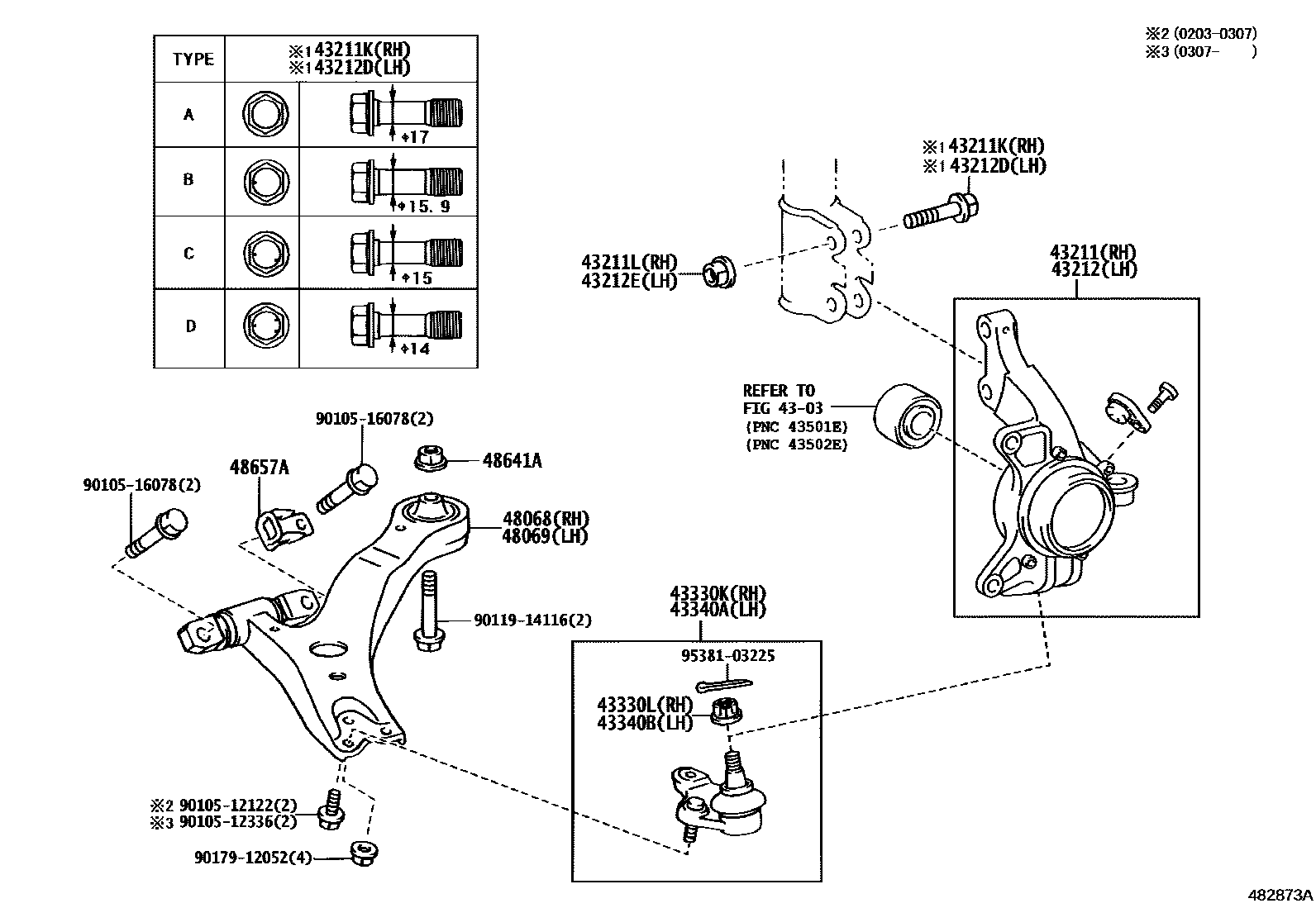

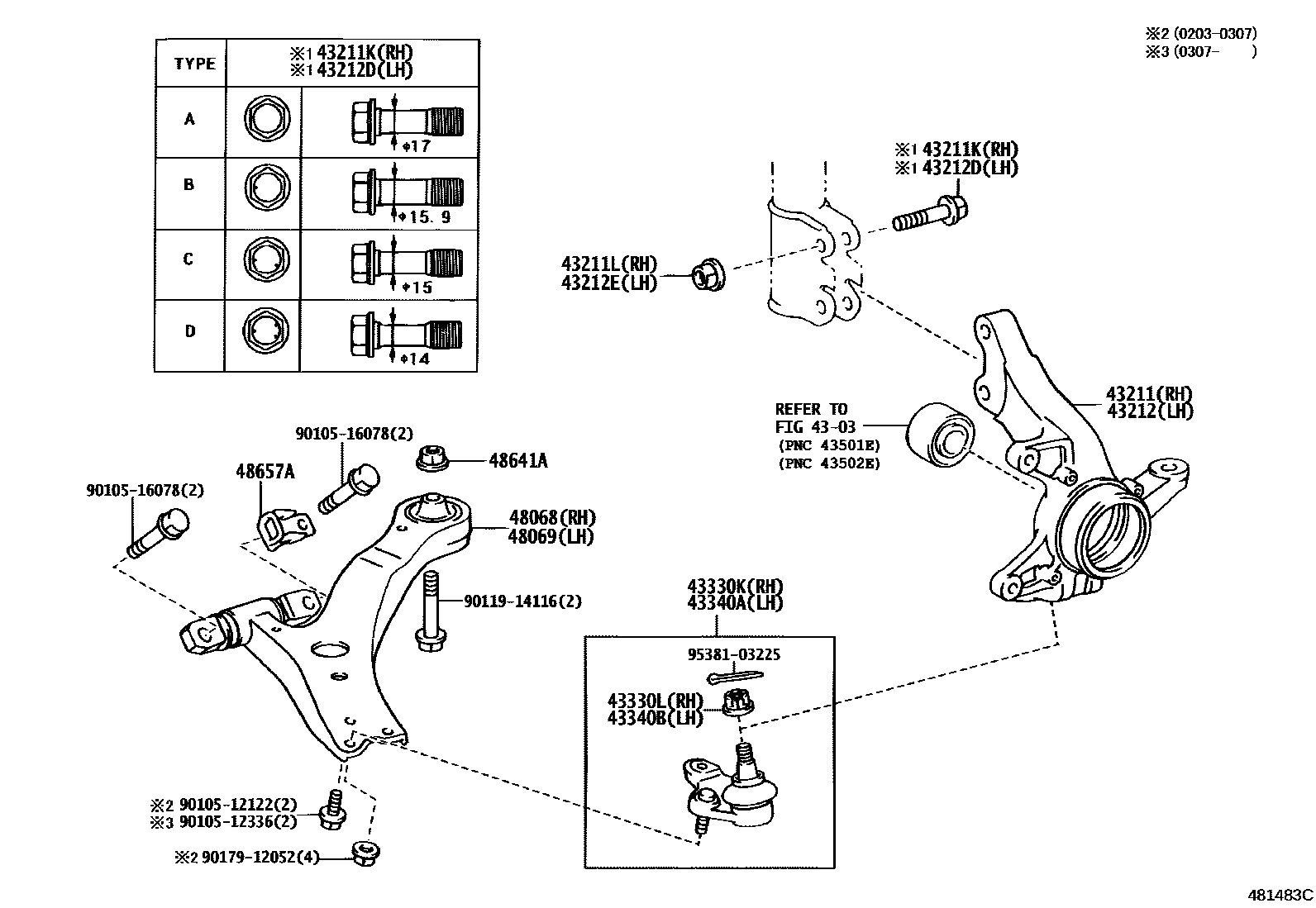

Toyota CAMRY 前桥控制臂和转向节 — Figure 4802
Toyota CAMRY EPC diagram 4802, 前桥控制臂和转向节, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-06160 · 43211-06170 · 43211-06210 · 43211-39045 · 43211-58010 |
| 43211K | Bolt (for right steering knuckle) | 90105-17008 · 90105-17009 · 90105-17010 · 90105-17011 |
| 43211L | Nut (for right steering knuckle) | 90178-17001 |
| 43212 | left steering knuckle | 43212-06140 · 43212-06200 · 43212-06210 · 43212-39035 · 43212-58010 |
| 43212D | Bolt (for left steering knuckle) | 90105-17008 · 90105-17009 · 90105-17010 · 90105-17011 |
| 43212E | Nut (for left steering knuckle) | 90178-17001 |
| 43330K | Right front lower ball joint assembly | 43330-09180 · 43330-29405 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-14003 |
| 43340A | Left front lower ball joint assembly | 43340-09020 · 43340-29175 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-14003 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-06080 · 48068-33050 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-06080 · 48069-33050 |
| 48641A | Nut (for suspension lower arm shaft) | 90178-14008 · 90179-14068 |
| 48657A | Front lower arm bushing stop | 48657-06020 |
