Toyota CAMRY 制动配管和卡箍 — Figure 4708

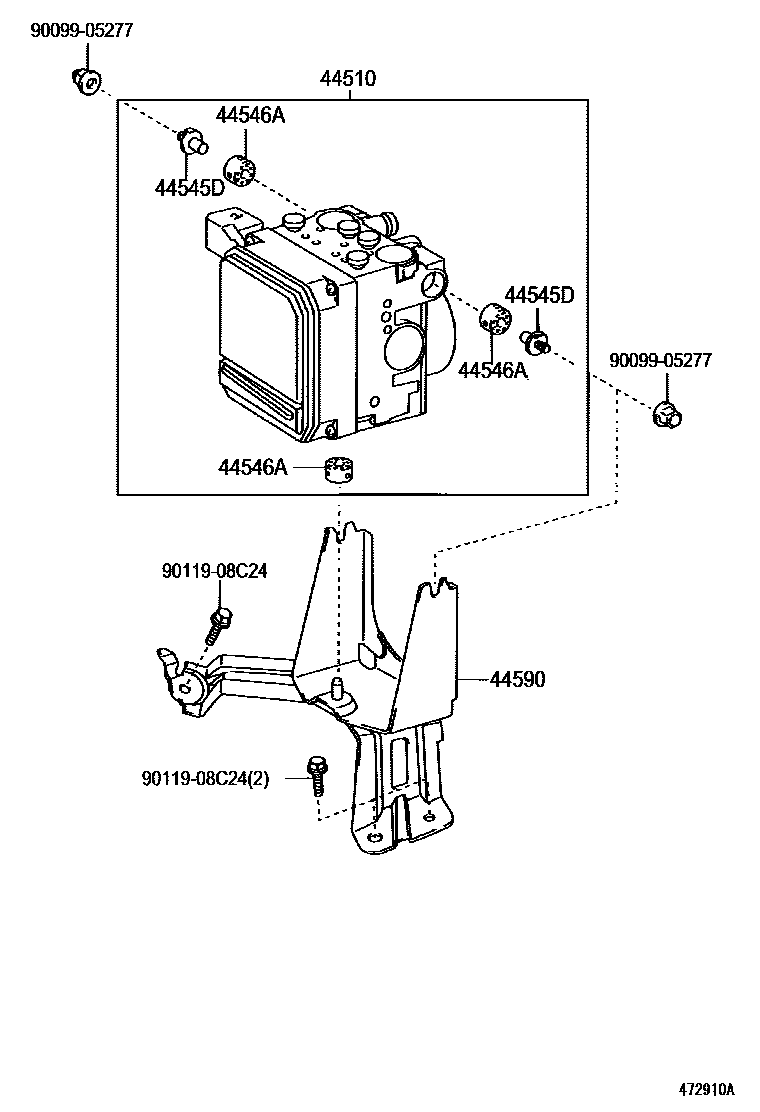

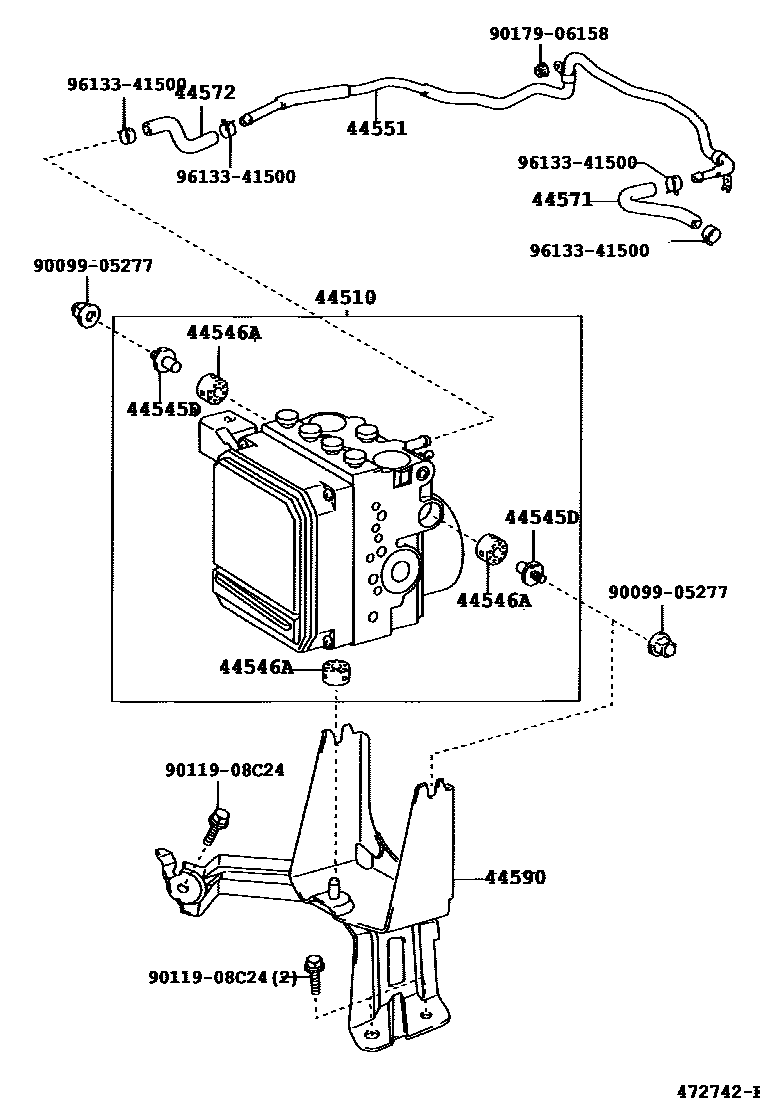

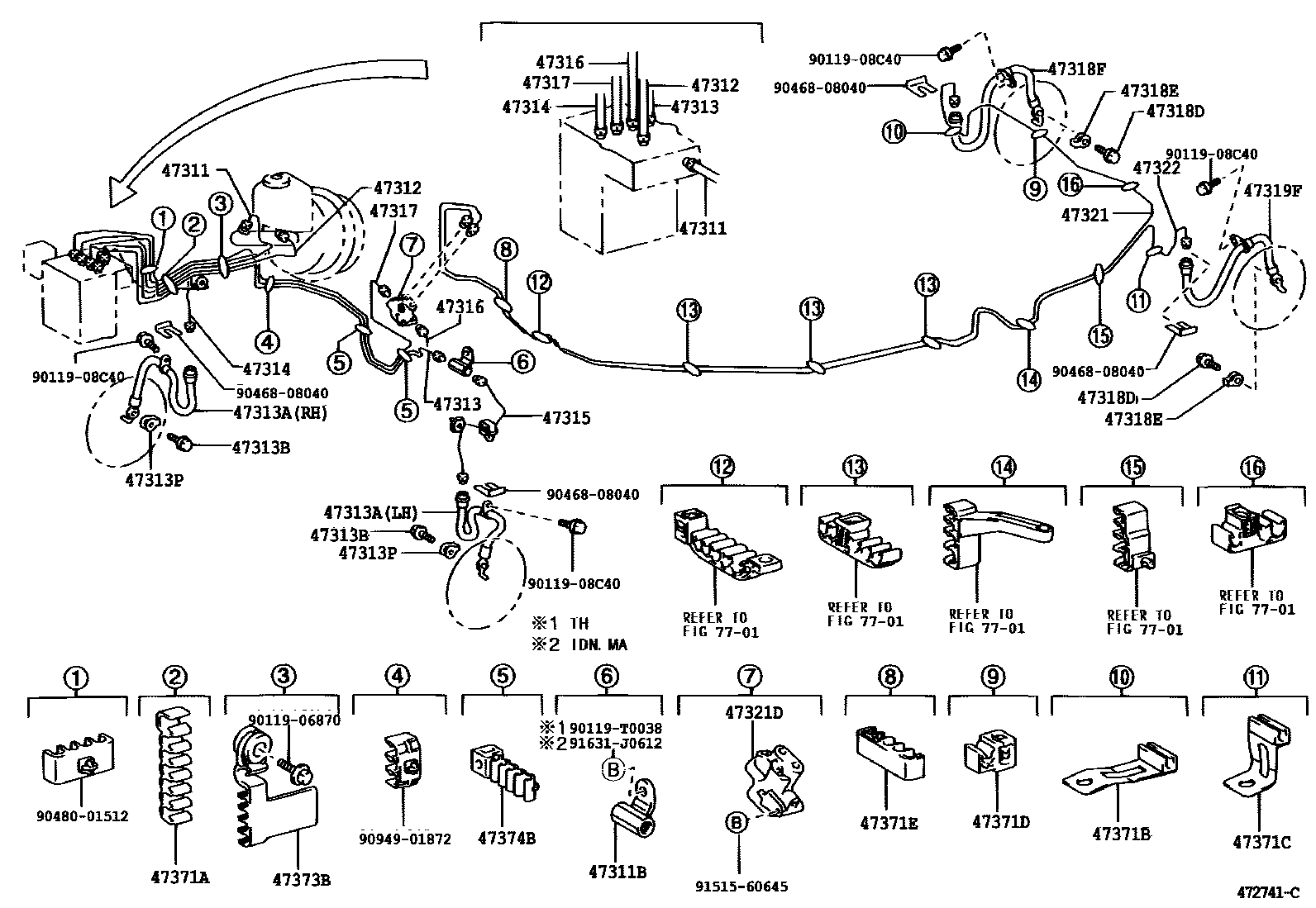

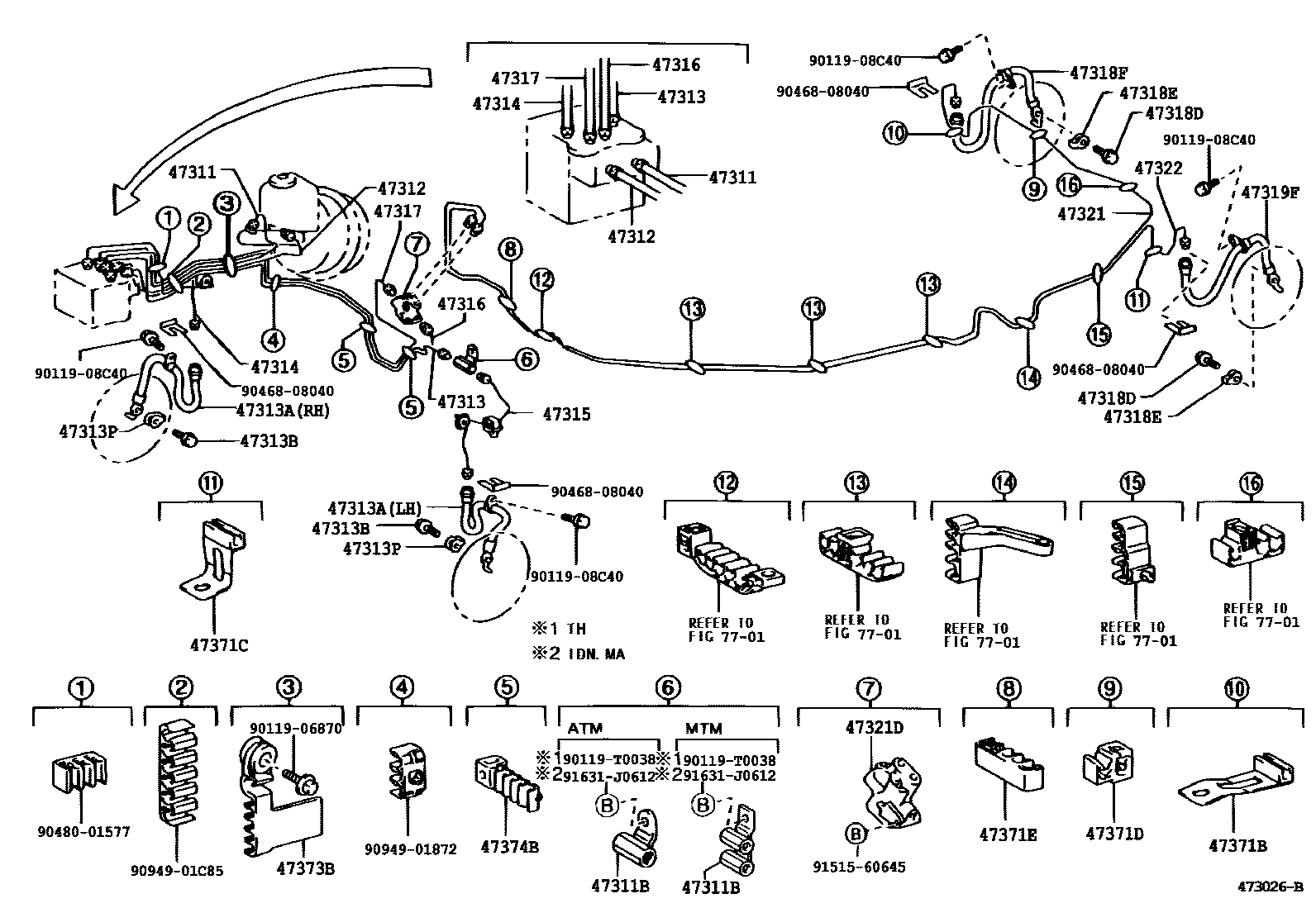

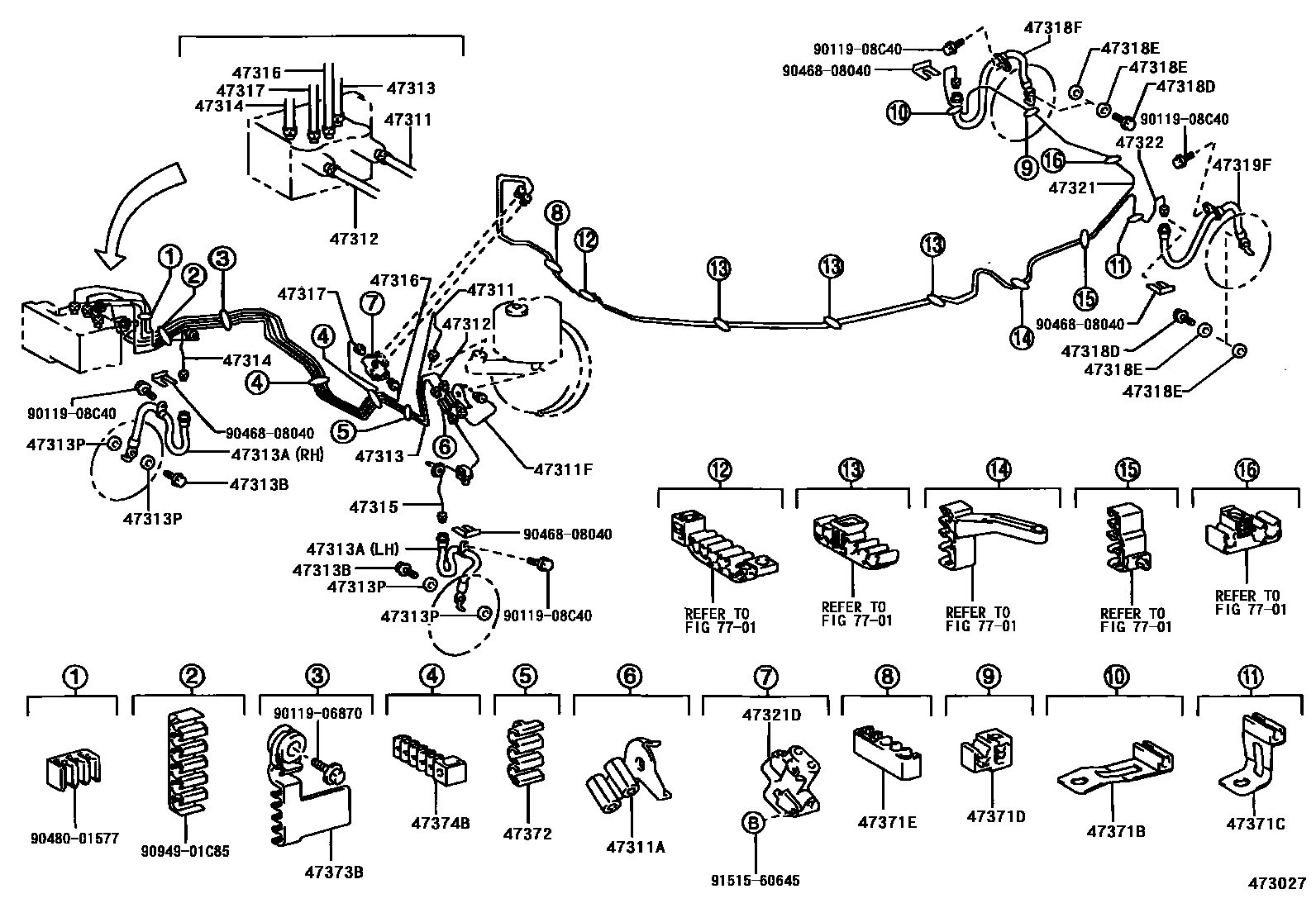

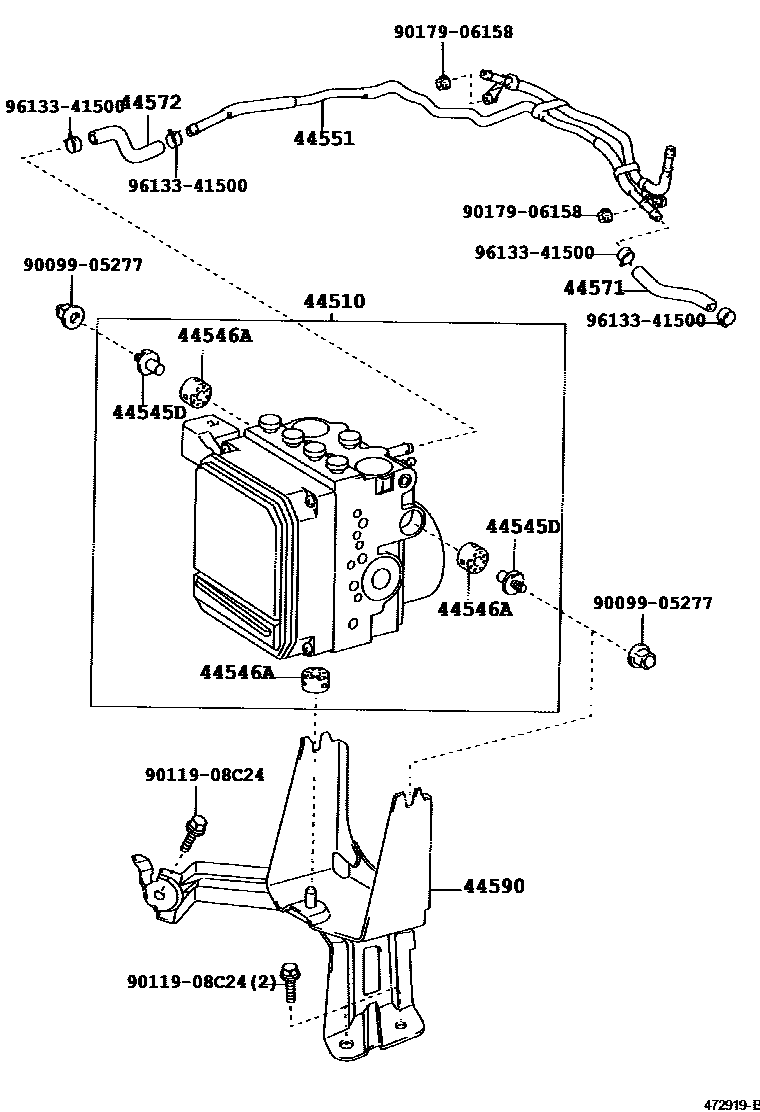

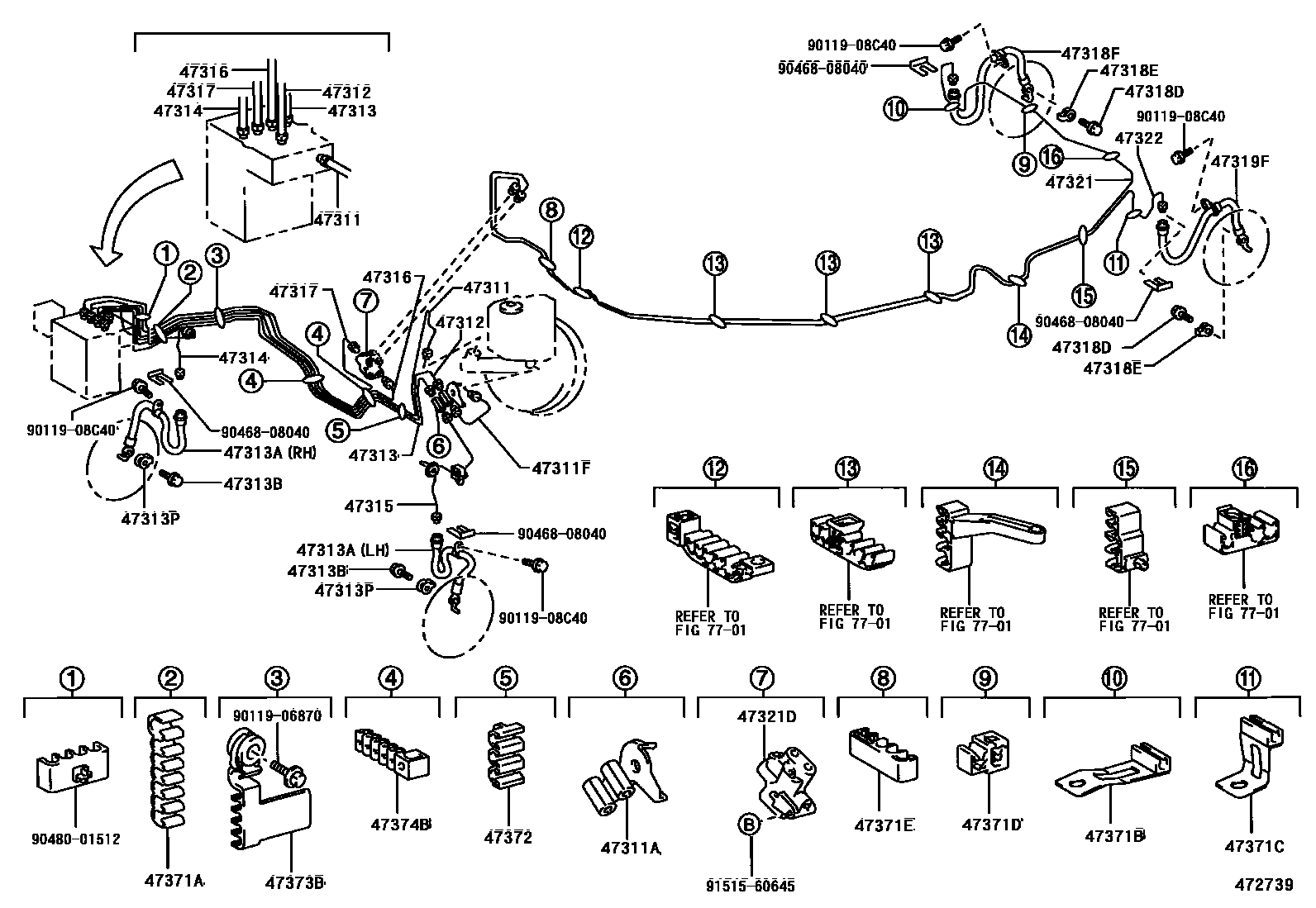

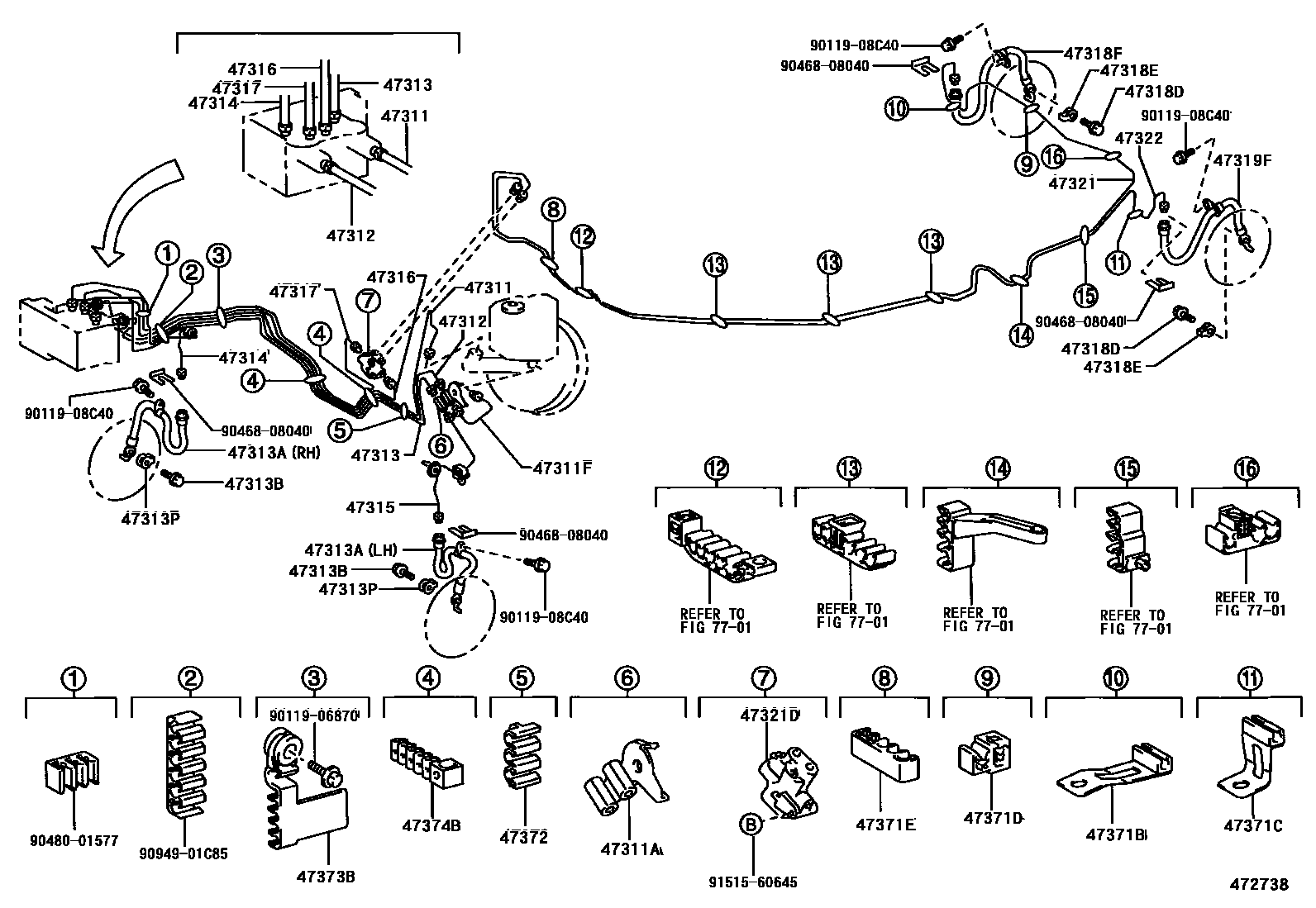

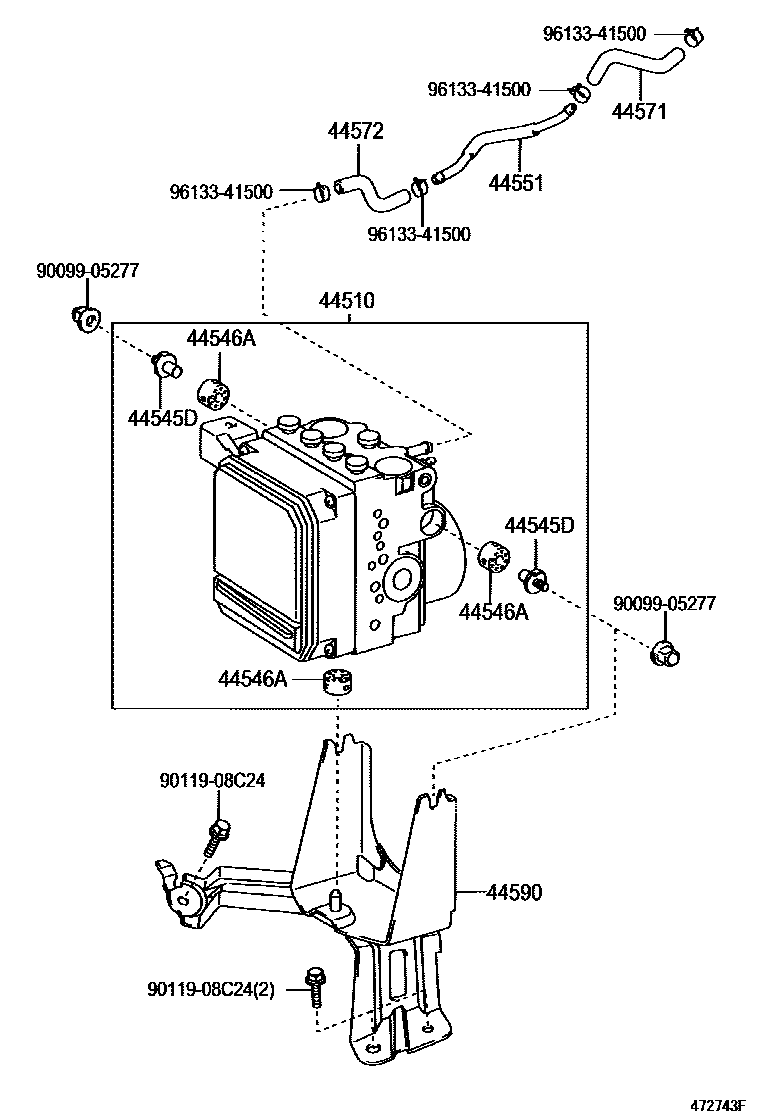

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 9 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-33081 · 44050-33100 |
| 44545D | Brake actuator bolt mount | 44545-42090 |
| 44546A | Brake actuator bolt cushion | 44546-42090 |
| 44551 | No. 1 brake actuator pipe | 44509-06020 · 44551-06010 · 44551-33050 · 44551-33060 |
| 44571 | brake actuator hose | 44571-33050 · 44571-33060 · 44571-33070 · 44571-33080 |
| 44572 | No. 2 brake actuator hose | 44572-33020 |
| 44590 | Brake actuator bracket assembly | 44590-06060 · 44590-06070 · 44590-33070 · 44590-33090 |
| 47311 | No. 1 front brake pipe | 47311-33070 · 47311-33080 · 47311-33090 · 47311-33100 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10238 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10158 · 90412-10213 |
| 47311F | No. 1 frame front brake pipe | 47311-06100 · 47311-33140 |
| 47312 | No. 2 front brake pipe | 47312-33090 · 47312-33100 · 47312-33110 · 47312-33120 |
| 47313 | No. 3 front brake pipe | 47313-33090 · 47313-33100 · 47313-33110 · 47313-33120 |
| 47313A | No. 1 front flexible hose | 90080-94147 · 90080-94148 · 90080-94150 · 90080-94151 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 · 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 · 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-33060 · 47314-33070 |
| 47315 | No. 5 front brake pipe | 47315-33170 · 47315-33180 |
| 47316 | No. 6 front brake pipe | 47316-33190 · 47316-33200 · 47316-33210 · 47316-33220 |
| 47317 | No. 7 front brake pipe | 47317-33180 · 47317-33190 · 47317-33200 · 47317-33210 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 · 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 · 90430-10074 |
| 47318F | Right rear flexible hose | 90080-94141 · 90080-94142 |
| 47319F | Left rear flexible hose | 90080-94144 · 90080-94145 |
| 47321 | No. 1 rear brake pipe | 47321-33130 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90412-10140 |
| 47322 | No. 2 rear brake pipe | 47322-33100 |
| 47371A | No. 1 brake pipe clamp | 47372-33010 |
| 47371B | No. 6 brake pipe clamp | 47371-32130 |
| 47371C | No. 7 brake pipe clamp | 47371-32140 |
| 47371D | No. 8 brake pipe clamp | 90949-01B45 |
| 47371E | No. 9 brake pipe clamp | 90949-01C53 |
| 47372 | No. 2 brake pipe clamp | 90464-00778 |
| 47373B | No. 3 brake pipe clamp | 90949-01C55 |
| 47374B | No. 4 brake pipe clamp | 90949-01C56 |
