Toyota CAMRY 制动助力器和真空管 — Figure 4703

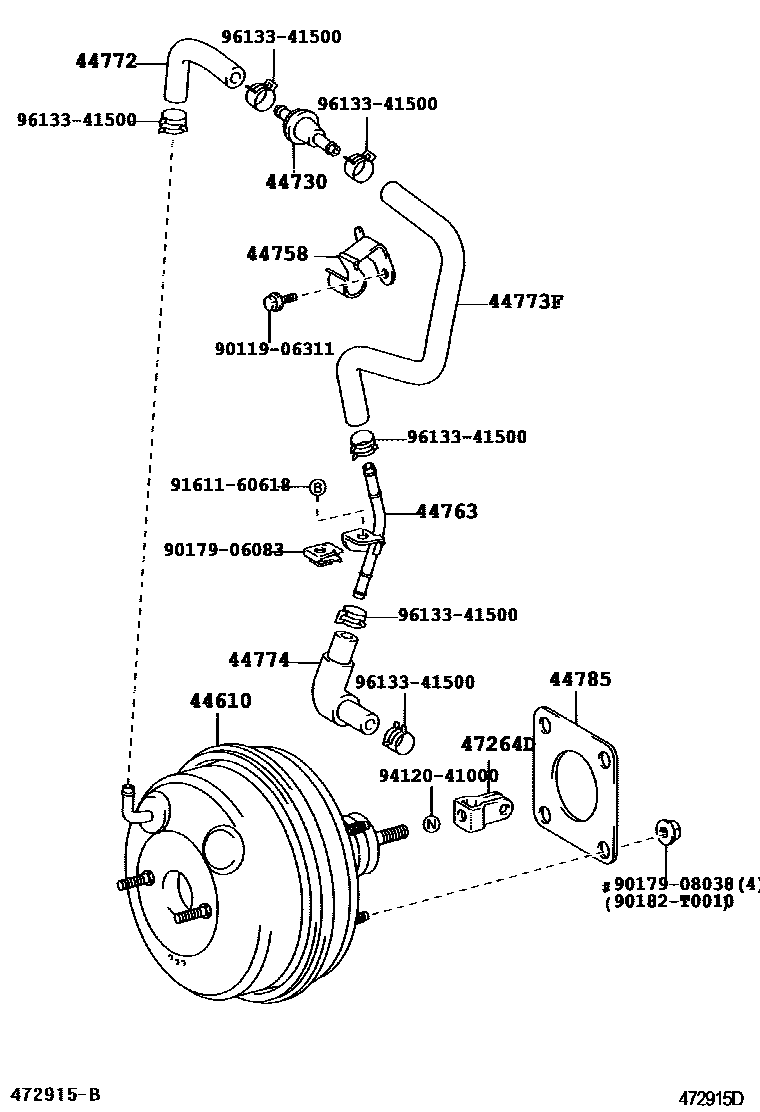

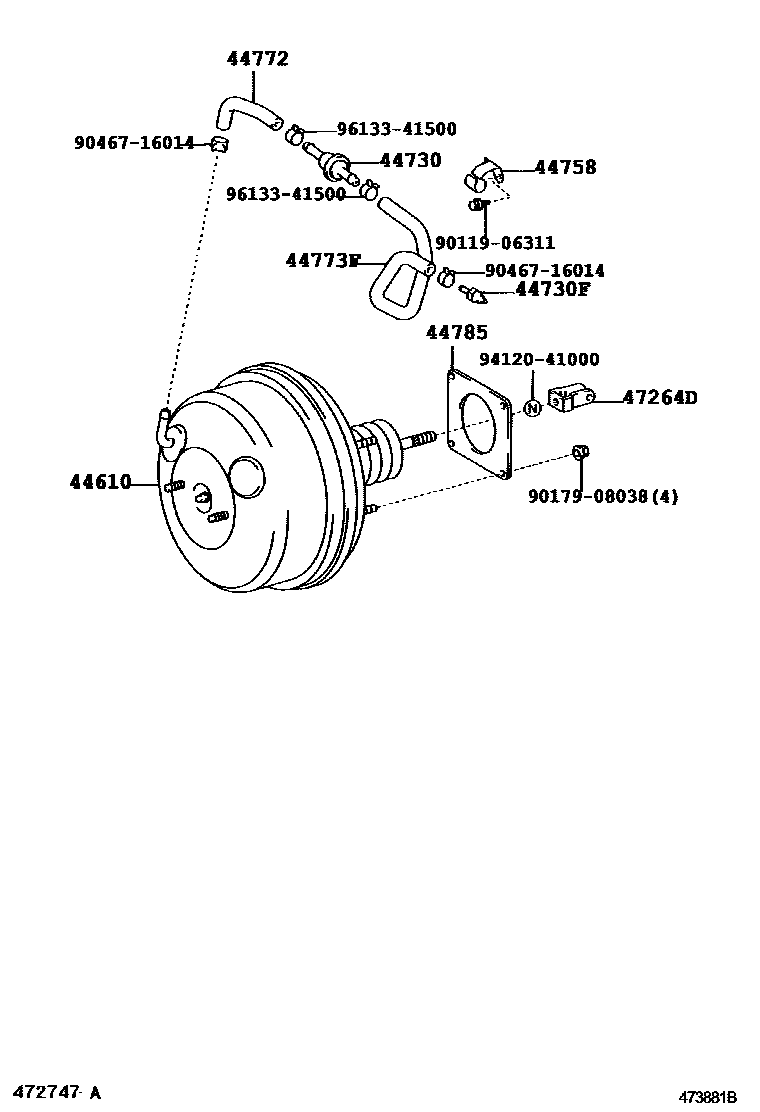

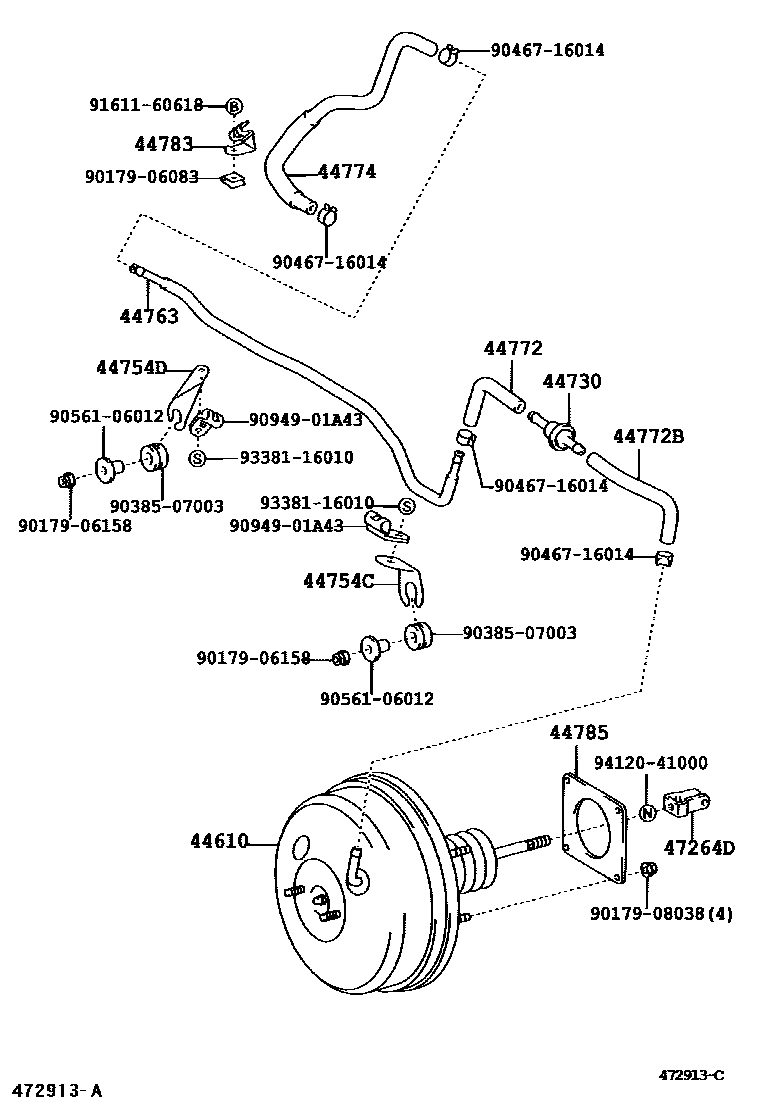

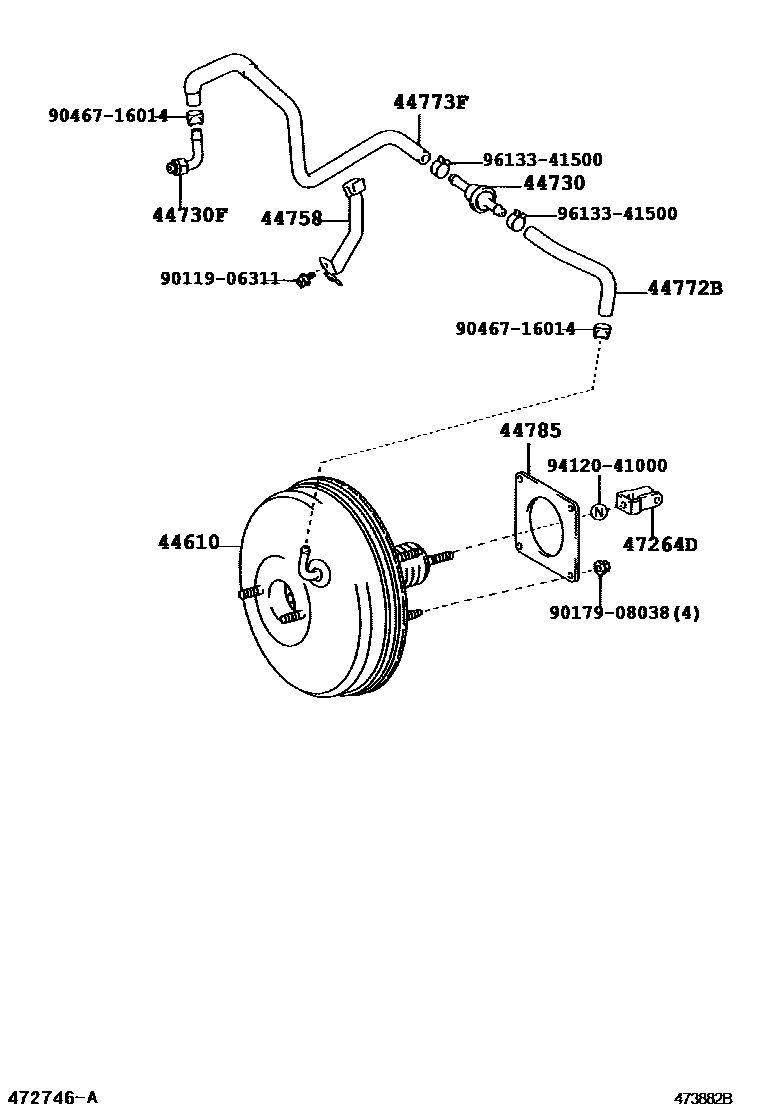

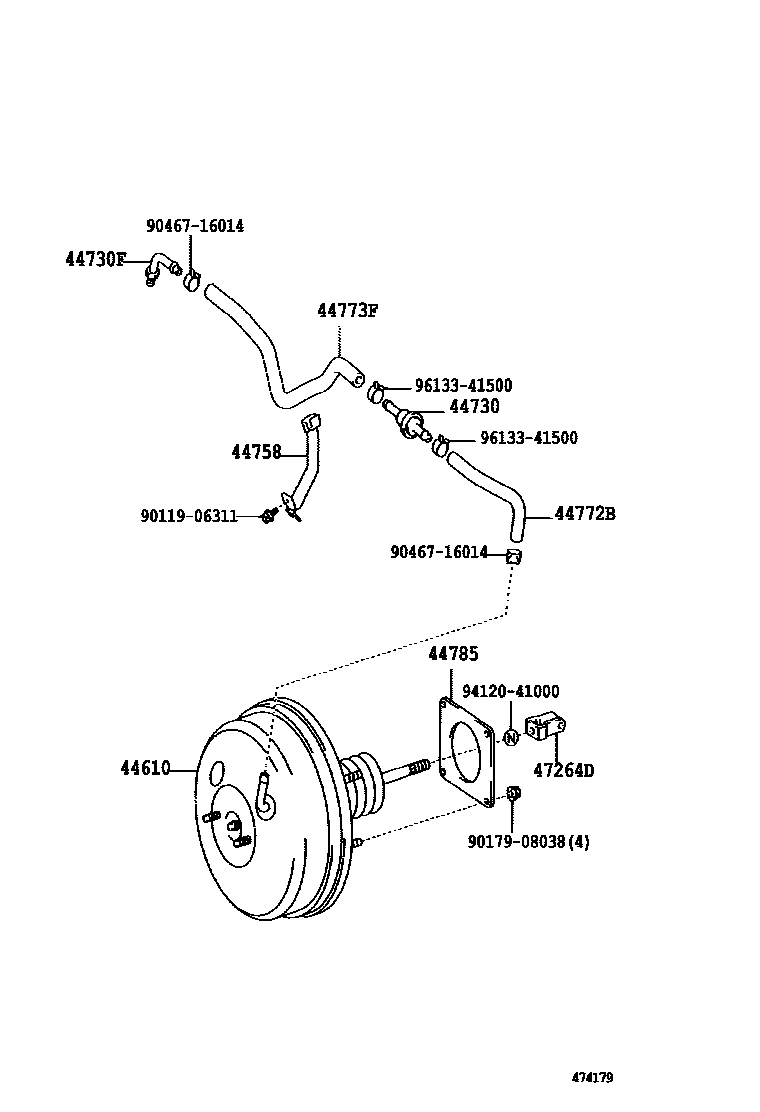

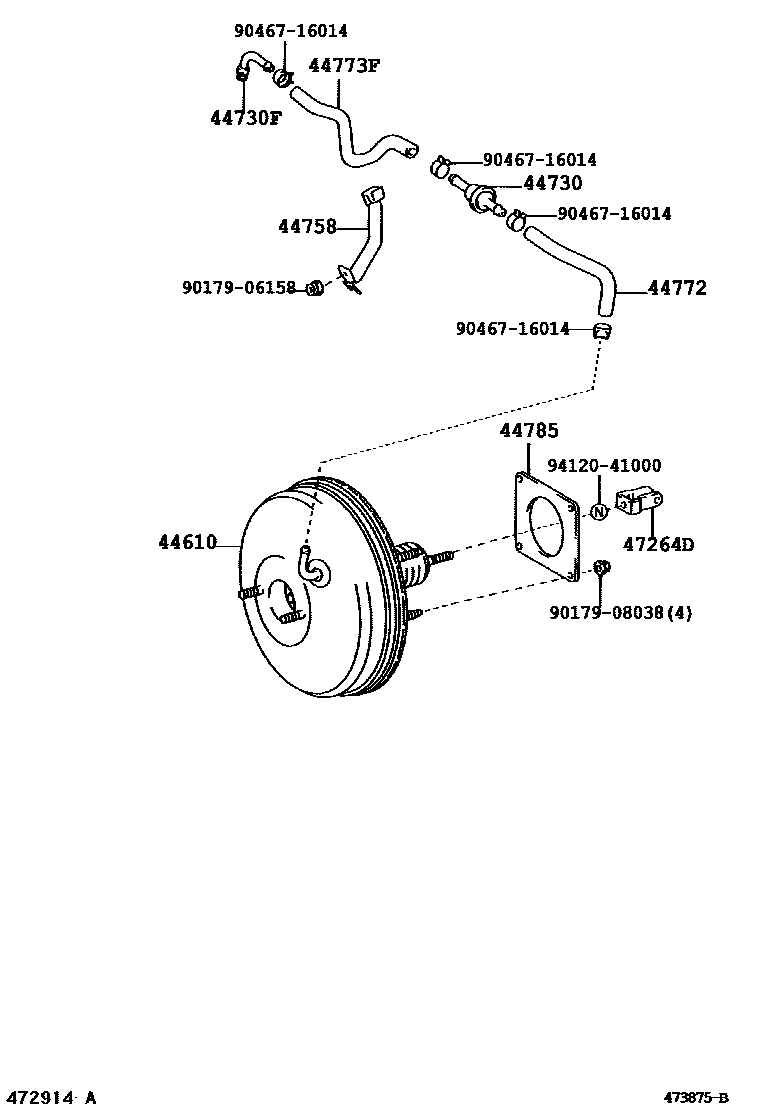

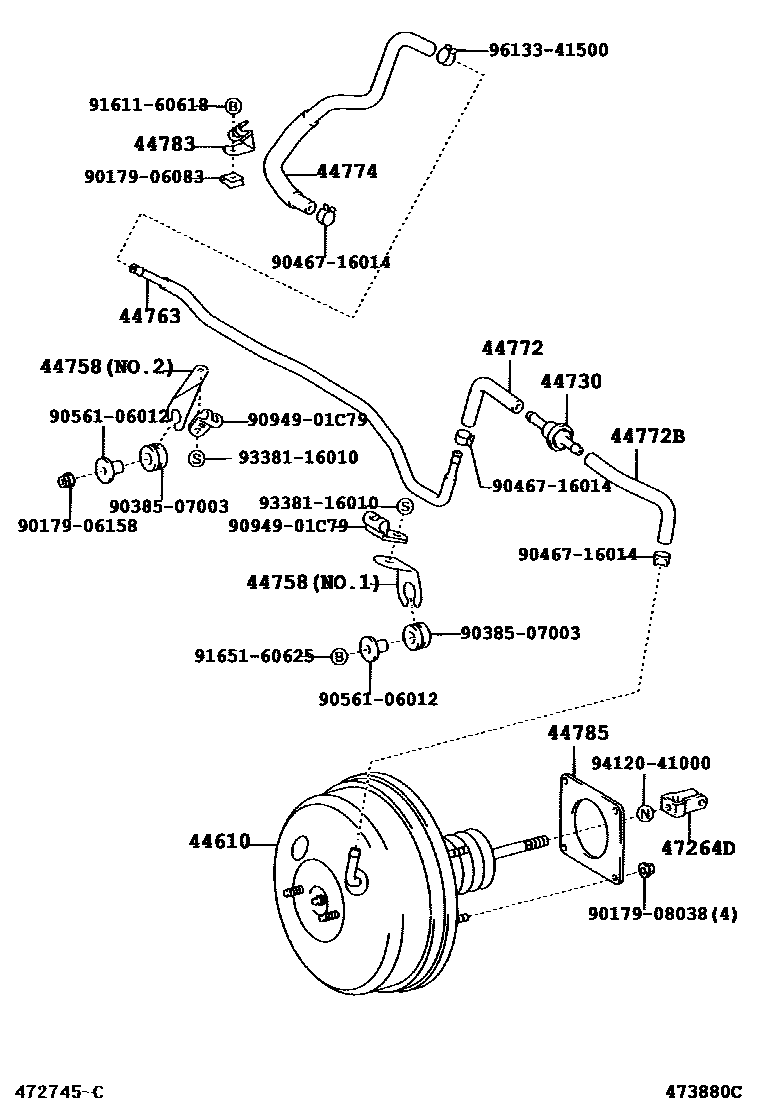

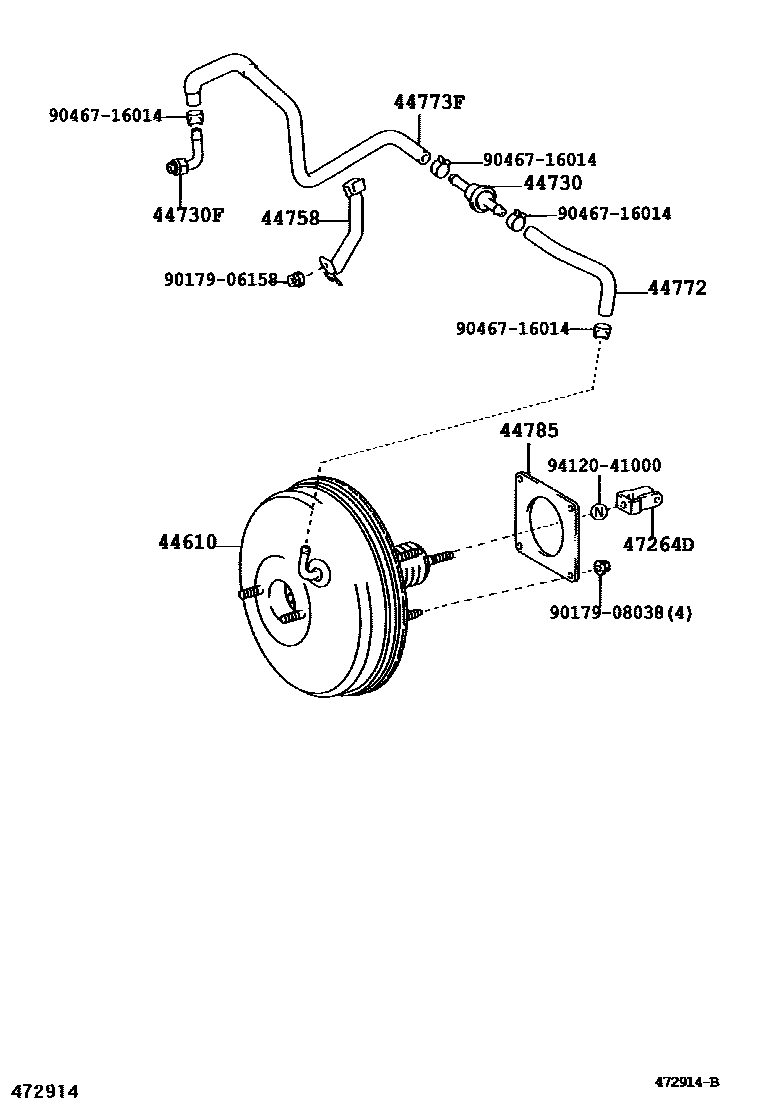

Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 8 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-06240 · 44610-33640 · 44610-33690 · 44610-33720 · 44610-33730 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51046 · 90404-51319 |
| 44754C | No. 1 vacuum tube holder | 44758-06050 |
| 44754D | No. 2 vacuum tube holder | 44758-06060 |
| 44758 | Vacuum check valve bracket | 44758-33070 · 44758-33080 · 44758-33090 · 44758-33100 · 44758-33120 |
| 44763 | booster vacuum tube | 44763-06030 · 44763-33040 · 44763-33060 |
| 44772 | Hoses (check valve to connector tube) | 44772-06050 · 44772-06060 · 44772-33090 · 44772-33110 |
| 44772B | Hoses (check valve to brake booster) | 44772-06060 · 44772-33100 |
| 44773F | Hoses (connector to check valve) | 44773-06040 · 44773-33080 · 44773-33110 · 44773-33120 · 44773-33140 |
| 44774 | Hoses (joints to connector tubes) | 44774-06040 · 44774-33060 · 44774-33070 |
| 44783 | Vacuum hose clamp | 44783-28010 |
| 44785 | brake booster pad | 44785-20020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-12060 · 47264-63010 |
