Toyota CAMRY 制动总泵 — Figure 4702

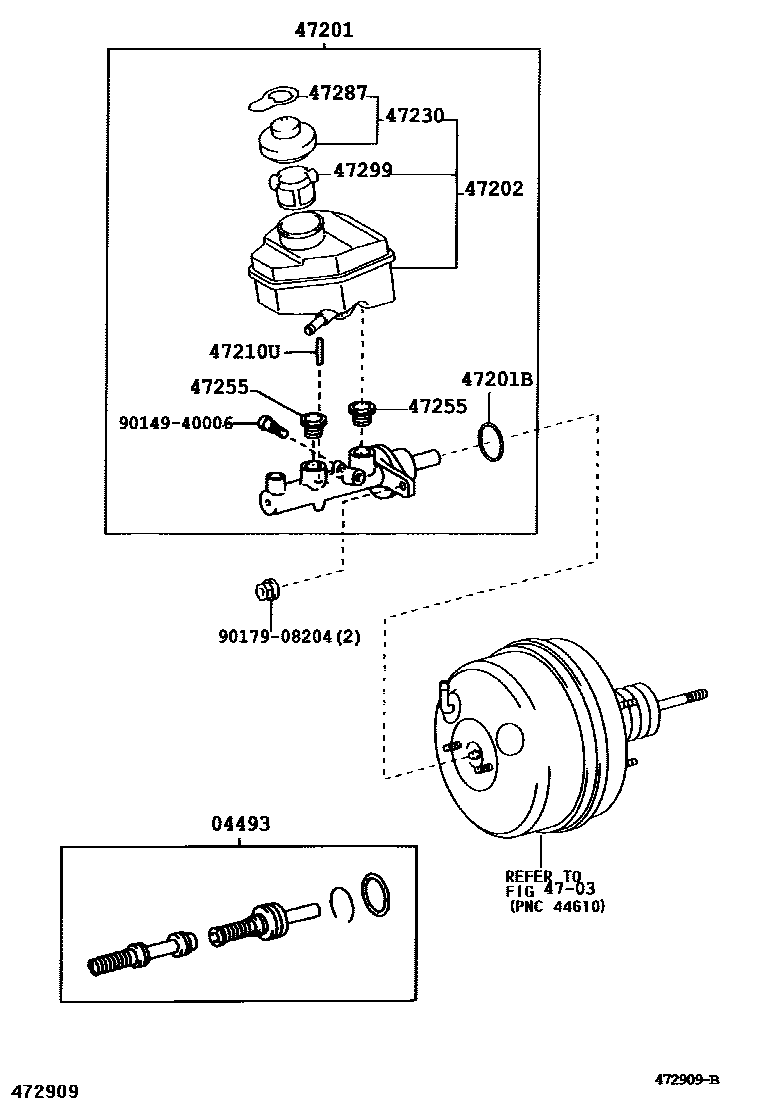

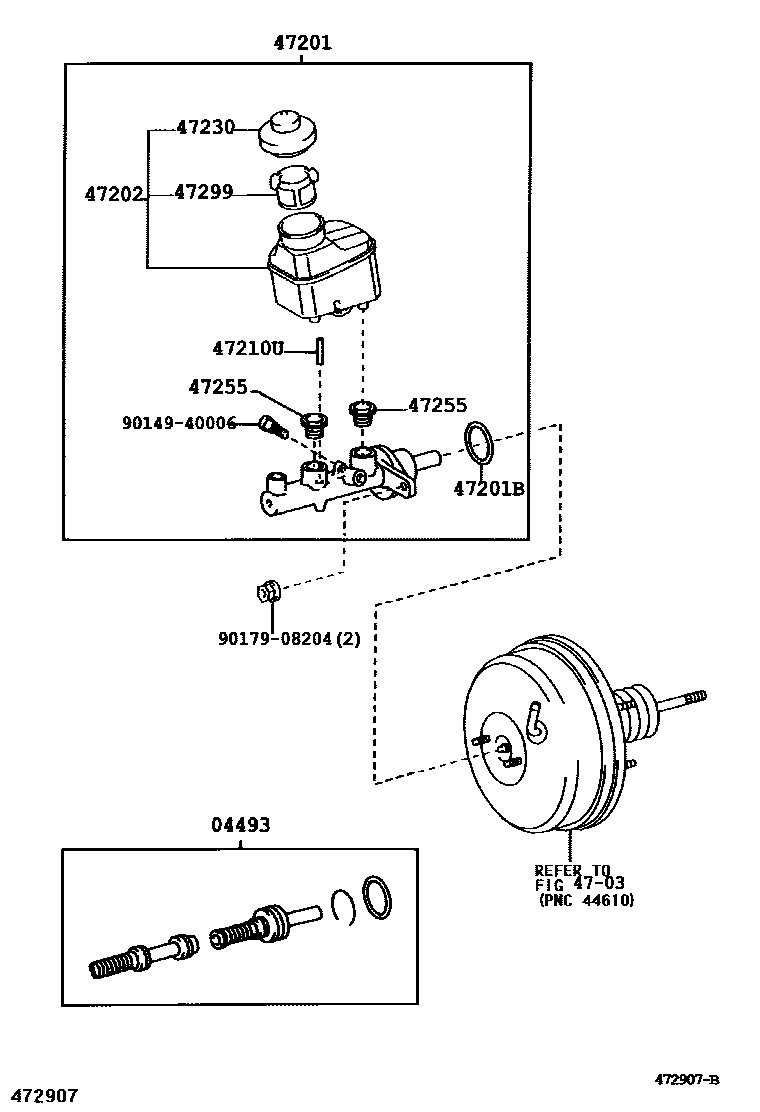

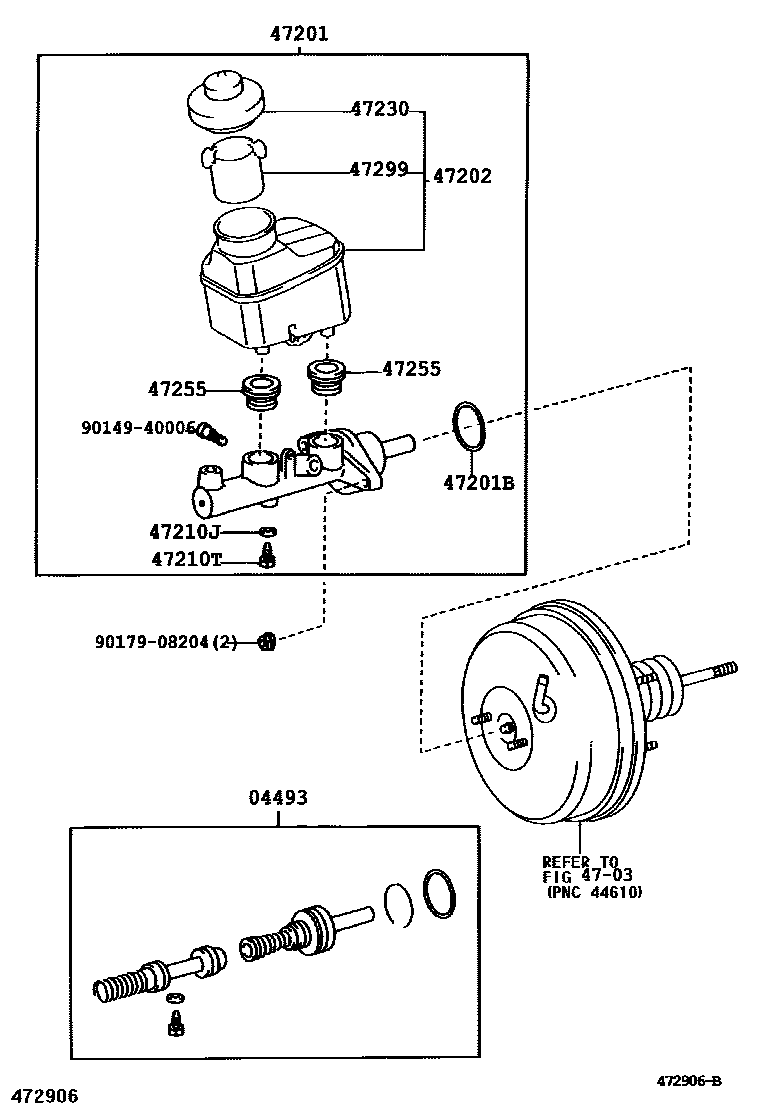

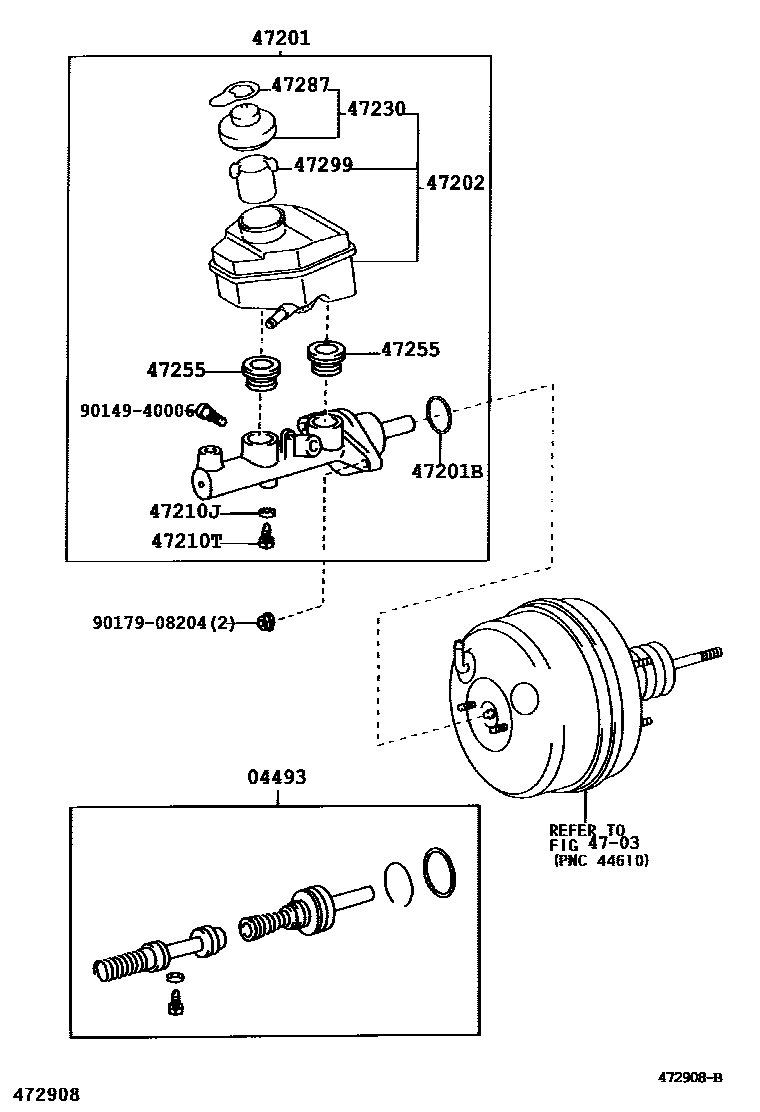

Toyota CAMRY EPC diagram 4702, 制动总泵, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-06070 · 04493-06080 · 04493-33110 · 04493-33120 |
| 47201 | Brake master cylinder sub-assembly | 47201-06160 · 47201-06170 · 47201-33340 · 47201-33350 · 47201-33370 · 47201-33390 · 47201-33420 · 47201-33430 |
| 47201B | O-ring (for brake master cylinder) | 90029-20059 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-06050 · 47220-06060 · 47220-33130 · 47220-33131 · 47220-33140 · 47220-33160 · 47220-33180 · 47220-33210 · 47220-33220 |
| 47210J | Gasket (for master cylinder) | 90029-43001 · 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47210U | Direct sales (for brake master cylinder) | 90029-14204 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-01030 · 47230-12040 · 47230-20140 · 47230-27020 |
| 47255 | Master pump reservoir seal | 47255-16010 · 47255-27010 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
