Toyota CAMRY 前转向齿轮和连杆 — Figure 4505

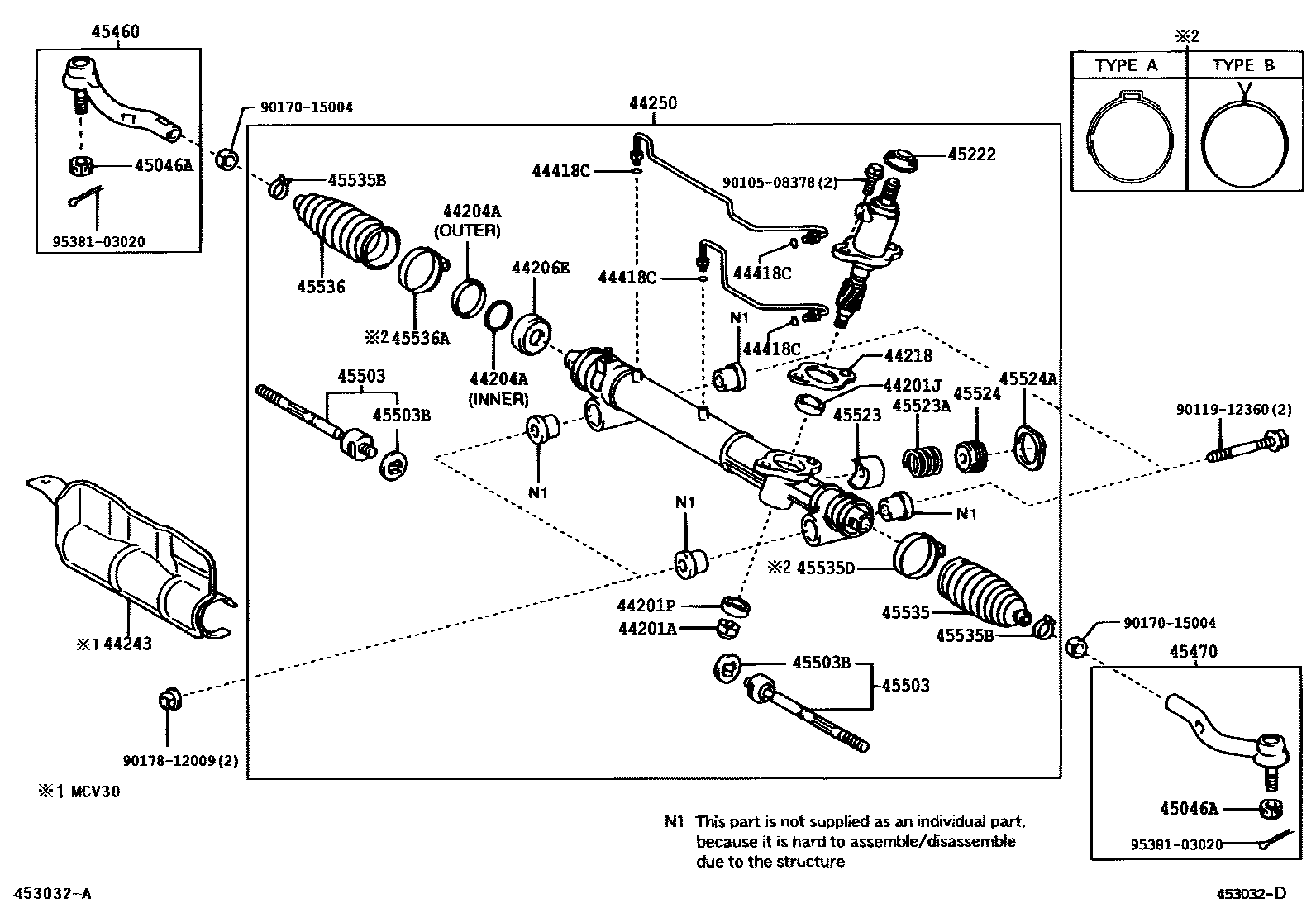

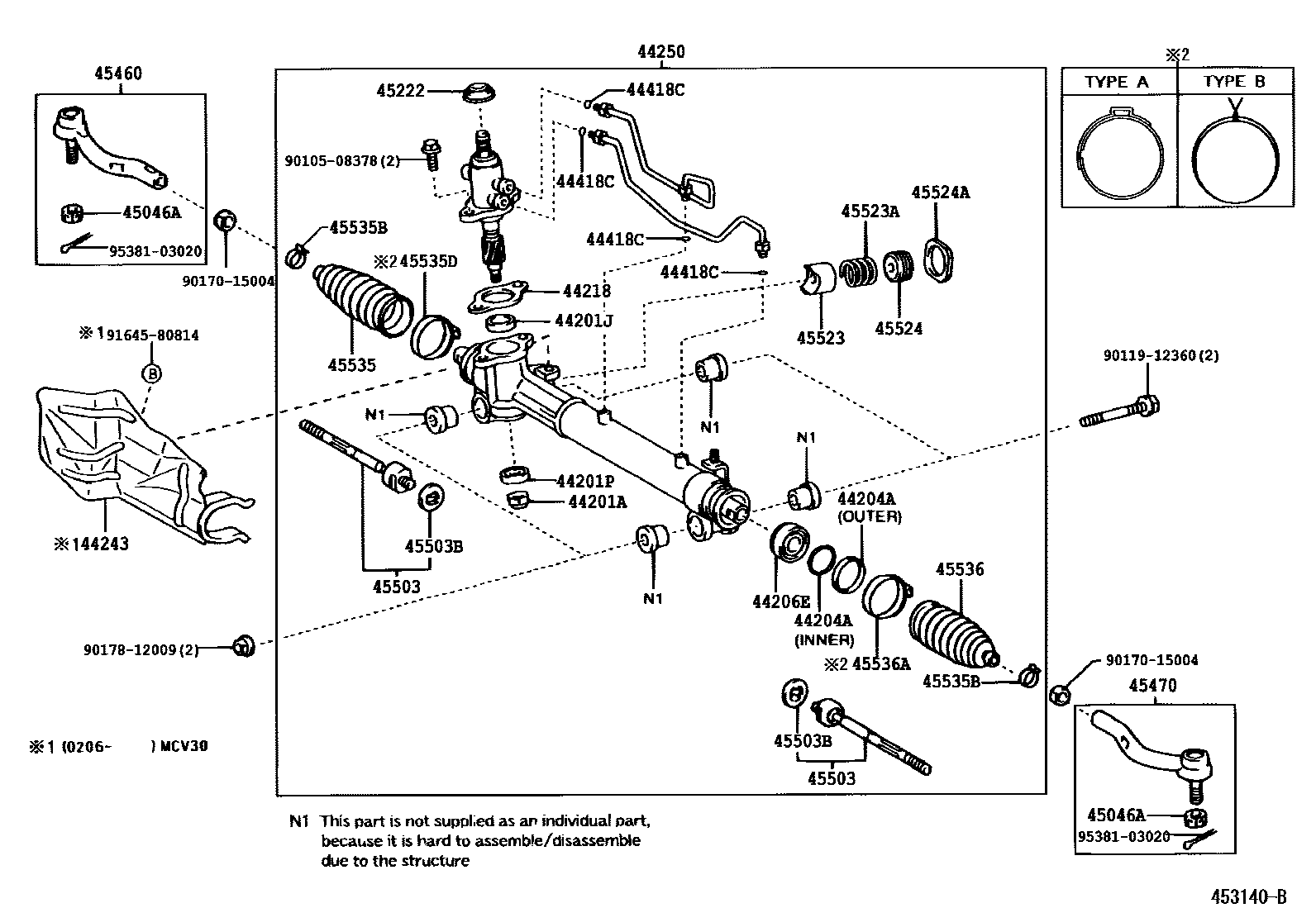

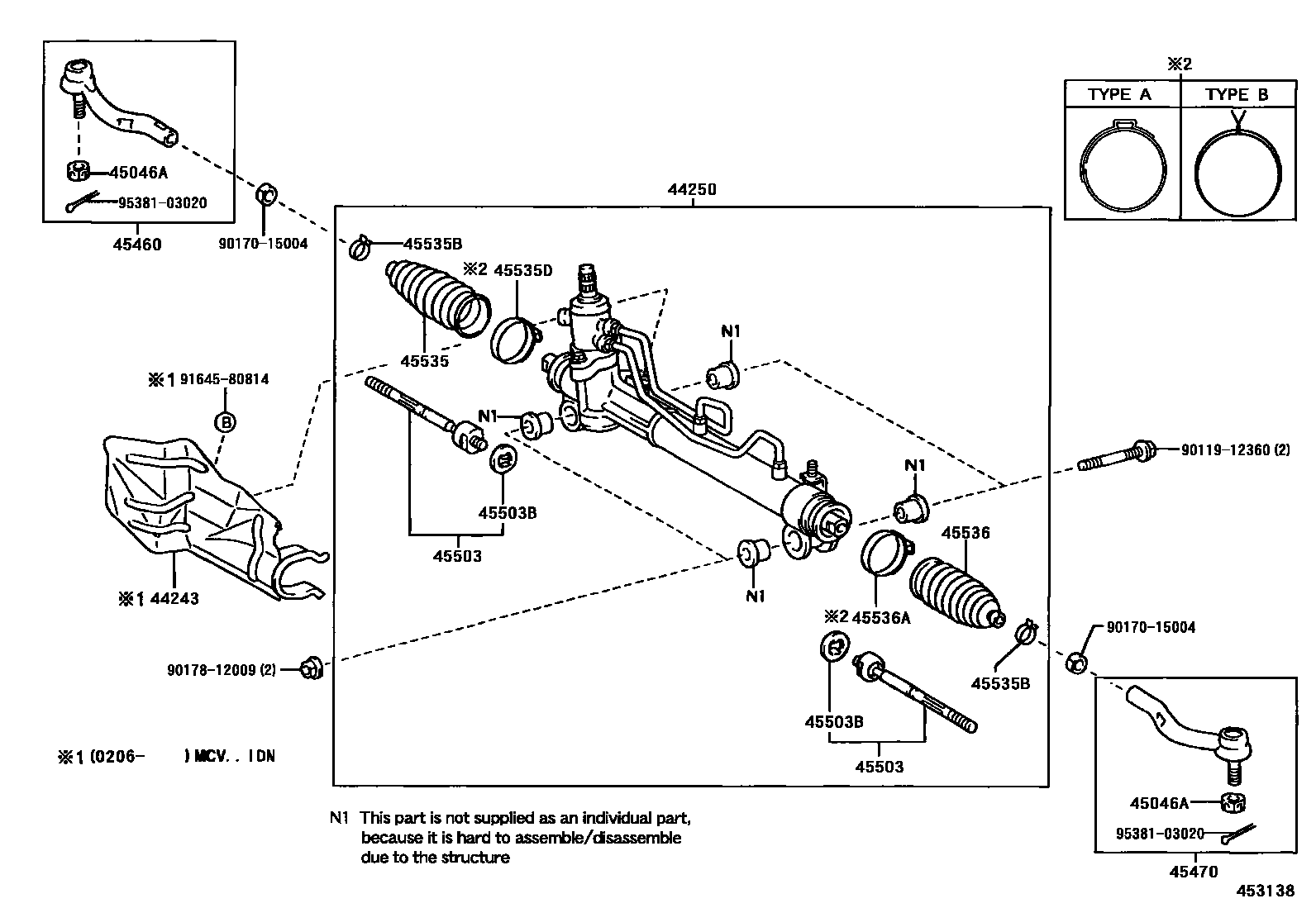

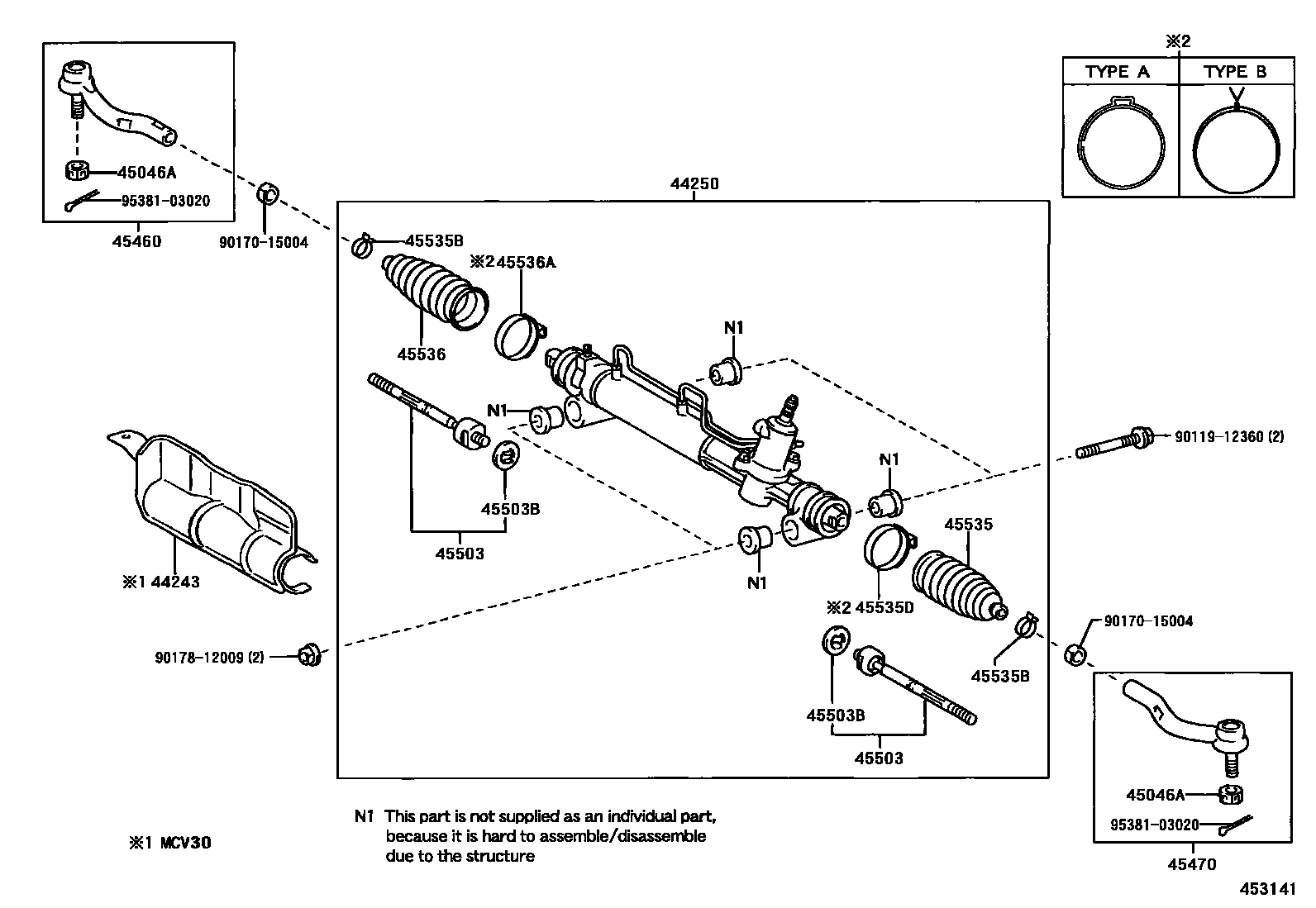

Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 6 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

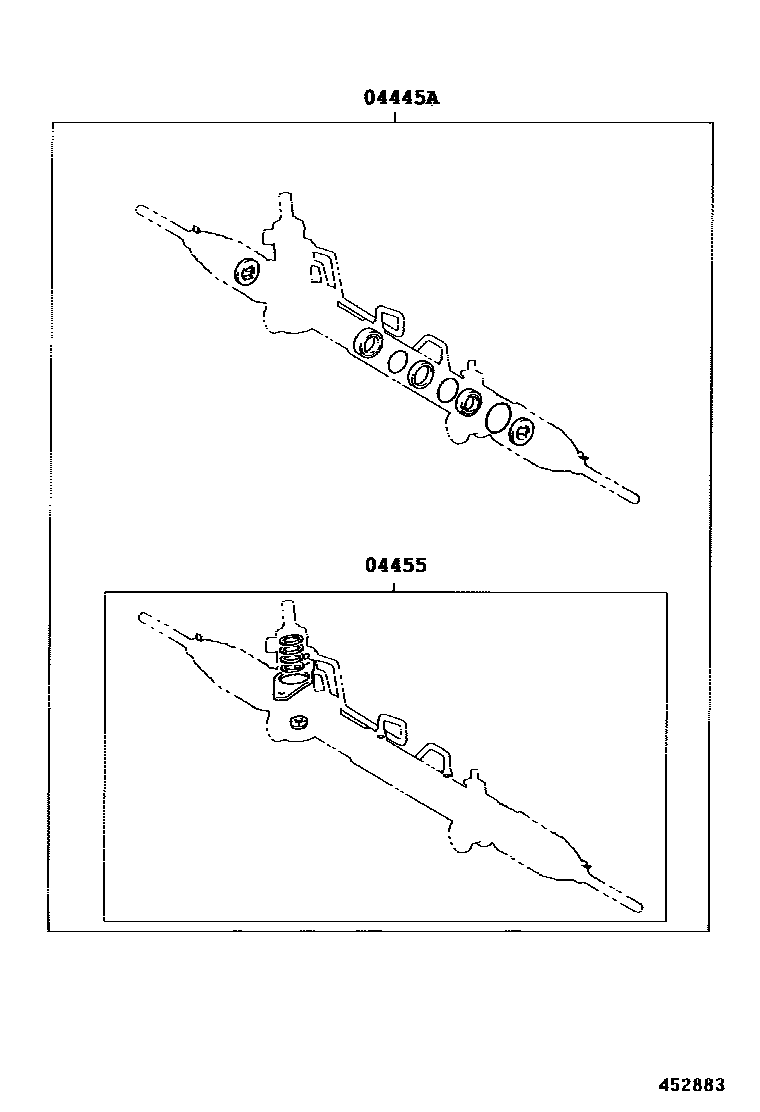

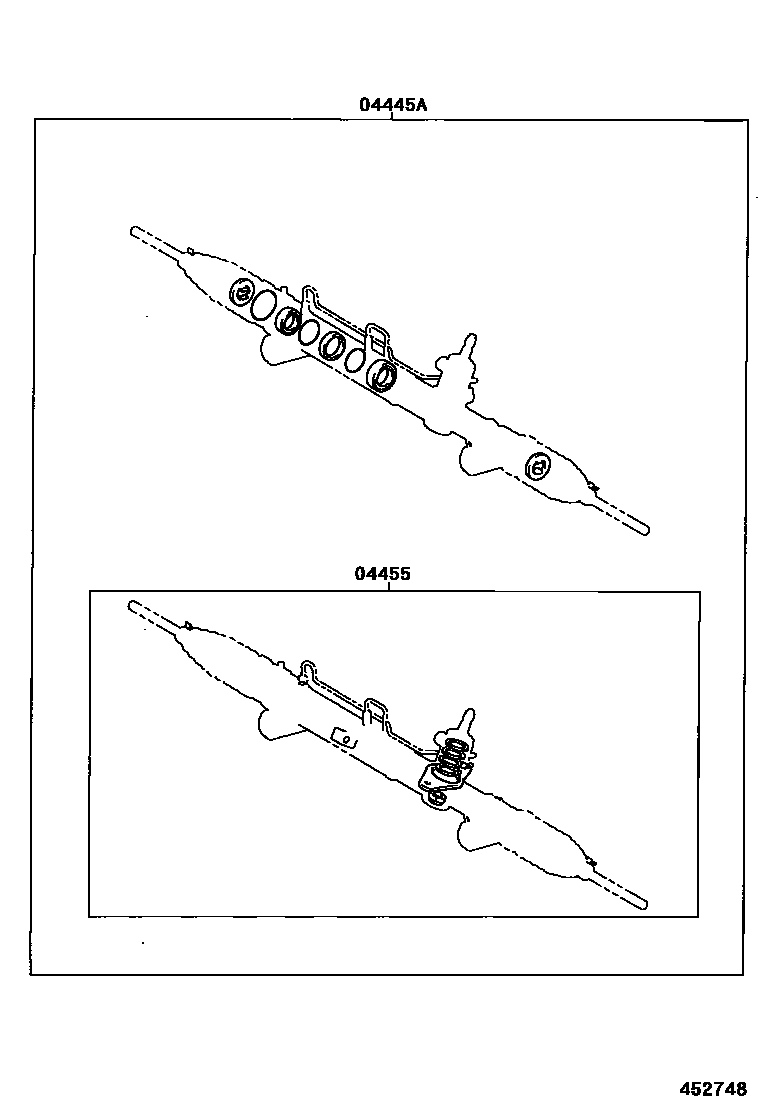

| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-06060 · 04445-06090 · 04445-48010 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-06050 · 04455-06070 · 04455-48020 |
| 44201A | Lock nut (for power steering control valve) | 90179-10048 |
| 44201J | Bearing (for central power steering control valve) | 90364-25014 |
| 44201P | Bearing (for lower power steering control valve) | 90363-12013 |
| 44204A | Ring (for steering rack piston) | 44266-06010 · 90080-30060 · 90301-36011 · 90562-40004 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90080-31086 · 90310-27002 |
| 44218 | valve housing gasket | 44218-12020 |
| 44243 | Power steering rack housing heat insulation pad | 44243-33010 · 44243-33020 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-06150 · 44250-06151 · 44250-06160 · 44250-06161 · 44250-06170 · 44250-06171 · 44250-06180 · 44250-06181 · 44250-06190 · 44250-06191 · 44250-06200 · 44250-06201 · 44250-33320 · 44250-33330 · 44250-33340 · 44250-33350 · 44250-33360 · 44250-33370 |
| 44418C | O-ring (for steering pressure oil pipe) | 90301-03001 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45222 | Steering gear dust cover | 45222-33010 |
| 45460 | Right tie rod assembly | 45460-09070 · 45460-39615 · 45460-39635 |
| 45470 | Left tie rod assembly | 45470-09050 · 45470-39215 · 45470-39225 |
| 45503 | Steering rack end sub-assembly | 45503-09280 · 45503-39225 |
| 45503B | Jaw washer (for steering rack end) | 90080-21019 · 90214-14009 |
| 45523 | Rack guide block (for steering gear) | 45504-06010 · 45504-08020 · 45504-33010 · 45504-48010 |
| 45523A | Spring (for steering gear rack guide block) | 90501-36005 |
| 45524 | Steering rack guide block spring cover | 45524-33020 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-36002 |
| 45535 | No. 1 steering rack dust cover | 45535-06030 · 45535-06040 · 45535-33030 |
| 45535B | Clamp (for steering rack dust boot) | 90080-46153 · 90467-19021 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90080-46293 · 90080-58059 · 90460-58007 |
| 45536 | No. 2 steering rack dust cover | 45535-06030 · 45535-06040 · 45535-33030 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90080-46293 · 90080-58059 · 90460-58007 |
