Toyota CAMRY Steering Wheel — Figure 4504

Toyota CAMRY EPC diagram 4504, Steering Wheel, with 3 images and 4 PNC and OE references.

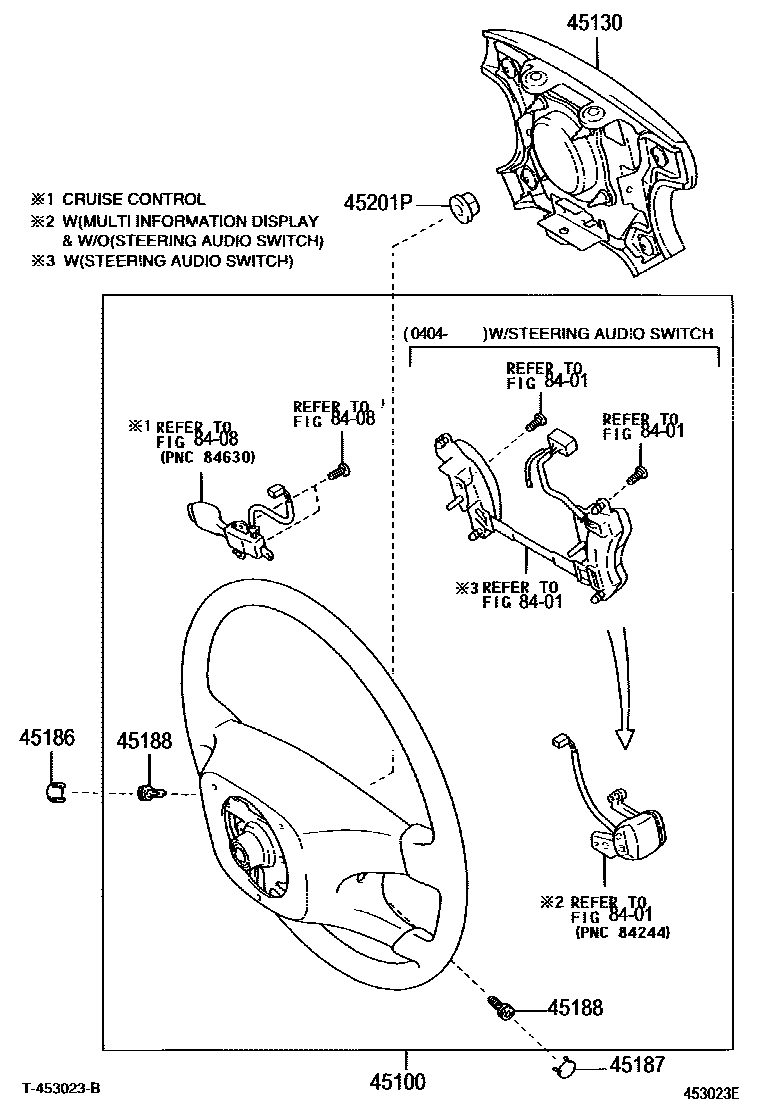

Toyota CAMRY Steering Wheel EPC diagram — 453023E
Steering Wheel — 453023E (200203 – 999999)

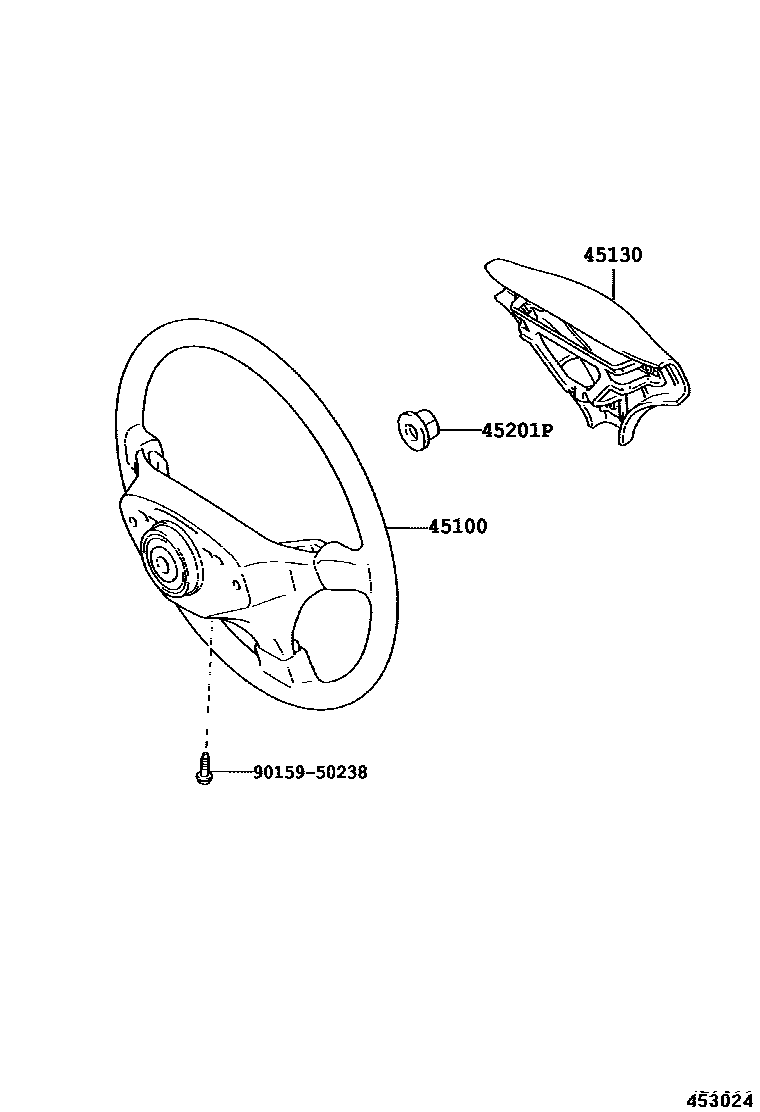

Toyota CAMRY Steering Wheel EPC diagram — 453024
Steering Wheel — 453024 (200203 – 200404)

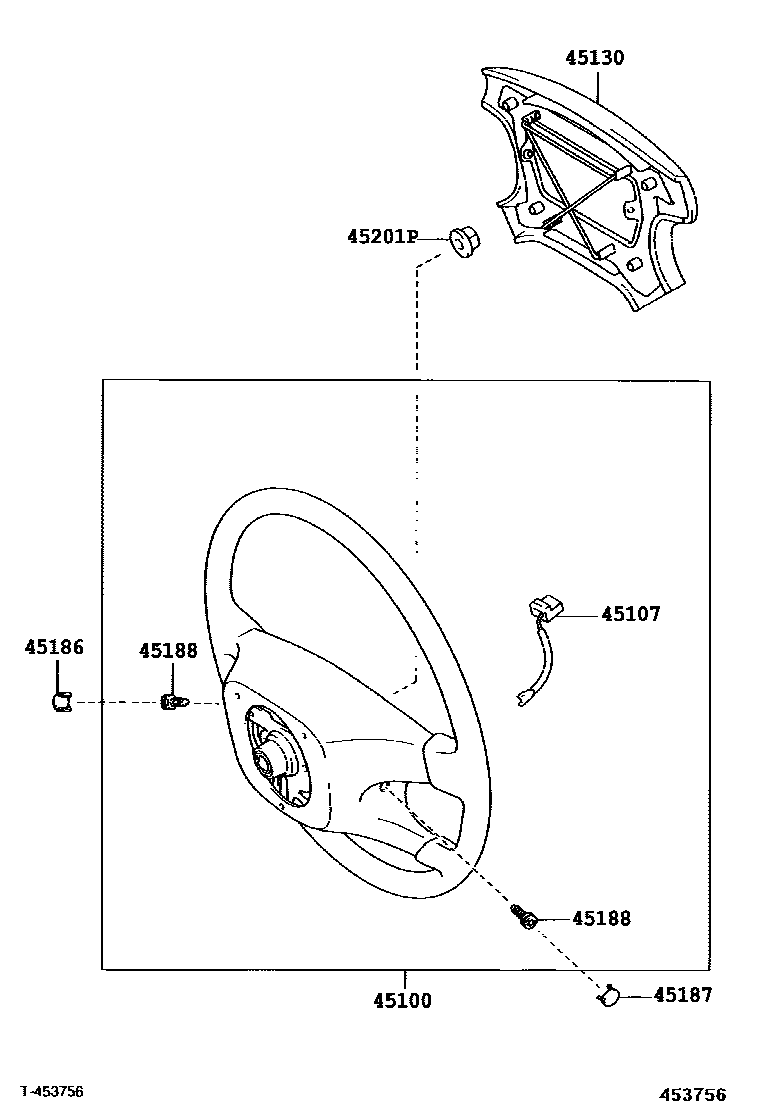

Toyota CAMRY Steering Wheel EPC diagram — 453756
Steering Wheel — 453756 (200404 – 999999)

PNC and OE references

PNCPart nameOE numbers
45100Steering wheel assembly45100-06C30 · 45100-06C40 · 45100-06C50 · 45100-06C60 · 45100-06C70 · 45100-06C80
45107Speaker button wiring harness sub-assembly45107-06010
45188Steering wheel trim cover fixing screws45188-60010
45201PSteering wheel fixing nut90179-12071
