Toyota CAMRY 叶片泵和储油罐(动力转向) — Figure 4502

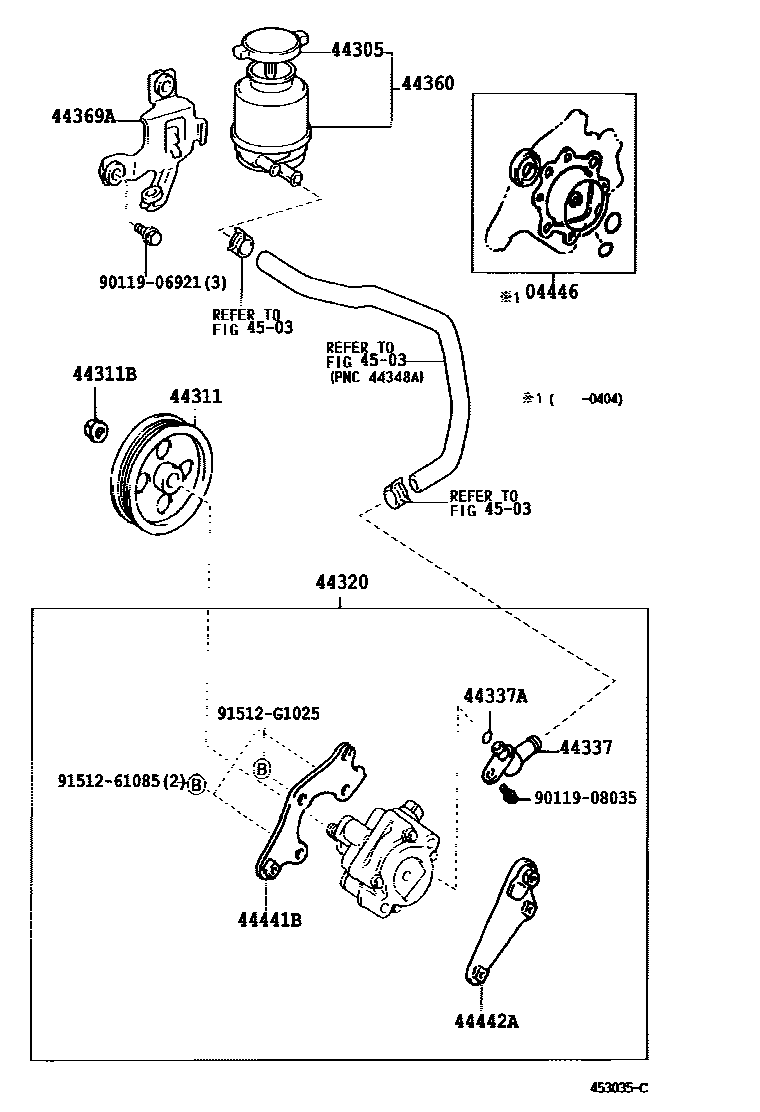

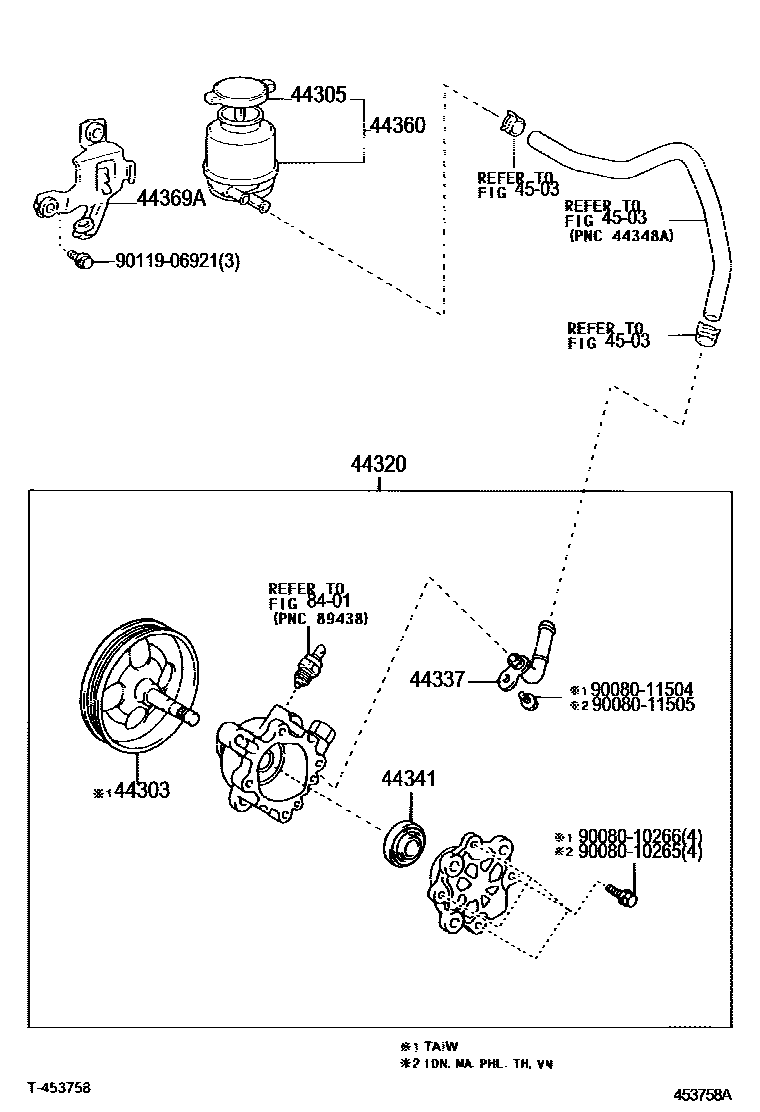

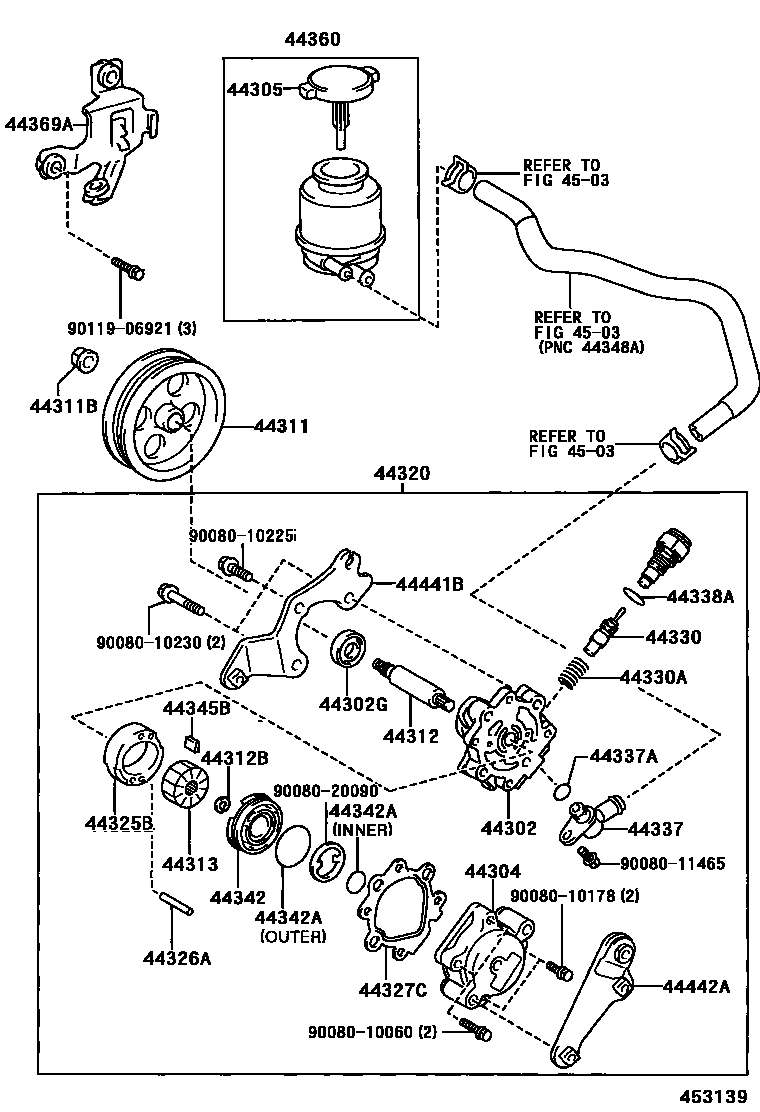

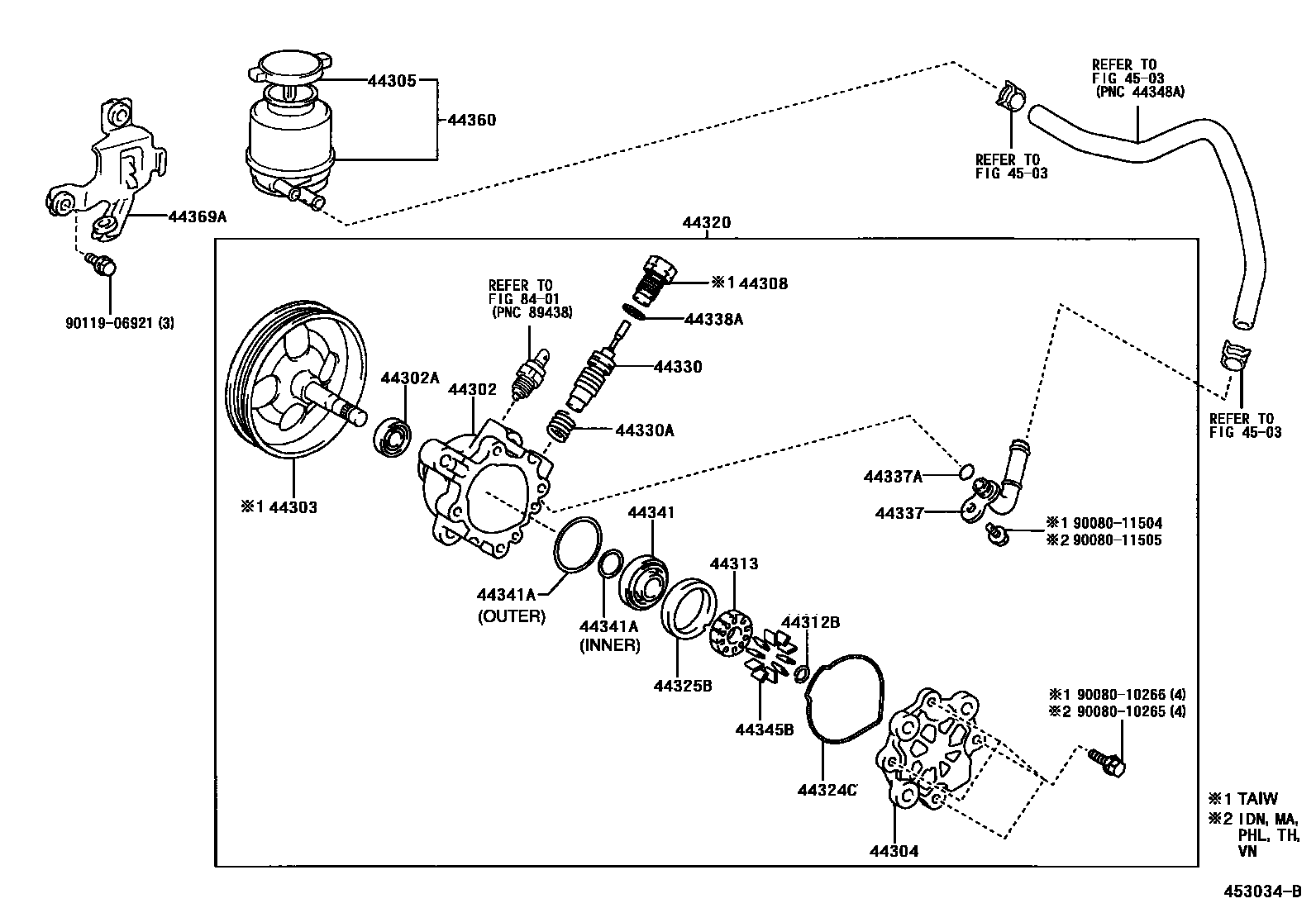

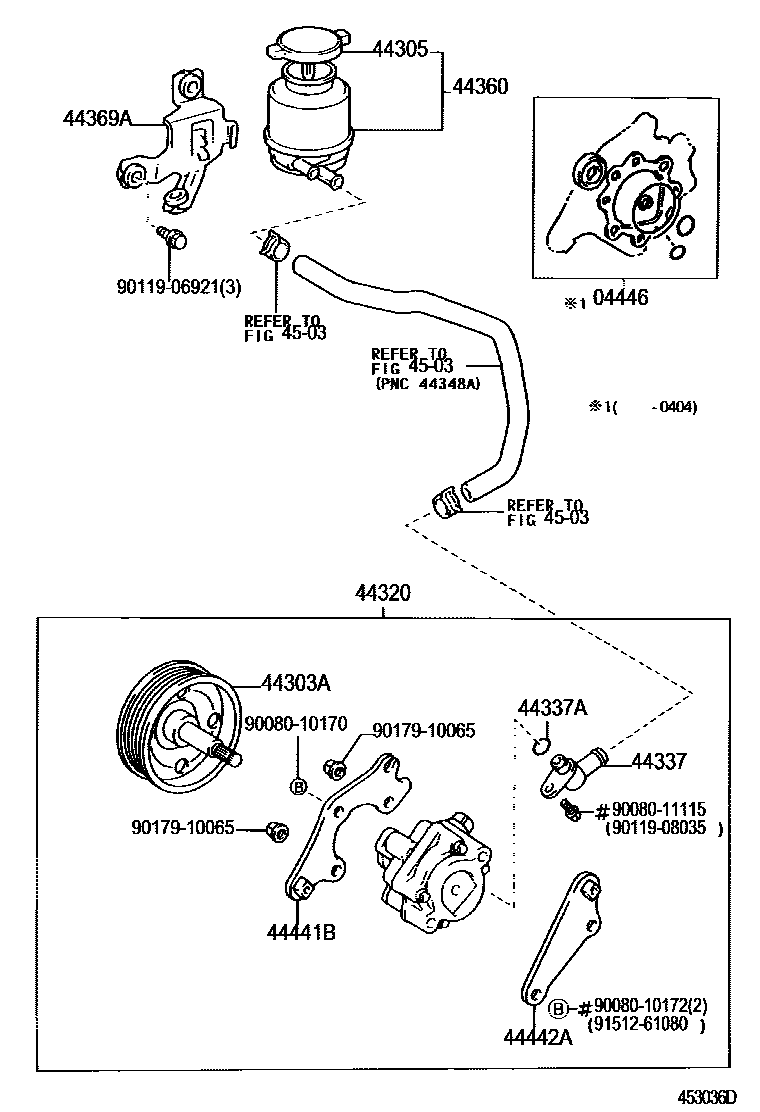

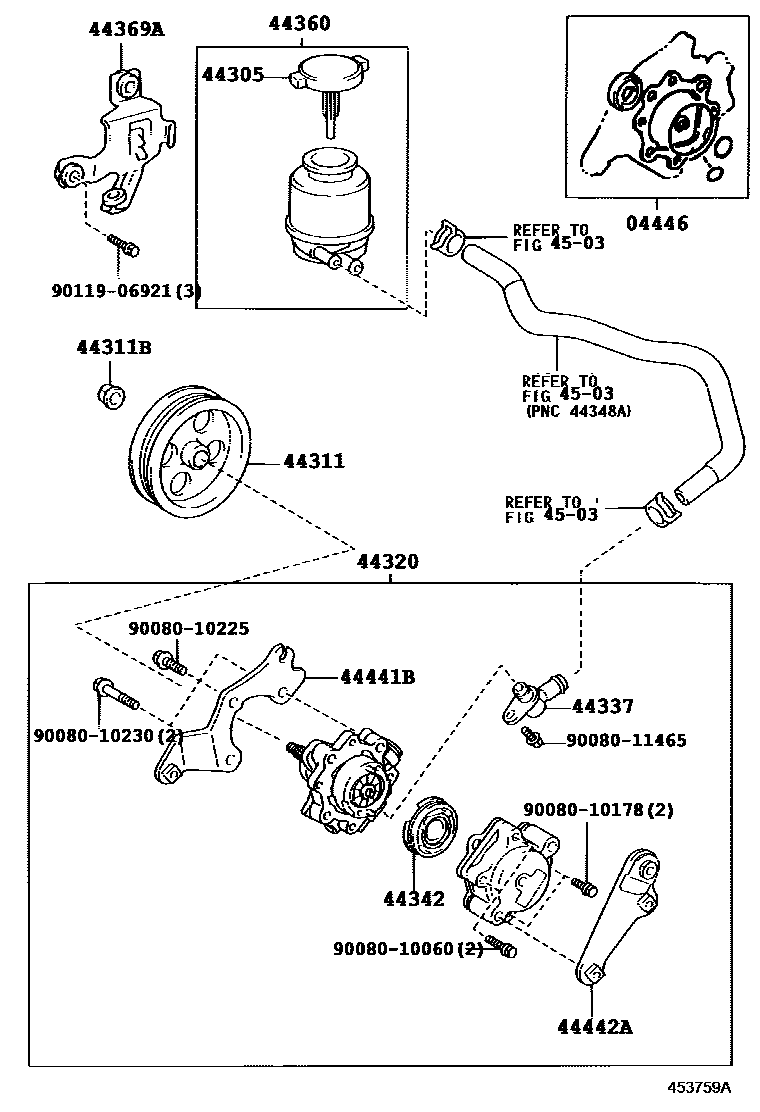

Toyota CAMRY EPC diagram 4502, 叶片泵和储油罐(动力转向), with 6 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-04010 · 04446-06040 · 04446-0B030 · 04446-34010 · 04446-53030 |
| 44302 | Front vane pump housing sub-assembly | 44302-06040 · 44302-06060 · 44302-06070 |
| 44302A | No. 1 oil seal (for vane pump housing) | 90080-31079 · 90080-31080 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90080-31070 |
| 44303 | Shaft sub-assembly with rotor | 44303-06050 |
| 44303A | Shaft sub-assembly with pulley | 44303-06030 |
| 44304 | Vane pump rear housing sub-assembly | 44304-06020 · 44304-06030 · 44324-06020 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-02060 · 44305-28030 |
| 44308 | Pressure hole connector sub-assembly | 44308-06050 |
| 44311 | vane pump pulley | 44311-06030 · 44311-28110 |
| 44311B | Nut (for vane pump pulley) | 90080-17158 · 90178-12003 |
| 44312 | vane pump shaft | 44312-06030 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90080-52114 · 90080-52137 |
| 44313 | vane pump rotor | 44313-02160 · 44313-02170 · 44313-02180 · 44313-02190 · 44313-02200 · 44313-06110 · 44313-06120 · 44313-06130 · 44313-06140 · 44313-06150 · 44313-06160 · 44313-06170 · 44313-06180 · 44313-06190 · 44313-06200 |
| 44320 | Vane pump assembly | 44310-06080 · 44310-06130 · 44310-06140 · 44320-06070 · 44320-33140 |
| 44324C | O-ring (for pump rear housing) | 90080-30092 · 90080-30097 |
| 44325B | vane pump cam ring | 44325-06110 · 44325-06120 · 44325-06130 · 44325-06140 · 44325-06150 · 44325-06160 · 44325-06170 · 44325-06180 · 44325-06190 · 44325-06200 · 44325-06210 · 44325-06220 · 44325-06230 · 44325-06240 · 44325-06250 |
| 44326A | Direct sales (for vane pump cam rings) | 90080-25027 |
| 44327C | Vane pump casing gasket | 44327-04010 |
| 44330 | Flow control valve assembly | 44330-06370 · 44330-06380 · 44330-06390 · 44330-06400 · 44330-06410 · 44330-06420 · 44330-06430 · 44330-06440 · 44330-06450 · 44330-06460 · 44330-06470 · 44330-06480 · 44330-06490 · 44330-06500 · 44330-06510 · 44330-06520 · 44330-06530 · 44330-06540 |
| 44330A | Compression spring (for flow control valve) | 90080-50247 · 90080-50328 · 90080-50329 · 90501-T0001 |
| 44337 | Power steering suction port connector | 44337-02080 · 44337-06040 · 44337-06050 · 44337-06060 · 44337-33040 |
| 44337A | O-ring (for power steering oil suction port) | 90080-30034 · 90080-30049 · 90080-30088 · 90080-30093 · 90301-11016 |
| 44338A | O-ring (for pressure port connector) | 90080-30074 · 90080-30090 · 90080-30095 |
| 44341 | Vane pump front cover | 44341-06010 · 44341-06020 |
| 44341A | O-ring (for vane pump front cover) | 90080-30089 · 90080-30091 · 90080-30094 · 90080-30096 |
| 44342 | Vane pump rear end cover | 44342-06020 |
| 44342A | O-ring (for vane pump rear end cover) | 90080-30053 · 90080-30054 |
| 44345B | vane pump disc | 44345-06060 · 44345-06070 · 44345-06080 · 44345-06090 · 44345-06100 · 44345-06110 · 44345-06120 · 44345-06130 · 44345-06140 · 44345-06150 · 44345-06160 · 44345-06170 · 44345-06180 · 44345-06190 · 44345-06200 |
| 44360 | Vane pump oil storage tank assembly | 44360-06040 · 44360-33040 |
| 44369A | No. 1 oil storage tank bracket | 44390-06030 · 44390-33010 |
| 44441B | Pump front bracket | 44441-06040 · 44441-06050 · 44441-28020 |
| 44442A | Vane pump rear bracket | 44442-06030 · 44442-07010 · 44442-33021 |
