Toyota CAMRY Steering Column & Shaft — Figure 4501

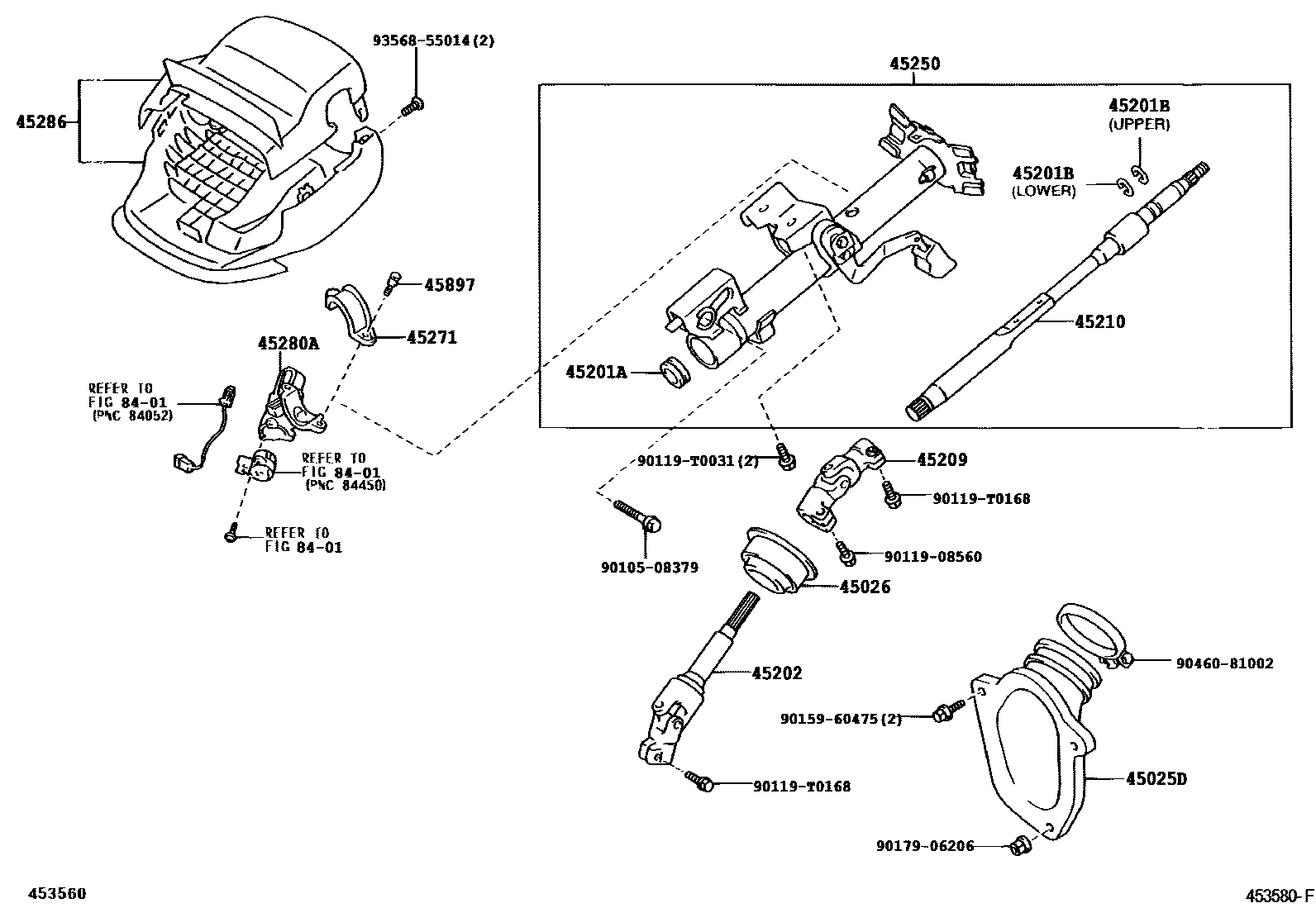

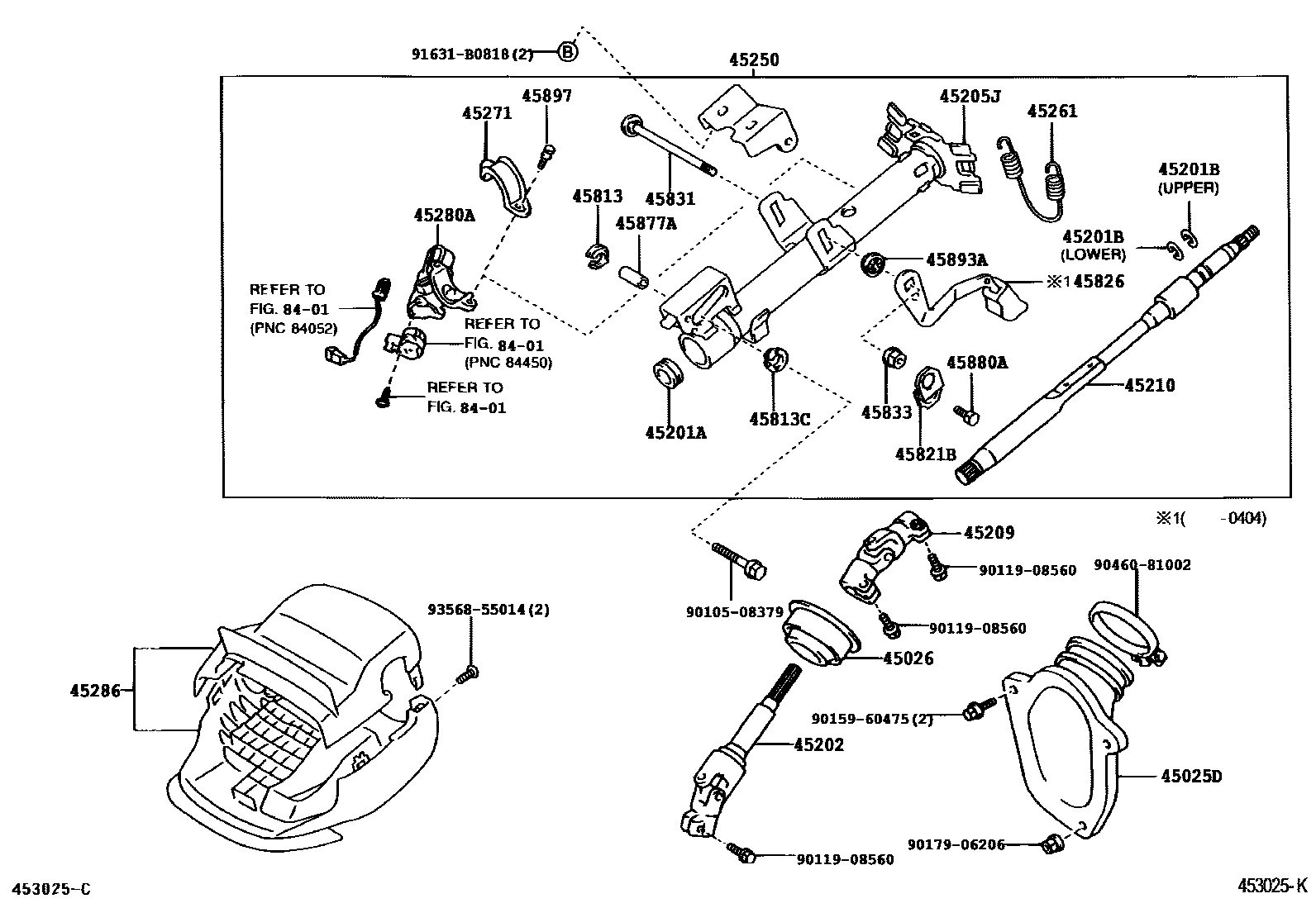

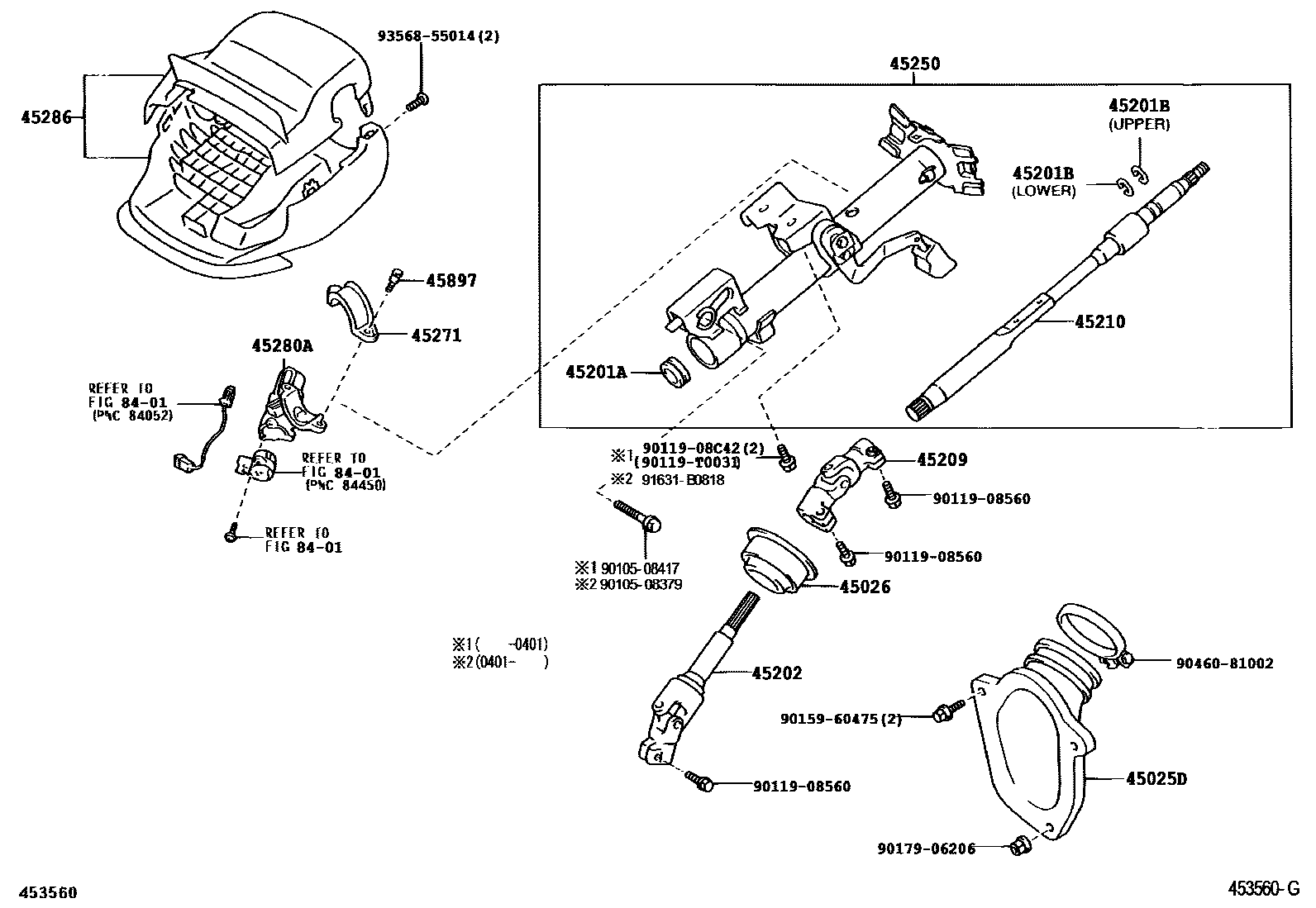

Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-33060 · 45025-33070 |
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-33050 |
| 45201A | Bearings (for steering spindle) | 45274-02020 · 45274-42010 |
| 45201B | Shaft snap ring (for steering spindle) | 90080-52142 · 90080-52143 · 90520-17042 · 90520-17269 |
| 45202 | Steering intermediate shaft sub-assembly | 45202-33060 · 45202-33080 · 45202-33090 |
| 45205J | Steering column upper tube sub-assembly | 45205-06100 · 45205-33130 |
| 45209 | Steering slip fork sub-assembly | 45209-33010 |
| 45210 | Steering spindle assembly | 45210-06030 · 45210-33070 |
| 45250 | Steering column assembly | 45250-06350 · 45250-06390 |
| 45261 | Tilt-adjustable steering rising spring | 45261-20010 |
| 45271 | Clamp on steering column | 45271-16020 |
| 45280A | Steering column upper bracket assembly | 45280-06030 · 45280-06040 · 45280-06050 |
| 45286 | steering column cover | 45286-06907 · 45286-06908 |
| 45813 | No. 1 tilt-adjustable steering bracket collar | 45813-0D010 |
| 45813C | No. 1 tilt-adjustable steering bracket collar | 45813-0D020 |
| 45821B | No. 1 tilt-adjustable steering bracket reinforcement | 45821-0D010 |
| 45826 | Steering tilt adjustment lever | 45826-48020 |
| 45831 | No. 1 tilt adjustment lever locking bolt | 45831-0D010 |
| 45833 | Tilt-adjustable steering column adjustment nut No. 1 | 45833-0D010 |
| 45877A | Steering column bracket support rod | 45877-0D010 |
| 45880A | Bolt (for steering tilt adjustment lever) | 45832-0D010 |
| 45893A | Tilt-adjustable steering pawl stop | 45893-0D010 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
