Toyota CAMRY Front Drive Shaft — Figure 4302

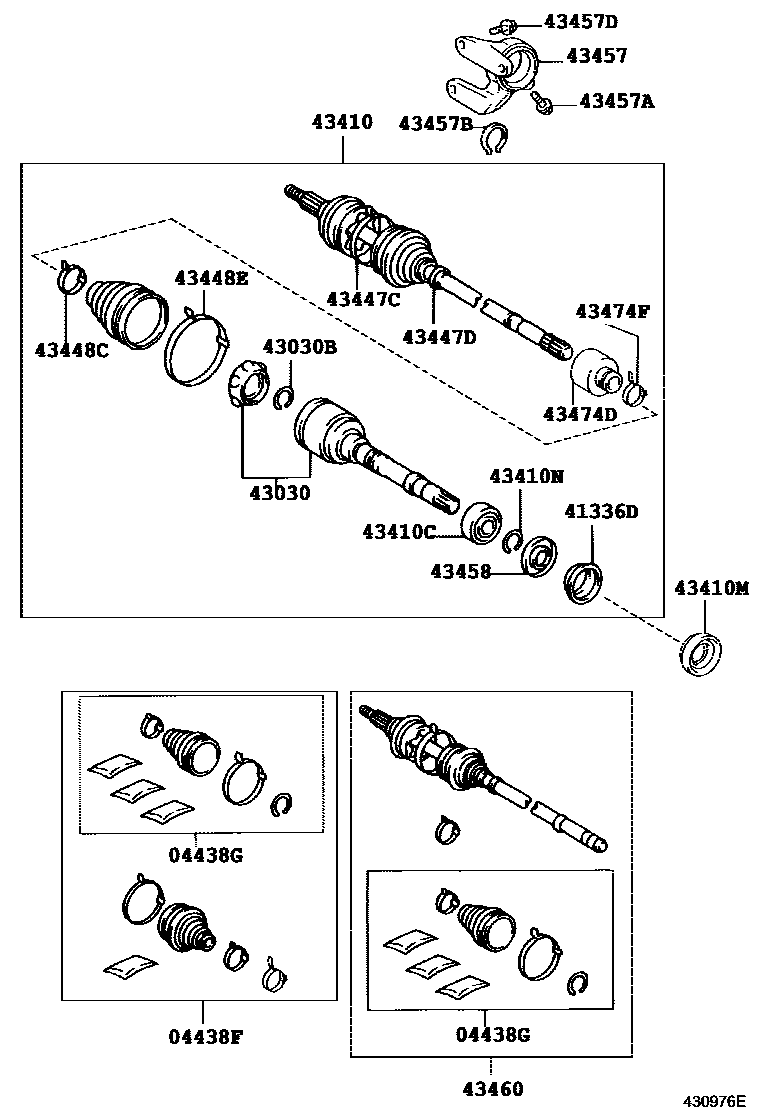

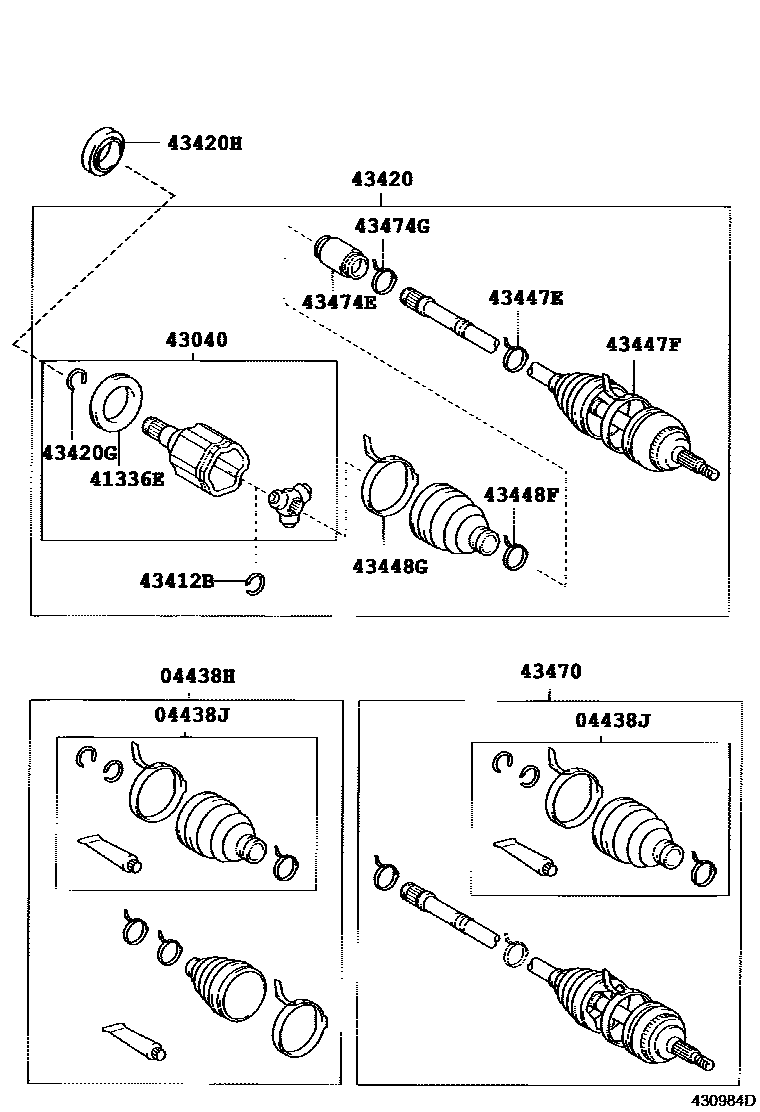

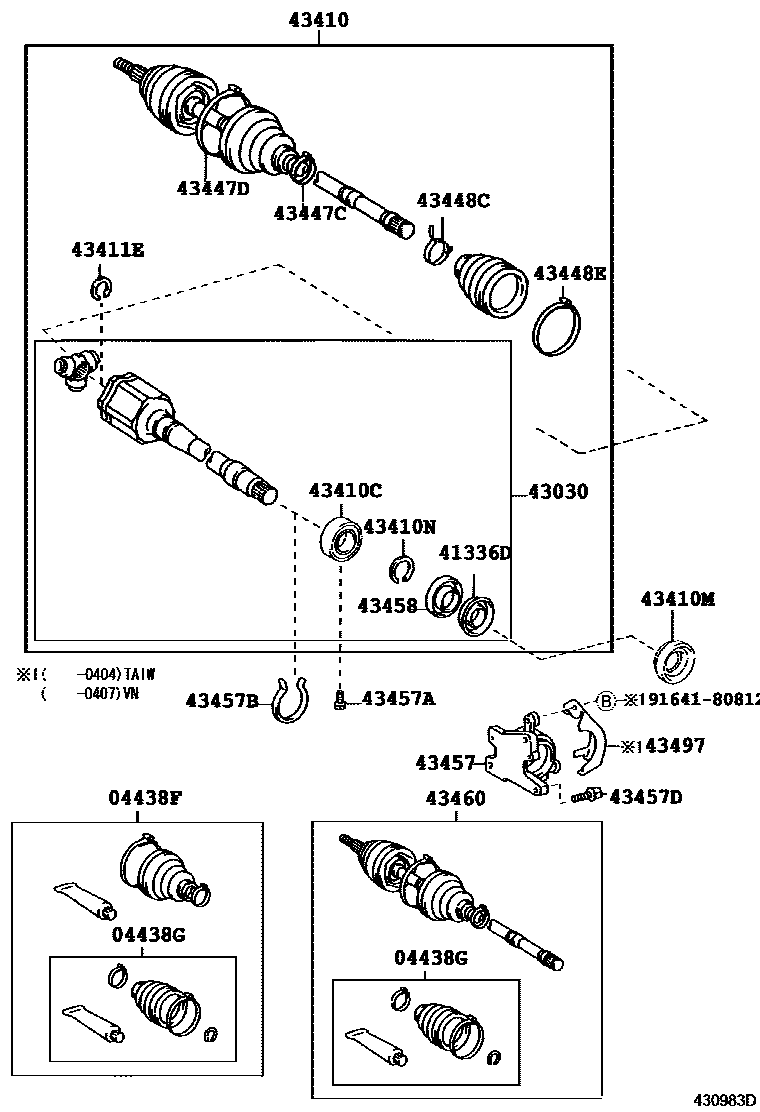

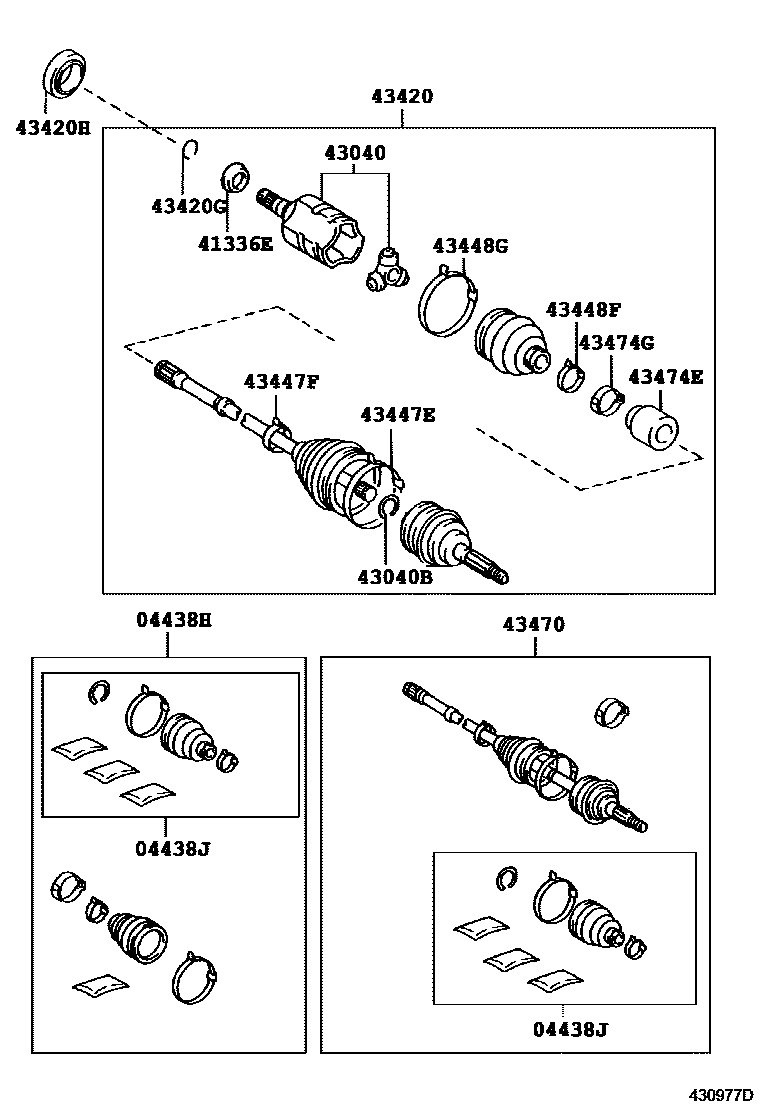

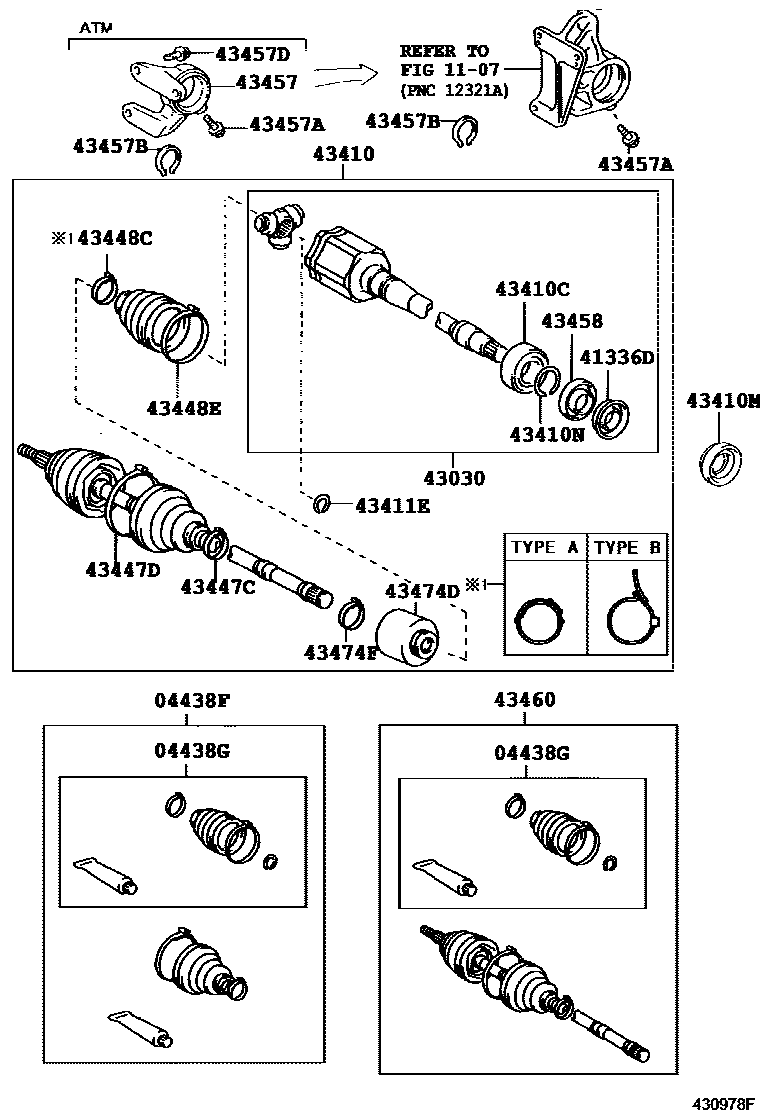

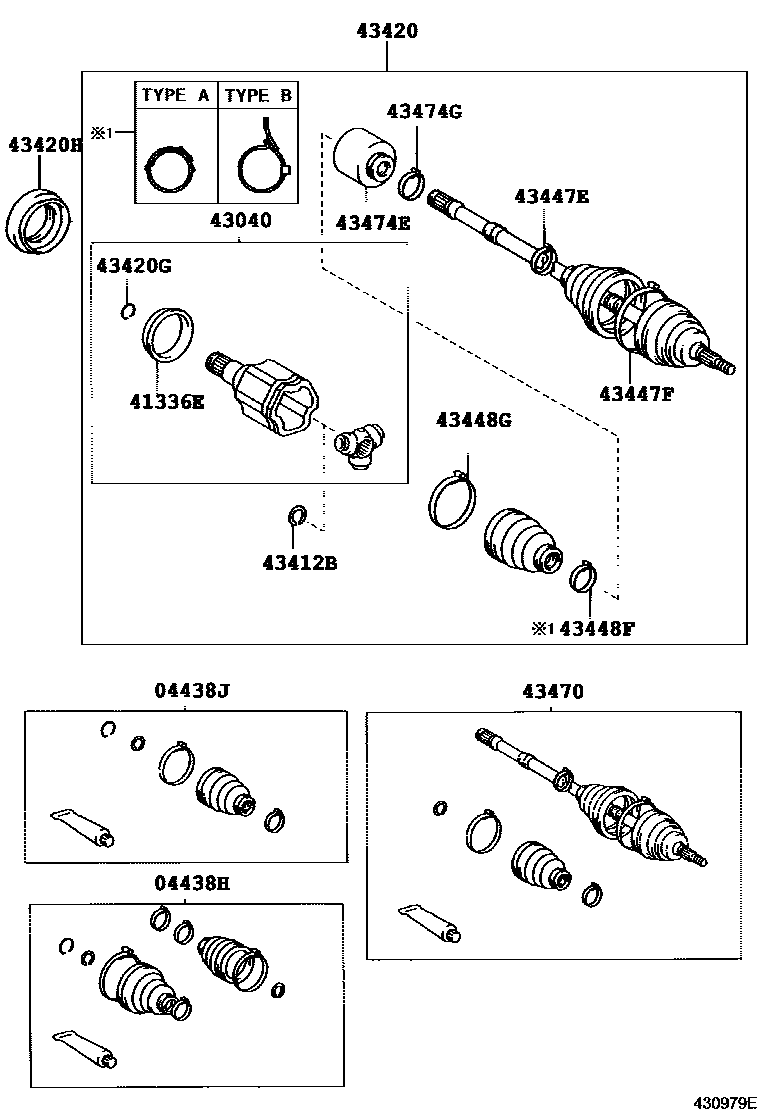

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 6 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-06120 · 04438-06230 · 04438-06240 · 04438-28051 · 04438-28052 · 04438-44050 · 04438-44051 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-06220 · 04438-07010 · 04438-28040 · 04438-28041 · 04438-42180 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-06120 · 04438-06230 · 04438-06240 · 04438-28051 · 04438-28052 · 04438-44050 · 04438-44051 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-06220 · 04438-07010 · 04438-28040 · 04438-28041 |
| 41336D | Right front driveshaft dust cover | 41336-06020 · 41336-12020 · 41336-8C000 |
| 41336E | Left front driveshaft dust cover | 41336-06060 · 41336-28020 · 41336-28030 · 41336-8C001 · 41336-8C002 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-06070 · 43030-33040 · 43030-33041 · 43030-33050 · 43030-33051 · 43030-8C000 · 43030-8C001 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90080-52118 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-06080 · 43040-28010 · 43040-28011 · 43040-28020 · 43040-28021 · 43040-8C000 · 43040-8C001 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90080-52118 |
| 43410 | Right front driveshaft assembly | 43410-06340 · 43410-06350 · 43410-06360 · 43410-06370 · 43410-33230 · 43410-33240 |
| 43410C | Bearings (for front driveshaft) | 90080-36133 · 90363-41002 · 90363-41003 · 90363-8C000 |
| 43410M | Front drive shaft right oil seal | 90311-40010 · 90311-40025 · 90311-40026 · 90311-40028 · 90311-40029 · 90311-40030 · 90311-40031 |
| 43410N | Hole snap ring (for right front driveshaft) | 90080-52013 · 9008C-52001 · 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-28010 · 43425-8C000 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-28010 · 43425-8C000 |
| 43420 | Left front drive shaft assembly | 43420-06330 · 43420-06340 · 43420-06350 · 43420-06360 · 43420-28030 · 43420-33200 · 43420-33240 |
| 43420G | Hole snap ring (for left front driveshaft) | 90080-52017 · 9008C-52002 · 90521-33002 |
| 43420H | Front drive shaft left oil seal | 90311-50011 · 90311-50023 · 90311-50024 · 90311-50028 · 90311-50029 · 90311-50031 · 90311-50033 · 90311-50035 · 90311-50037 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-06090 · 42345-20040 · 42345-48030 · 42345-8C000 · 42345-8C001 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-06040 · 42345-28020 · 42345-44020 · 42345-8C002 · 42345-8C003 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-06090 · 42345-20040 · 42345-48030 · 42345-8C002 · 42345-8C003 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-06040 · 42345-28020 · 42345-44020 · 42345-8C000 · 42345-8C001 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-07020 · 42345-42010 · 9008C-94001 · 90949-01559 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-07010 · 42345-12160 · 9008C-94002 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-07020 · 42345-42010 · 9008C-94001 · 90949-01559 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-07010 · 42345-12160 · 9008C-94002 |
| 43457 | drive shaft bearing bracket | 43457-33010 · 43457-33020 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-06020 · 43458-12010 · 43458-8C000 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09A13 · 43460-09A14 · 43460-39156 · 43470-09810 · 43470-29625 · 43470-29626 · 43470-29885 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09810 · 43470-09A36 · 43470-09A37 · 43470-29625 · 43470-29626 · 43470-29885 · 43470-39375 · 43470-39376 |
| 43474D | Right front driveshaft shock absorber | 43474-48011 · 43474-48020 |
| 43474E | Left front driveshaft shock absorber | 43474-28010 · 43474-33020 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06100 · 42345-14010 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06100 · 42345-14010 |
| 43497 | Bearing bracket heat insulation pad | 43497-33010 |
