Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

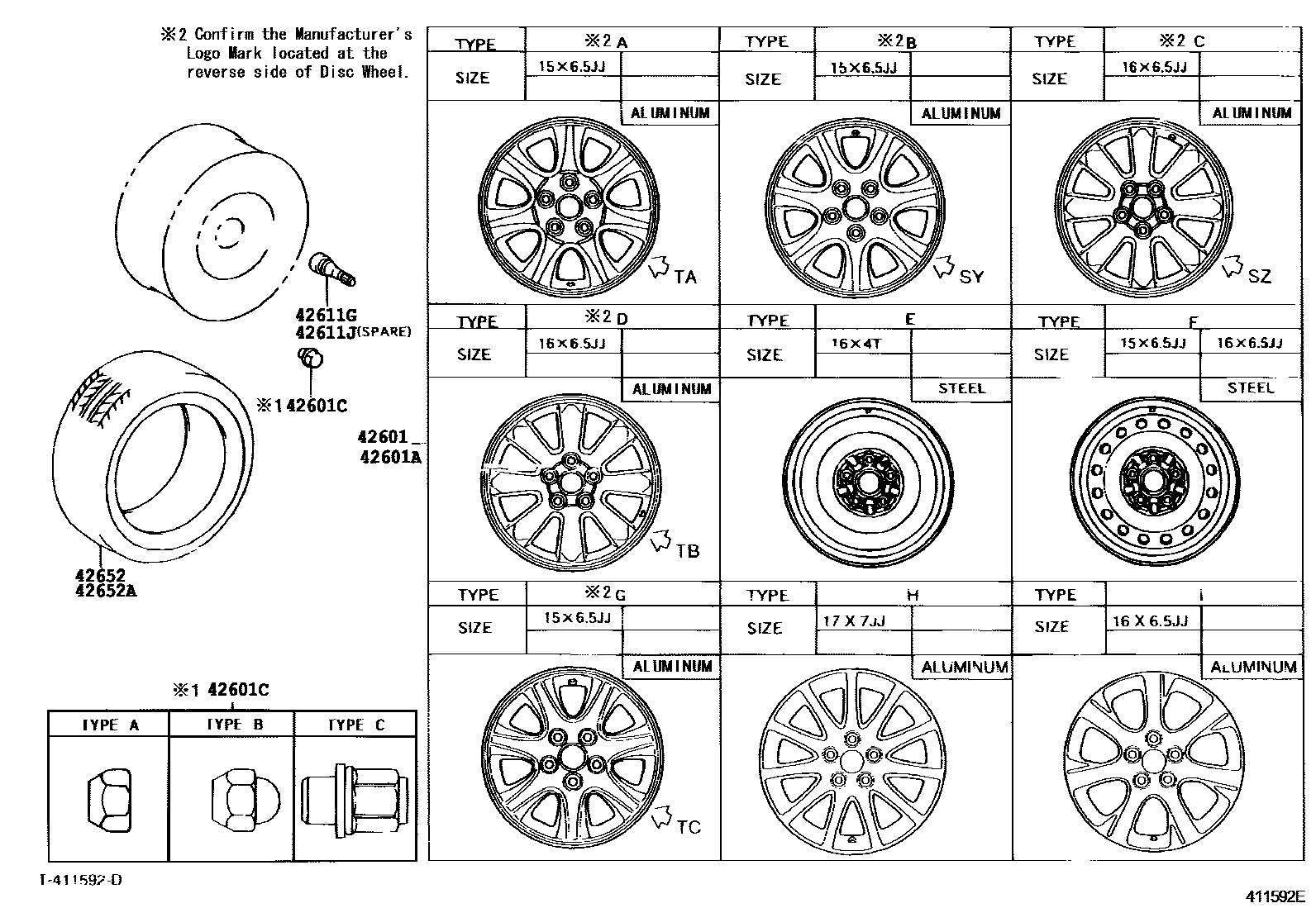

| 42601 | spoke wheel | 42611-06190 · 42611-06200 · 42611-06210 · 42611-06220 · 42611-06240 · 42611-06250 · 42611-06260 · 42611-06290 · 42611-06300 · 42611-06310 · 42611-06320 · 42611-06330 |
| 42601A | Spoke wheel (for spare tire) | 42611-06190 · 42611-06220 · 42611-06230 · 42611-06240 · 42611-06250 · 42611-06260 · 42611-06290 · 42611-06310 · 42611-06330 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 · 90942-01058 · 90942-01083 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-06040 · 42603-06050 · 42603-33090 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90083-45001 · 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90083-45001 · 90942-05009 |
| 42621 | wheel cover | 42602-33050 |
| 42652 | tires | 42652-33260 · 42652-33261 · 42652-33262 · 42652-33500 · 42652-33501 · 42652-33502 |
| 42652A | Tire (for Spare Wheel) | 42652-33260 · 42652-33261 · 42652-33262 · 42652-33500 · 42652-33501 · 42652-33502 |
