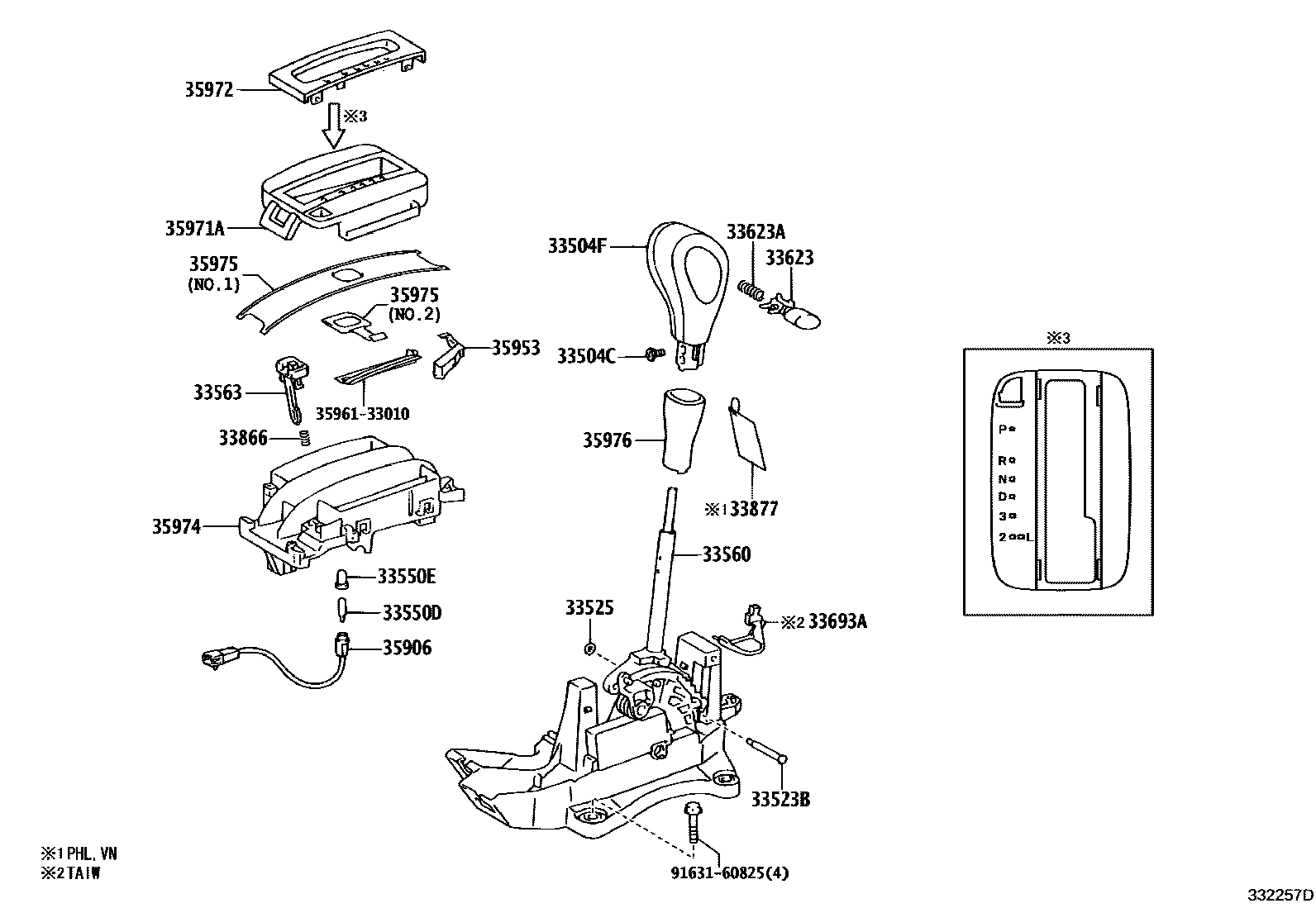

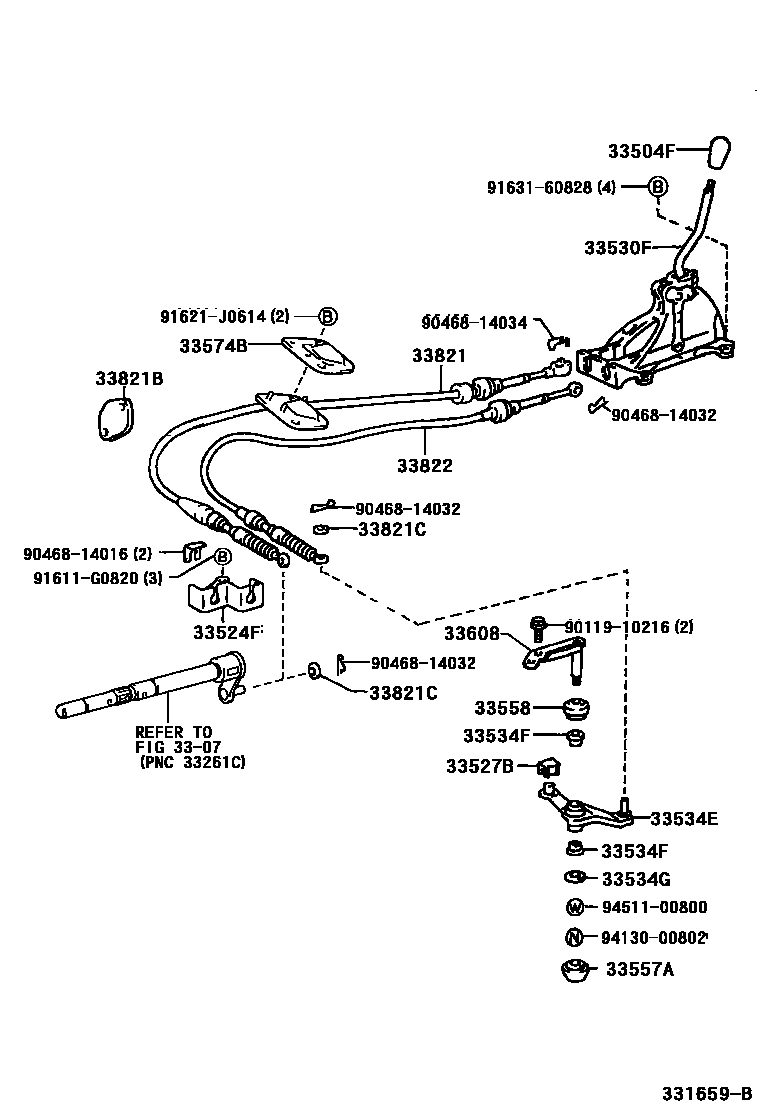

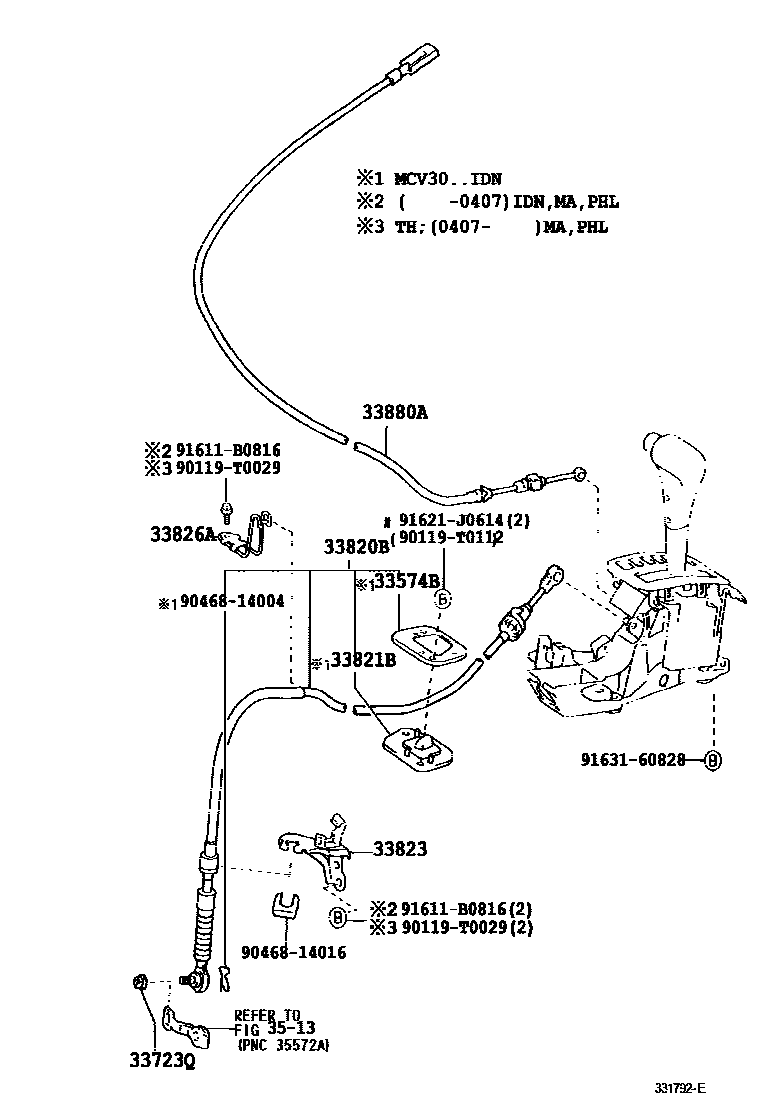

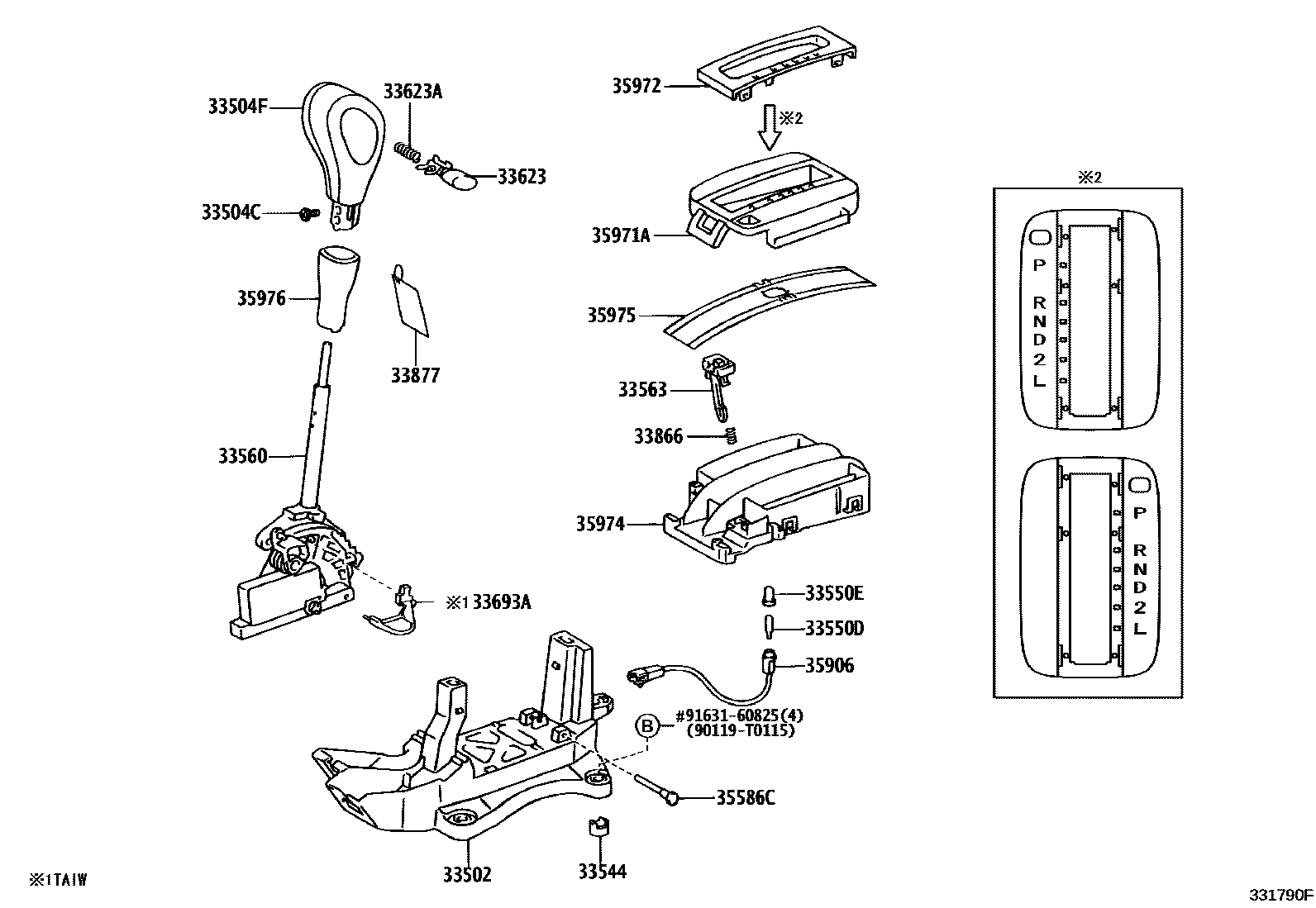

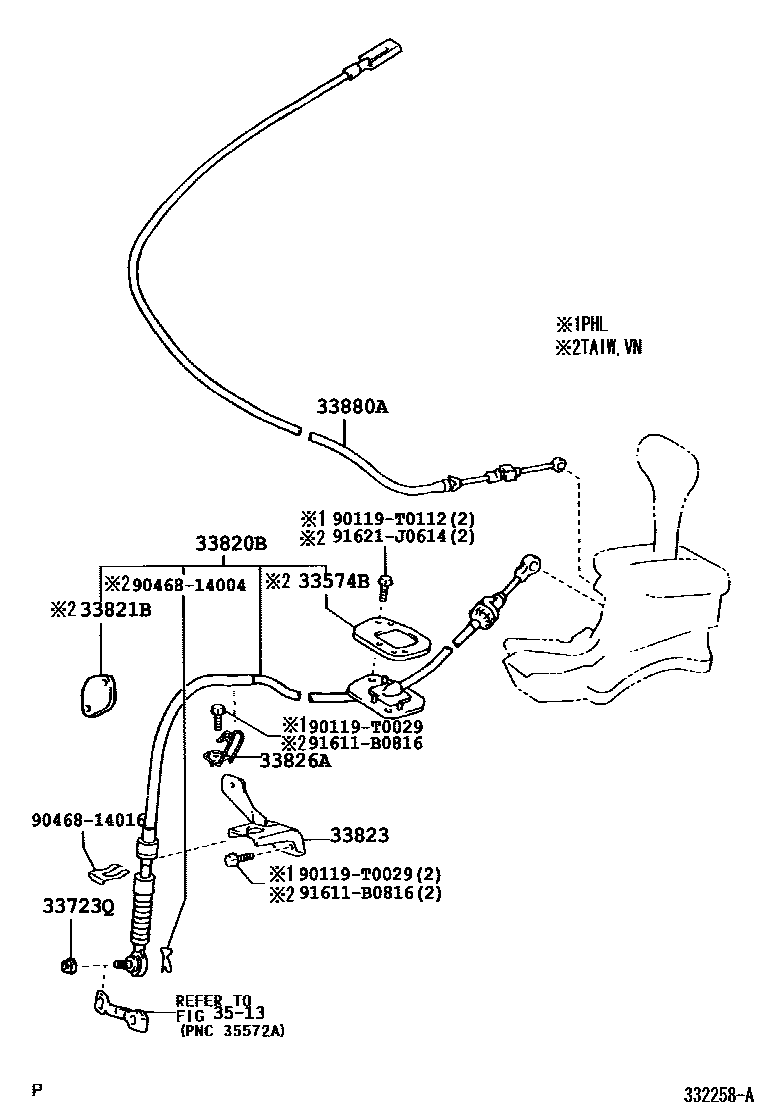

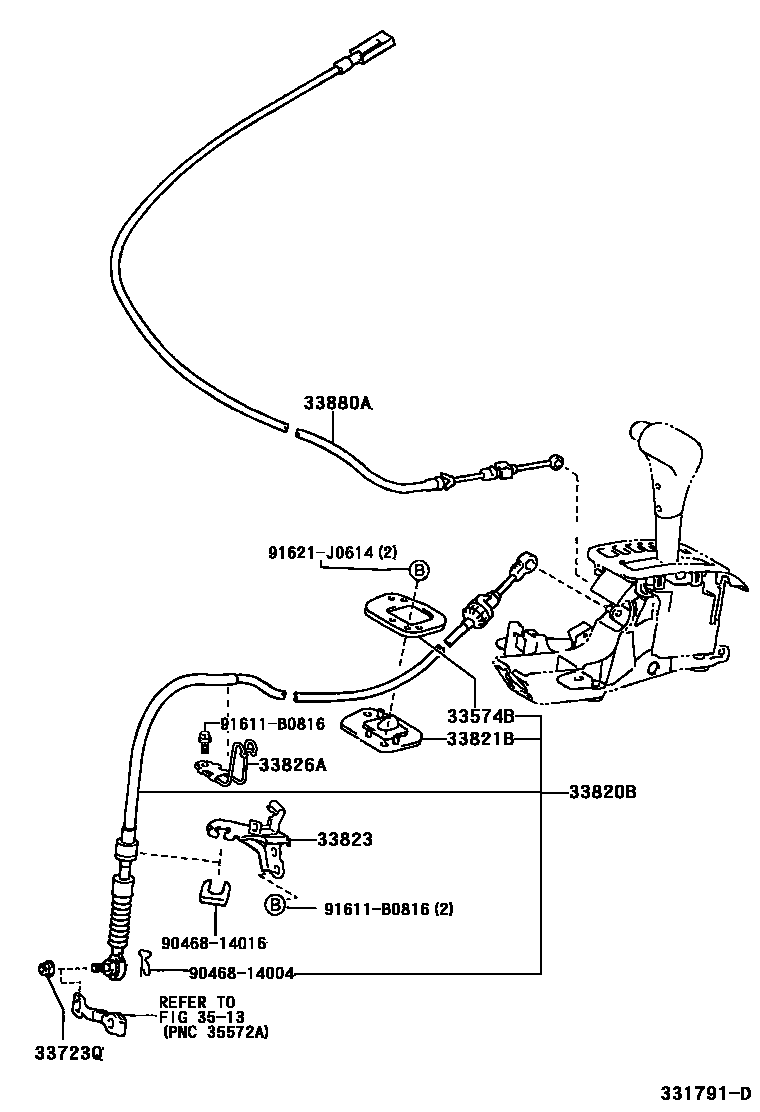

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 6 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33502 | Shift lever base plate sub-assembly | 33521-06040 · 33521-33050 |
| 33504C | Screw (for securing shift lever knob) | 90159-40238 |
| 33504F | Shift lever handle sub-assembly | 33542-06090 · 33542-33180 |
| 33523B | Shift lever pin (for floor shift) | 33523-33010 |
| 33524F | Lever housing bracket (for floor shift) | 33524-28020 |
| 33525 | shift lever bracket | 33525-42010 |
| 33527B | Bushing (for shift control lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-33120 |
| 33534E | No. 2 gear selection right-angle lever | 33534-28090 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33544 | Shift lever insert No. 1 | 33544-33010 |
| 33550D | position indicator light bulb | 90981-11014 |
| 33550E | position indicator cover | 90339-04049 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-06020 · 33560-06040 · 33560-33070 · 33560-33080 · 33560-33110 · 33560-33120 |
| 33563 | Shift lock release button | 33563-06050 · 33563-33150 · 33563-33180 |
| 33574B | No. 2 shift cable seal | 33574-06050 · 33574-33060 · 33574-33070 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 |
| 33623 | Shift lever handle button | 33623-33100 · 33623-33120 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07116 |
| 33693A | Shift lever adjustment shim (for floor shift) | 33693-06020 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08054 |
| 33820B | Transmission control cable assembly | 33820-06160 · 33820-06210 · 33820-06220 · 33820-06230 · 33820-06240 · 33820-06250 · 33820-33190 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-33170 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 33577-33060 · 33577-33070 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08077 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-33080 |
| 33823 | No. 1 transmission control cable bracket | 33823-33040 · 33823-48040 |
| 33826A | No. 2 transmission control cable bracket | 33826-33010 · 33826-33030 · 33826-33040 |
| 33866 | Shift lock release spring | 33866-33010 |
| 33877 | Shift lock information label No. 1 | 33877-02010 · 33877-50030 |
| 33880A | Parking lock cable assembly (for floor shift) | 33880-33050 · 33880-33060 |
| 35586C | Toggle lever bracket pin | 35586-33010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-06030 · 35906-06050 · 35906-33070 · 35906-33100 |
| 35953 | Position indicator light guide | 35953-33030 |
| 35971A | Position indicator light upper shell | 35971-33140 · 35971-33150 · 35971-33180 |
| 35972 | Position indicator light housing cover | 35972-06010 · 35972-06020 · 35972-33010 · 35972-33020 · 35972-33030 · 35972-33050 |
| 35974 | Position indicator light lower shell | 35974-06040 · 35974-33100 · 35974-33110 · 35974-33120 |
| 35975 | Slide cover (for position indicator light) | 35975-06050 · 35975-33050 · 35975-33060 · 35975-33080 · 35976-33080 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-06030 · 35976-06060 · 35976-33100 |
