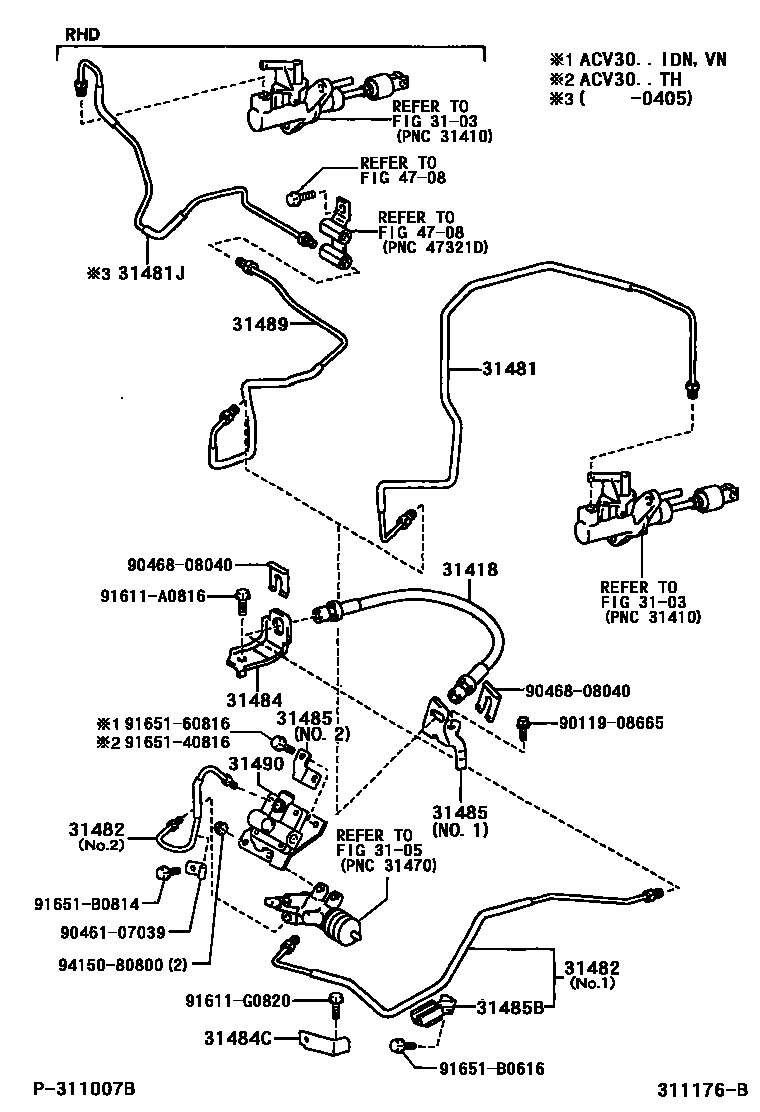

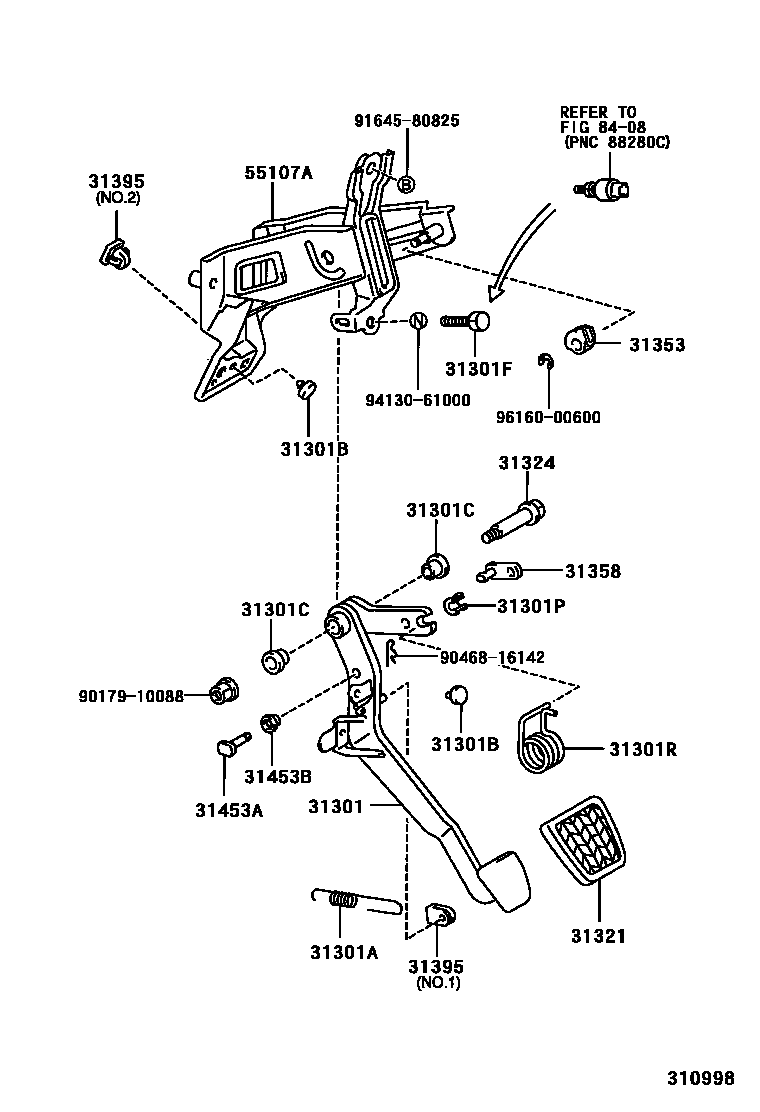

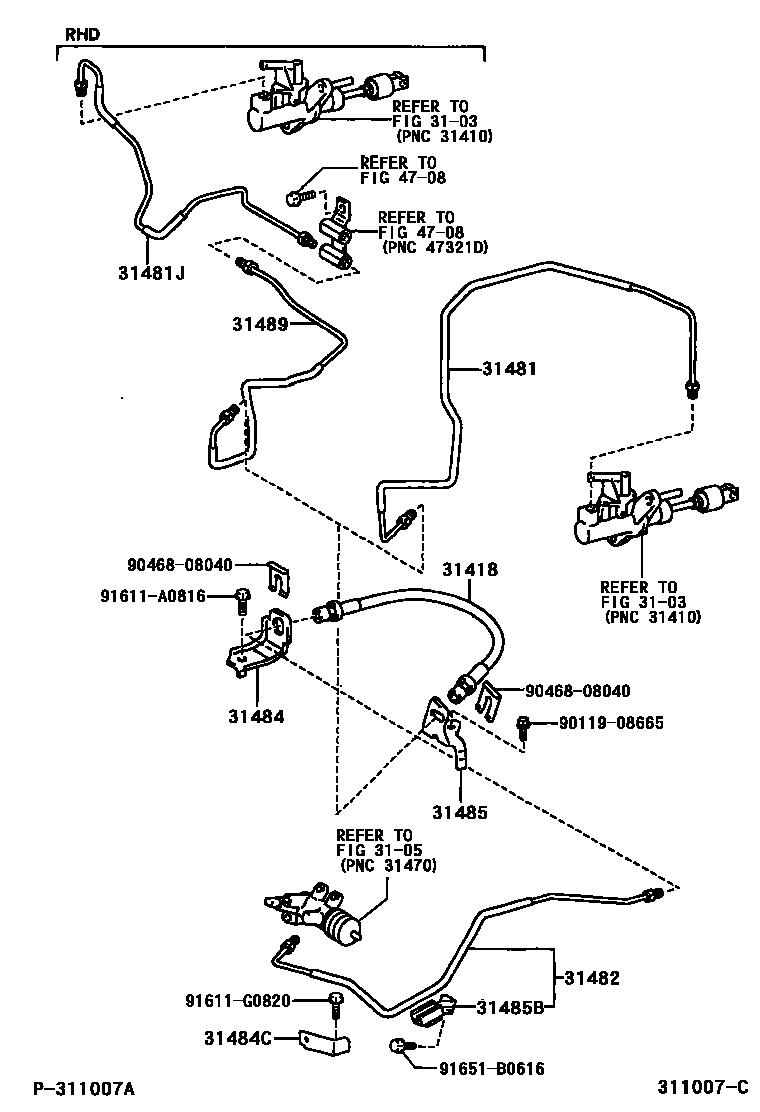

Toyota CAMRY 离合器踏板和挠性软管 — Figure 3102
Toyota CAMRY EPC diagram 3102, 离合器踏板和挠性软管, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-33040 · 31301-33050 |
| 31301A | Spring (for clutch pedal) | 90507-18027 · 90905-07033 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31301R | Compression spring (for flip spring seat) | 90949-03110 |
| 31321 | clutch pedal pad | 31321-52010 |
| 31324 | clutch pedal shaft | 90109-10167 |
| 31353 | Clutch pedal spring retainer | 31353-35010 |
| 31358 | center spring cover | 31358-42010 |
| 31395 | pedal spring hook | 31395-33010 · 31395-33020 |
| 31418 | clutch hose | 90947-02C56 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08143 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08033 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-33050 |
| 31481J | Pipe from clutch master cylinder to dual pipe | 31481-33060 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-33060 · 31482-33061 · 31482-33070 |
| 31484 | Flexible hose bracket (for clutch) | 31484-33030 |
| 31484C | No. 1 clutch tube bracket | 31484-20320 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-42080 · 31485-33010 |
| 31485B | Pipe clamp bracket | 47386-33040 |
| 31489 | Pipe connector to flexible hose pipe | 31489-33010 |
| 31490 | Clutch pressure accumulator assembly | 31490-42010 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-33030 · 55107-33040 |
