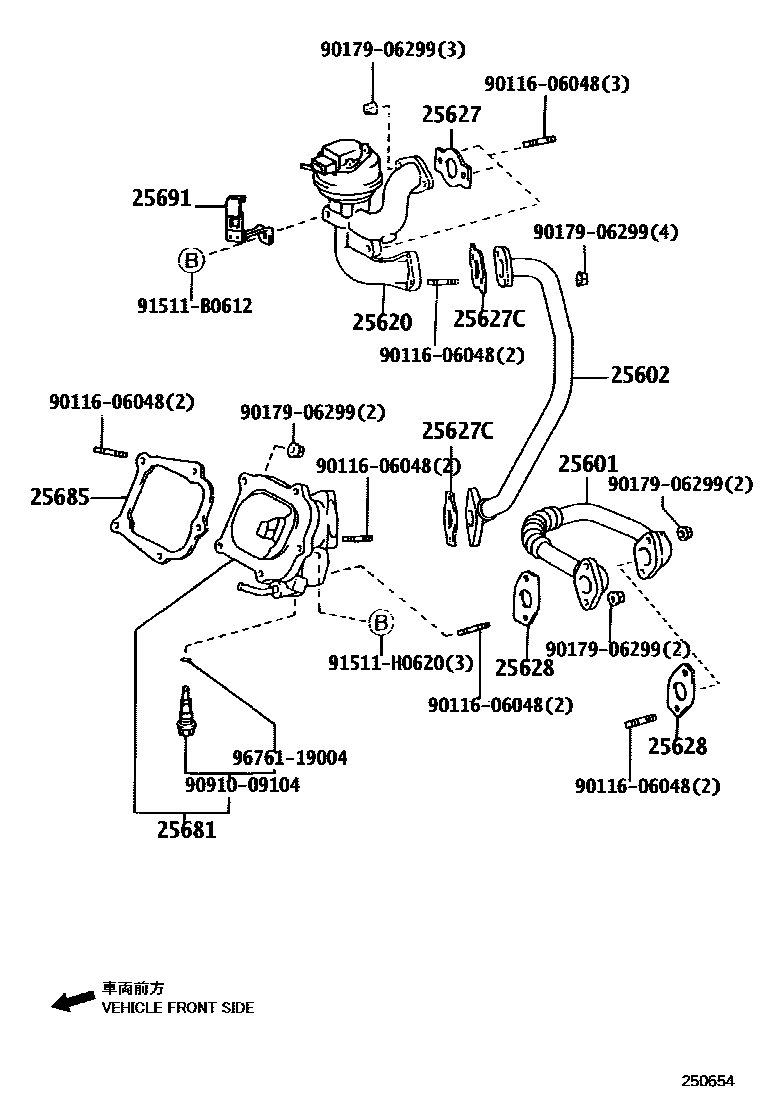

Toyota CAMRY 废气再循环系统 — Figure 2501
Toyota CAMRY EPC diagram 2501, 废气再循环系统, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25611-20030 |
| 25602 | No. 2 EGR pipe assembly | 25612-20030 |
| 25620 | EGR valve assembly | 25620-20020 |
| 25627 | EGR valve gasket | 25627-20010 |
| 25627C | Gasket (for No. 2 EGR tube) | 25627-20010 |
| 25628 | EGR air intake gasket | 25628-20010 |
| 25681 | No. 1 EGR cooler | 25681-20020 |
| 25685 | No. 1 EGR Cooler Gasket | 25685-20010 |
| 25691 | EGR vacuum regulator bracket | 25691-20030 |
