Toyota CAMRY 燃油喷射系统 — Figure 2211

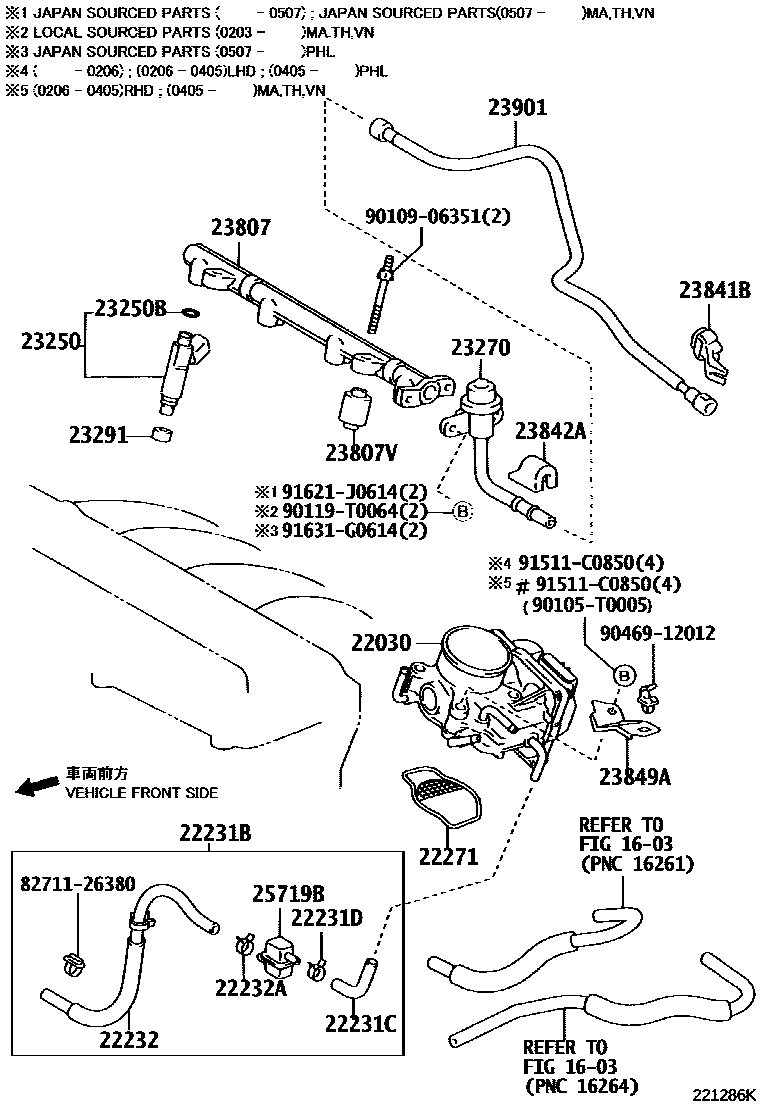

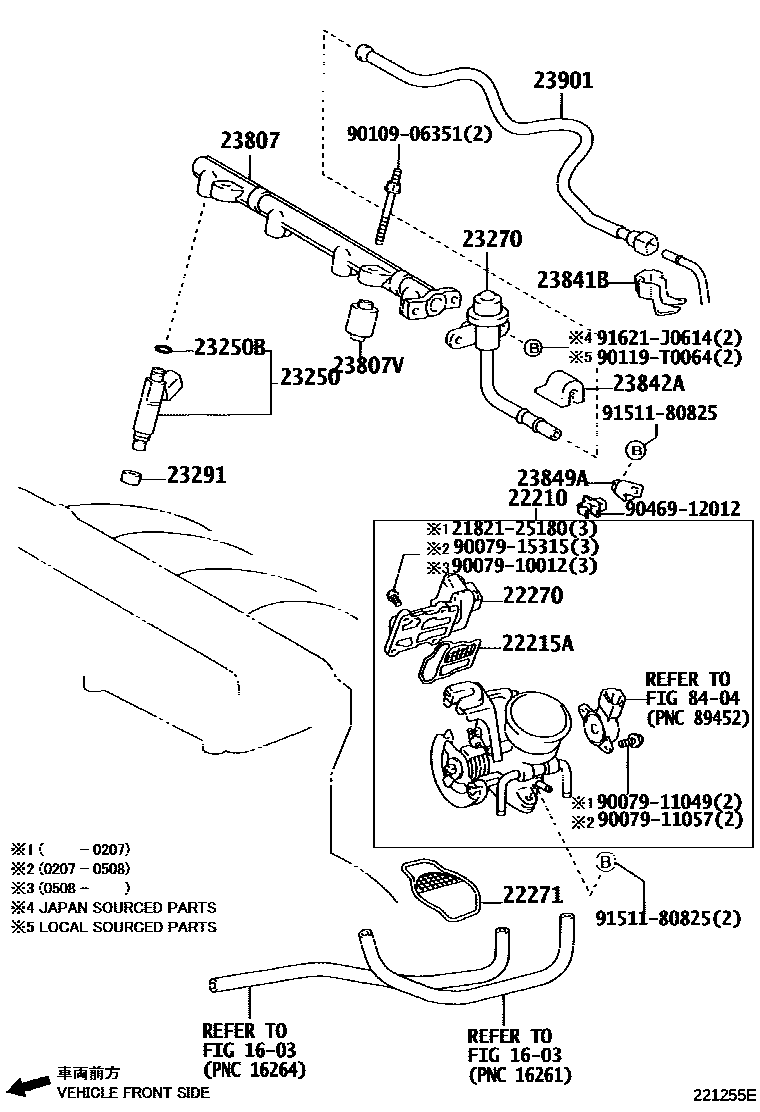

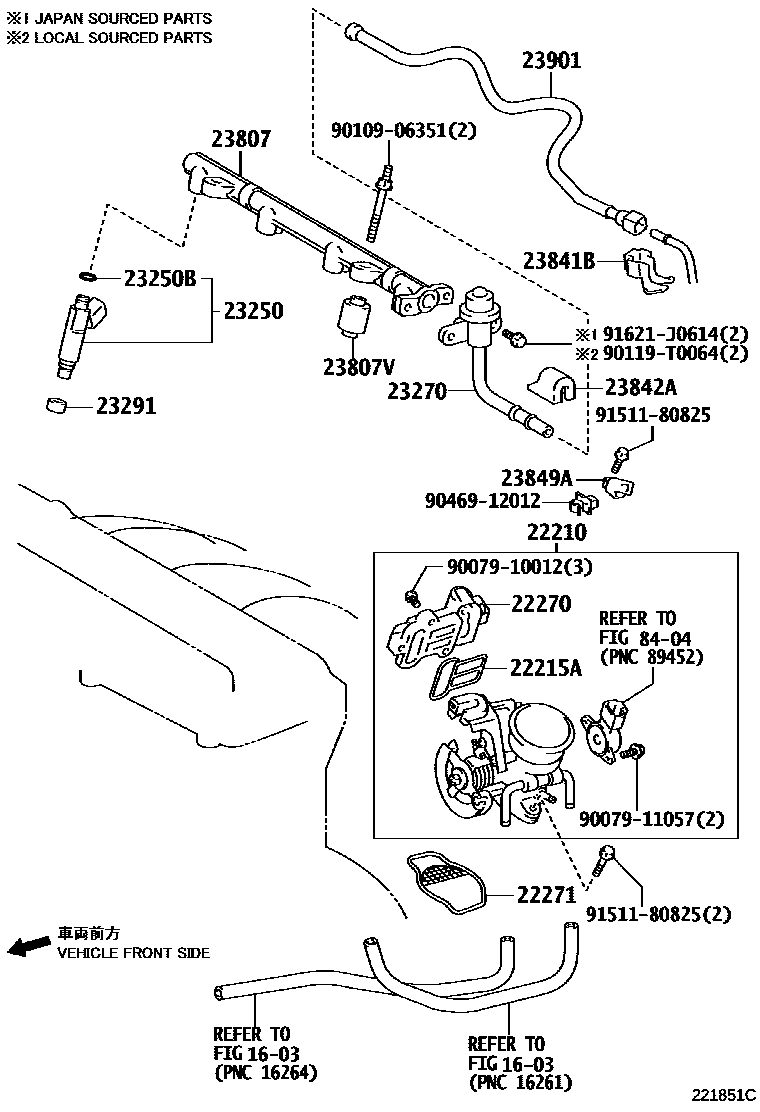

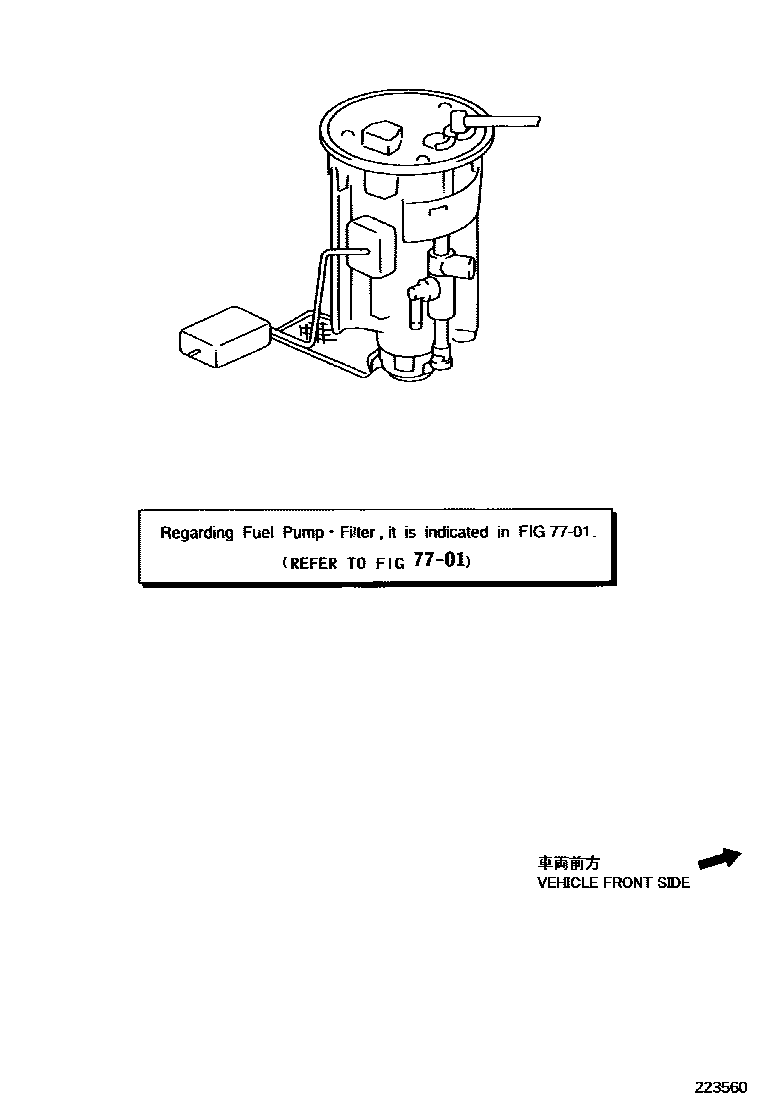

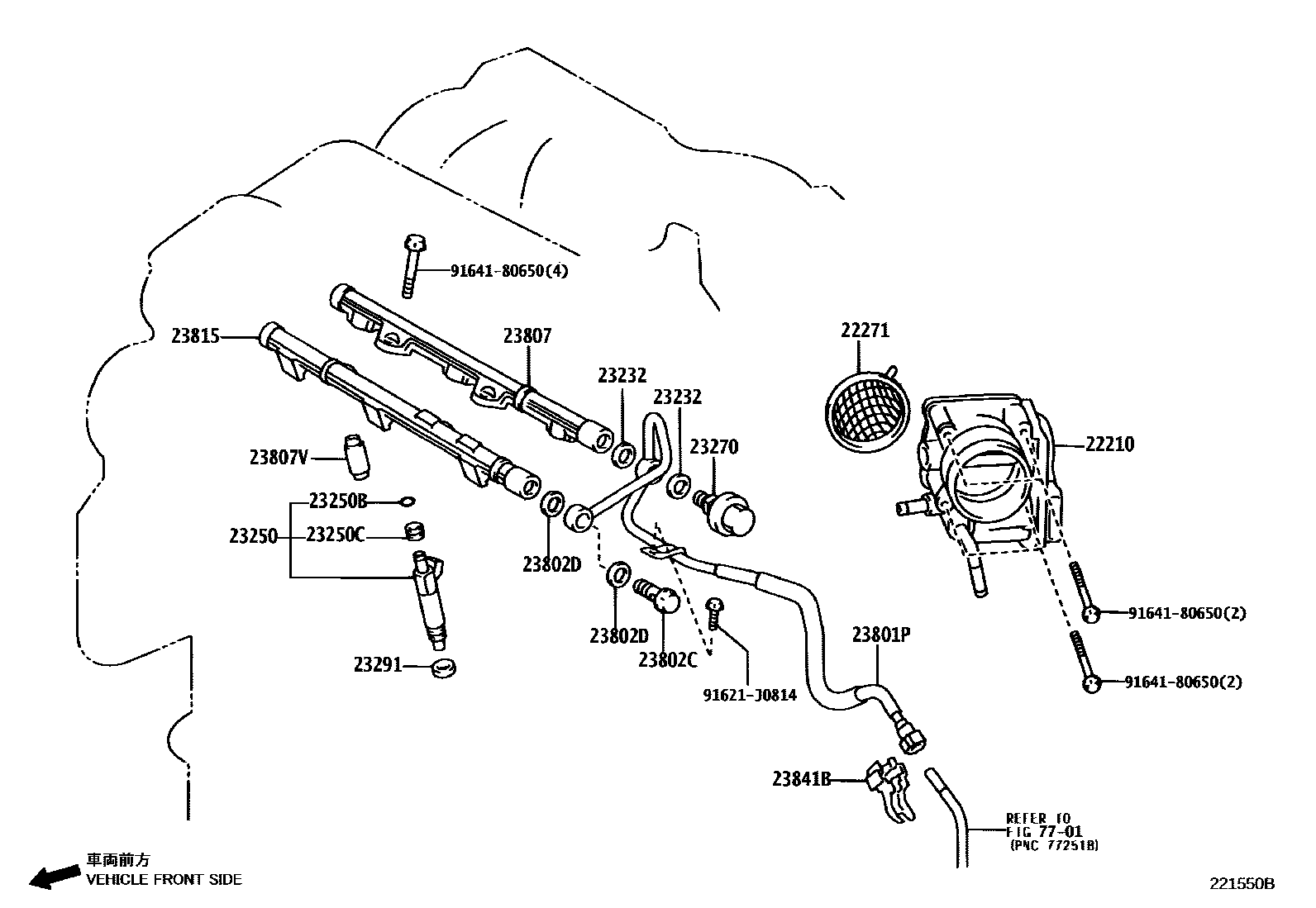

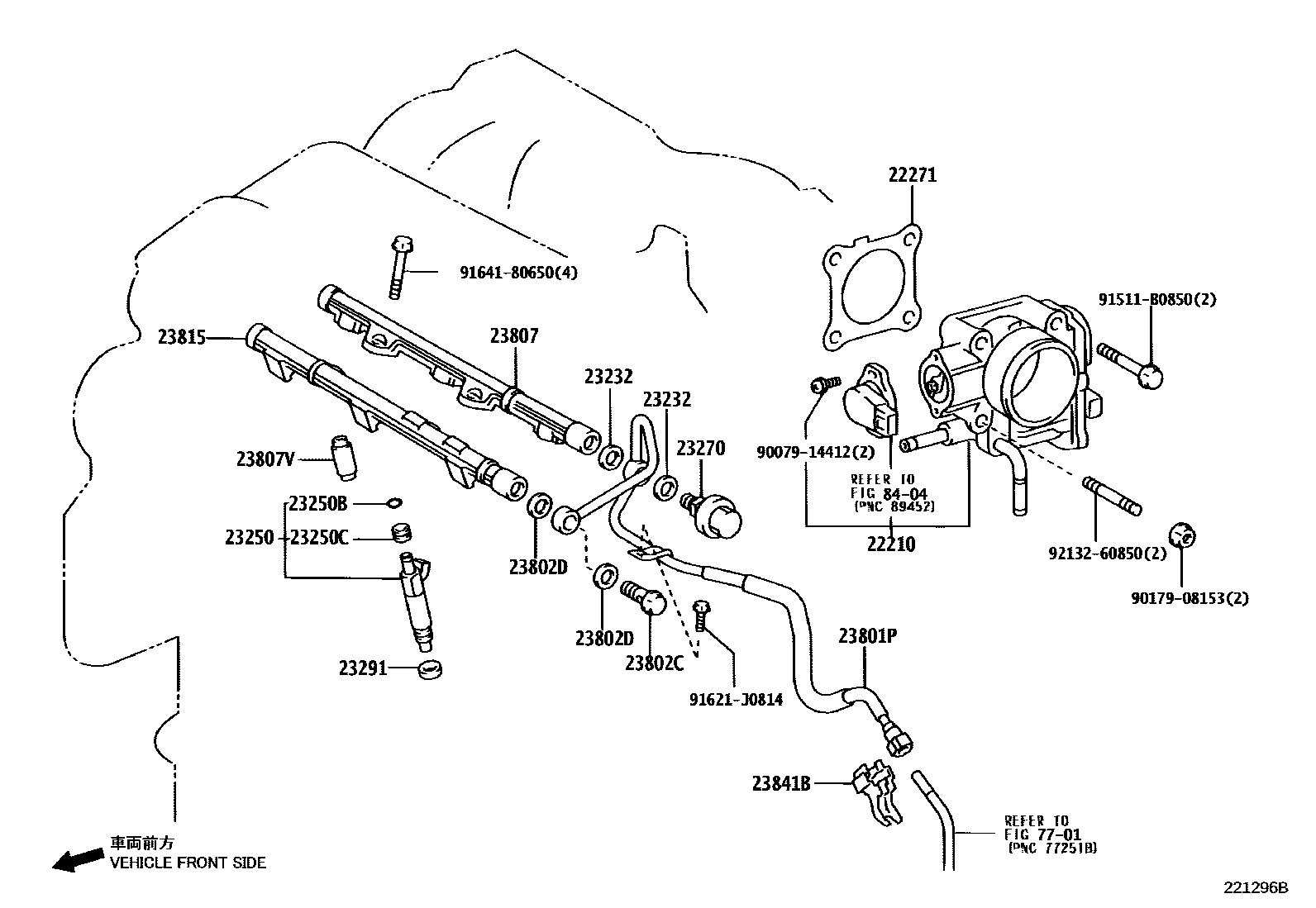

Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 6 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Throttle valve body assembly with throttle position sensor | 22030-28030 · 22030-28040 |
| 22210 | Throttle body assembly | 22030-20020 · 22030-20050 · 22030-20051 · 22030-20060 · 22210-28040 · 22210-28060 · 22210-28090 |
| 22215A | Idle speed control valve gasket | 22215-28042 · 22215-7A680 |
| 22231B | throttle body hose | 22231-28030 |
| 22231C | No. 1 throttle body hose | 22231-28040 |
| 22231D | Clip or clip (for throttle body hose) | 90467-12056 |
| 22232 | No. 2 throttle body hose | 22232-28010 |
| 22232A | Clip or clip (for throttle body hose) | 90467-12056 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-28010 · 22270-28020 |
| 22271 | Throttle body gasket | 22271-20030 · 22271-20031 · 22271-20040 · 22271-28020 |
| 23232 | Gasket (for fuel pump hose) | 23232-41081 |
| 23250 | Fuel injector assembly | 23209-20030 · 23209-28020 · 23209-28050 |
| 23250B | O-ring (for fuel injector) | 90301-07024 · 90301-07037 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-28020 · 23270-62010 · 23270-62011 |
| 23291 | Injector vibration isolation pad | 23291-41010 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-20140 · 23801-20190 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-12015 |
| 23802D | Gasket (for No. 2 fuel line) | 90430-12026 |
| 23807 | Oil pipe sub-assembly | 23814-20020 · 23814-20021 · 23814-28030 · 23814-28031 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08020 · 90561-08053 |
| 23815 | No. 2 oil pipeline | 23815-20020 · 23815-20021 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-28010 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-0H010 · 23842-22020 · 23842-28010 |
| 23849A | Fuel pipe bracket | 23849-28010 · 23849-28030 |
| 23901 | Fuel pipe sub-assembly | 23901-28130 · 23901-28140 |
| 25719B | Vacuum pressure tank | 25719-28040 · 25719-62050 |
