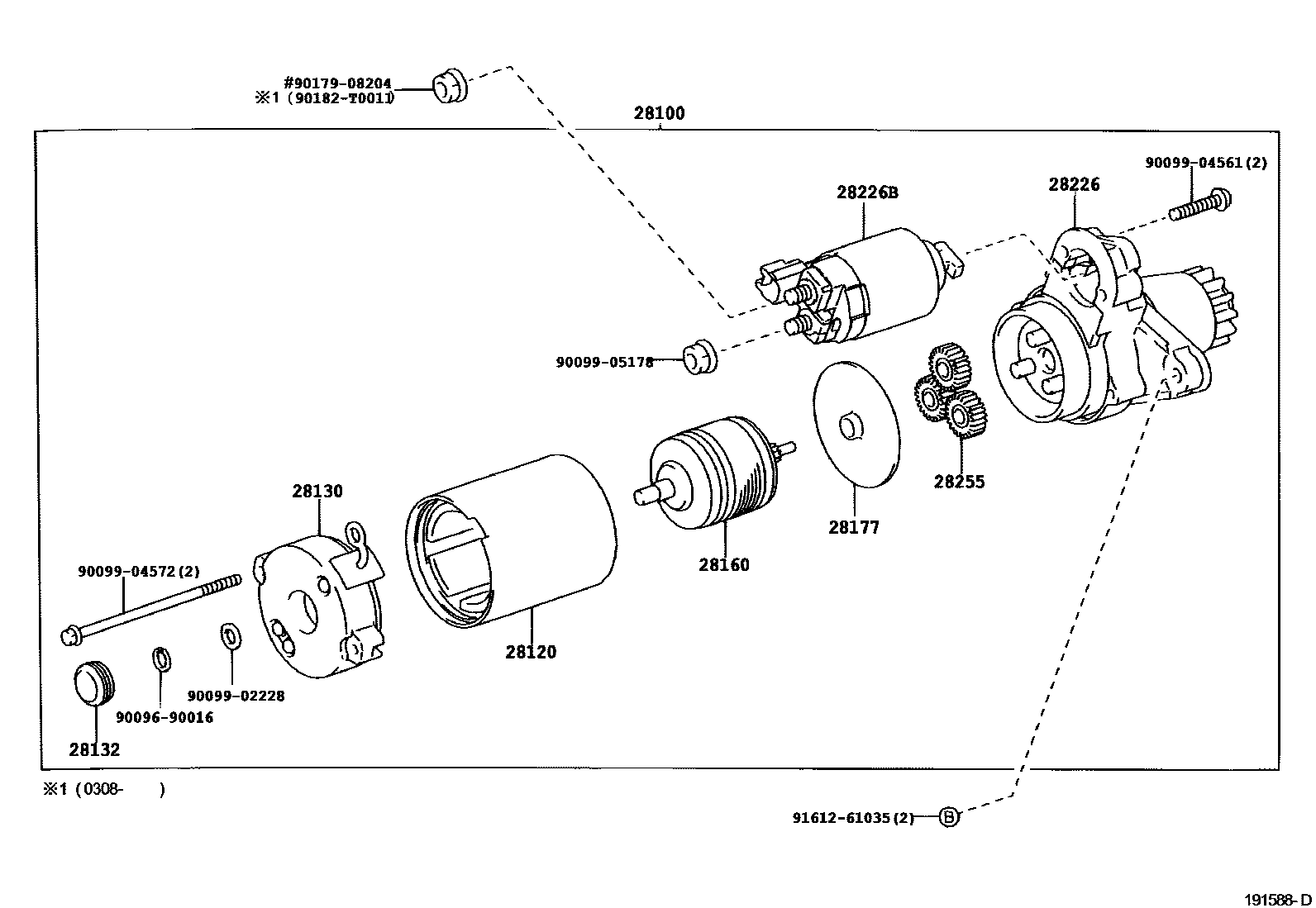

Toyota CAMRY 起动机 — Figure 1904
Toyota CAMRY EPC diagram 1904, 起动机, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28100 | Starter assembly | 28100-0H041 · 28100-28041 |
| 28120 | Starter yoke assembly | 28120-28040 |
| 28130 | Starter commutator end frame assembly | 28130-28040 |
| 28132 | Starter bearing cap (for drive end housing) | 28132-28040 |
| 28160 | Starter armature assembly | 28160-28040 |
| 28177 | Plate (for starter armature) | 28177-28040 |
| 28226 | battery terminal starter assembly | 28226-28041 |
| 28226B | starter magnetic switch | 28226-28050 · 28226-28051 |
| 28255 | Planetary gear | 28255-28040 |
