Toyota CAMRY 点火线圈和火花塞 /电热塞 — Figure 1901

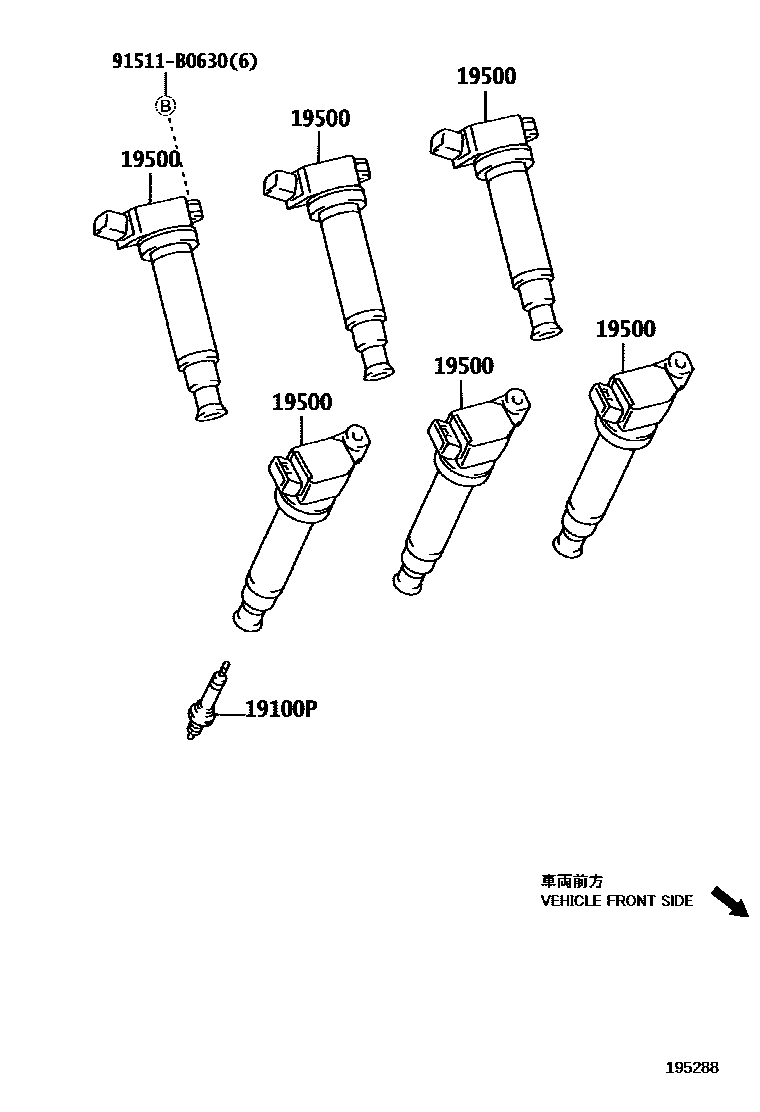

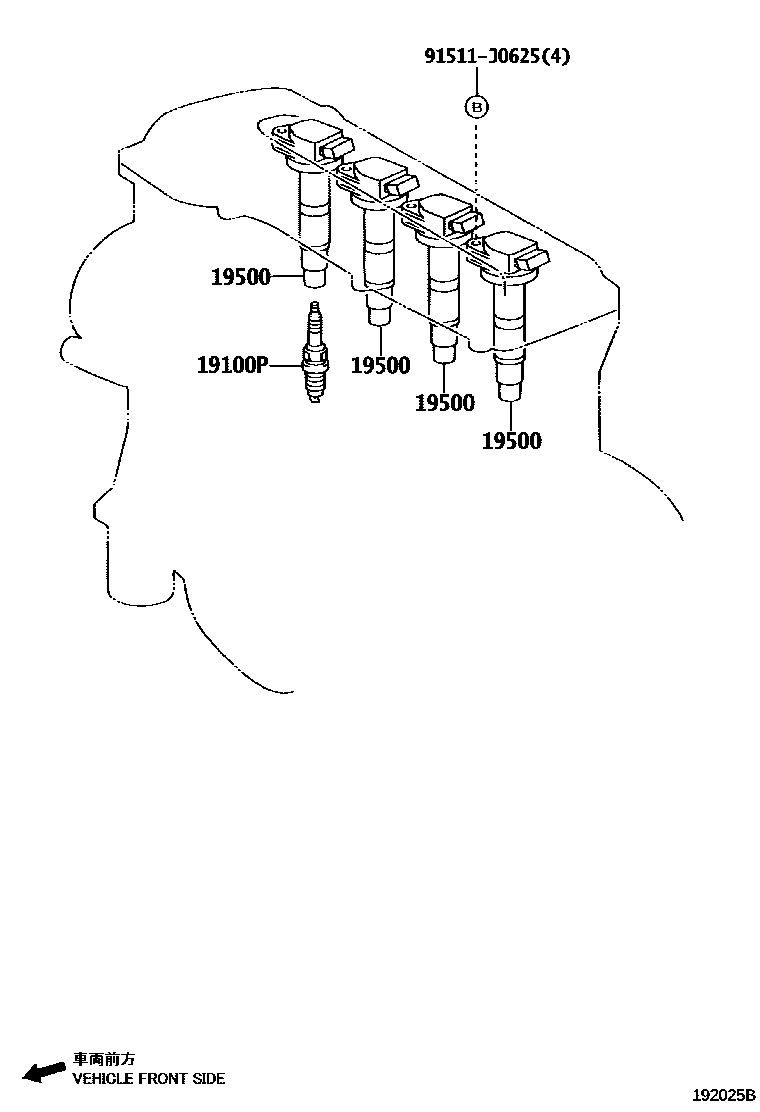

Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01210 · 90919-01237 |
| 19500 | Ignition coil assembly | 90919-02234 · 90919-02243 · 90919-02244 |
