Toyota CAMRY V-Belt — Figure 1605

Toyota CAMRY EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.

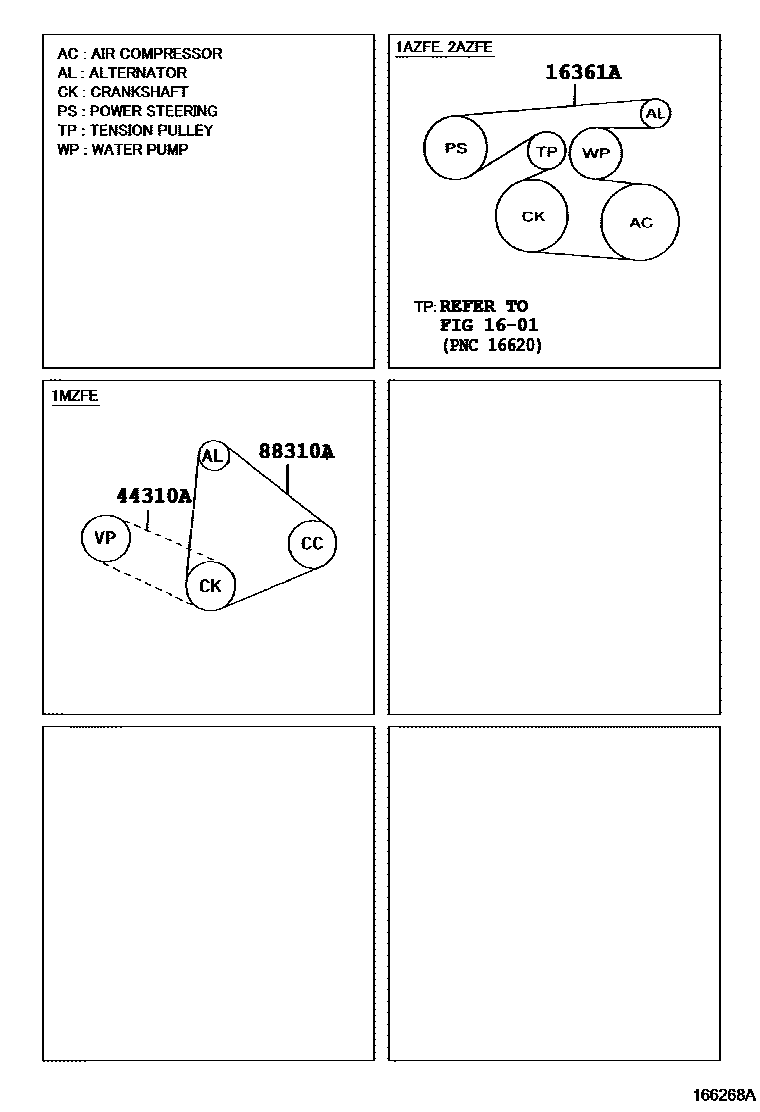

Toyota CAMRY V-Belt EPC diagram — 166268A
V-Belt — 166268A (200203 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90080-91214 · 90916-02502 · 90916-02598
44310AV-belt (for vane pump)90080-91228
88310ANo. 1 V-belt (cooler compressor to crankshaft pulley)90080-91147 · 99366-31040 · 99366-C1040 · 99366-D1040
