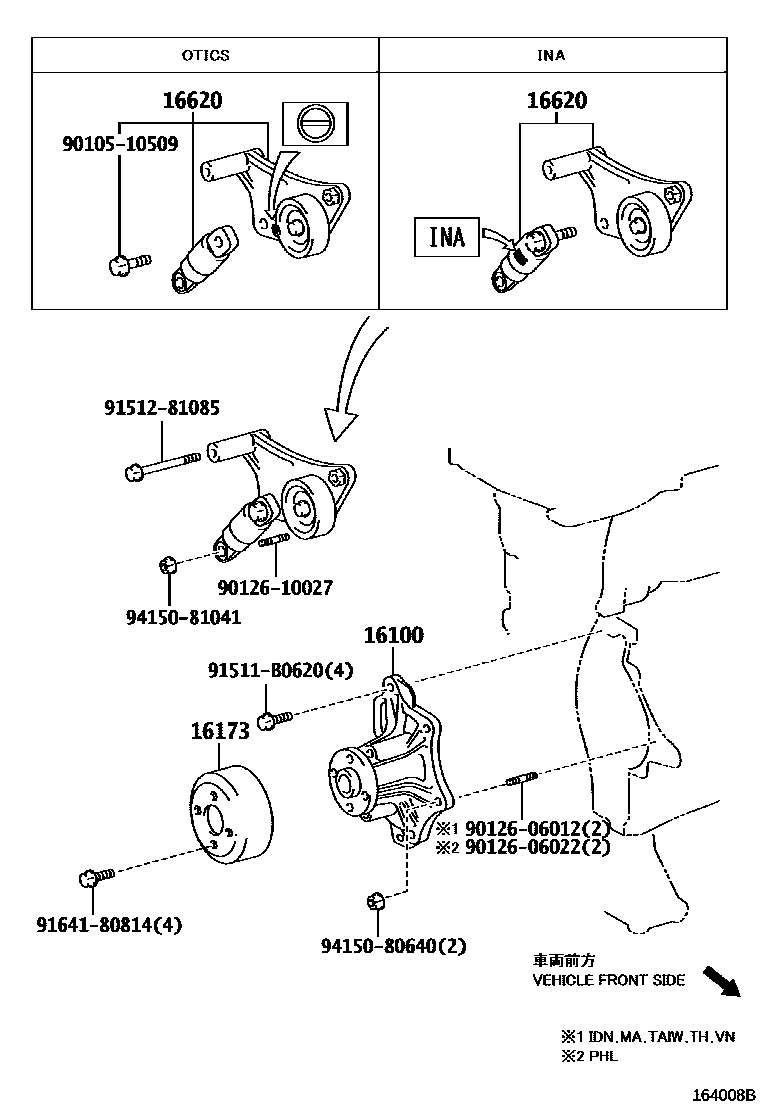

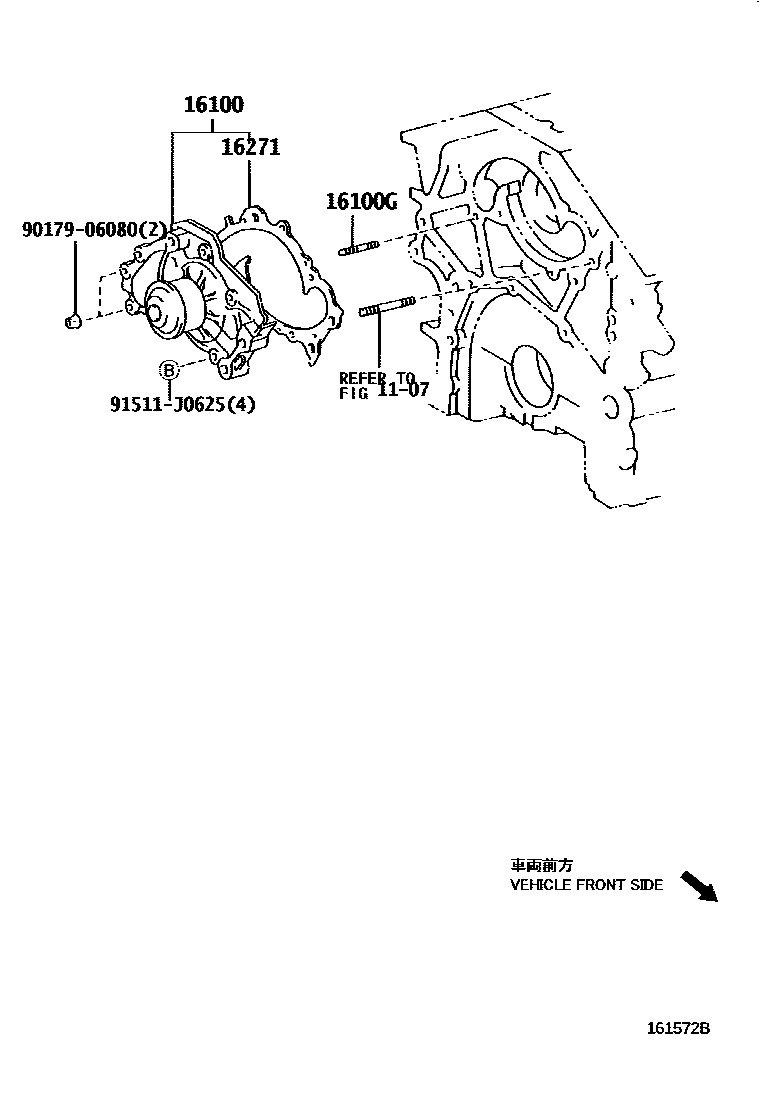

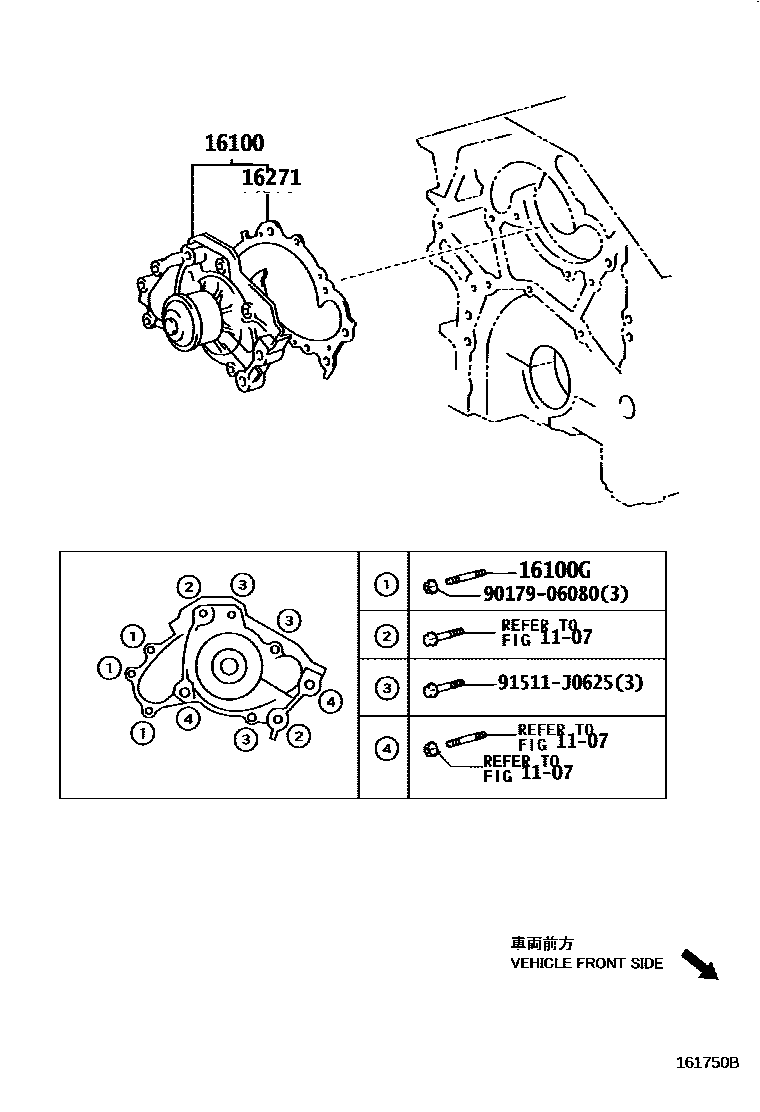

Toyota CAMRY Water Pump — Figure 1601
Toyota CAMRY EPC diagram 1601, Water Pump, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09070 · 16100-0H020 · 16100-0H030 · 16100-28040 · 16100-29085 |
| 16100G | Studs (for water pump assembly) | 90116-06144 |
| 16173 | water pump pulley | 16173-0H010 · 16173-0H020 · 16173-28020 |
| 16271 | water pump gasket | 16271-20020 |
| 16620 | Poly V-belt tensioner assembly | 16620-0W110 · 16620-28011 · 16620-28070 |
