Toyota CAMRY Camshaft & Valve — Figure 1302

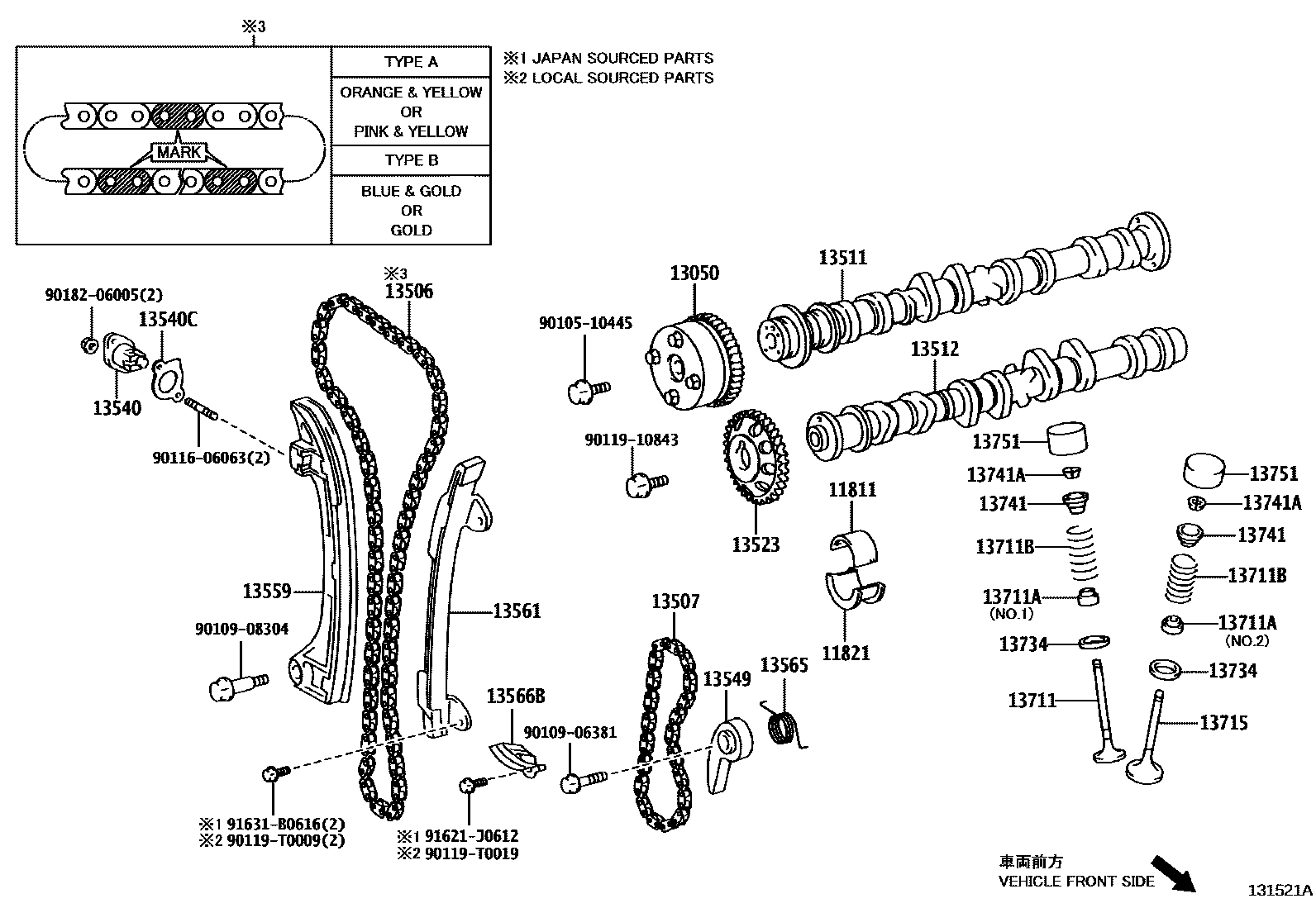

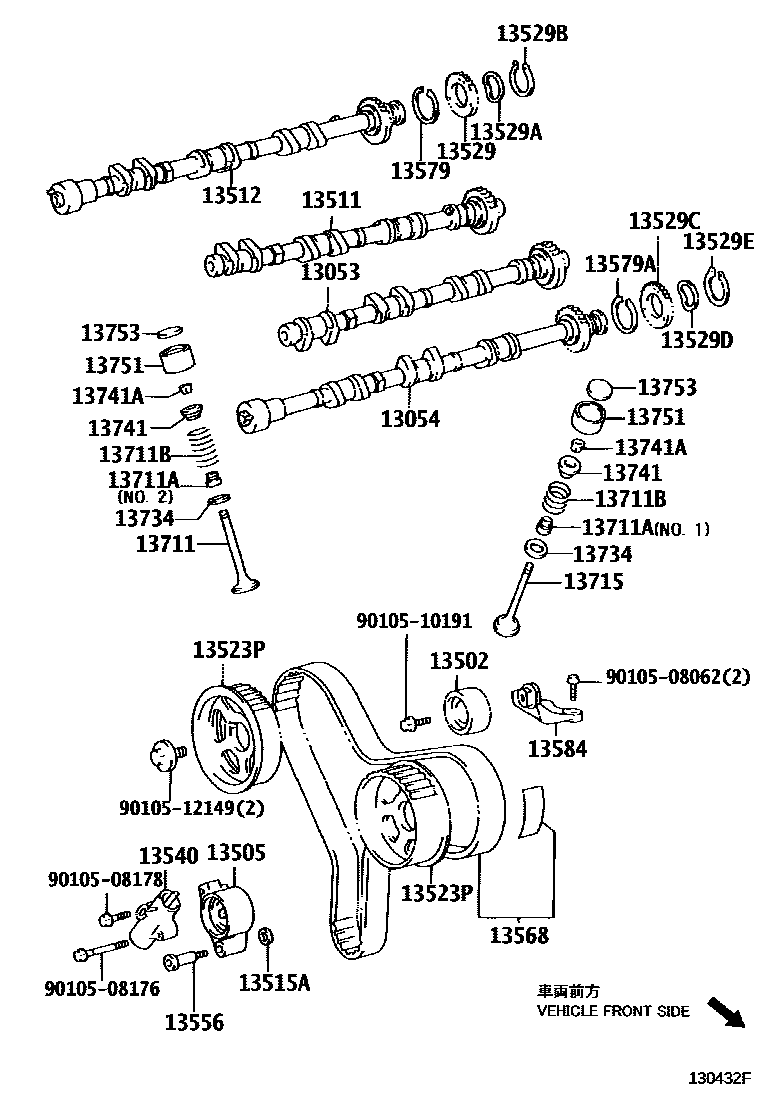

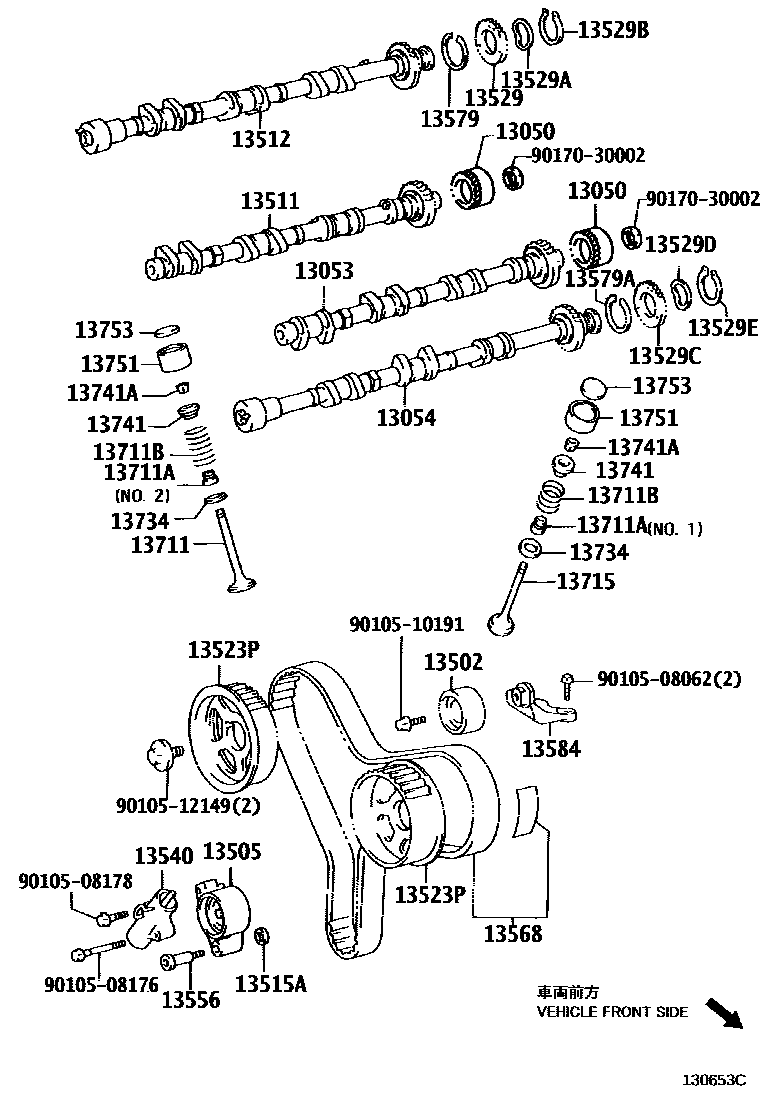

Toyota CAMRY EPC diagram 1302, Camshaft & Valve, with 3 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13050-20010 · 13050-20011 · 13050-28011 · 13050-28012 |
| 13053 | No. 3 camshaft sub-assembly | 13053-20010 · 13053-20030 |
| 13054 | No. 4 camshaft sub-assembly | 13054-20010 · 13054-20020 |
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-62030 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-20030 |
| 13506 | Chain sub-assembly | 13506-0H020 · 13506-0H021 · 13506-28010 · 13506-28011 · 13506-28020 |
| 13507 | No. 2 chain sub-assembly | 13507-0H010 · 13507-28010 |
| 13511 | camshaft | 13501-20020 · 13501-20040 · 13501-28010 |
| 13512 | Camshaft No. 2 | 13502-0H010 · 13502-20010 · 13502-20020 · 13502-28010 |
| 13515A | Flat washer (for distributor drive gear) | 90201-10098 |
| 13523 | Camshaft timing gear or sprocket | 13523-0H010 · 13523-22020 |
| 13523P | Camshaft timing pulley | 13523-20020 |
| 13529 | Camshaft counter gear | 13529-20900 |
| 13529A | Wave Washer (for Camshaft Counter Gear) | 90206-42001 |
| 13529B | Shaft snap ring (for camshaft counter gear) | 90520-41004 |
| 13529C | Camshaft No. 3 pinion gear | 13529-20900 |
| 13529D | Wave washer (for camshaft No. 3 sub-gear) | 90206-42001 |
| 13529E | Shaft snap ring (for camshaft No. 3 secondary gear) | 90520-41004 |
| 13540 | No. 1 chain tensioner assembly | 13540-0H020 · 13540-20030 · 13540-28010 |
| 13540C | Pad (for chain tensioner) | 13552-28010 |
| 13549 | chain tensioner pressure plate | 13549-28012 |
| 13556 | Timing belt idler shaft | 13556-62010 |
| 13559 | chain tensioner guide plate | 13559-0H020 · 13559-28010 |
| 13561 | No. 1 chain shock absorber | 13561-0H020 · 13561-28010 |
| 13565 | chain damper spring | 13565-28012 |
| 13566B | Timing chain guide plate | 13566-28010 |
| 13568 | timing belt | 13568-29025 |
| 13579 | Camshaft timing gear bolt washer | 13579-50020 · 13579-62010 |
| 13579A | No. 3 camshaft timing gear bolt washer | 13579-50020 · 13579-62010 |
| 13584 | Timing belt idler bracket | 13584-20011 |
| 13711 | intake valve | 13711-20020 · 13711-28010 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02101 · 90913-02111 · 90913-02112 |
| 13711B | Compression spring (for inner side) | 90501-28038 · 90501-31010 · 90905-01066 |
| 13715 | exhaust valve | 13715-20020 · 13715-28010 |
| 13734 | Valve spring seat | 13734-20010 · 13734-74010 |
| 13741 | Valve spring seat ring | 13741-20020 · 13741-20021 · 13741-22020 · 13741-22021 |
| 13741A | Valve spring seat lock plate | 90913-03028 |
| 13751 | valve lifter | 13751-46030 · 13751-46040 · 13751-46050 · 13751-46060 · 13751-46070 · 13751-46080 · 13751-46090 · 13751-46100 · 13751-46110 · 13751-46120 · 13751-46130 · 13751-46140 · 13751-46150 · 13751-46160 · 13751-46170 · 13751-46180 · 13751-46190 · 13751-46200 · 13751-46210 · 13751-46220 · 13751-46230 · 13751-46240 · 13751-46250 · 13751-46260 · 13751-46270 · 13751-46280 · 13751-46290 · 13751-46300 · 13751-46310 · 13751-46320 · 13751-46330 · 13751-46340 · 13751-46350 · 13751-46360 · 13751-46370 · 13751-46740 |
| 13753 | valve adjustment gasket | 13753-74010 · 13753-74030 · 13753-74050 · 13753-74070 · 13753-74090 · 13753-74110 · 13753-74130 · 13753-74150 · 13753-74170 · 13753-74190 · 13753-74210 · 13753-74230 · 13753-74250 · 13753-74270 · 13753-74290 · 13753-74310 · 13753-74330 |
