Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106

Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 12 PNC and OE references.

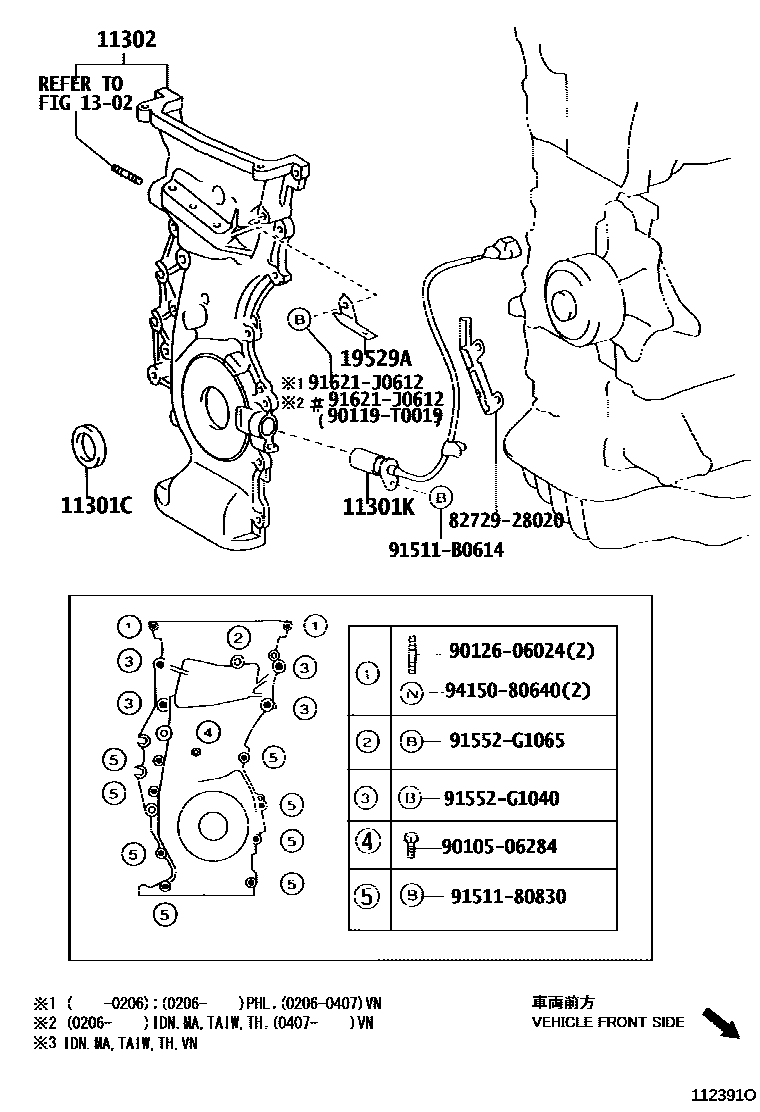

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — 112391O
Timing Gear Cover & Rear End Plate — 112391O (200203 – 999999)

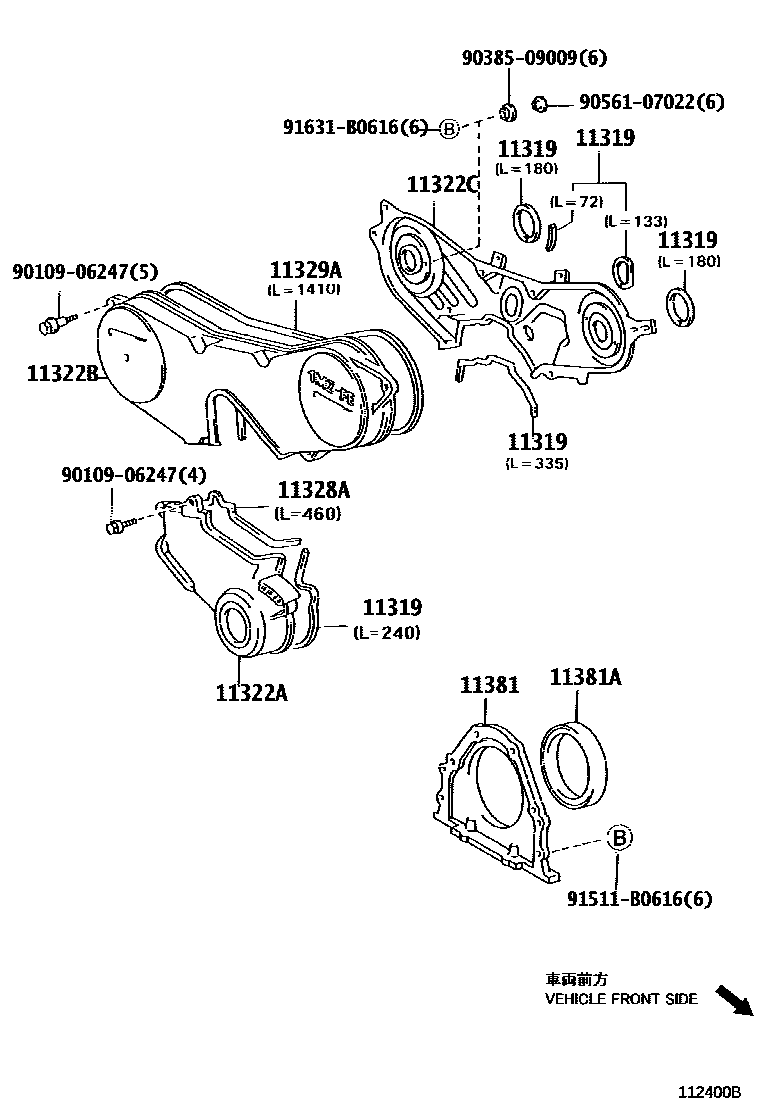

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — 112400B
Timing Gear Cover & Rear End Plate — 112400B (200203 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90080-31083 · 90311-38078 · 90311-38084 · 90311-38089
11301Kcrankshaft position sensor90919-05047
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-0H020 · 11310-0H021 · 11310-0H030 · 11310-0H031 · 11310-28070 · 11310-28071
11319No. 3 timing belt cover gasket11319-20010
11322ANo. 1 timing belt cover11321-20030
11322BNo. 2 timing belt cover11303-20040
11322CNo. 3 timing belt cover11323-20030
11328ANo. 1 timing belt cover gasket11328-20020
11329ANo. 2 timing belt or chain cover gasket11329-20010
11381RETAINER, ENGINE REAR OIL SEAL11381-20010
11381ASEAL, ENGINE REAR OIL90080-31053 · 90311-92008
19529Acard holder19529-28010
