Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 26 images and 2 PNC and OE references.

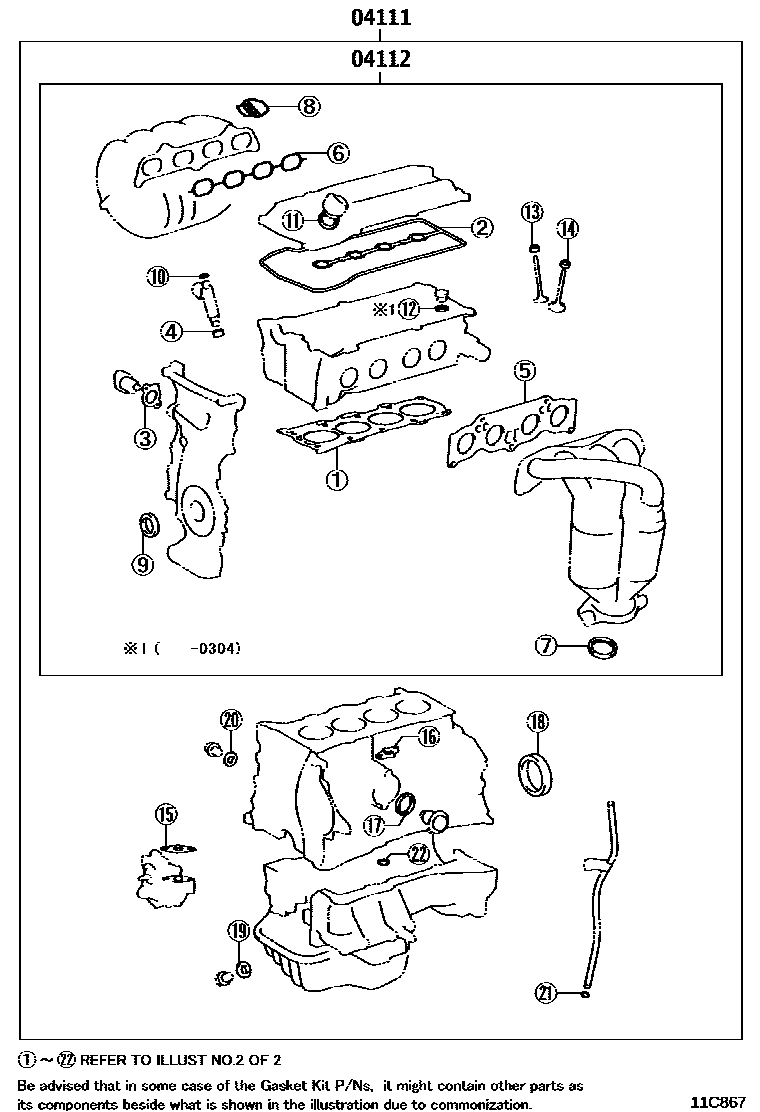

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C867
Engine Overhaul Gasket Kit — 11C867 (200203 – 200309)
Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C868
Engine Overhaul Gasket Kit — 11C868 (200203 – 200309)

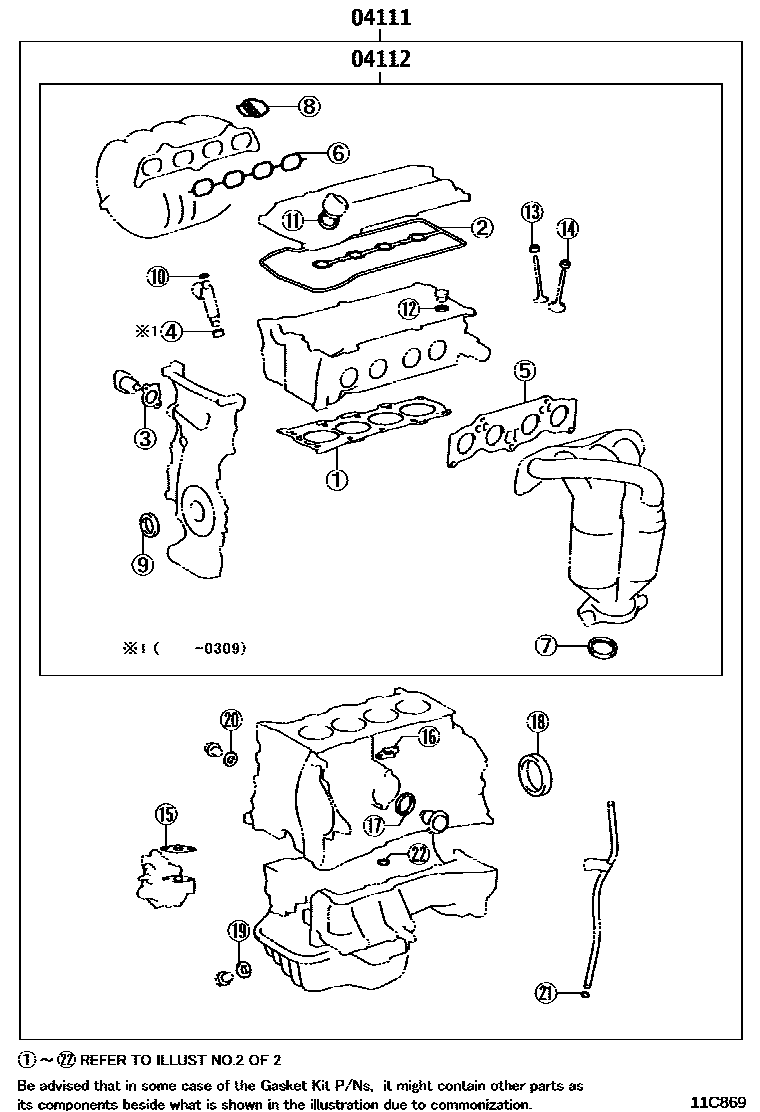

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C869
Engine Overhaul Gasket Kit — 11C869 (200206 – 200407)
Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C870
Engine Overhaul Gasket Kit — 11C870 (200206 – 200407)

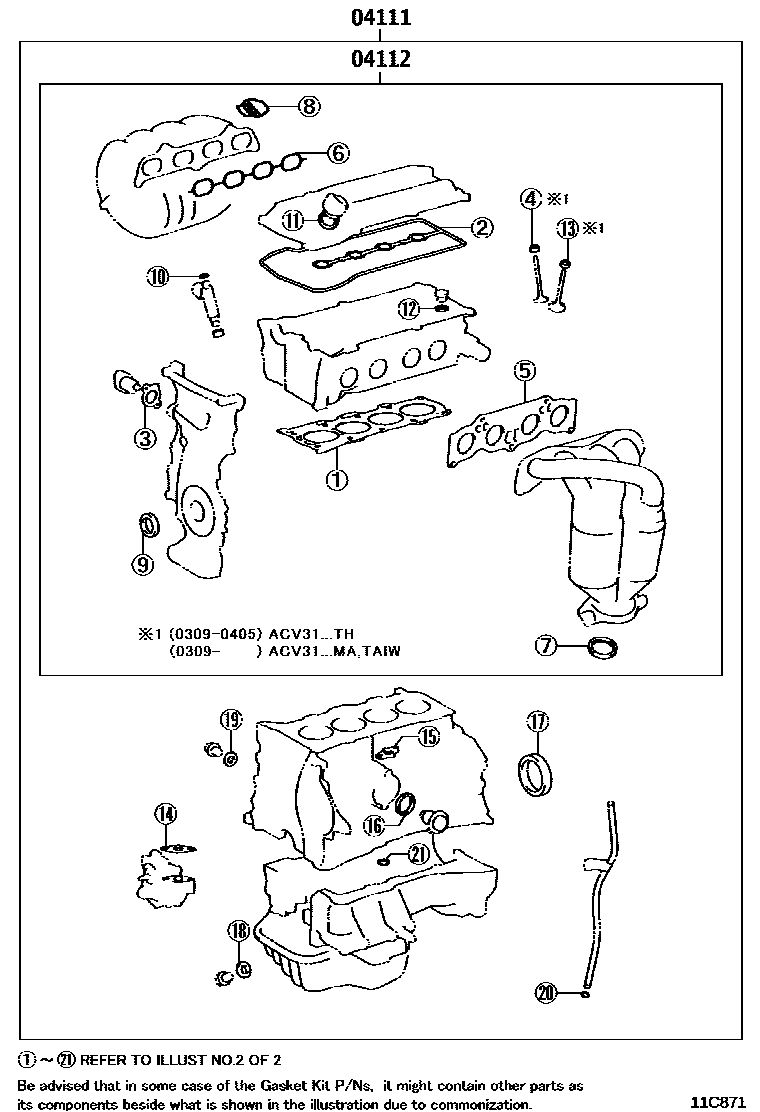

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C871
Engine Overhaul Gasket Kit — 11C871 (200309 – 200607)

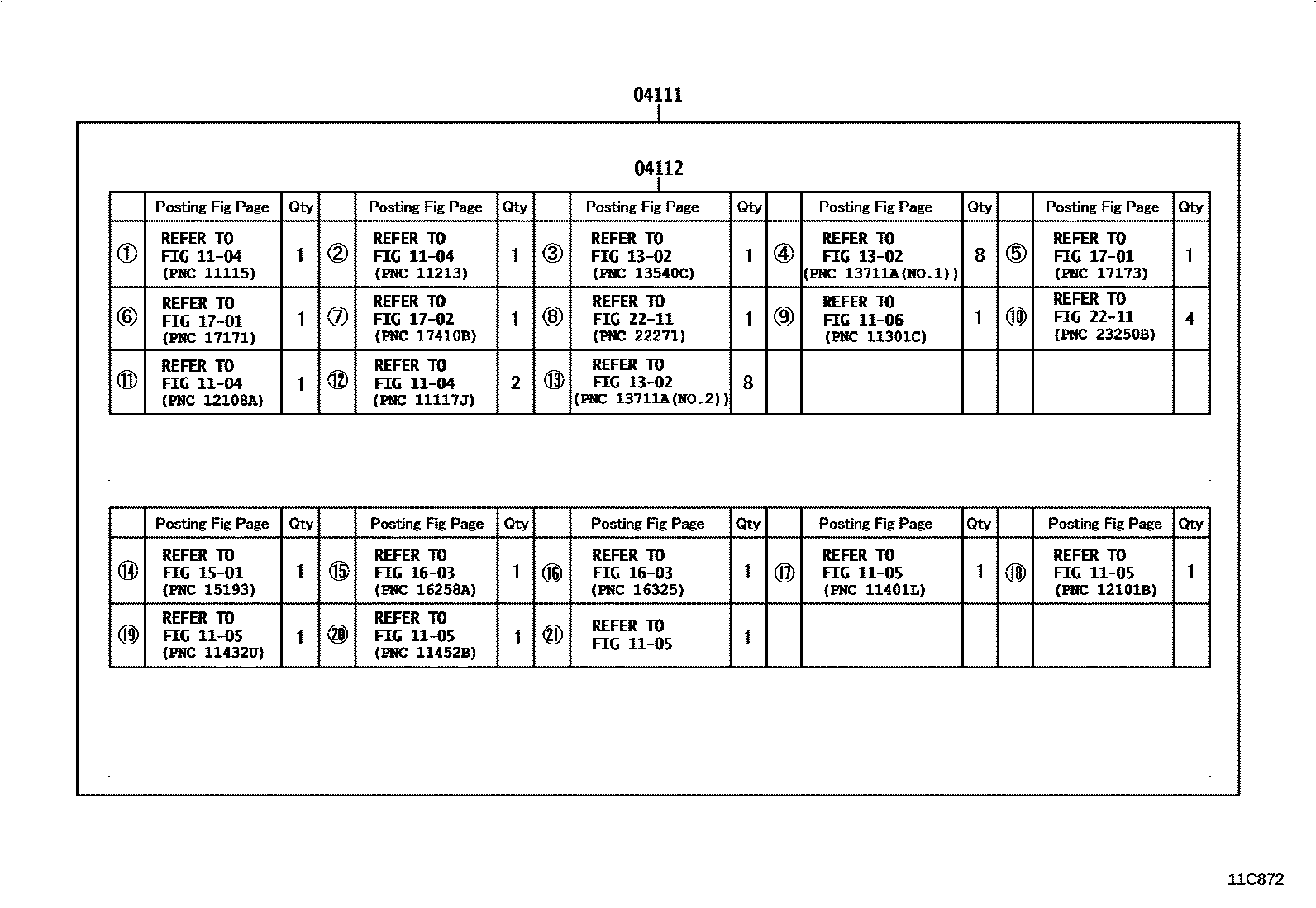

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C872
Engine Overhaul Gasket Kit — 11C872 (200309 – 200607)

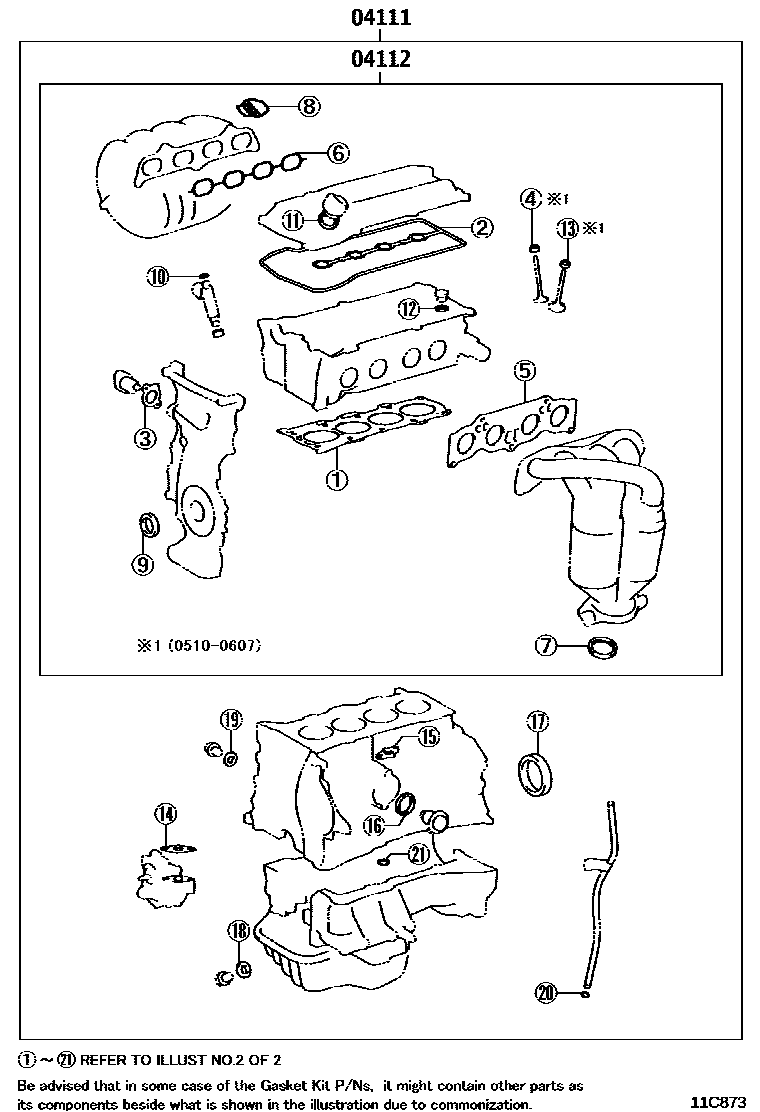

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C873
Engine Overhaul Gasket Kit — 11C873 (200404 – 200607)
Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C874
Engine Overhaul Gasket Kit — 11C874 (200404 – 200607)

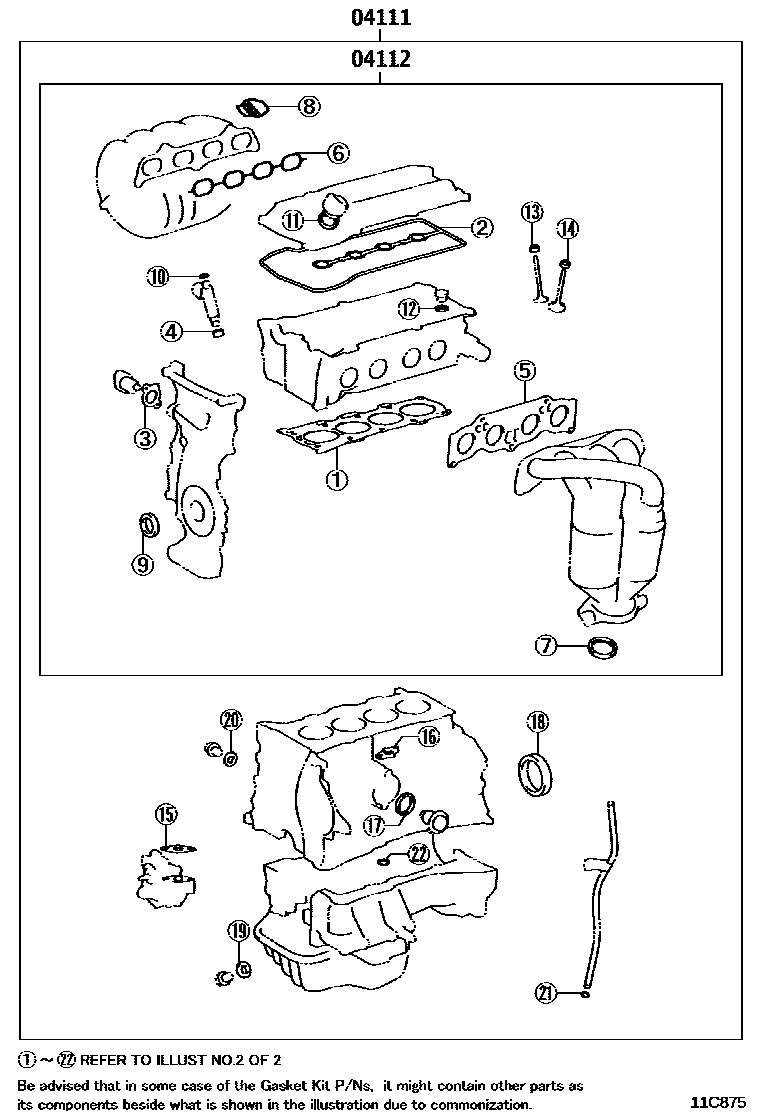

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C875
Engine Overhaul Gasket Kit — 11C875 (200607 – 999999)
Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C876
Engine Overhaul Gasket Kit — 11C876 (200607 – 999999)

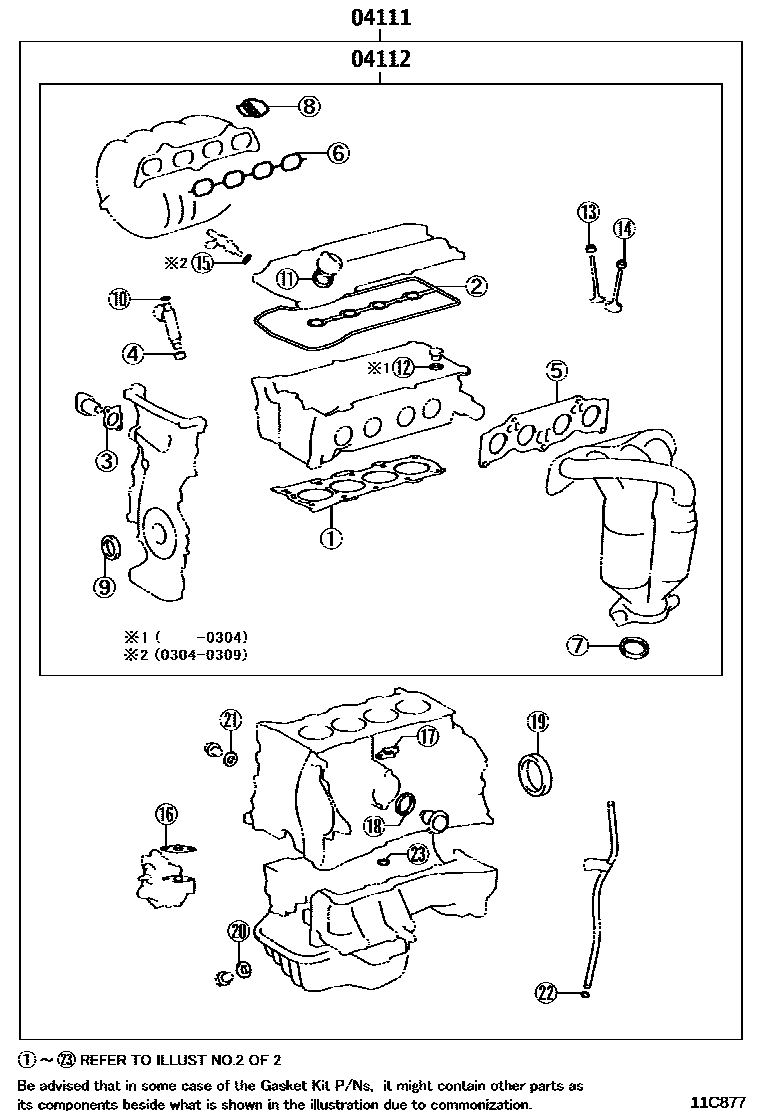

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C877
Engine Overhaul Gasket Kit — 11C877 (200203 – 200309)

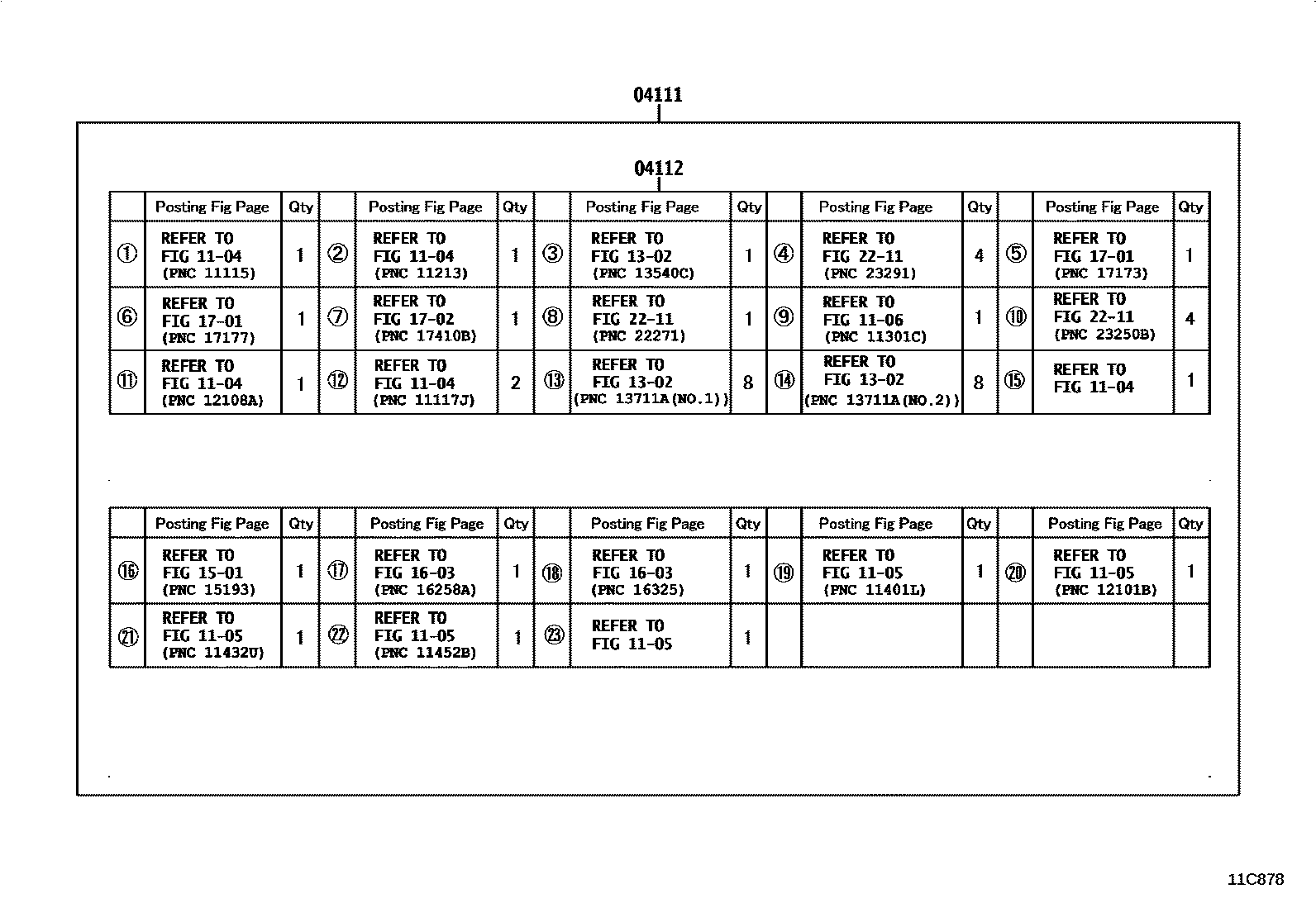

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C878
Engine Overhaul Gasket Kit — 11C878 (200203 – 200309)
Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C879
Engine Overhaul Gasket Kit — 11C879 (200206 – 200407)

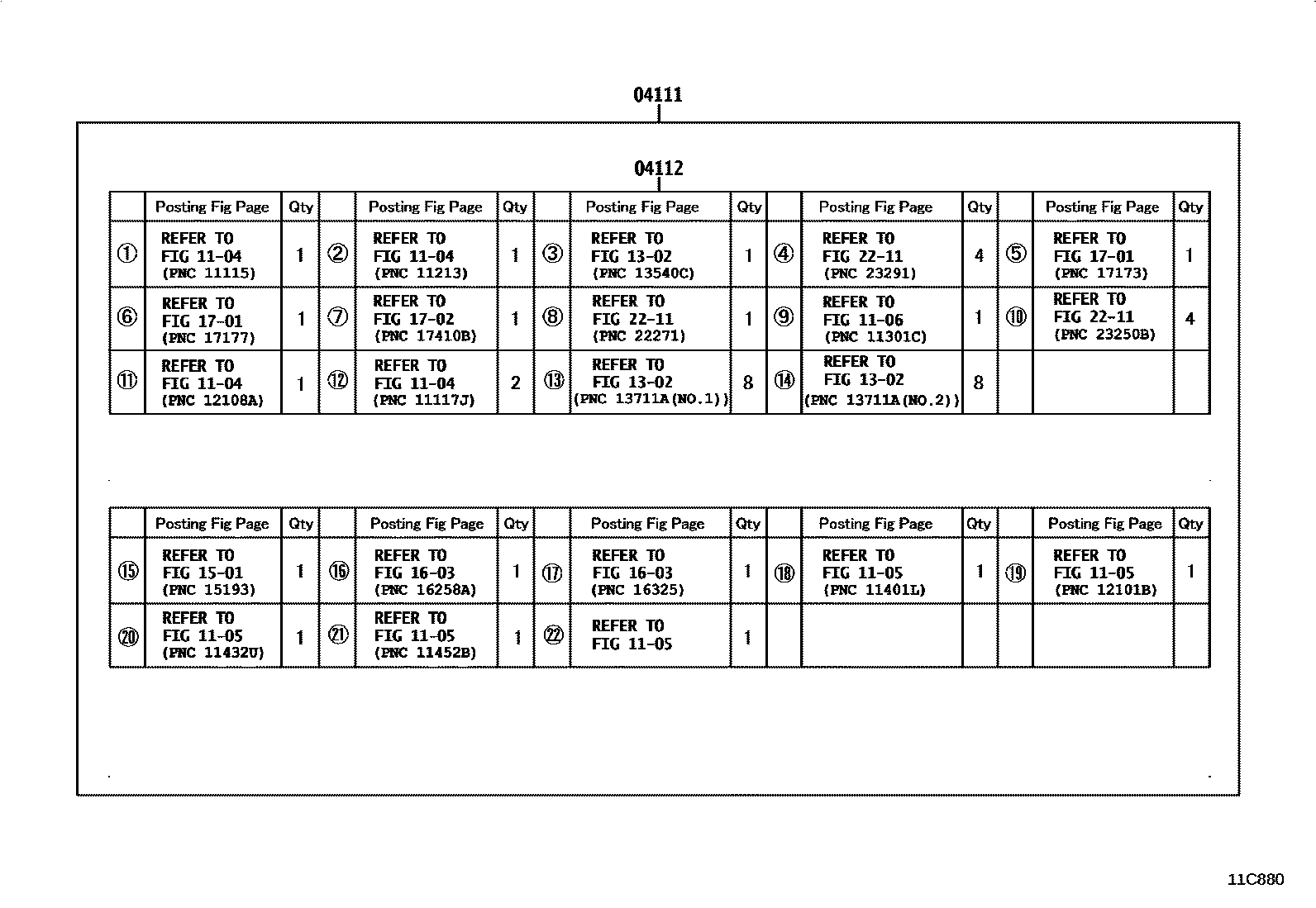

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C880
Engine Overhaul Gasket Kit — 11C880 (200206 – 200407)

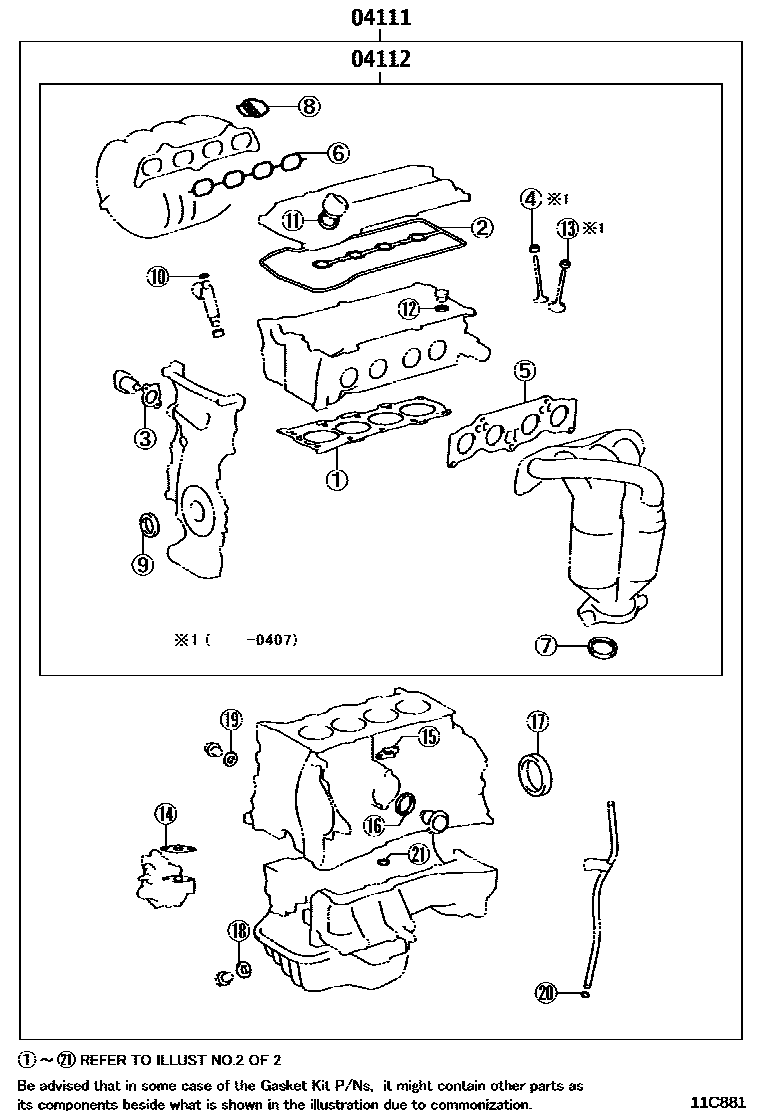

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C881
Engine Overhaul Gasket Kit — 11C881 (200309 – 200510)
Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C882
Engine Overhaul Gasket Kit — 11C882 (200309 – 200510)

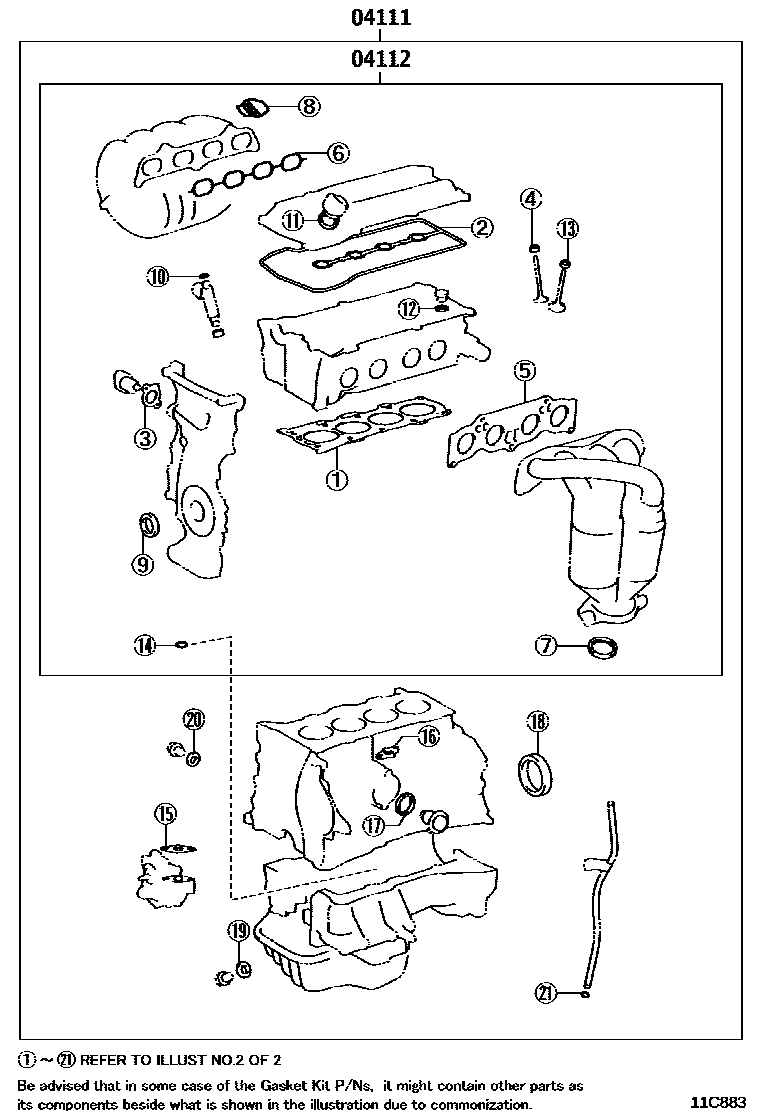

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C883
Engine Overhaul Gasket Kit — 11C883 (200510 – 200511)

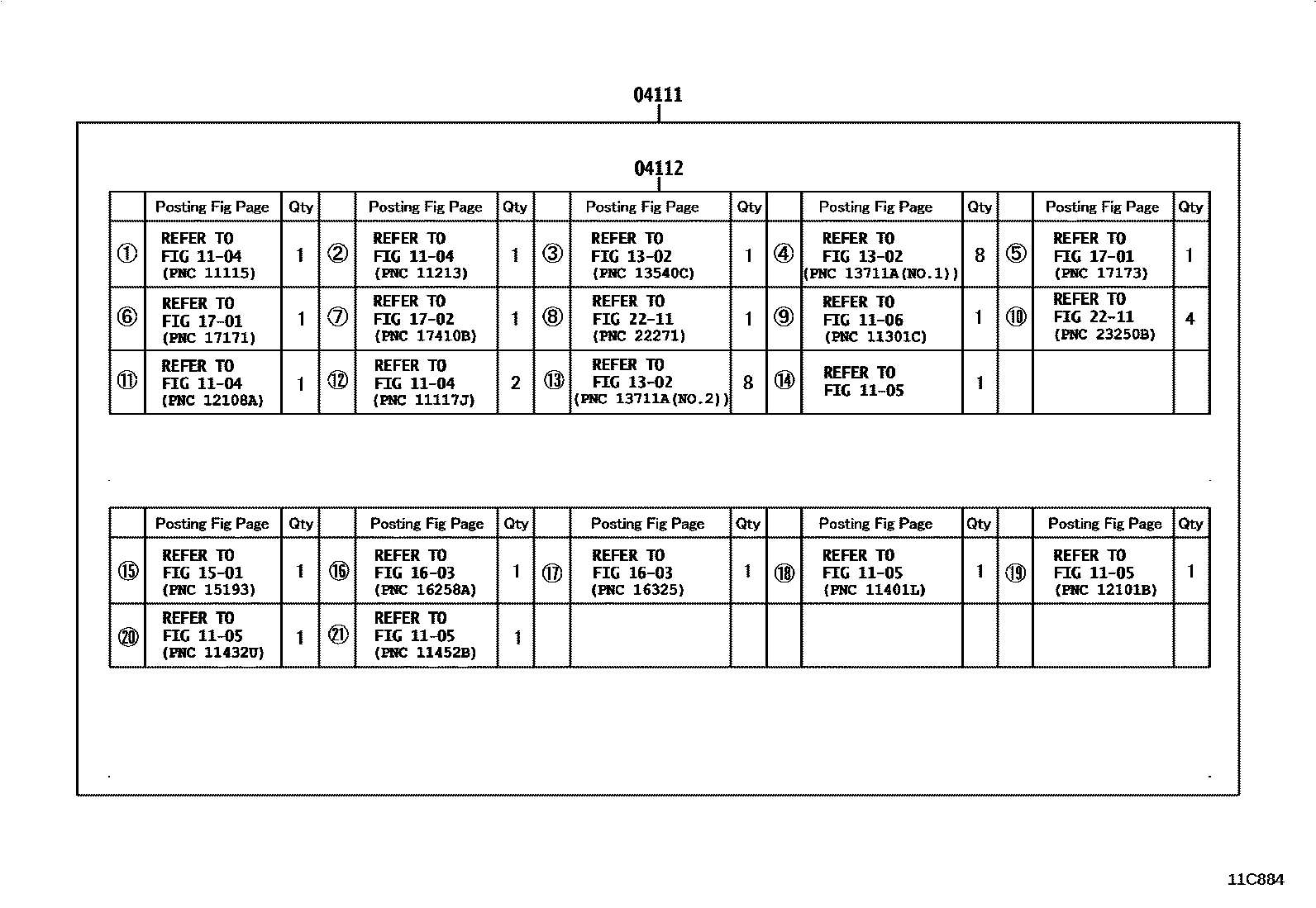

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C884
Engine Overhaul Gasket Kit — 11C884 (200510 – 200511)

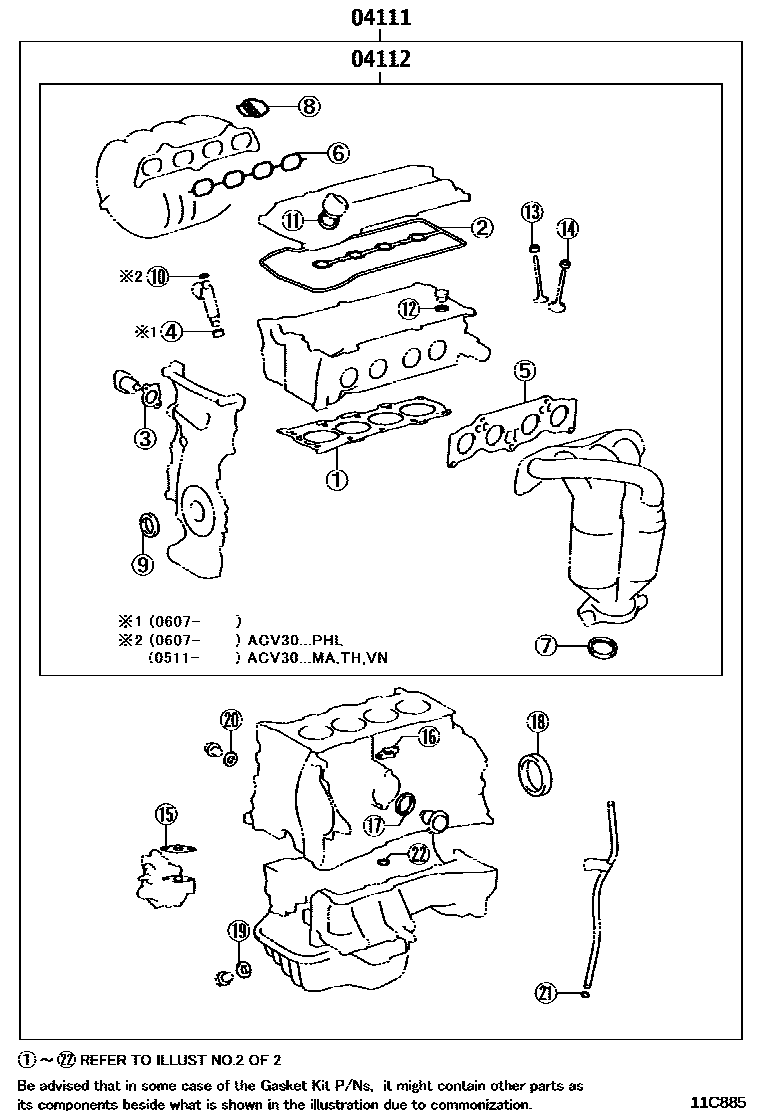

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C885
Engine Overhaul Gasket Kit — 11C885 (200407 – 999999)
Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C886
Engine Overhaul Gasket Kit — 11C886 (200407 – 999999)

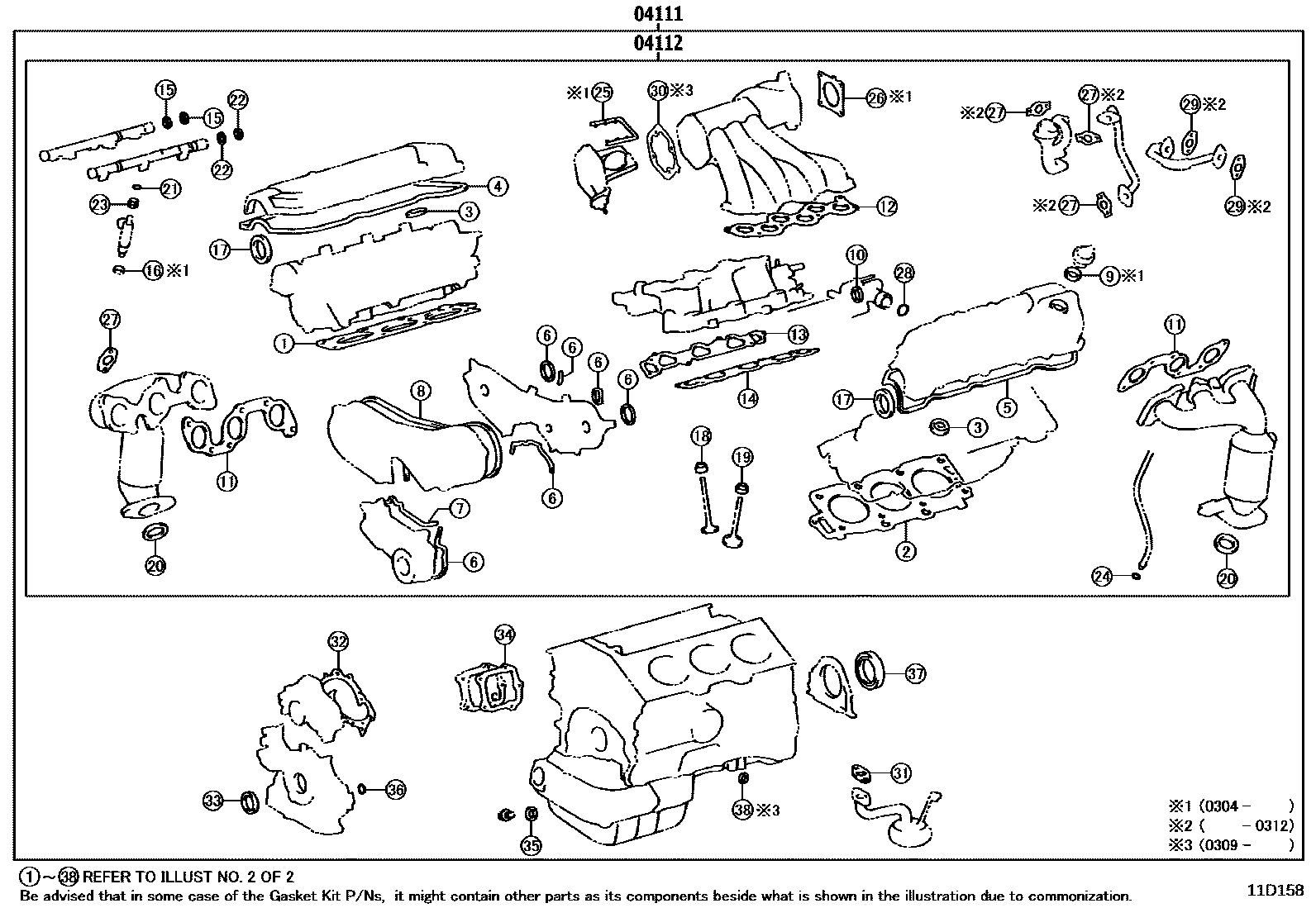

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D158
Engine Overhaul Gasket Kit — 11D158 (200203 – 200407)

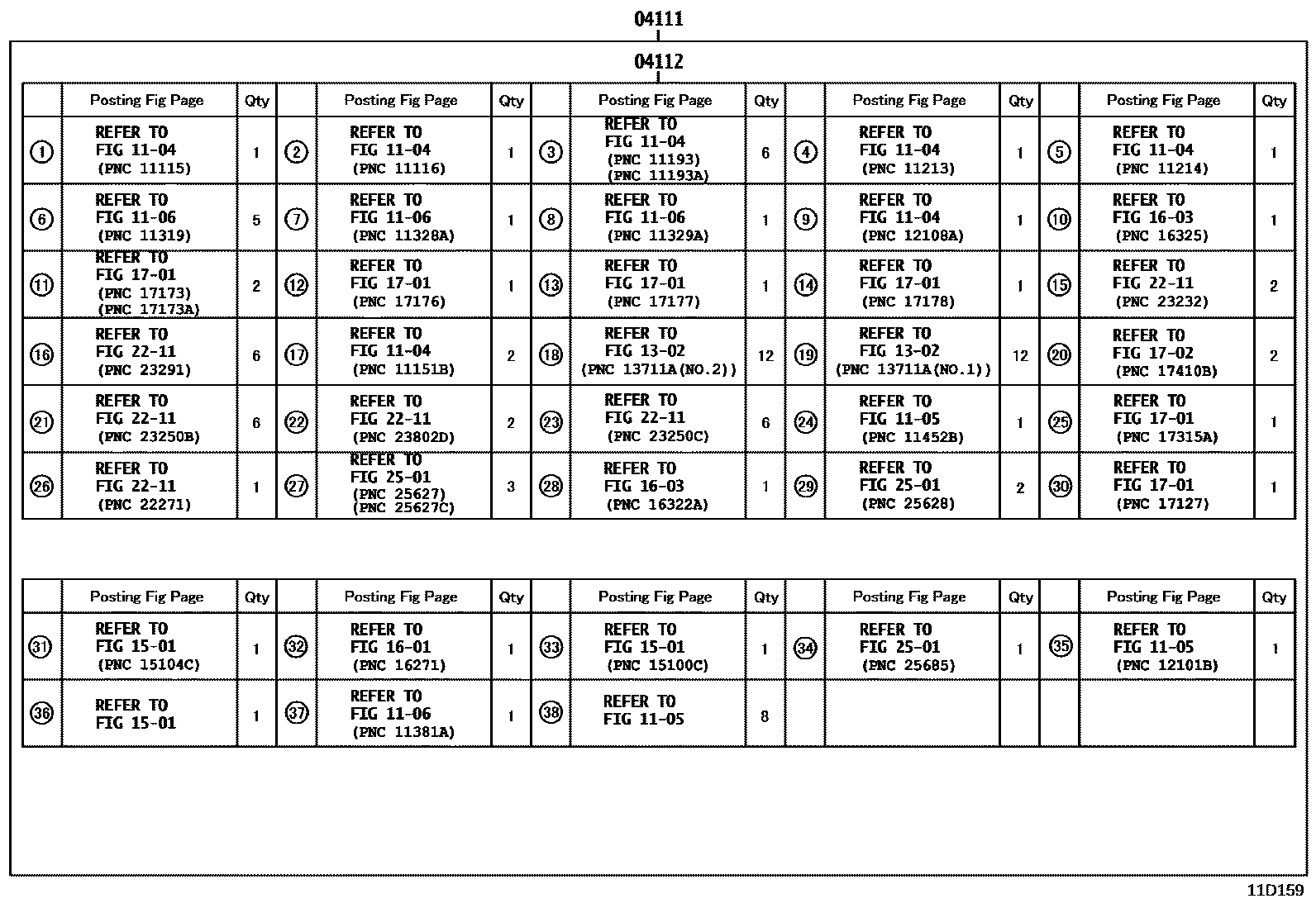

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D159
Engine Overhaul Gasket Kit — 11D159 (200203 – 200407)

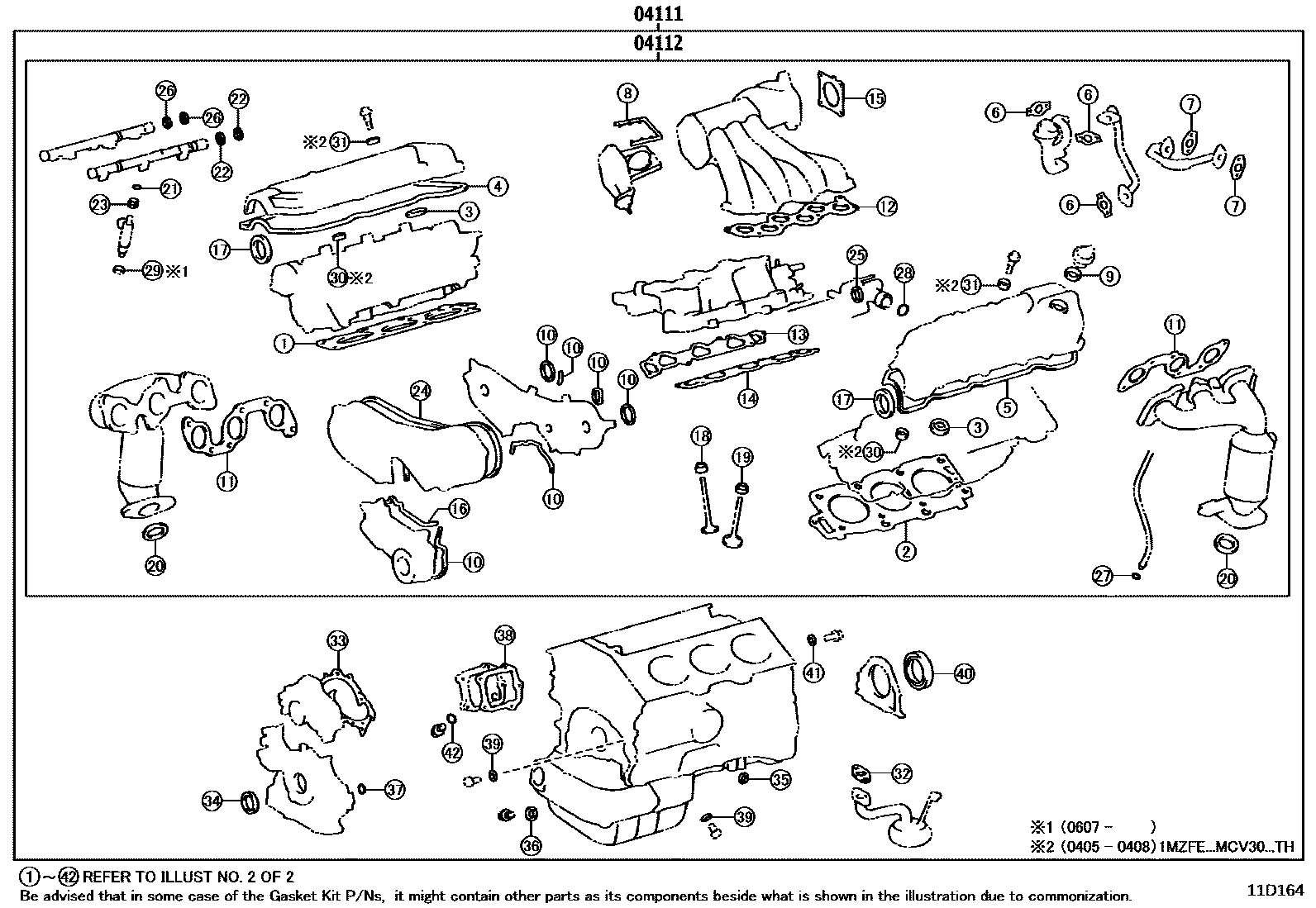

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D164
Engine Overhaul Gasket Kit — 11D164 (200405 – 999999)

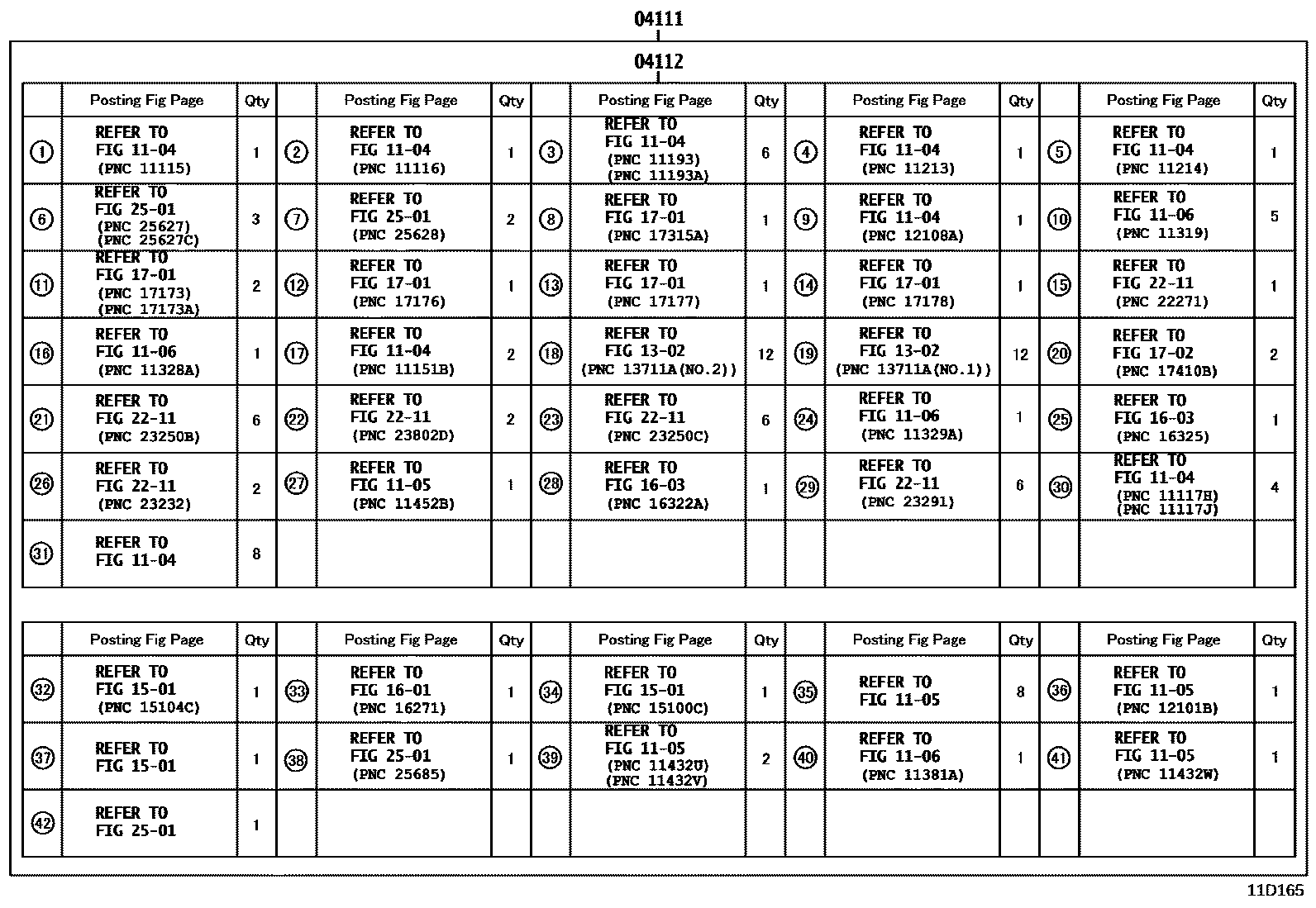

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D165
Engine Overhaul Gasket Kit — 11D165 (200405 – 999999)

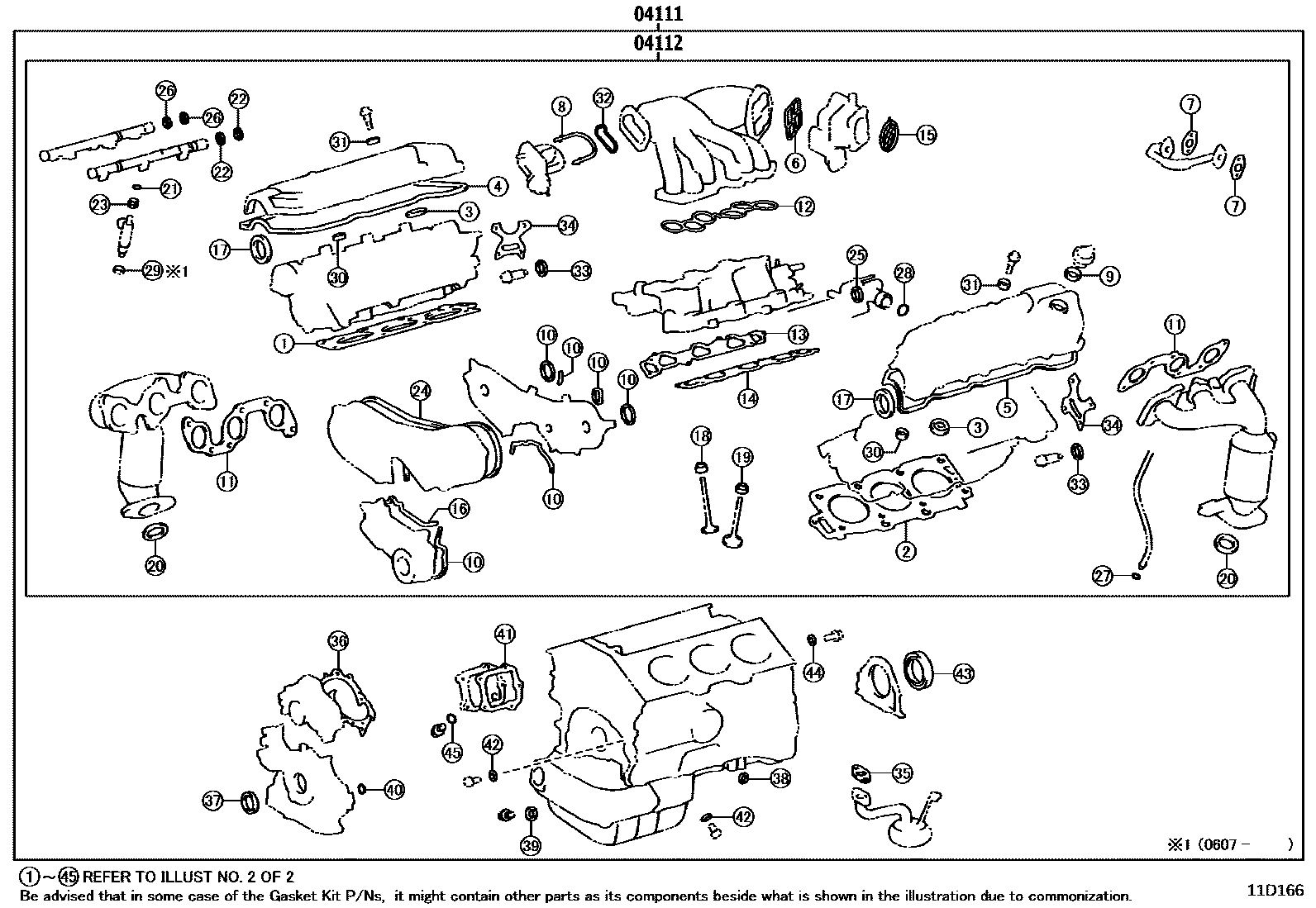

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D166
Engine Overhaul Gasket Kit — 11D166 (200404 – 999999)

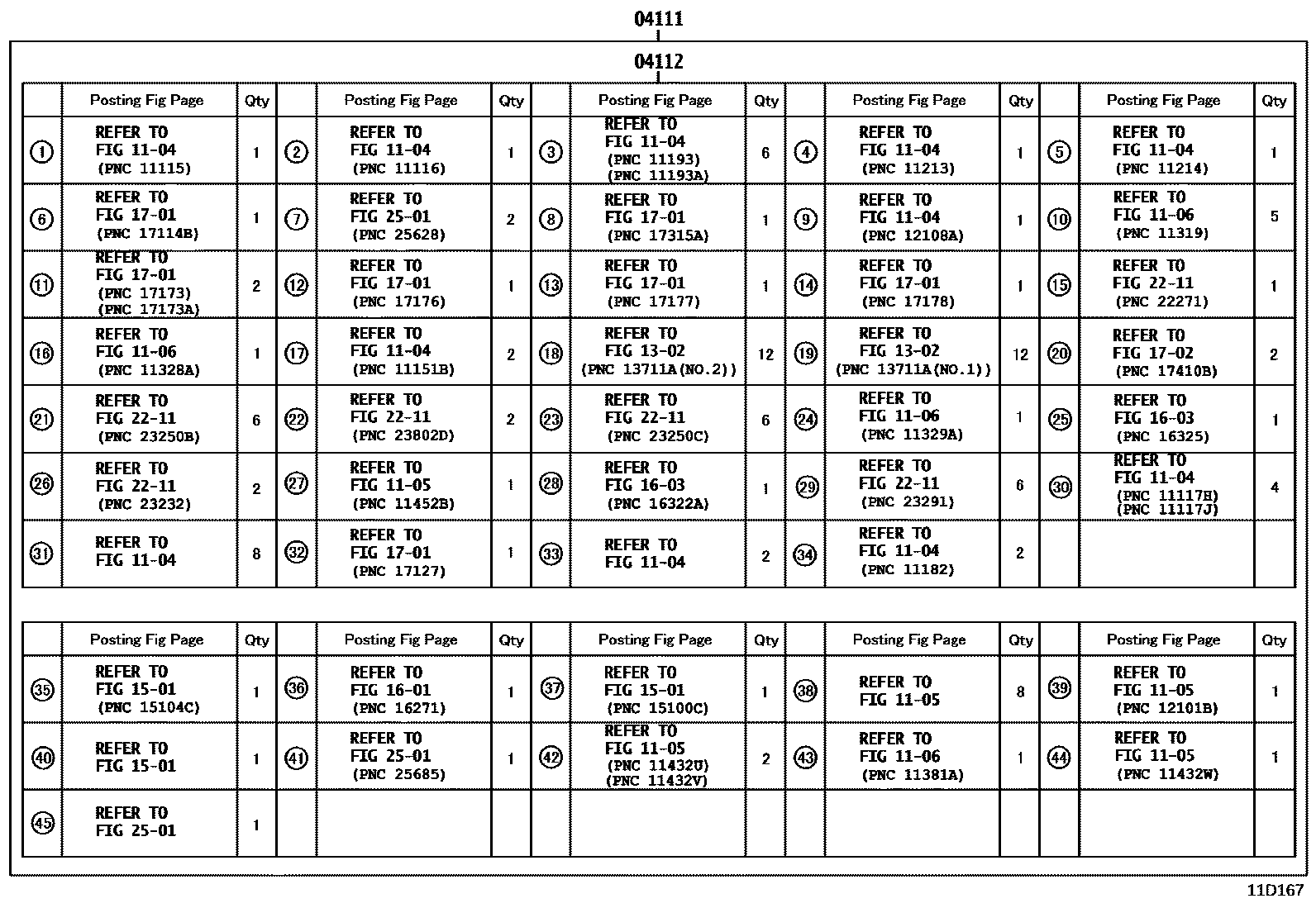

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D167
Engine Overhaul Gasket Kit — 11D167 (200404 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0H030 · 04111-0H031 · 04111-0H032 · 04111-0H040 · 04111-0H041 · 04111-0H042 · 04111-20170 · 04111-20171 · 04111-20410 · 04111-20411 · 04111-20460 · 04111-20462 · 04111-20463 · 04111-20560 · 04111-20561 · 04111-22730 · 04111-28130 · 04111-28131 · 04111-28132 · 04111-28133 · 04111-28140 · 04111-28141 · 04111-28142 · 04111-28143 · 04111-28210 · 04111-28230 · 04111-28231 · 04111-28260 · 04111-28263 · 04111-28280 · 04111-28480 · 04111-28481 · 04111-28482 · 04111-28483 · 04111-28490 · 04111-28500 · 04111-28501 · 04111-28502 · 04111-28503 · 04111-28640 · 04111-28641 · 04111-28642
04112Engine valve grinding pad assembly04112-0H030 · 04112-0H031 · 04112-0H032 · 04112-0H040 · 04112-0H041 · 04112-0H042 · 04112-20160 · 04112-20161 · 04112-20222 · 04112-20223 · 04112-20225 · 04112-20380 · 04112-20470 · 04112-20471 · 04112-20472 · 04112-28130 · 04112-28131 · 04112-28132 · 04112-28133 · 04112-28140 · 04112-28141 · 04112-28142 · 04112-28143 · 04112-28210 · 04112-28230 · 04112-28231 · 04112-28260 · 04112-28263 · 04112-28280 · 04112-28450 · 04112-28451 · 04112-28452 · 04112-28453 · 04112-28460 · 04112-28470 · 04112-28471 · 04112-28472 · 04112-28473 · 04112-28550 · 04112-28551 · 04112-28552
