Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

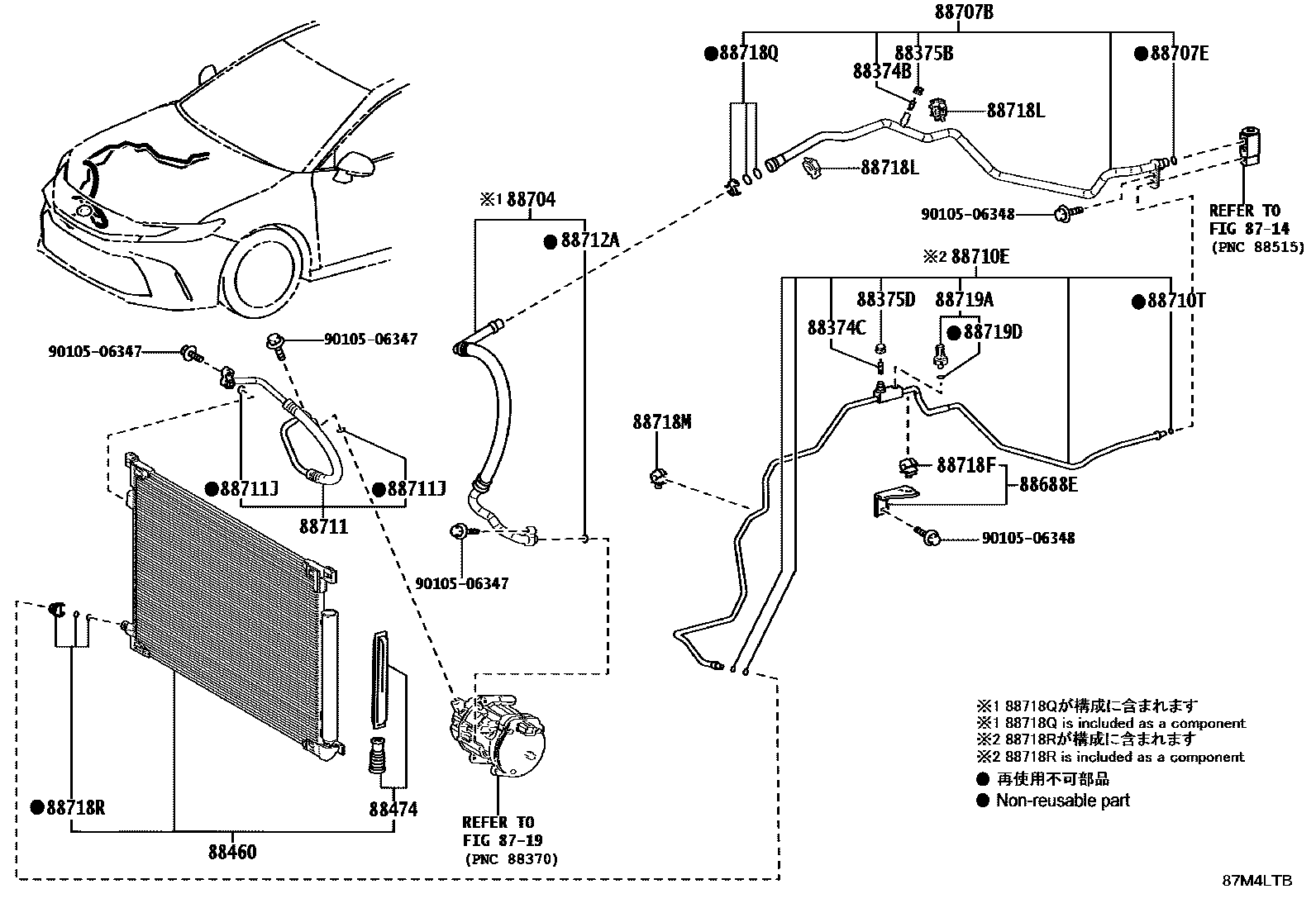

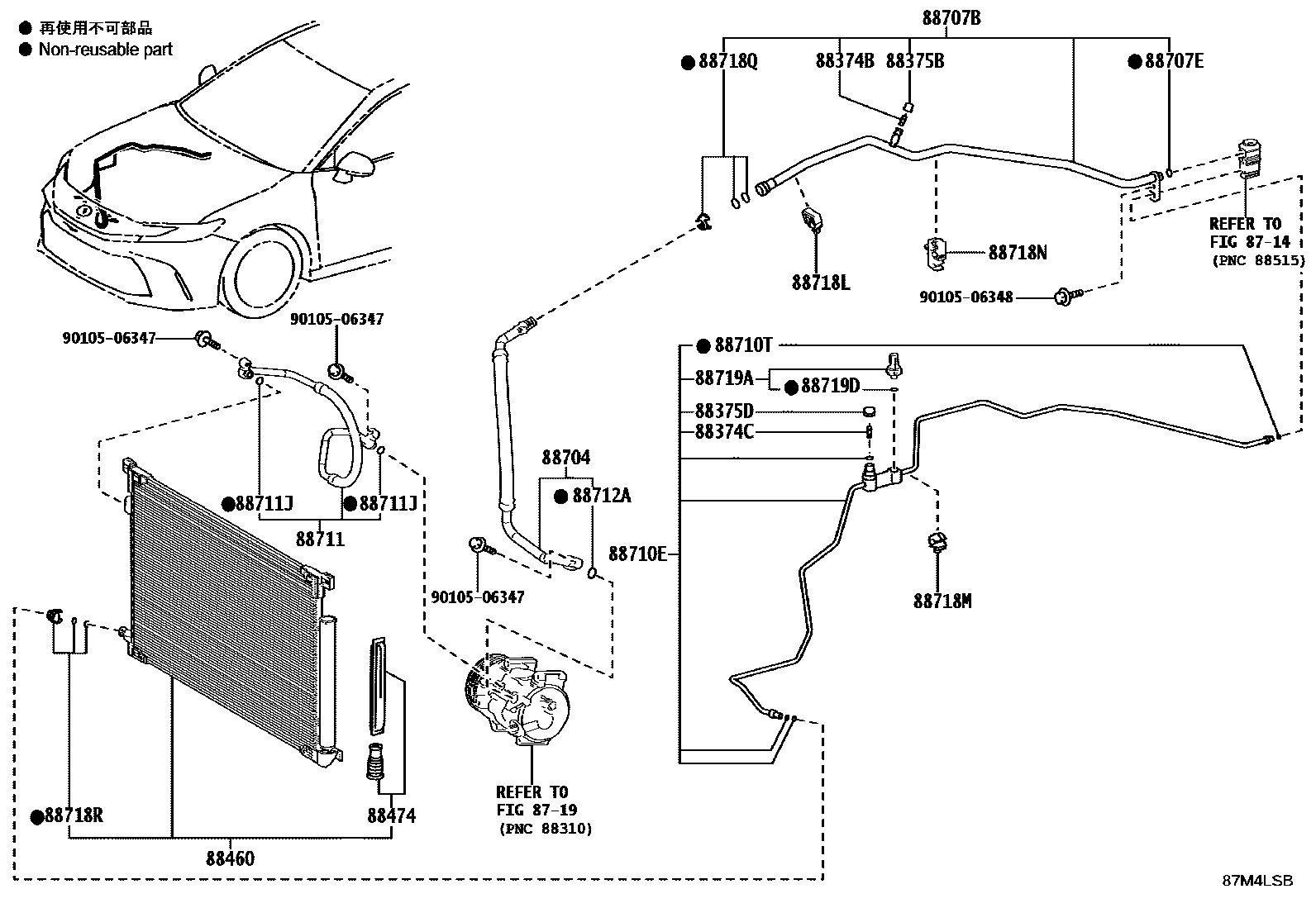

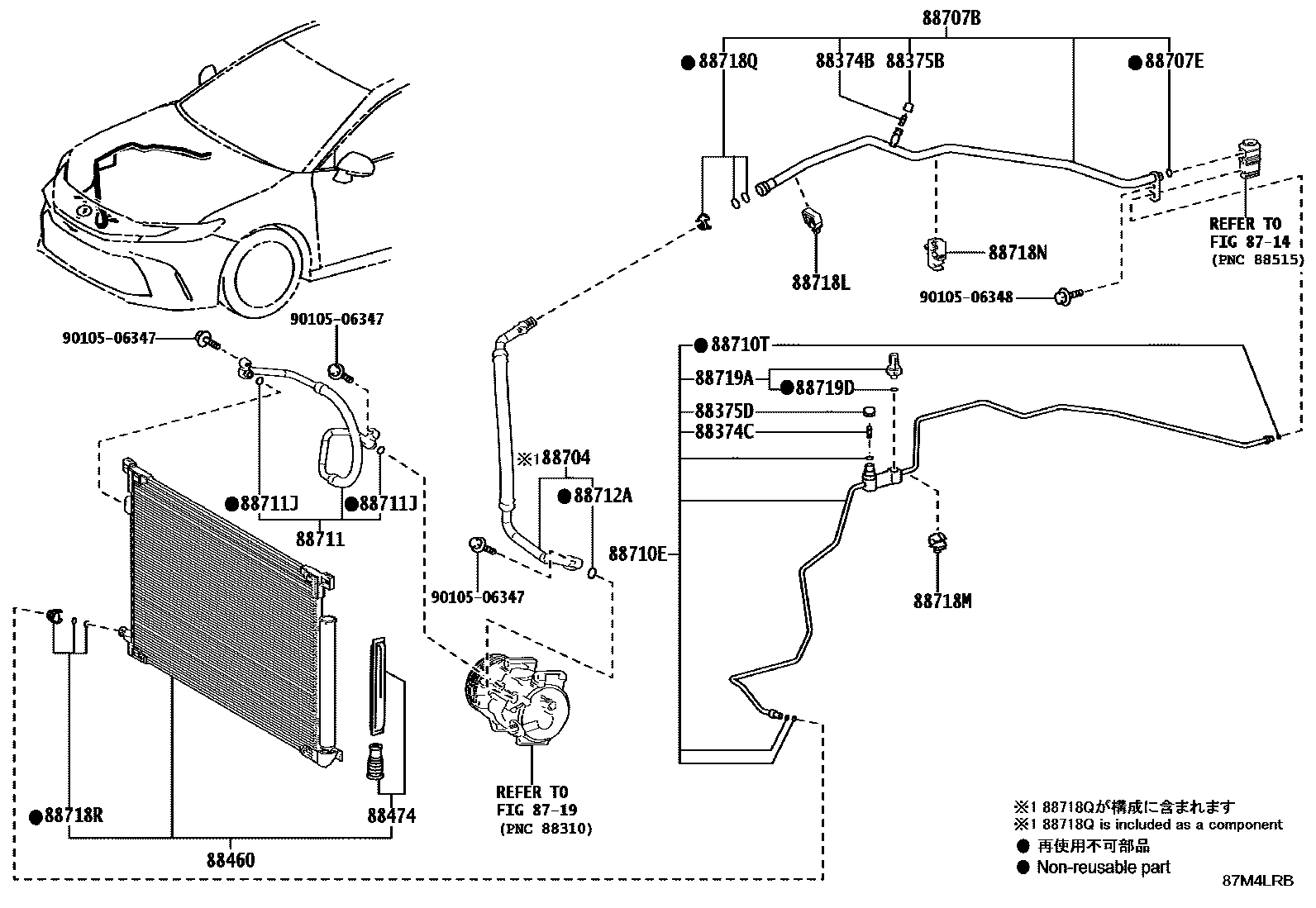

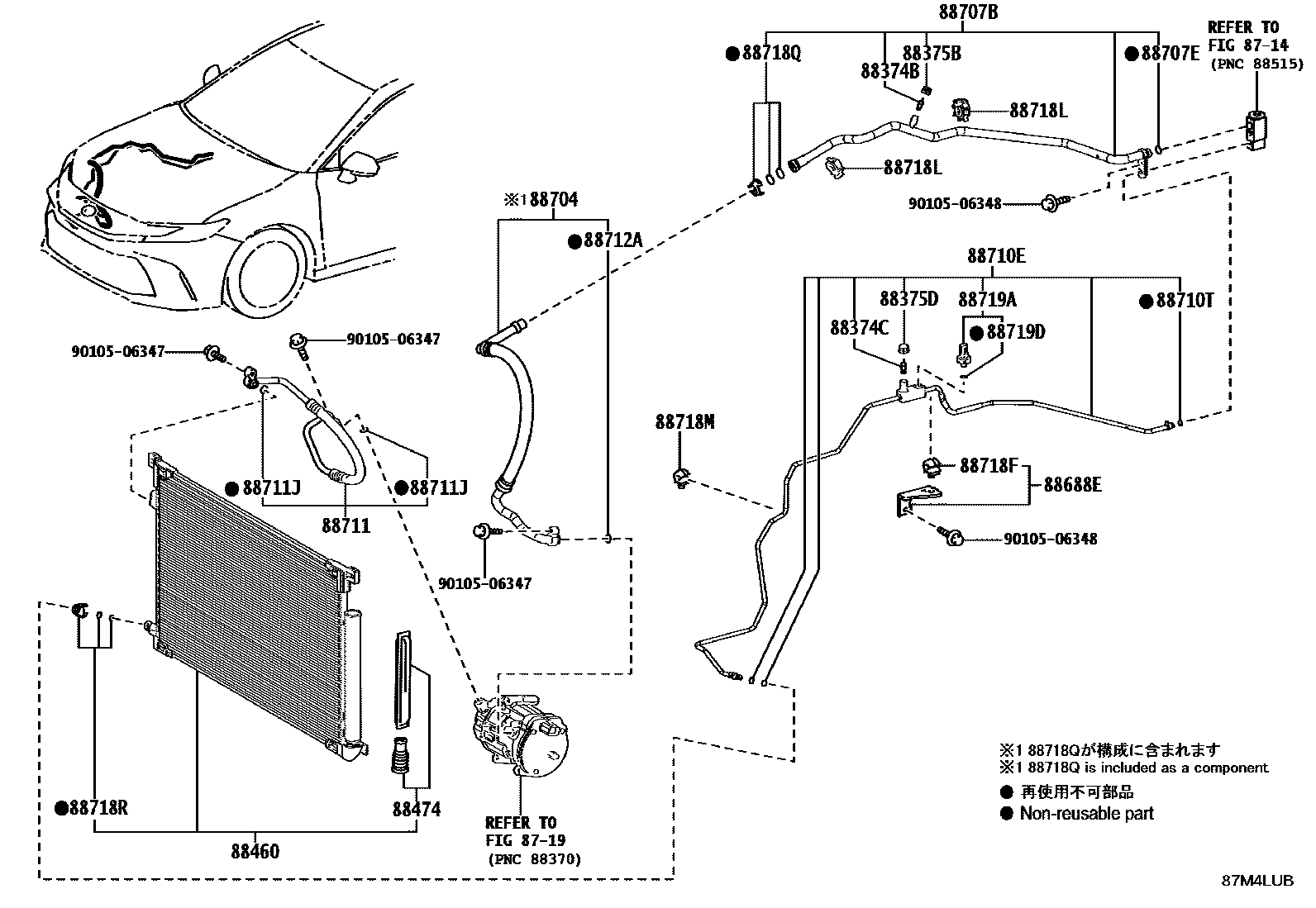

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 · 88375-30310 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 · 88375-30320 |
| 88460 | Air conditioning condenser assembly | 884A0-42010 · 884A0-42070 |
| 88474 | cooler dryer | 88474-12010 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-33610 |
| 88704 | Oil suction hose sub-assembly | 88704-33620 · 88704-33630 · 88704-33701 · 88704-33710 |
| 88707B | Suction pipe B sub-assembly | 88707-33190 · 88707-33210 · 88707-33220 · 88707-33260 · 88707-33270 |
| 88707E | No. 2 O-ring (for suction pipe) | 90099-14121 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-33620 · 88710-33631 · 88710-33640 · 88710-33651 · 88710-33680 |
| 88710T | No. 3 O-ring (for air conditioning pipe and accessory assembly) | 90099-14119 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-33330 · 88711-33340 · 88711-33401 · 88711-33410 |
| 88711J | No. 1 O-ring (for drain hose) | 90099-14120 |
| 88712A | O-ring (for cooler refrigerant suction hose) | 90099-14121 |
| 88718F | Clamp No. 1 (for cooler refrigerant hose) | 88718-58050 |
| 88718L | Pipe clamp | 88718-33550 |
| 88718M | Pipe clamp | 88718-33560 |
| 88718N | Pipe clamp | 88718-60C10 |
| 88718Q | Pipe clamp | 88718-52280 |
| 88718R | Pipe clamp | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
| 88719D | O-ring (for air conditioning pressure sensor) | 90099-14122 |
