Toyota CAMRY 后视镜 — Figure 8701
Toyota CAMRY EPC diagram 8701, 后视镜, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

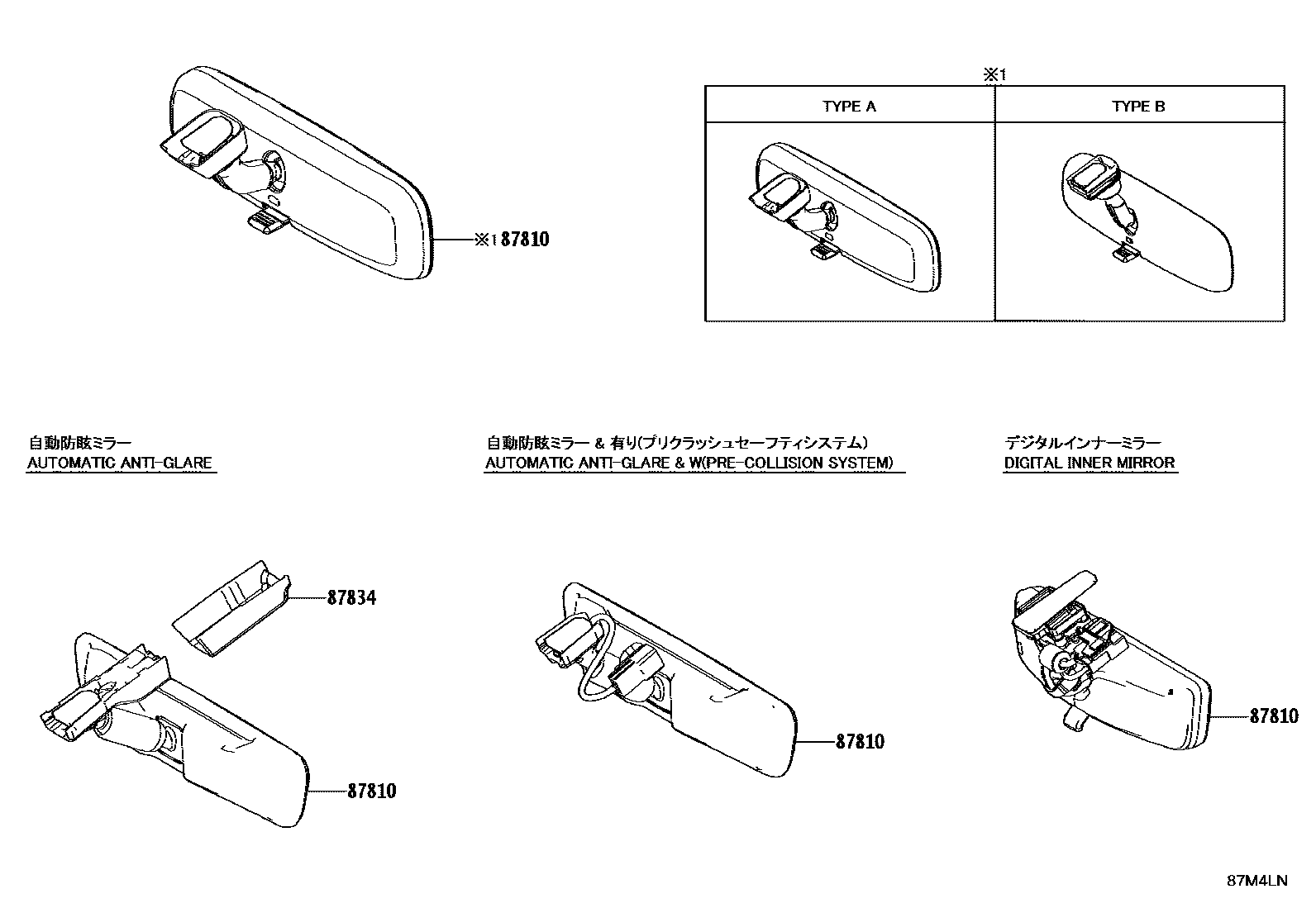

| 87810 | Interior rearview mirror assembly | 87810-53210 · 87810-60191 · 87840-0W360 · 87840-0W460 · 87840-0W480 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-42020 |

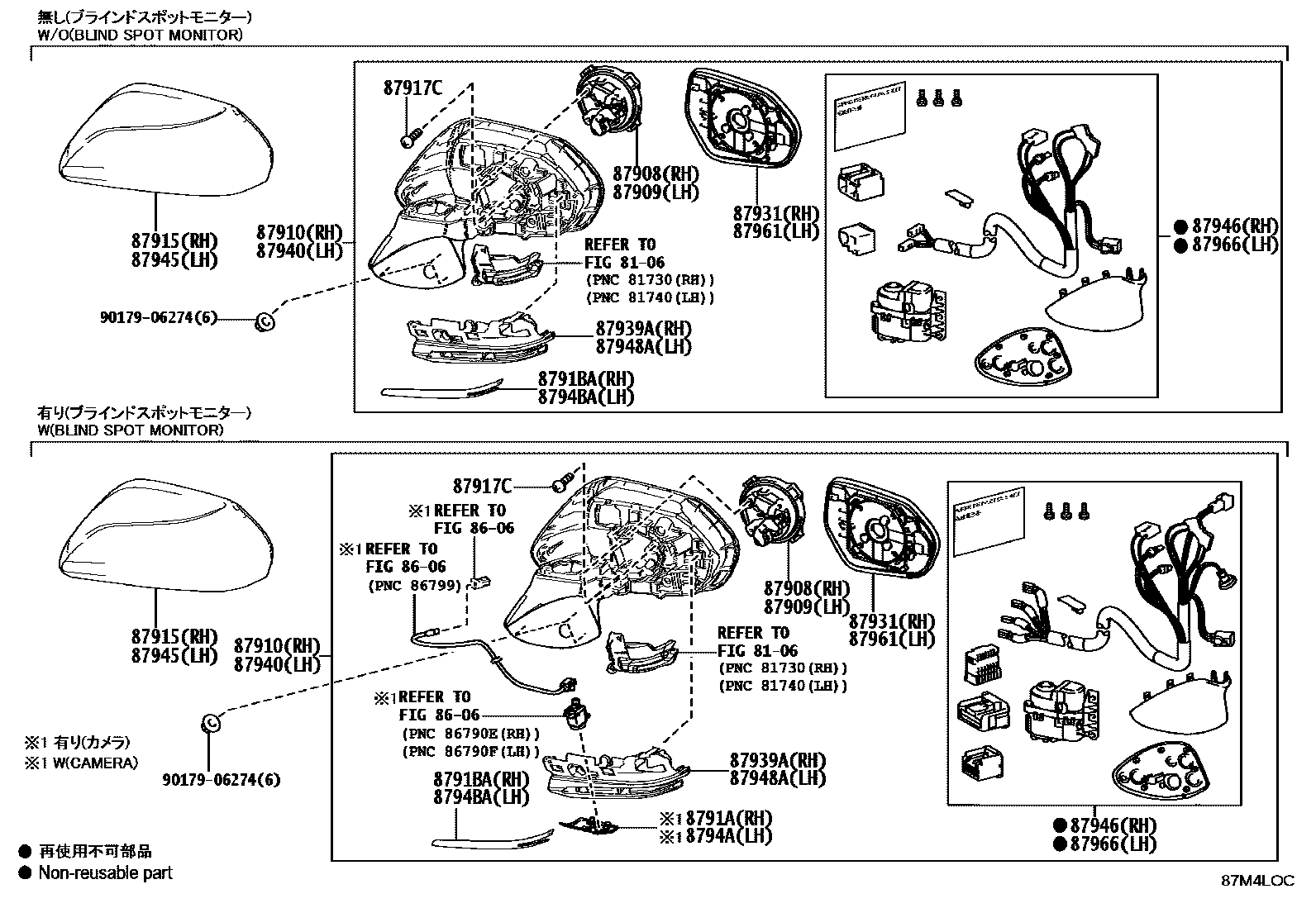

| 87908 | Right exterior rearview mirror actuator assembly | 87908-42M50 · 87908-60V81 |
| 87909 | Left exterior rearview mirror actuator assembly | 87908-42M50 · 87908-60V81 |
| 87910 | Right exterior rearview mirror assembly | 87910-33C70 · 87910-33C71 · 87910-33D30 · 87910-33K10 · 87910-33K30 · 87910-33Q30 · 87910-33Q40 · 87910-33Q50 · 87910-33Q51 · 87910-33Q60 · 87910-33Q61 · 87910-33Q80 · 87910-33Q90 |
| 87917C | Exterior rearview mirror screws | 87917-15010 |
| 8791A | Right exterior rearview mirror cover No. 2 | 8791A-33Q80 |
| 8791BA | No. 3 right exterior mirror cover | 8791B-47360 |
| 87931 | Right exterior rearview mirror | 87902-12010 · 87902-33120 · 87902-33130 · 87902-33140 · 87902-33160 · 87902-33190 · 87902-33350 · 87902-33360 |
| 87939A | Right exterior rearview mirror hole cover | 87939-33Q80 · 87939-47360 |
| 87940 | Left exterior rearview mirror assembly | 87940-33C70 · 87940-33C71 · 87940-33K10 · 87940-33K30 · 87940-33P90 · 87940-33Q00 · 87940-33Q10 · 87940-33Q11 · 87940-33Q20 · 87940-33Q21 · 87940-33Q40 · 87940-33Q80 · 87940-33Q90 |
| 87946 | Right exterior rearview mirror retractor | 87946-33C70 · 87946-33D10 · 87946-33D60 · 87946-33J50 · 87946-33Q30 · 87946-33Q50 · 87946-33Q60 · 87946-33Q80 · 87946-33Q90 |
| 87948A | Left exterior rearview mirror hole cover | 87948-33Q80 · 87948-47250 |
| 8794A | No. 2 left exterior rearview mirror cap | 8794A-33Q80 |
| 8794BA | No. 3 left exterior rearview mirror cap | 8794B-47250 |
| 87961 | Left exterior rearview mirror | 87907-12020 · 87907-33100 · 87907-33110 · 87907-33120 · 87907-33140 · 87907-33180 · 87907-33191 · 87907-33210 |
| 87966 | Left exterior rearview mirror retractor | 87966-33C70 · 87966-33D10 · 87966-33D60 · 87966-33J50 · 87966-33P90 · 87966-33Q10 · 87966-33Q20 · 87966-33Q80 · 87966-33Q90 |
