Toyota CAMRY 预碰撞安全系统 — Figure 8617

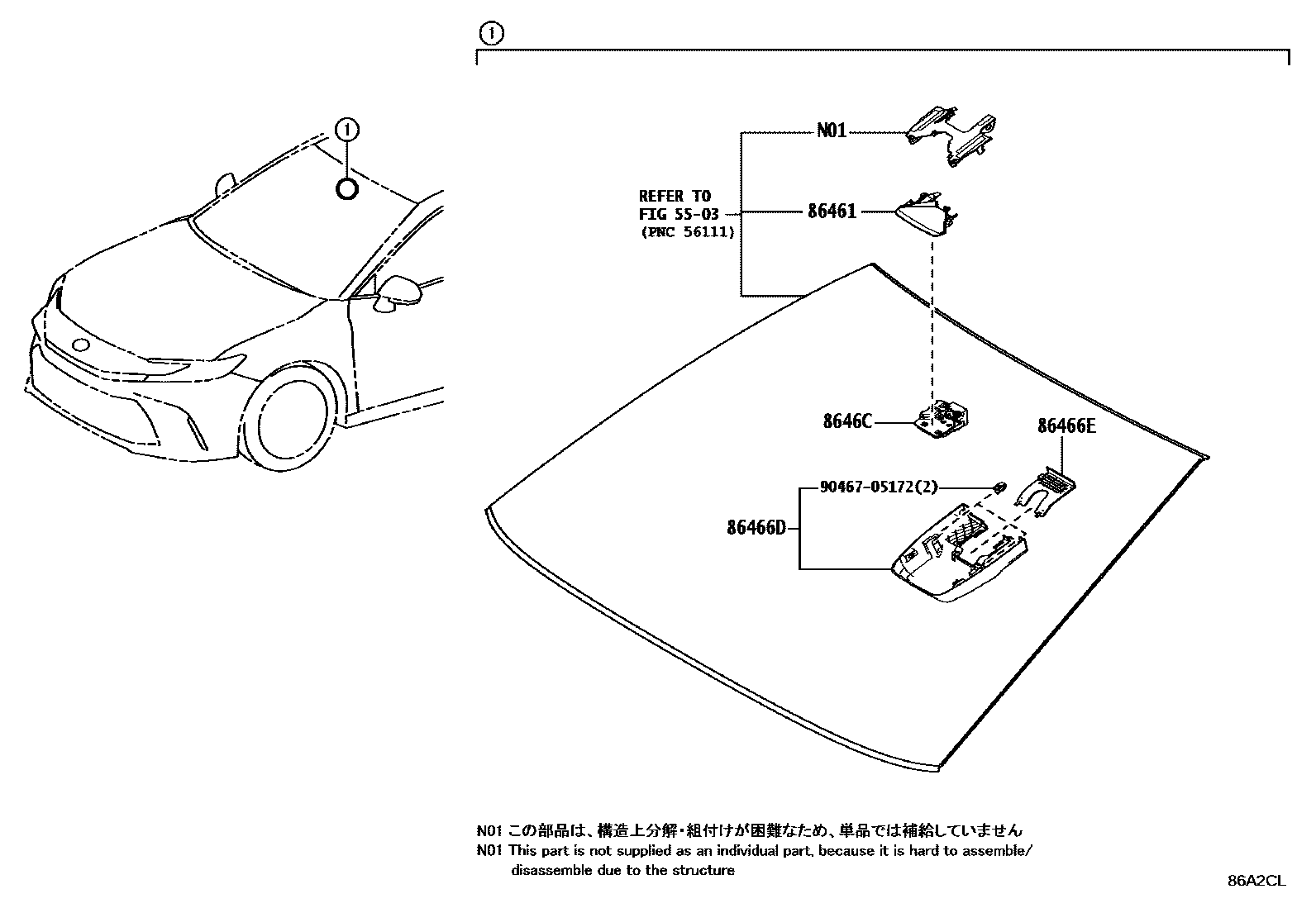

Toyota CAMRY EPC diagram 8617, 预碰撞安全系统, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86461 | front identification cover | 86461-48110 |
| 86466D | Front identification cover No. 1 | 86466-33140 |
| 86466E | Front identification cover No. 2 | 86467-33030 · 86467-33040 |
| 8646C | front recognition camera | 8646C-33120 · 8646C-33121 · 8646C-33210 |
