Toyota CAMRY 车载电话和呼救装置 — Figure 8615

Toyota CAMRY EPC diagram 8615, 车载电话和呼救装置, with 1 images and 7 PNC and OE references.

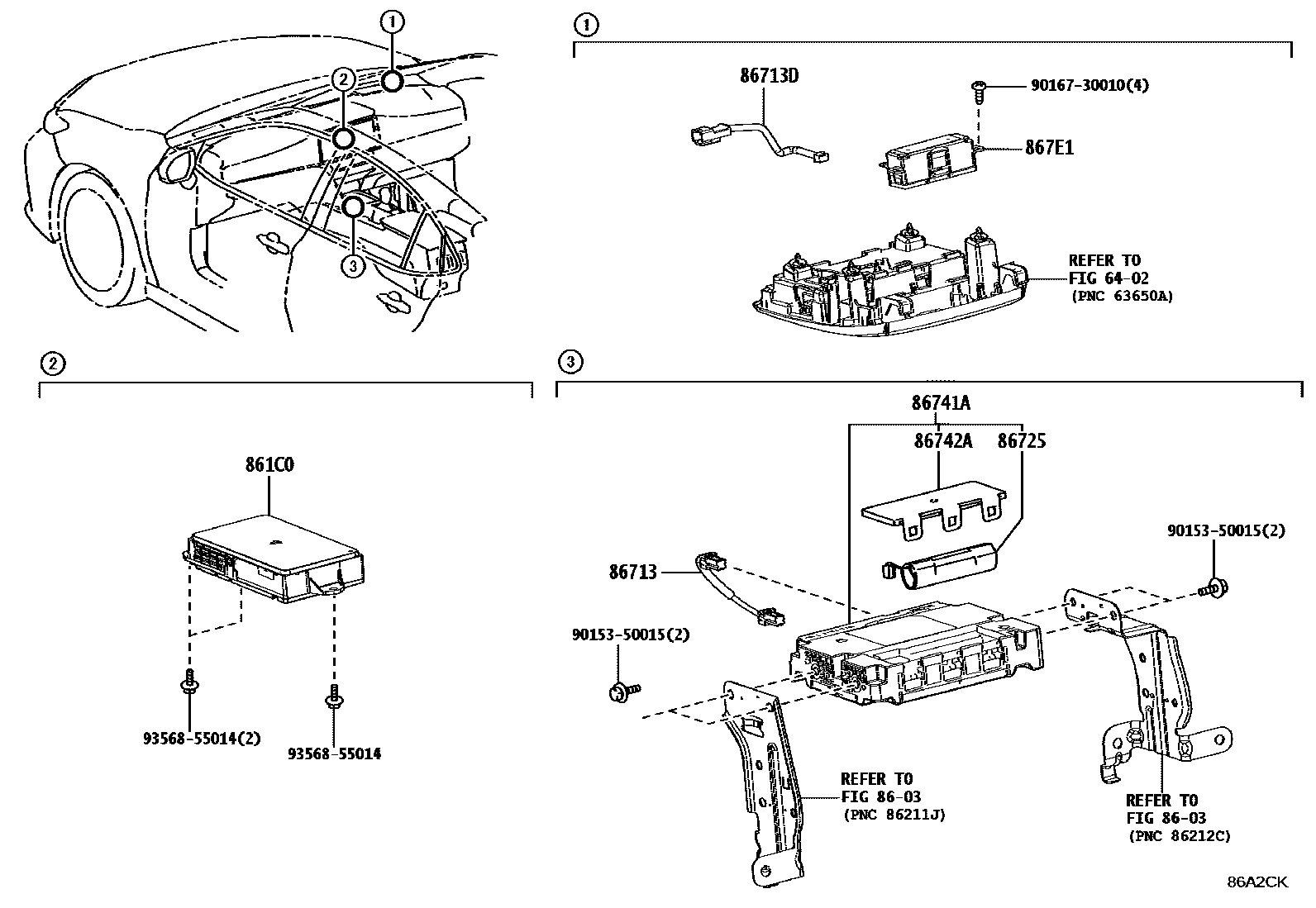

Toyota CAMRY 车载电话和呼救装置 EPC diagram — 86A2CK
车载电话和呼救装置 — 86A2CK (202406 – 999999)

PNC and OE references

PNCPart nameOE numbers
861C0Mobile wireless charger bracket assembly861C0-58050 · 861C0-58051
86713Telephone ECU wiring harness86713-33240
86713DDistress signal wiring harness86713-33120
86725mobile phone battery86725-06020 · 86725-78010 · 86725-78011
86741ATelecommunications transceiver86740-33320 · 86740-33330 · 86740-78200 · 86740-78210 · 86740-78220 · 86740-78222 · 86741-78150 · 86741-78152 · 86741-78250
86742Atransceiver cover86742-0D020 · 86742-78010
867E1Electronic information communication box867E1-60020
