Toyota CAMRY 倒车影像和摄像头 — Figure 8606

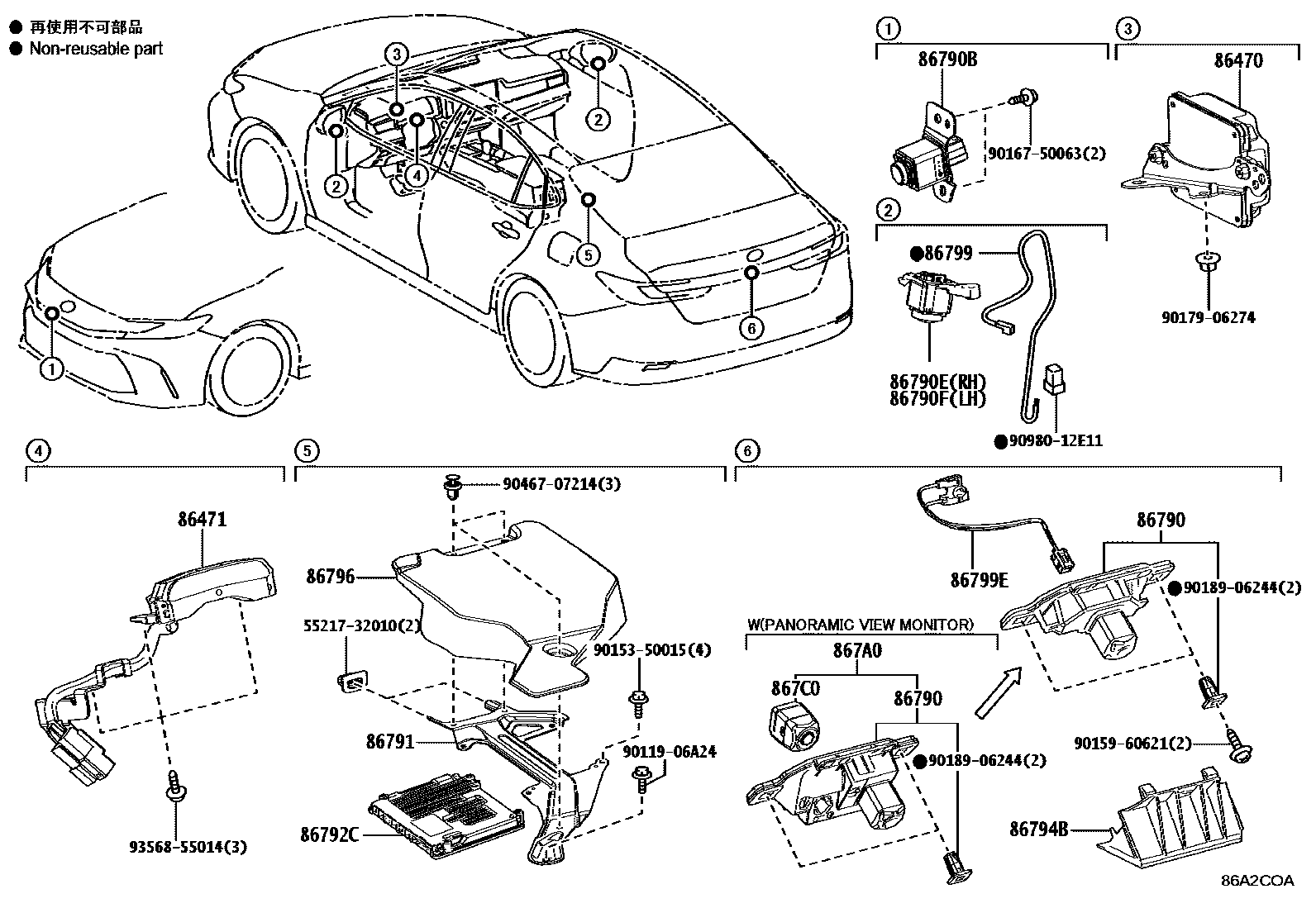

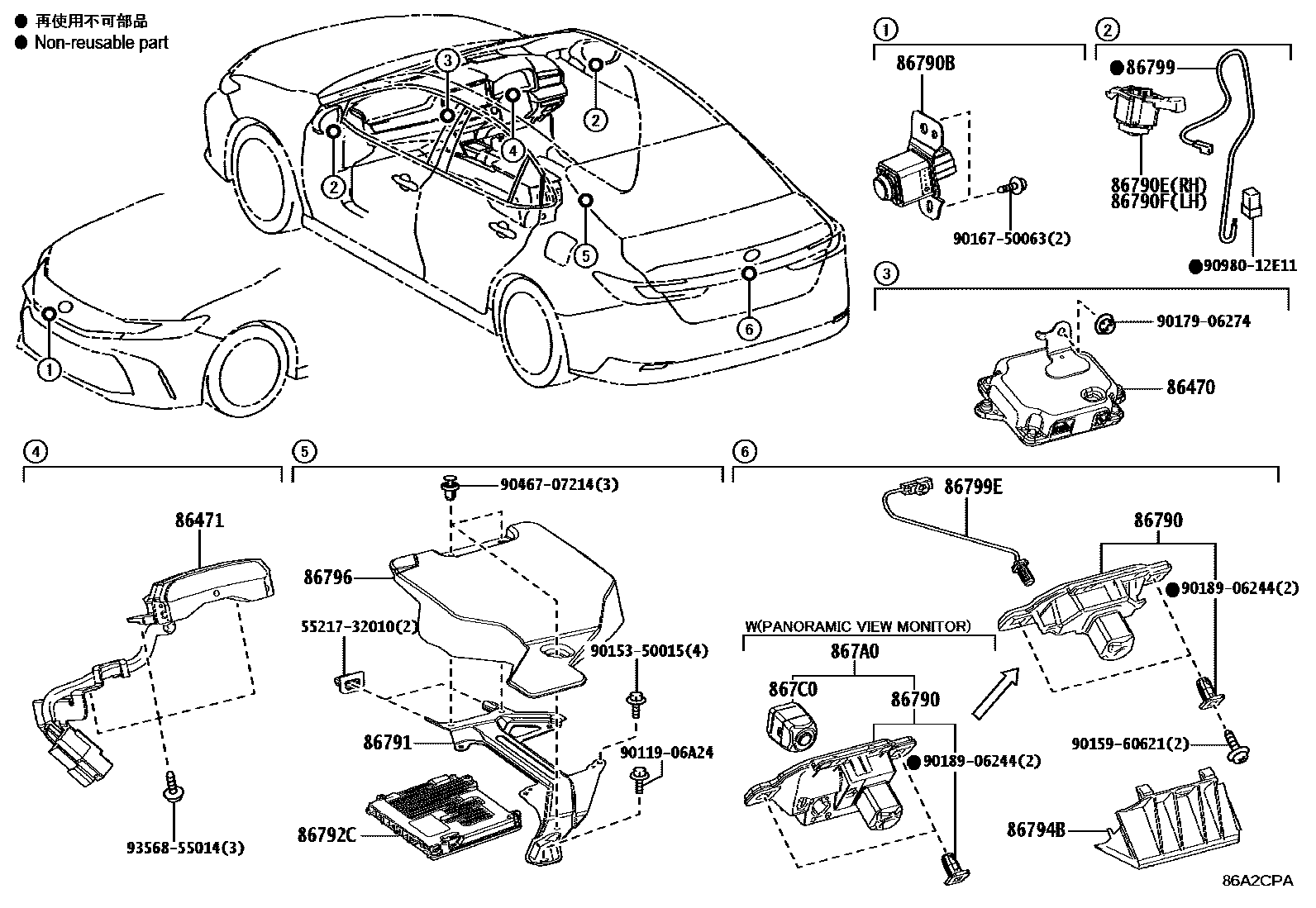

Toyota CAMRY EPC diagram 8606, 倒车影像和摄像头, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86470 | Driver monitor ECU assembly | 86470-33010 · 86470-33040 · 86470-33060 · 86470-33070 |
| 86471 | driver monitor camera | 86471-30040 |
| 86790 | Reversing image camera assembly | 86790-33420 · 86790-33430 · 86790-33470 · 867B0-33390 |
| 86790B | Front image camera assembly | 86790-33440 |
| 86790E | Right image camera assembly | 86790-33460 |
| 86790F | Left image camera assembly | 86790-33450 |
| 86791 | Reversing camera bracket | 86791-33020 |
| 86792C | Parking assist ECU | 86792-33290 · 86792-33710 · 86792-33730 |
| 86794B | Reversing camera cover | 86794-33010 · 86794-33020 |
| 86796 | Parking assist ECU cover | 86796-33030 |
| 86799 | Reversing image camera wiring harness | 86799-33190 |
| 86799E | CABLE, CAMERA TELEVISION, ARRIERE | 86799-33220 · 86799-33230 · 86799-33260 |
| 867A0 | Surveillance and interior rearview mirror camera assembly | 867A0-33150 |
| 867C0 | Interior rearview mirror camera assembly | 8679C-33010 |
