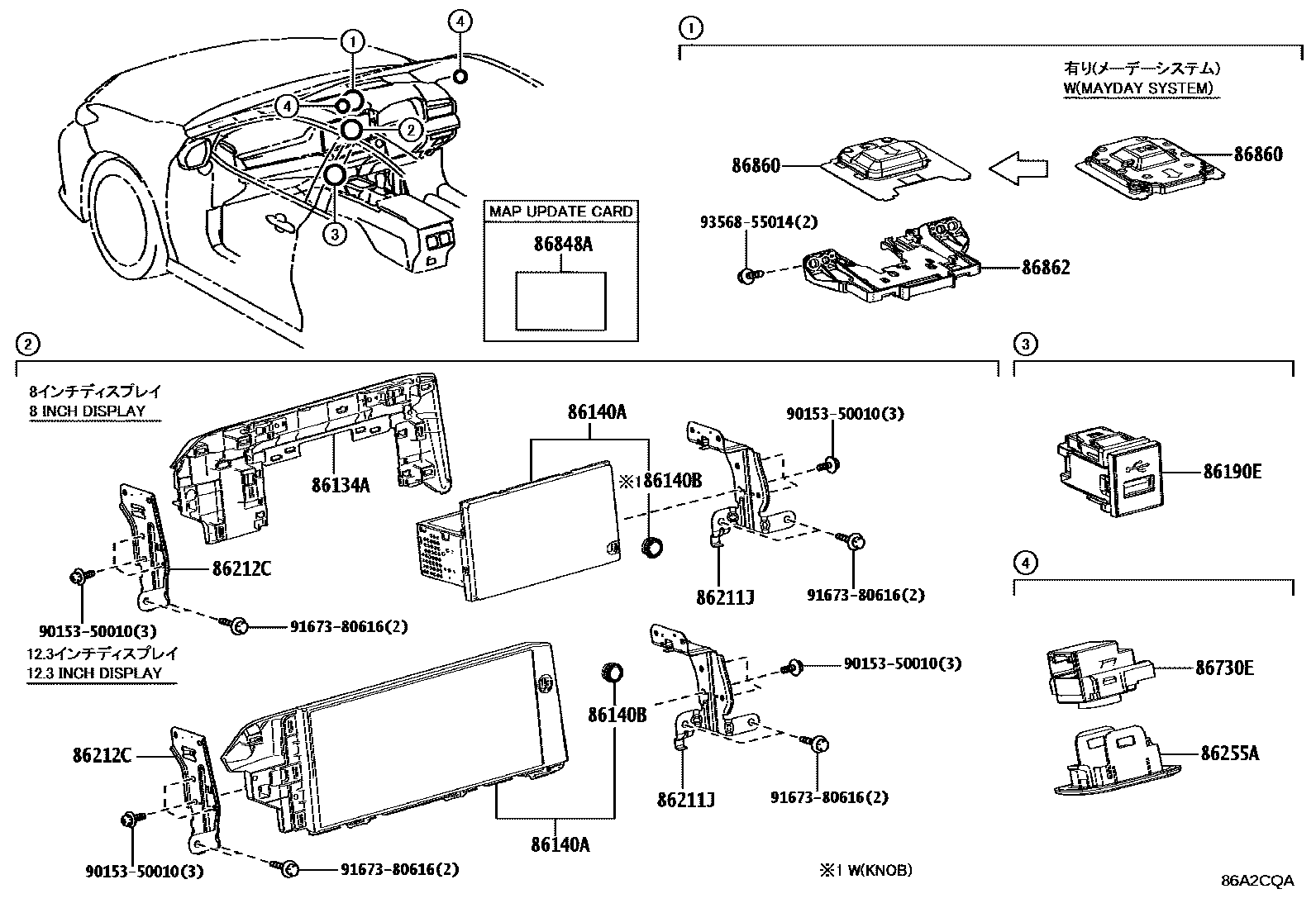

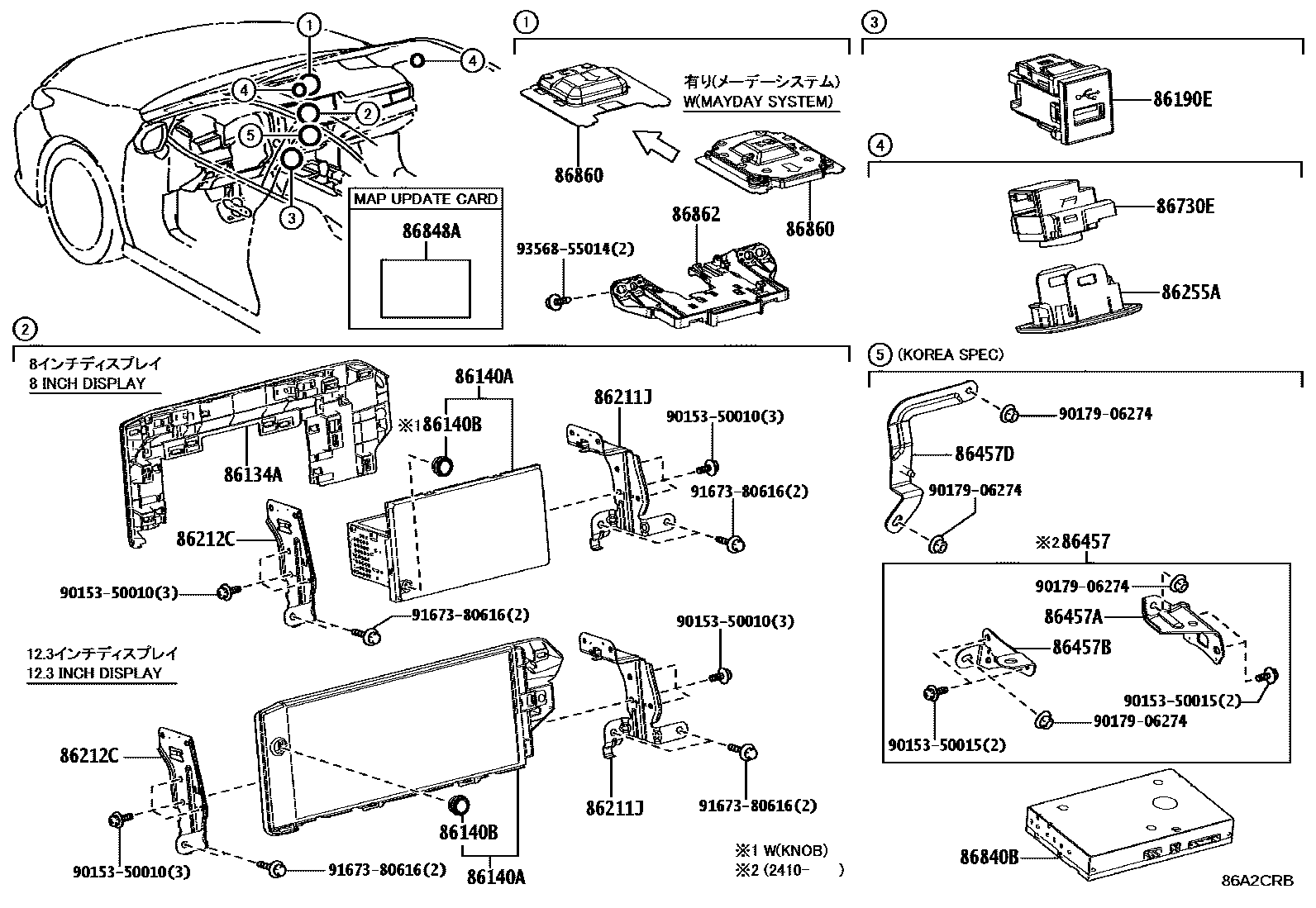

Toyota CAMRY 导航和前监视器显示屏 — Figure 8603
Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86134A | Multifunctional display components | 86134-33060 · 86134-33070 |
| 86140A | Radio and display receiver assembly | 86100-33760 · 86100-33761 · 86100-33780 · 86100-33820 · 86100-33830 · 86100-33840 · 86100-33850 · 86100-33860 · 86100-33861 · 86100-33870 · 86100-33871 · 86100-33880 · 86100-33890 · 86100-33A20 · 86100-33A40 · 86100-33B30 · 86100-33B31 · 86100-33B40 · 86100-33B50 · 86100-33B51 · 86100-33B80 · 86100-33C20 · 86100-33C30 · 86100-33D20 · 86100-33D21 · 86100-33D30 · 86100-33D31 · 86140-33P50 · 86140-33P51 · 86140-33P90 · 86140-33Q40 · 86140-33R10 · 86140-33R11 · 86140-33R20 · 86140-33R30 · 86140-33R40 · 86140-33R50 |
| 86140B | Radio and display receiver switch button | 90010-23064 · 90010-24202 |
| 86190E | Stereo socket adapter assembly | 86190-12080 |
| 86211J | No. 1 radio bracket | 86211-33500 |
| 86212C | No. 2 radio bracket | 86212-33500 |
| 86457 | Multimedia module bracket No. 1 | 86457-33150 |
| 86457A | Multimedia module bracket No. 2 | 86457-33110 |
| 86457B | No. 3 multimedia module bracket | 86457-33120 |
| 86457D | SUPPORT, MODULE MULTI-MEDIA NO.4 | 86457-33140 |
| 86730E | Amplifier assembly | 86730-16010 |
| 86840B | Navigation ECU assembly | 86840-78040 |
| 86848A | Map serial number update card | 86848-78020 · 86848-78030 · 86848-78040 · 86848-78050 · 86848-78080 |
| 86860 | Navigation antenna assembly | 86860-78010 · 86880-42010 · 86880-42030 |
| 86862 | Navigation antenna bracket | 86862-42010 |
