Toyota CAMRY 扬声器 — Figure 8602

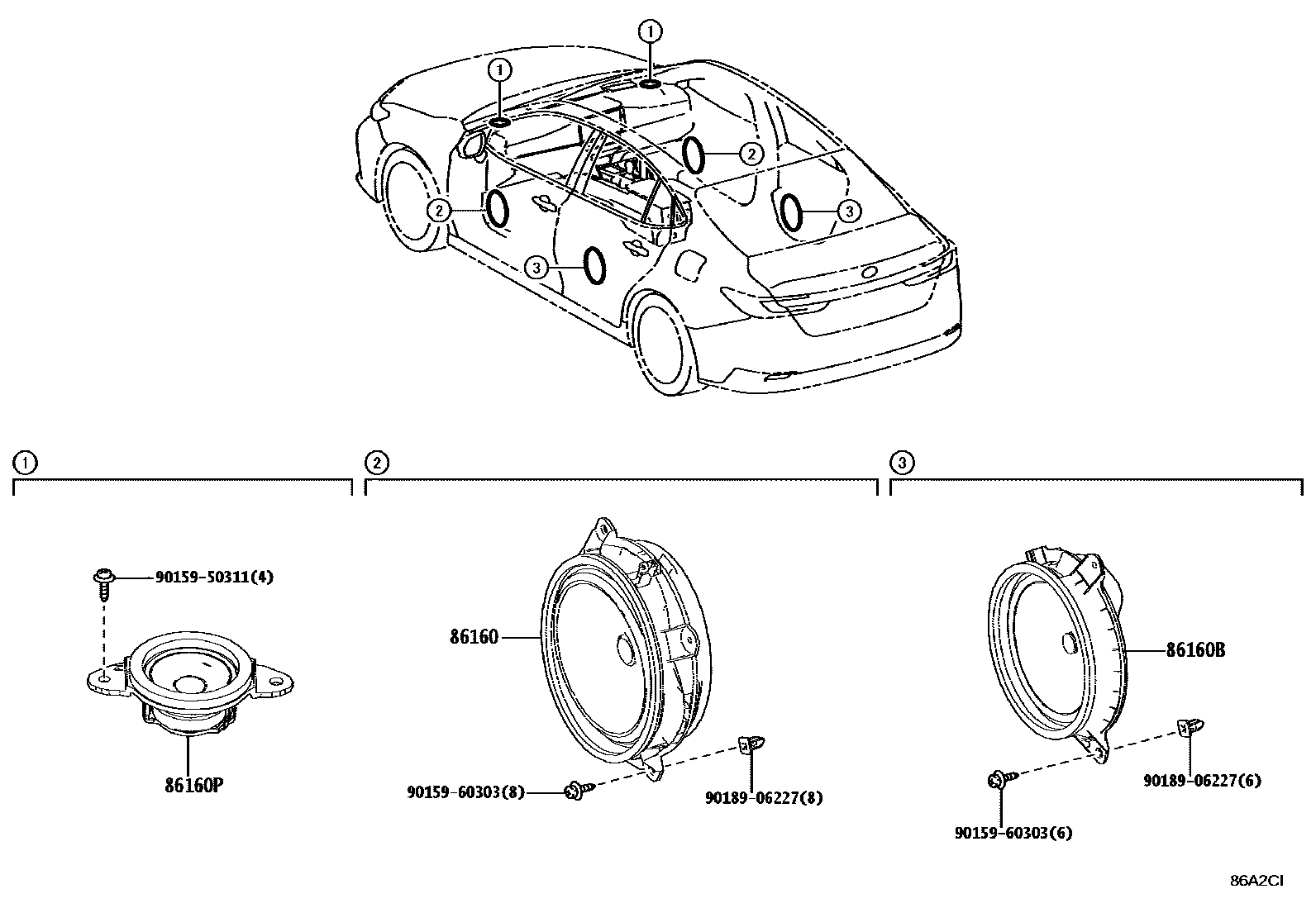

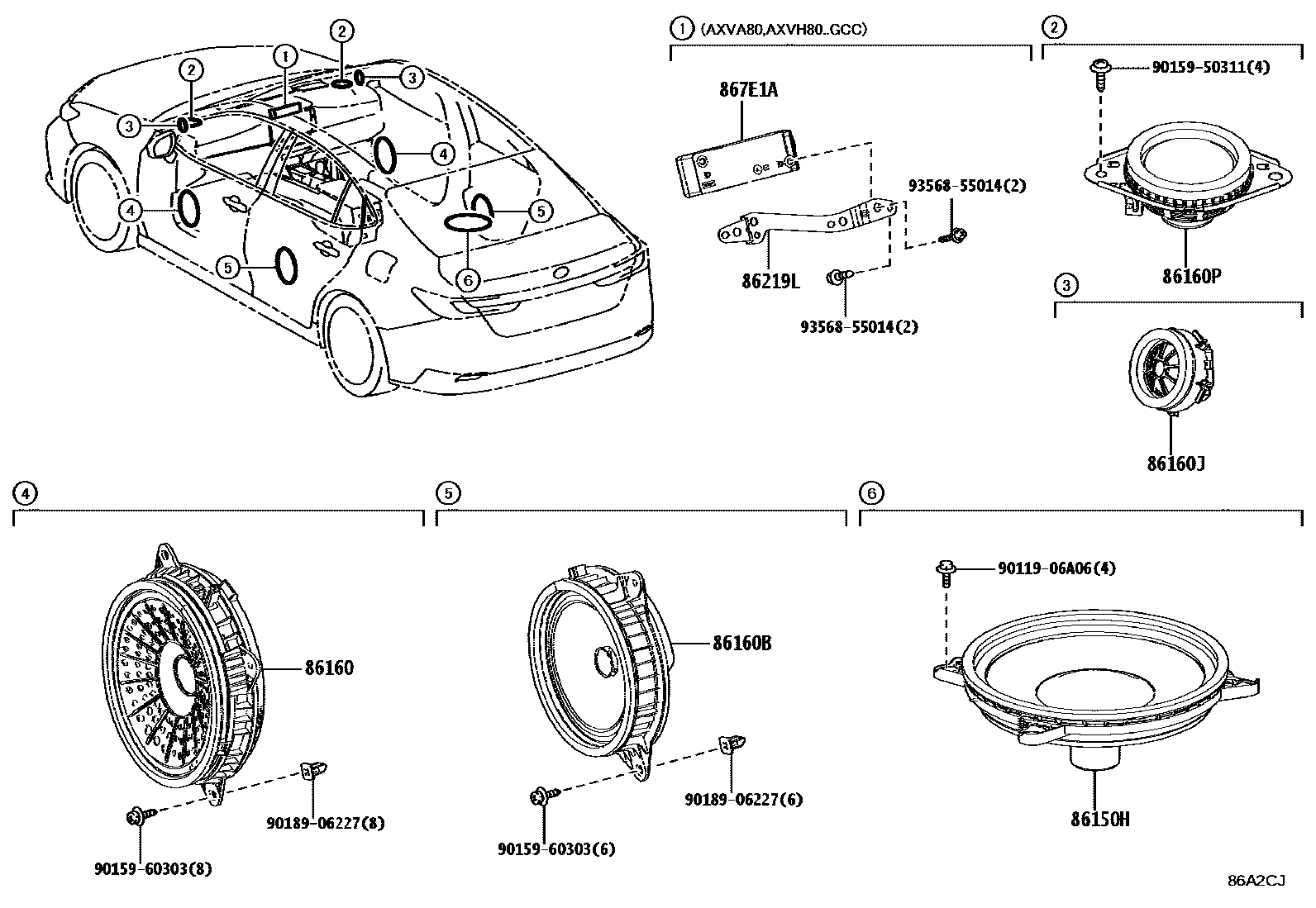

Toyota CAMRY EPC diagram 8602, 扬声器, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150H | Speaker assembly with stand | 86150-33010 |
| 86160 | No. 1 front speaker assembly | 86160-30F70 · 86160-33A10 |
| 86160B | Rear speaker assembly | 86160-1A210 · 86160-42170 |
| 86160J | No. 3 front speaker assembly | 86150-33060 |
| 86160P | No. 2 front speaker assembly | 86160-33760 · 86160-33A30 |
| 86219L | speaker stand | 86219-33010 |
| 867E1A | Electronic information communication box | 867E1-33020 |
