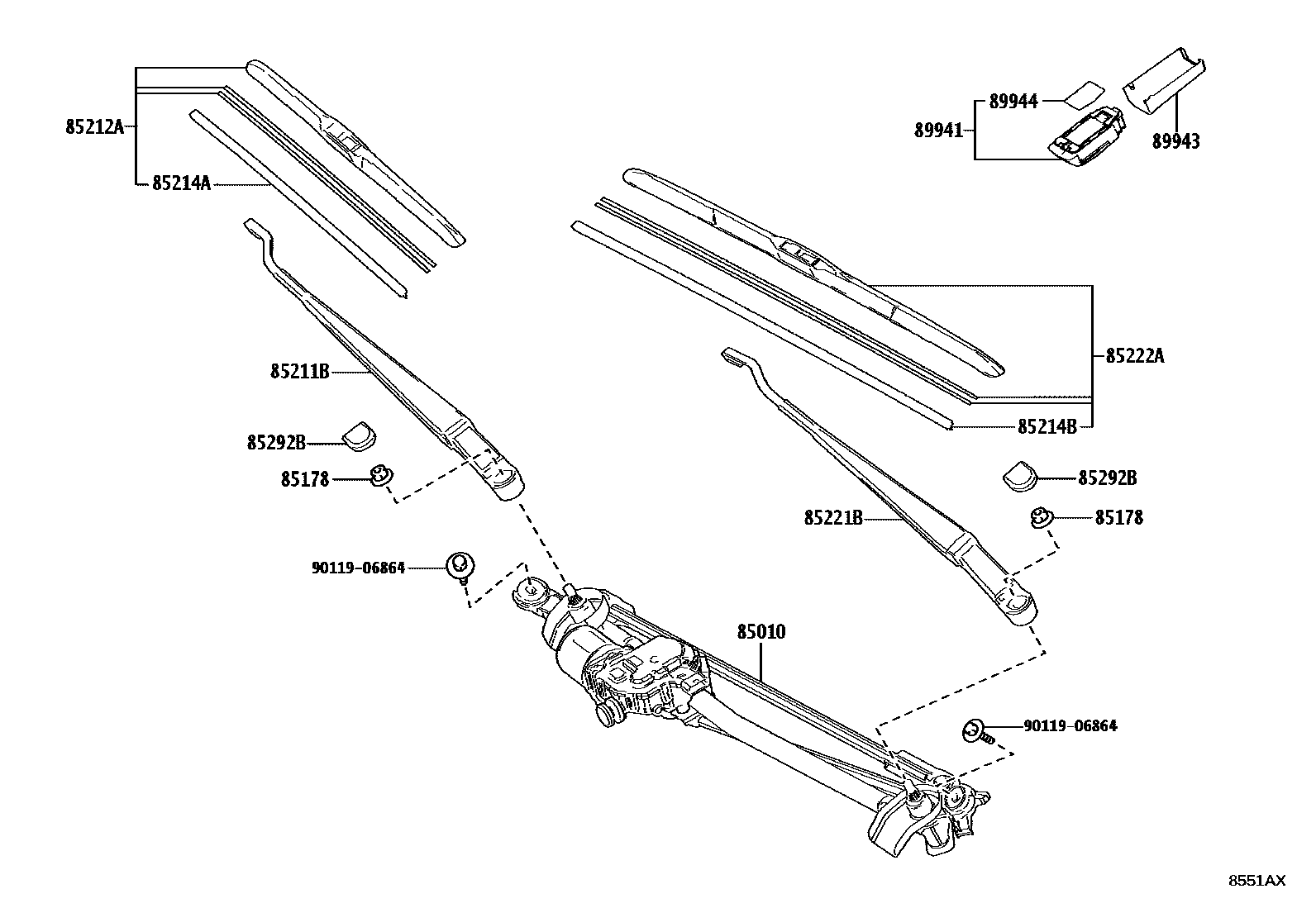

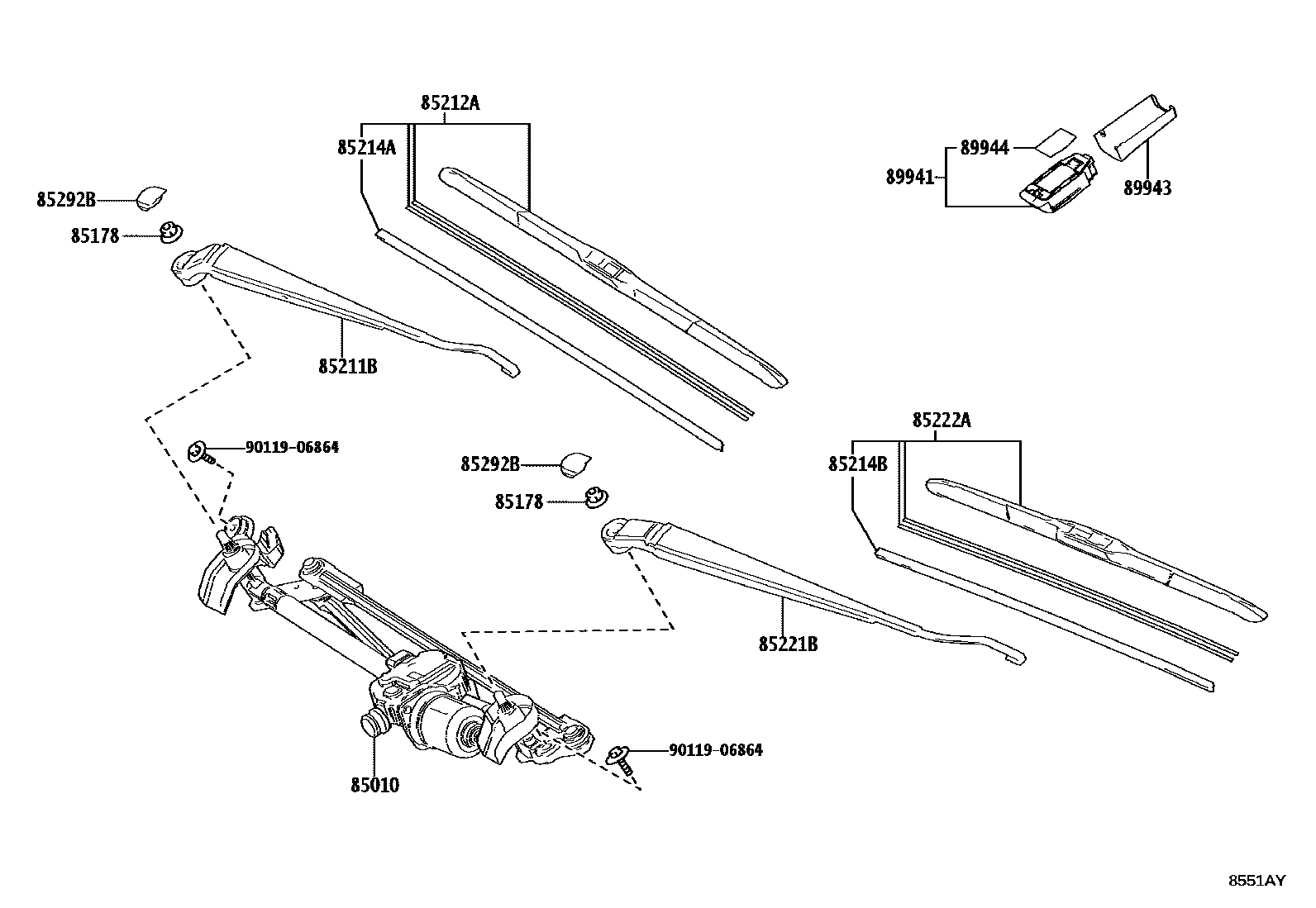

Toyota CAMRY 挡风玻璃刮水器 — Figure 8501
Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85010 | Front wiper motor and connecting rod assembly | 85010-33420 · 85010-33430 |
| 85178 | Nut (for securing front wiper arm) | 90182-10006 |
| 85211B | Right front wiper arm | 85211-33480 · 85211-33490 |
| 85212A | Right front wiper blade | 85212-33370 · 85212-52210 |
| 85214A | Right wiper rubber strip | 85214-52110 · 85214-60120 |
| 85214B | Left wiper rubber strip | 85214-52110 · 85214-60120 |
| 85221B | Left front wiper arm | 85221-33480 · 85221-33500 · 85221-33510 |
| 85222A | Left front wiper blade | 85222-33340 · 85222-33350 |
| 85292B | Front wiper arm cap | 85292-13010 |
| 89941 | rain sensor | 89941-78020 |
| 89943 | Rain sensor cover | 89943-12040 |
| 89944 | Rain sensor tape | 89944-42020 |
