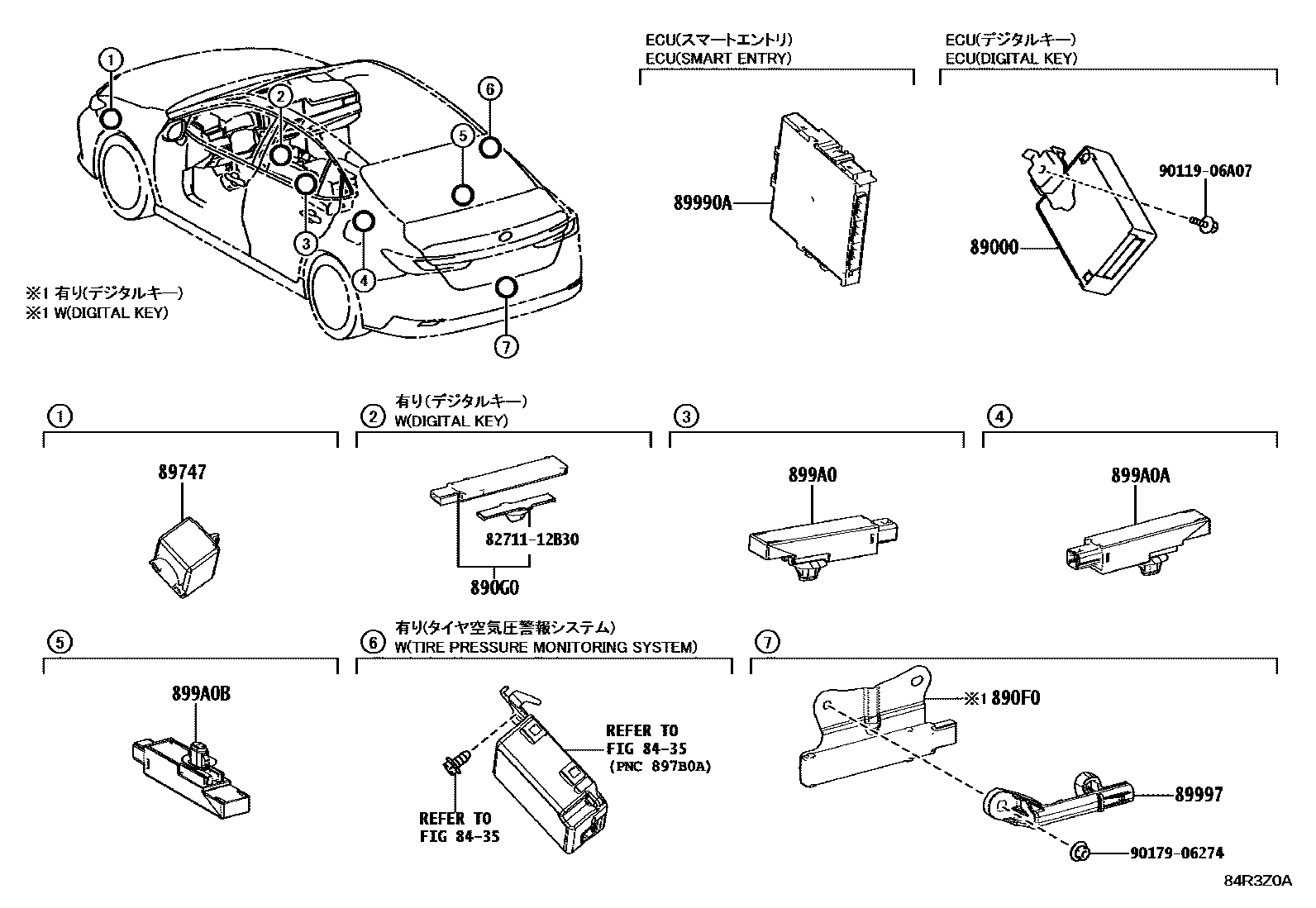

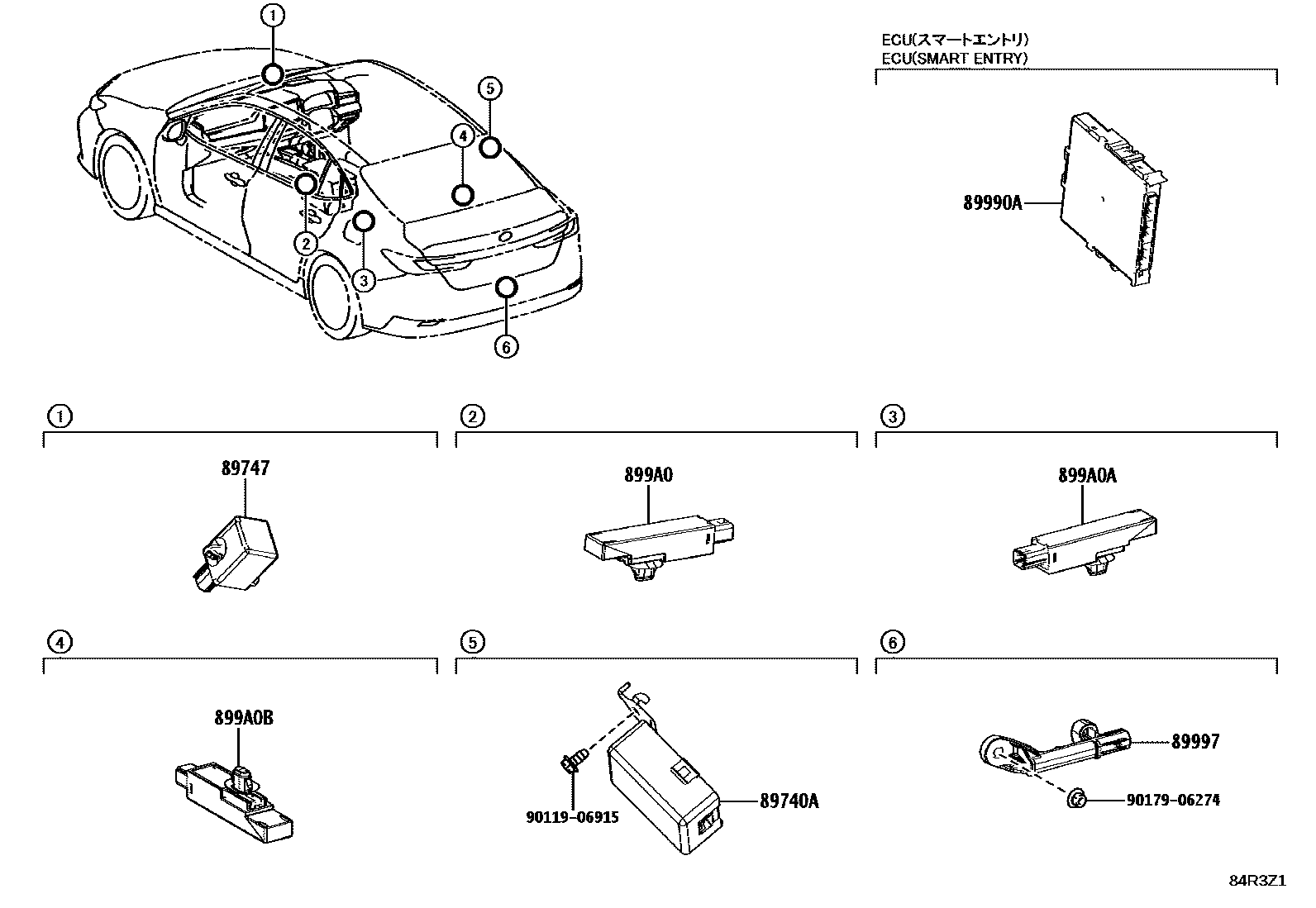

Toyota CAMRY 遥控门锁 — Figure 8420
Toyota CAMRY EPC diagram 8420, 遥控门锁, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89000 | Digital key ECU assembly | 89000-33100 |
| 890F0 | BLE (Bluetooth Low Energy) luggage digital key receiver assembly | 890E0-12030 · 890F0-47010 |
| 890G0 | BLE (Bluetooth Low Energy) in-car digital key receiver assembly | 890G0-V1010 |
| 89740A | Smart door control receiver assembly | 89740-33530 · 89740-33540 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 899H0-33200 · 899H0-33210 · 899H0-33220 · 899H0-33250 · 899H0-33260 · 899H0-33270 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-12130 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-12130 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-12130 |
