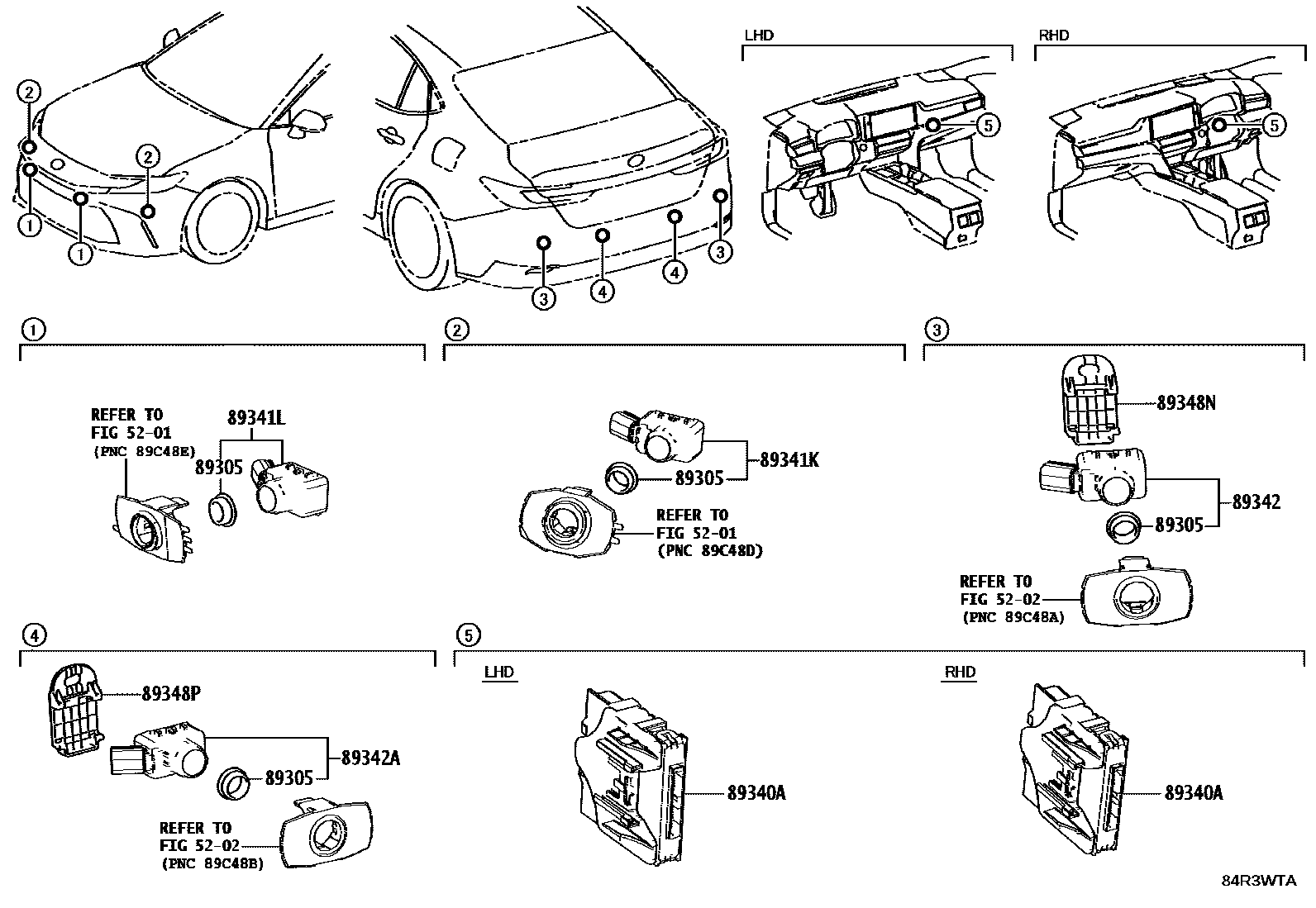

Toyota CAMRY 测距雷达和倒车雷达 — Figure 8417
Toyota CAMRY EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89305 | Ultrasonic sensor pad assembly | 89305-52010 |
| 89340A | Distance warning ECU assembly | 89340-33490 · 89340-33510 |
| 89348N | Ultrasonic sensor clip No. 1 | 89348-58130 |
| 89348P | Ultrasonic sensor clip No. 2 | 89348-58130 |
