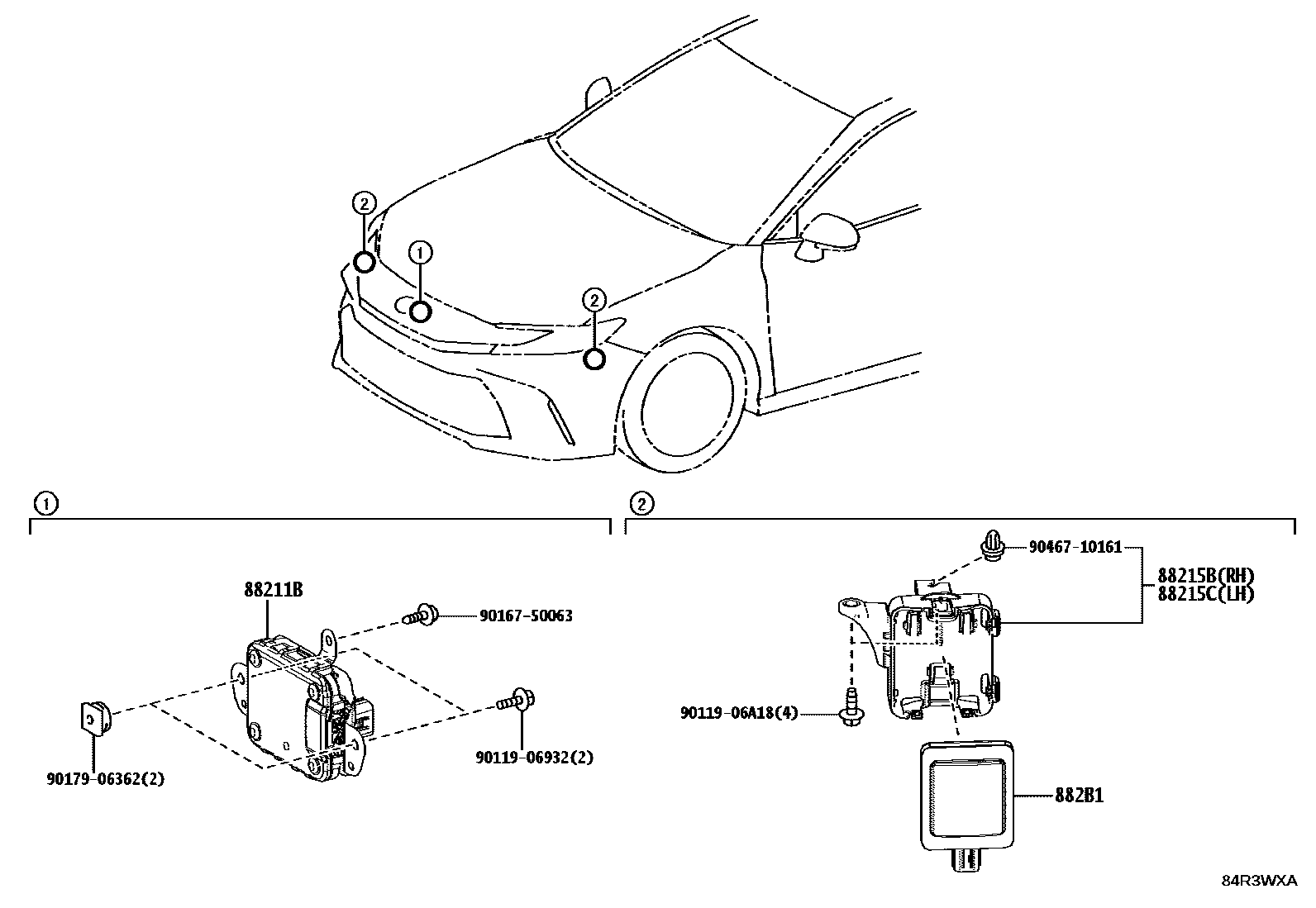

Toyota CAMRY 巡航控制(自动行驶) — Figure 8408
Toyota CAMRY EPC diagram 8408, 巡航控制(自动行驶), with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88211B | Millimeter wave radar sensor assembly | 88210-48170 |
| 88215B | Front radar sensor right bracket | 88215-33030 |
| 88215C | Front radar sensor left bracket | 88215-33040 |
| 882B1 | front radar sensor | 882B1-30031 |
