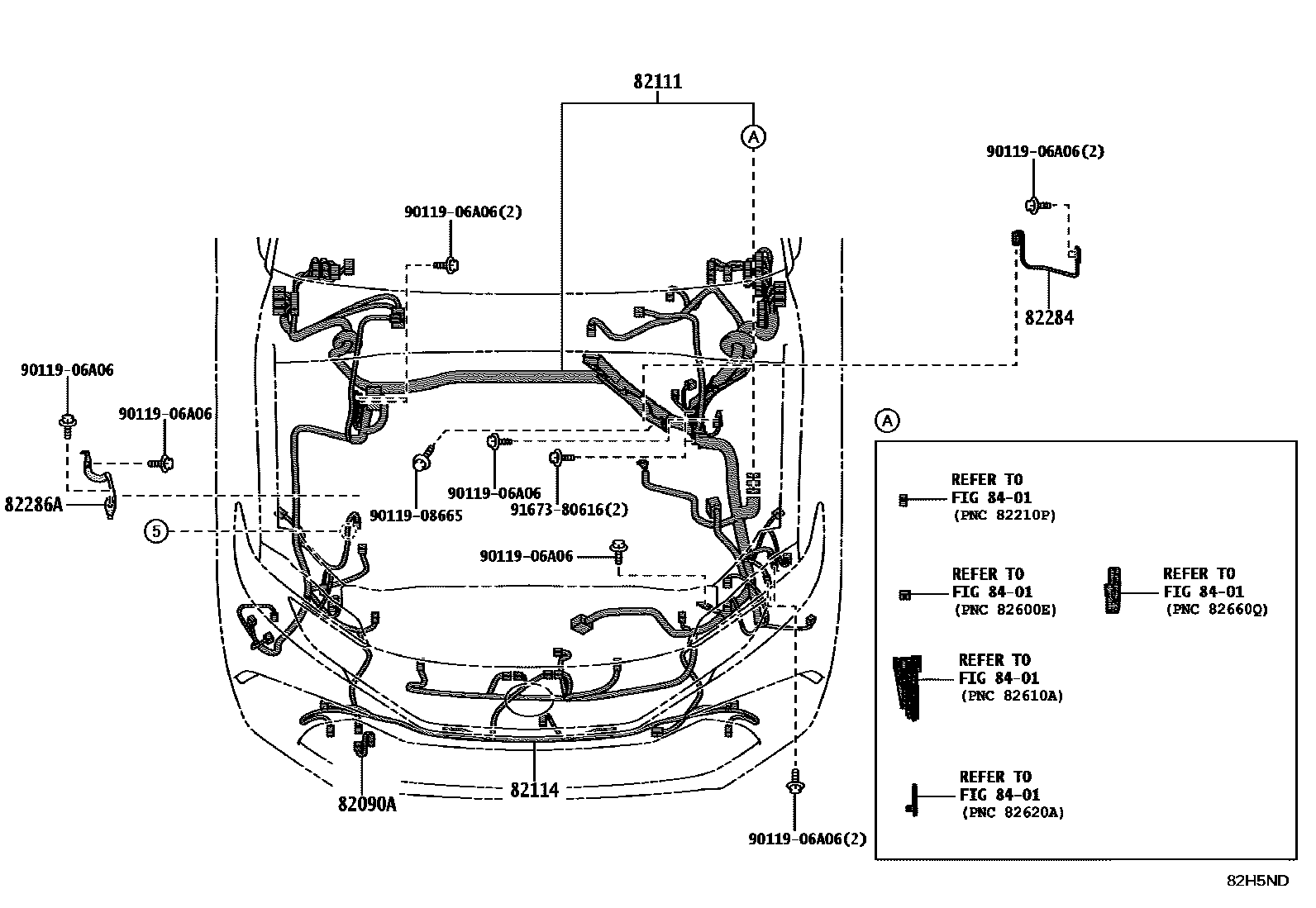

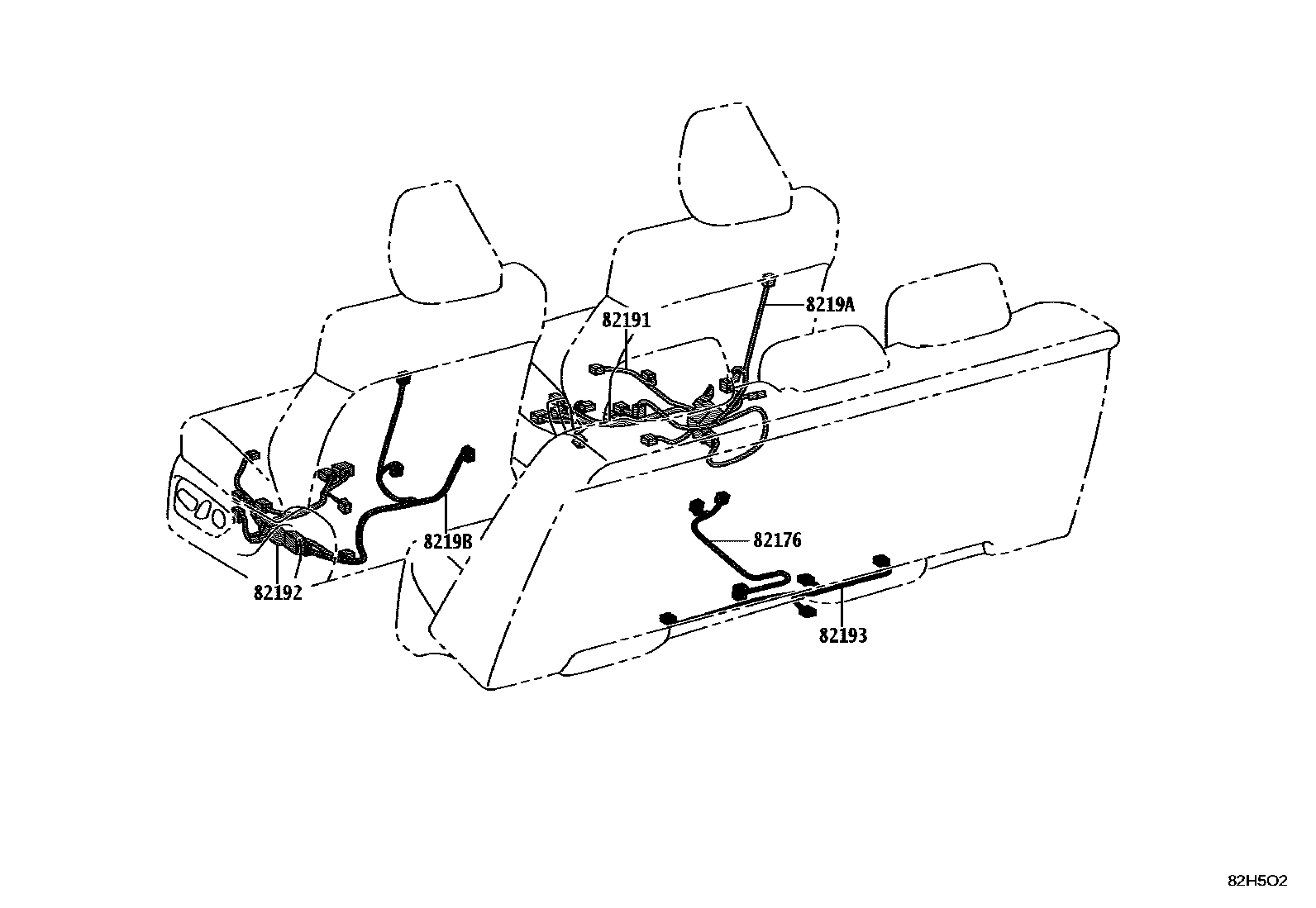

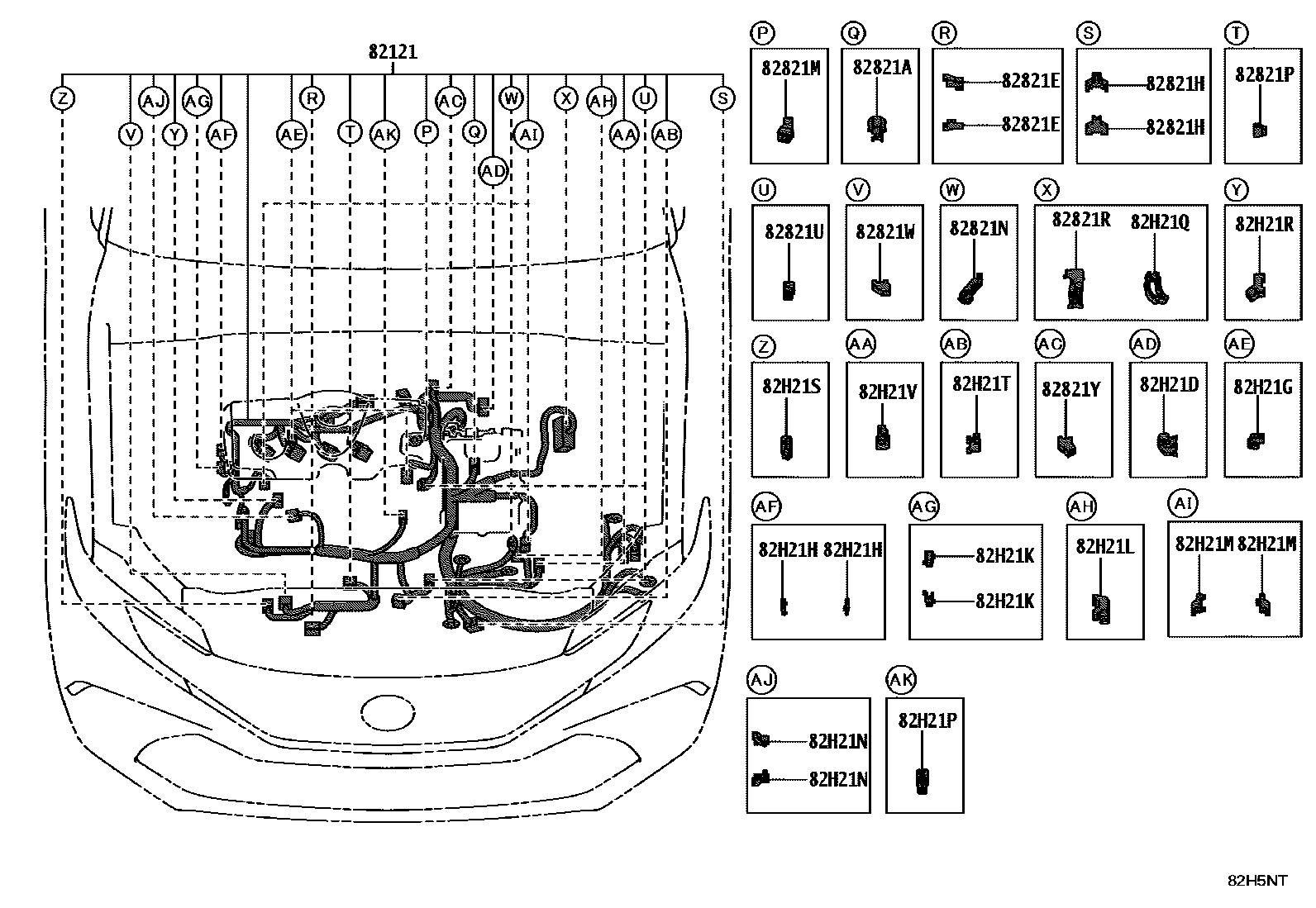

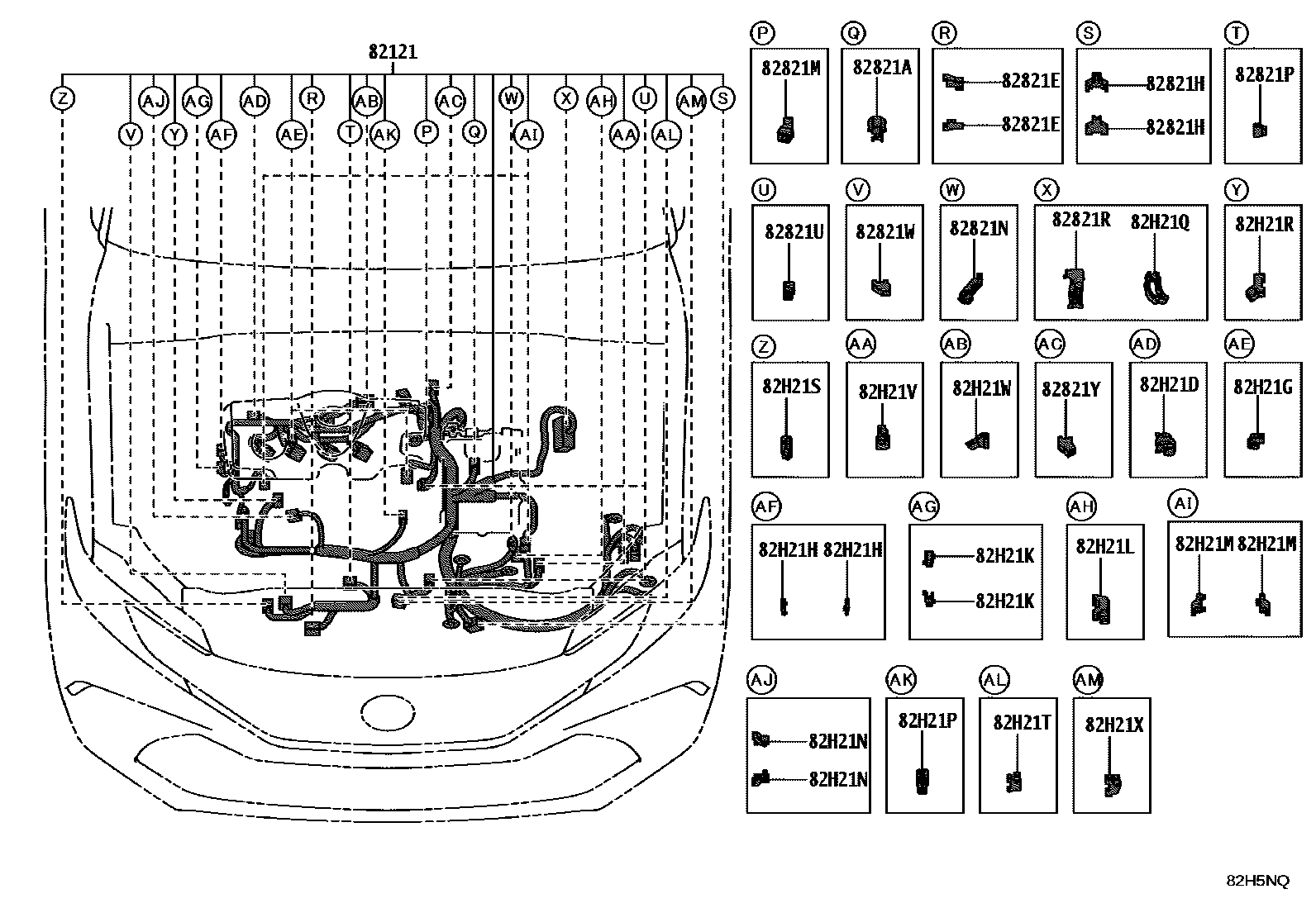

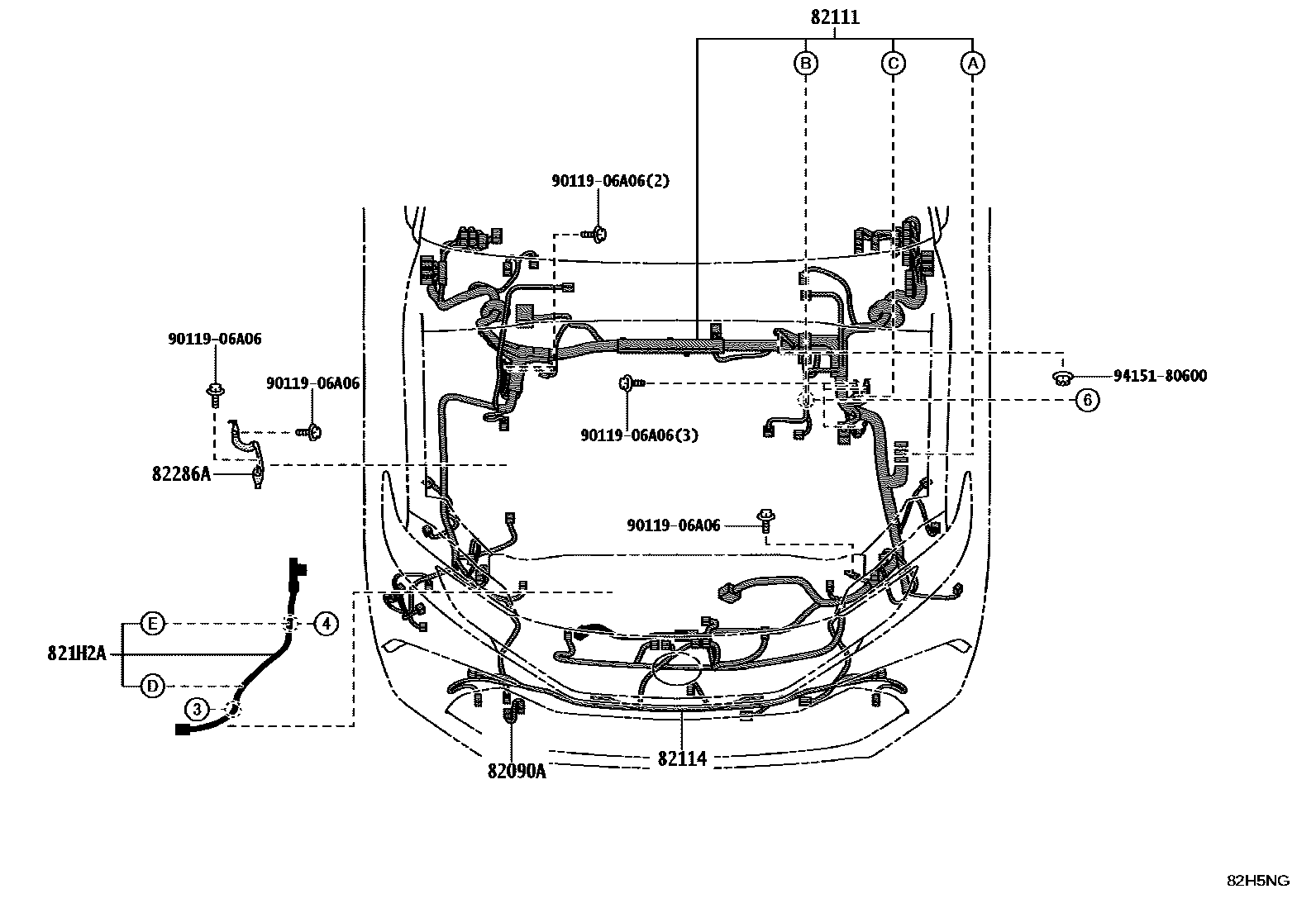

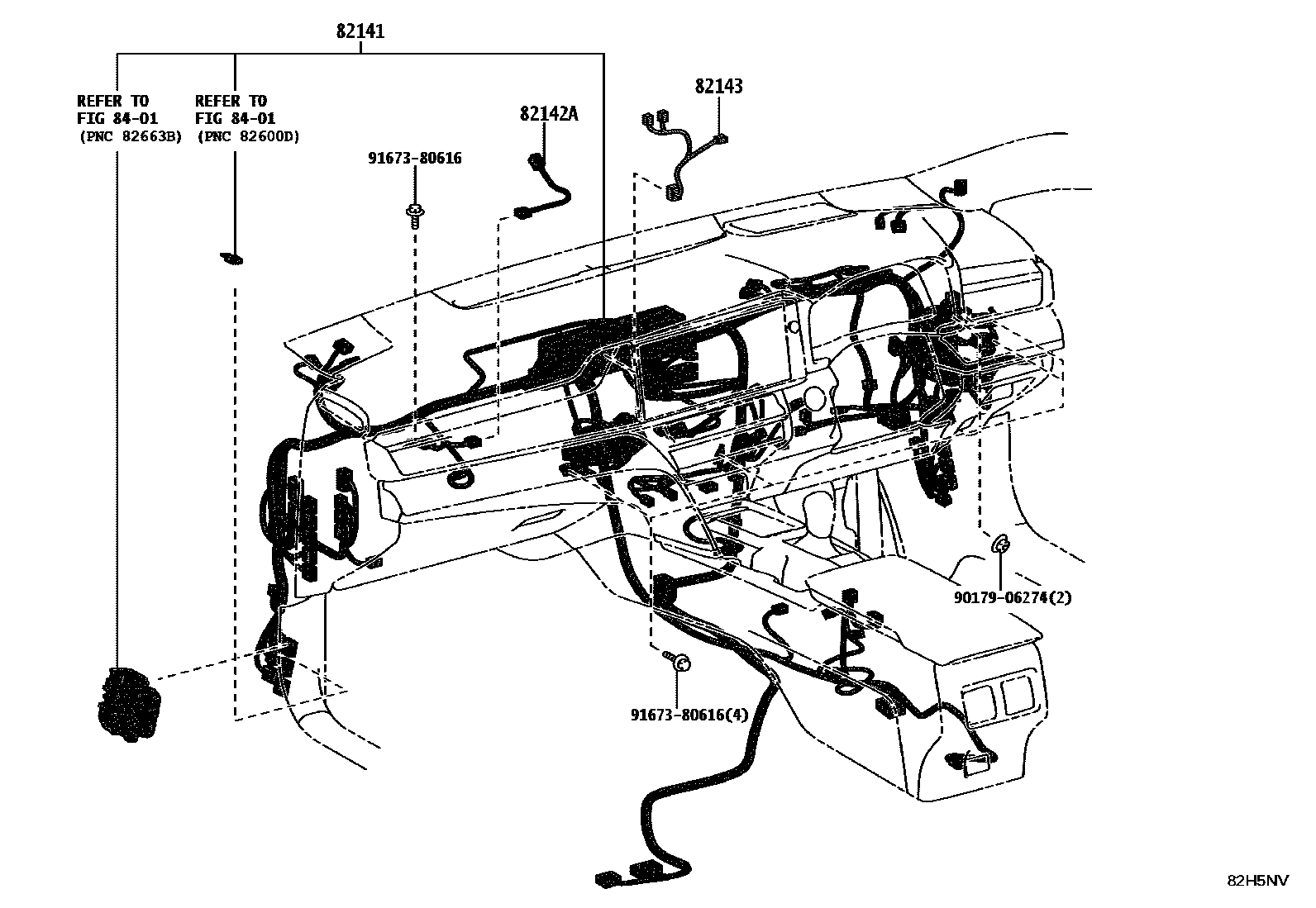

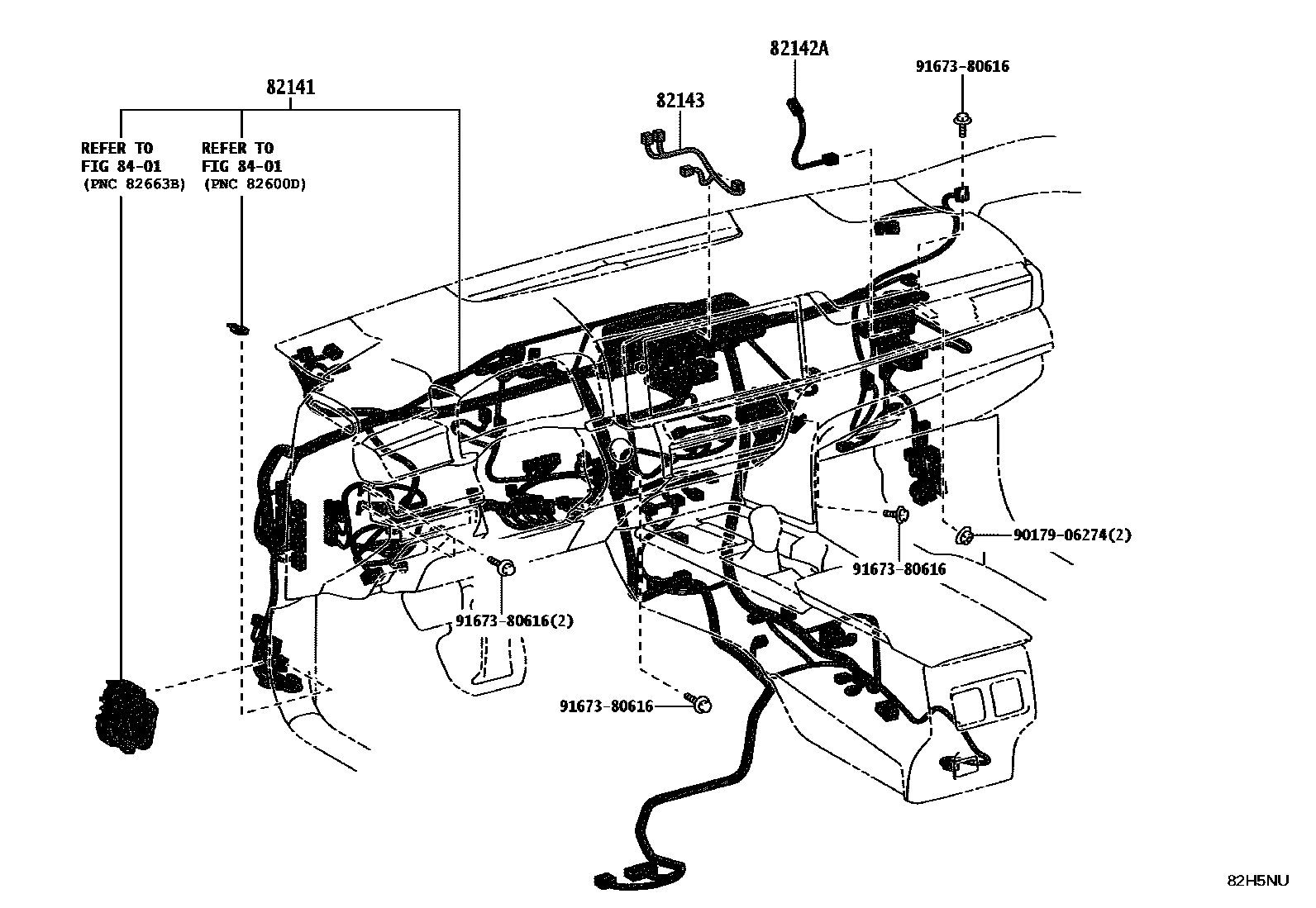

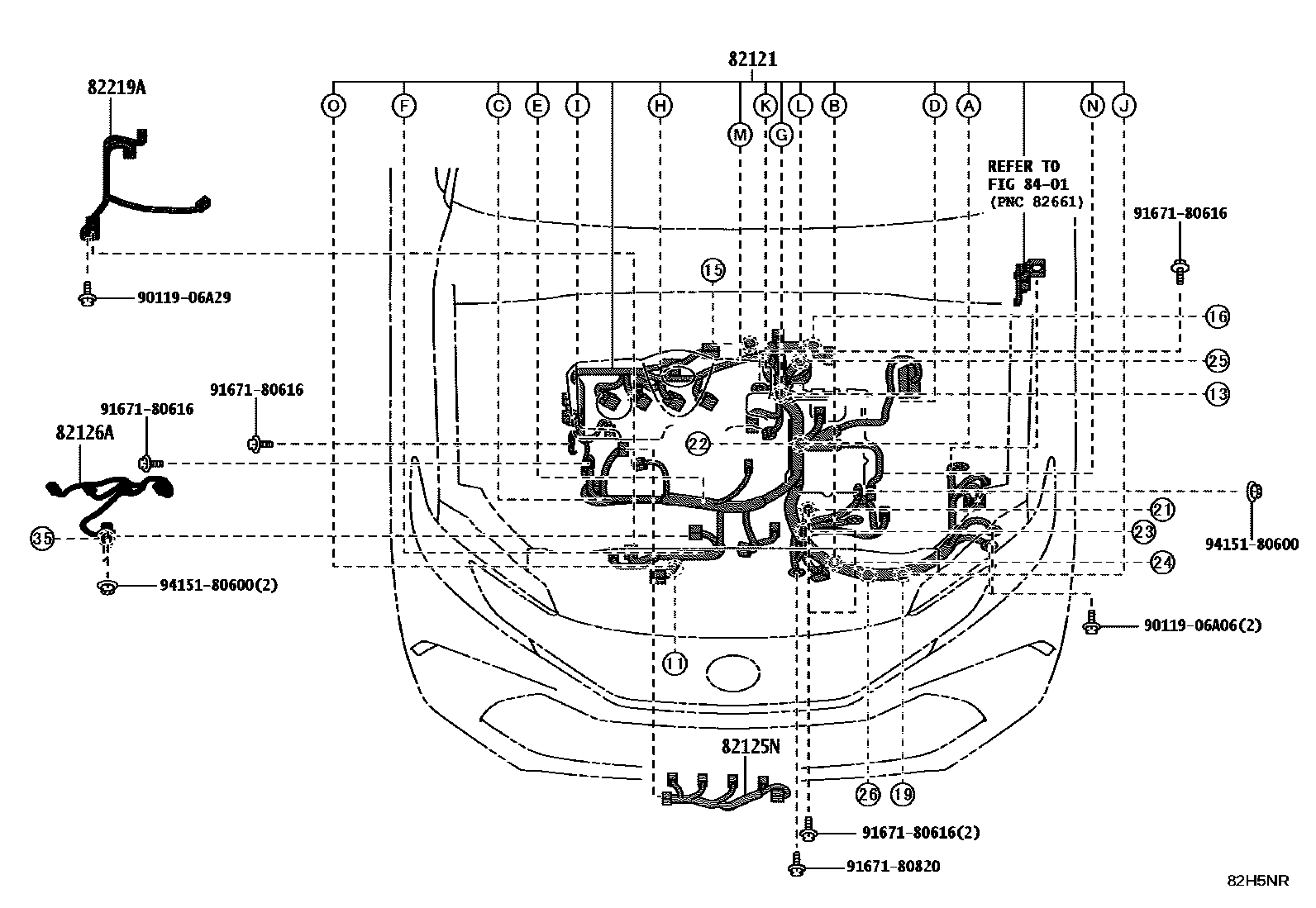

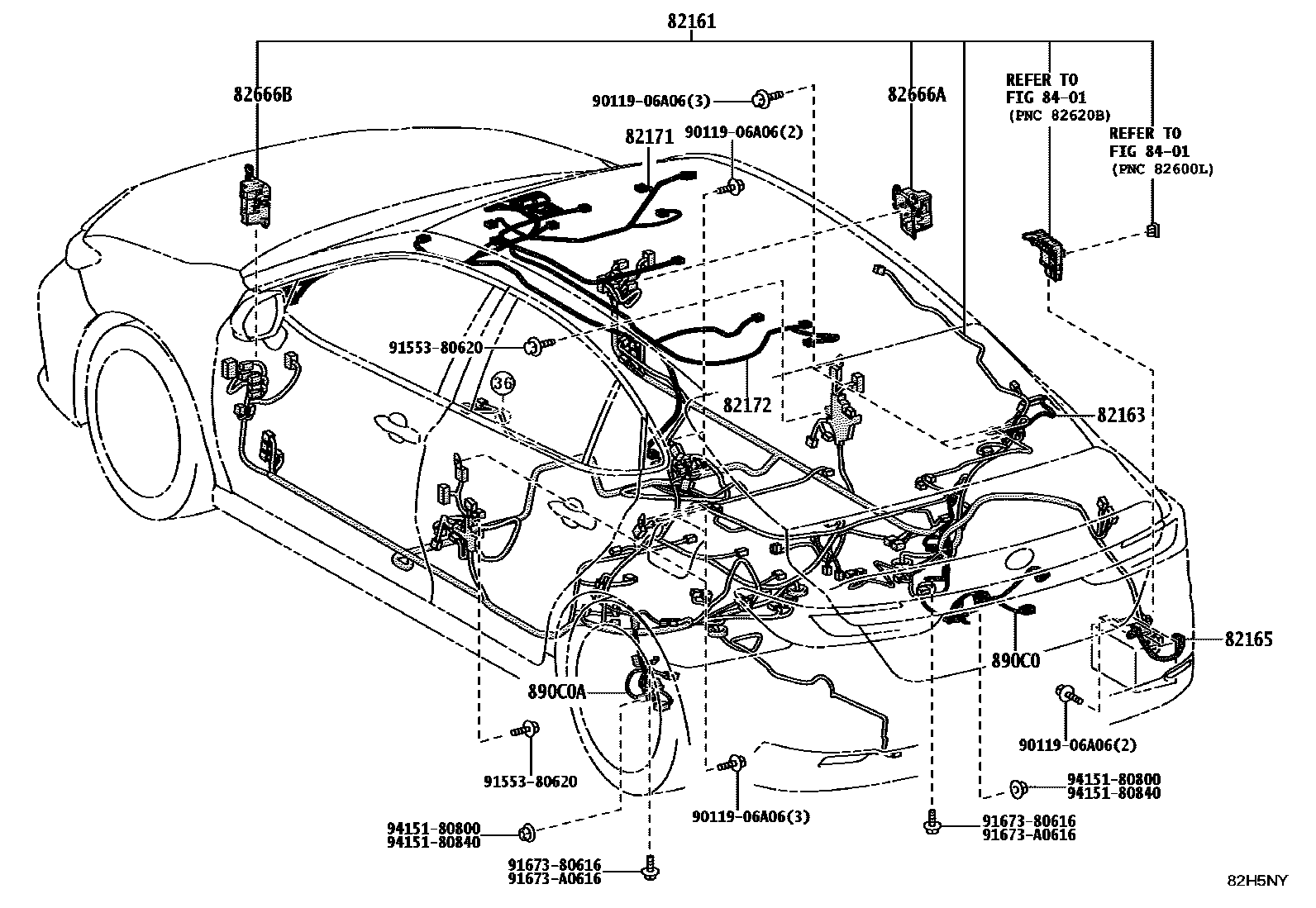

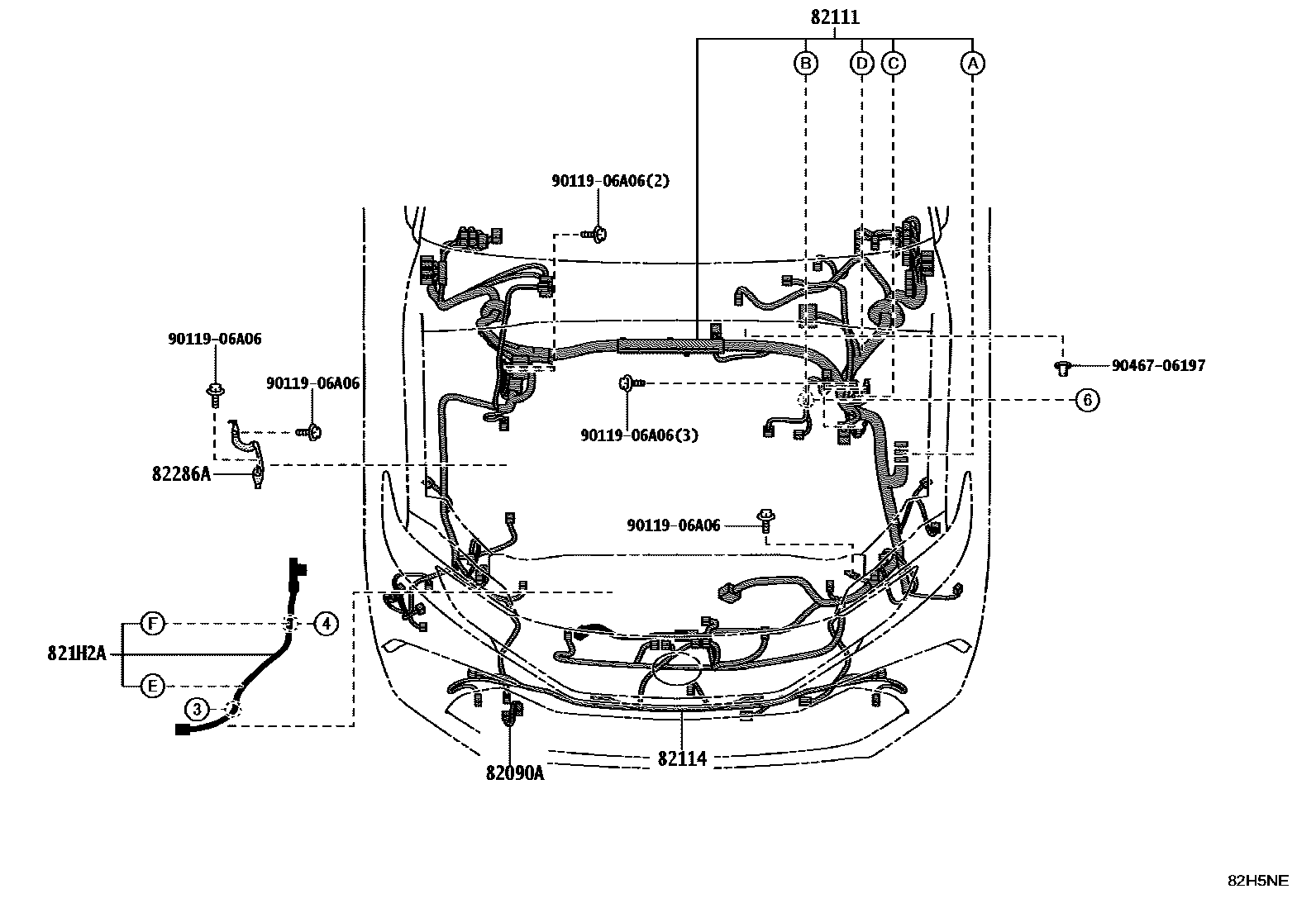

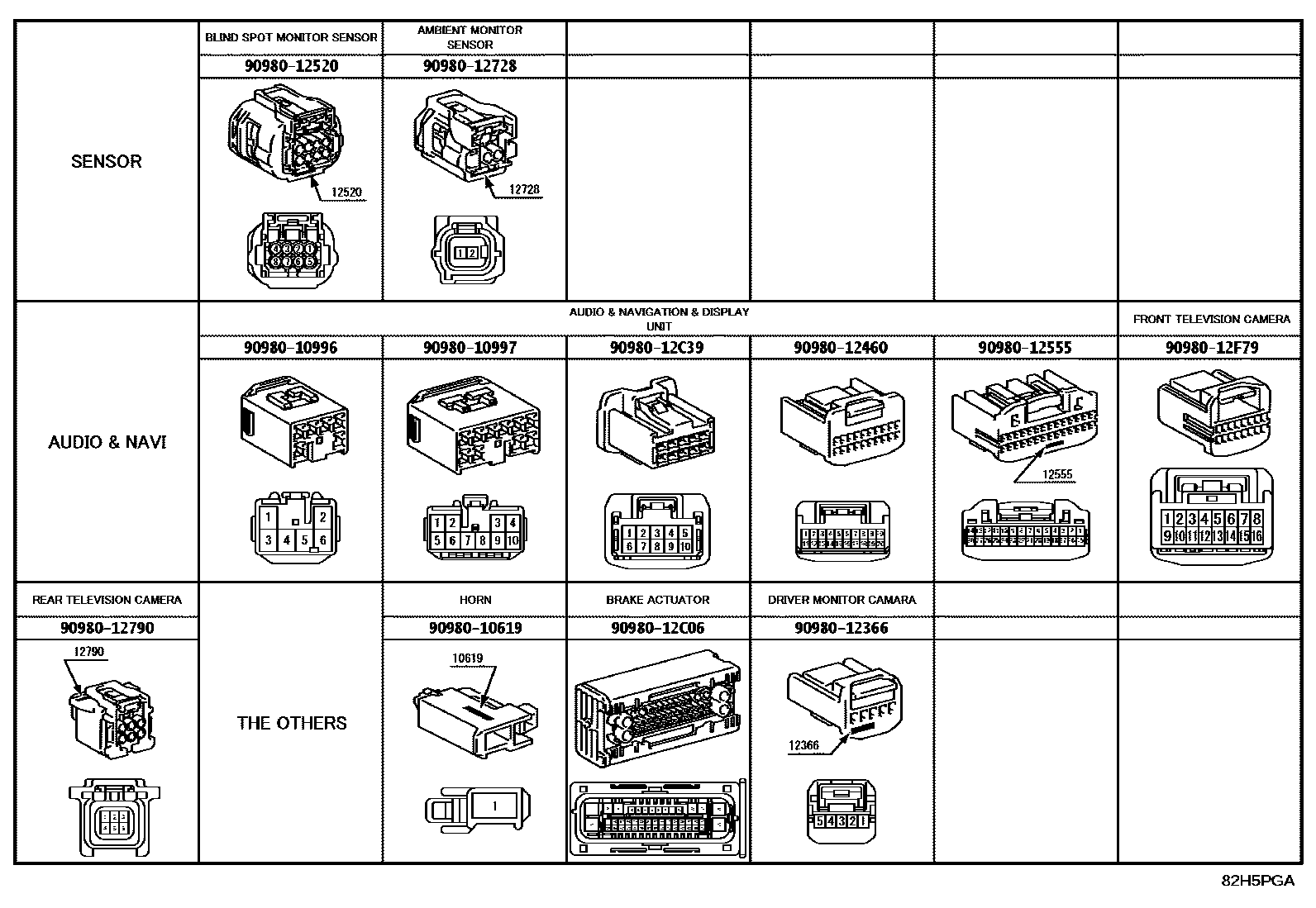

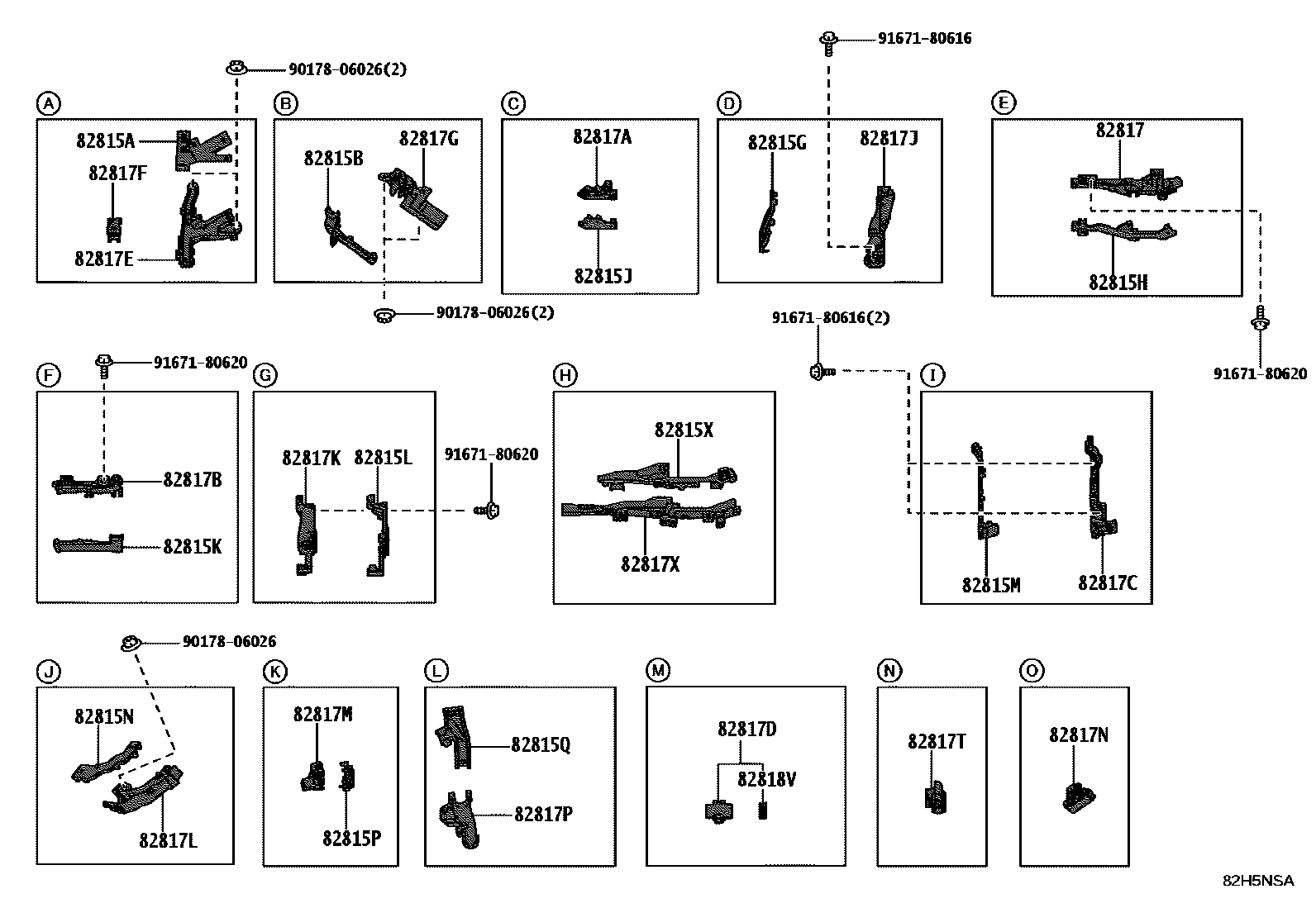

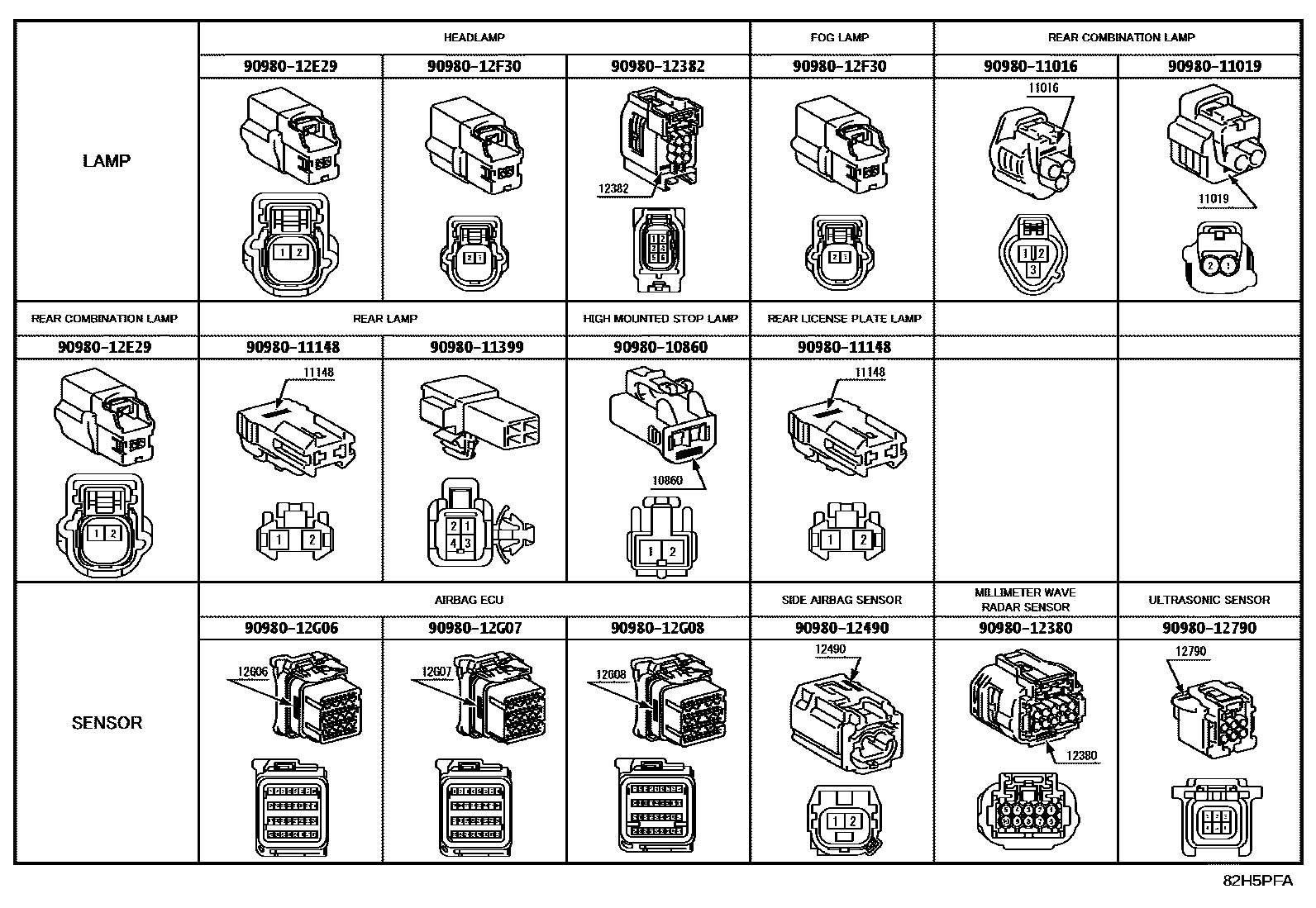

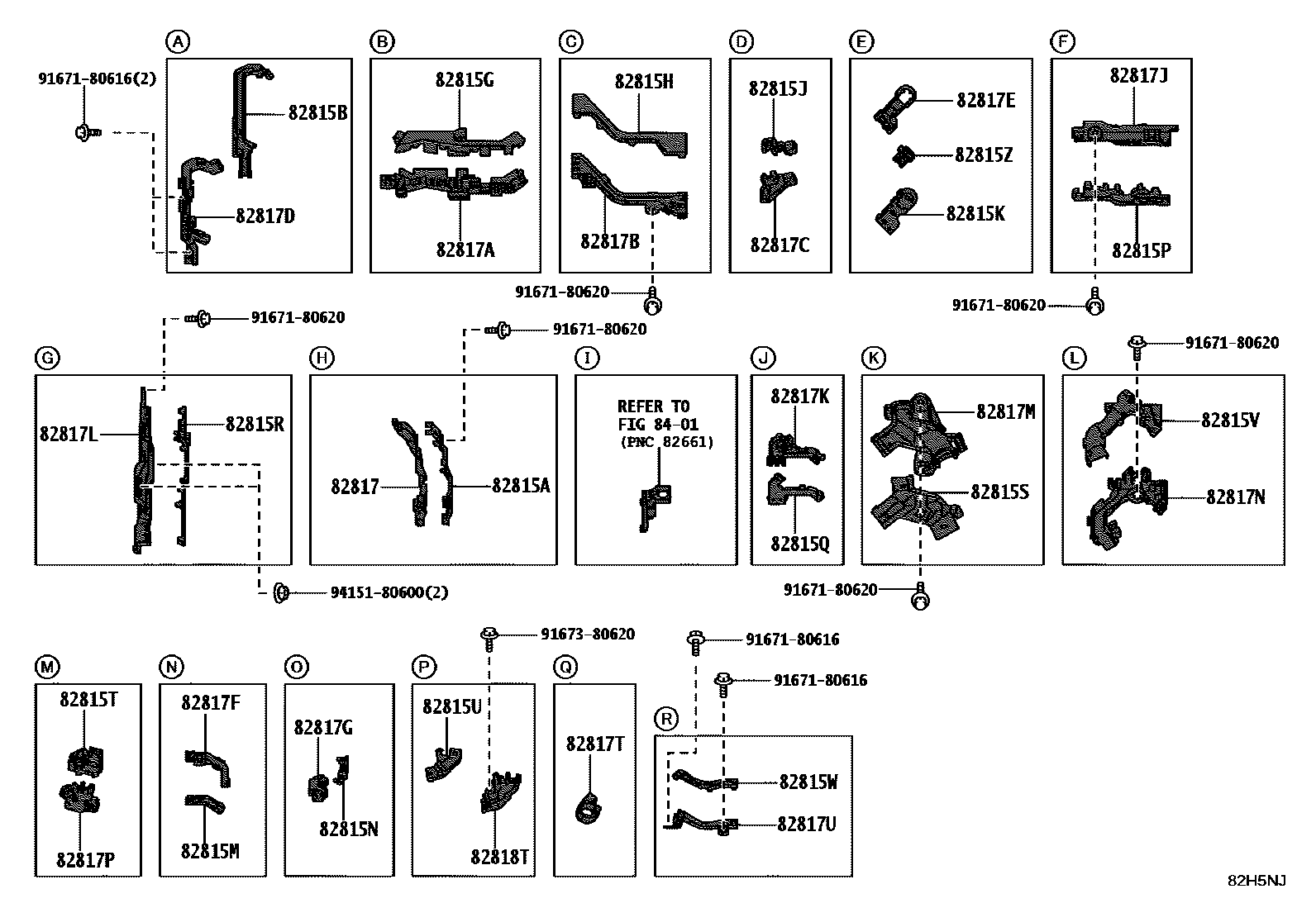

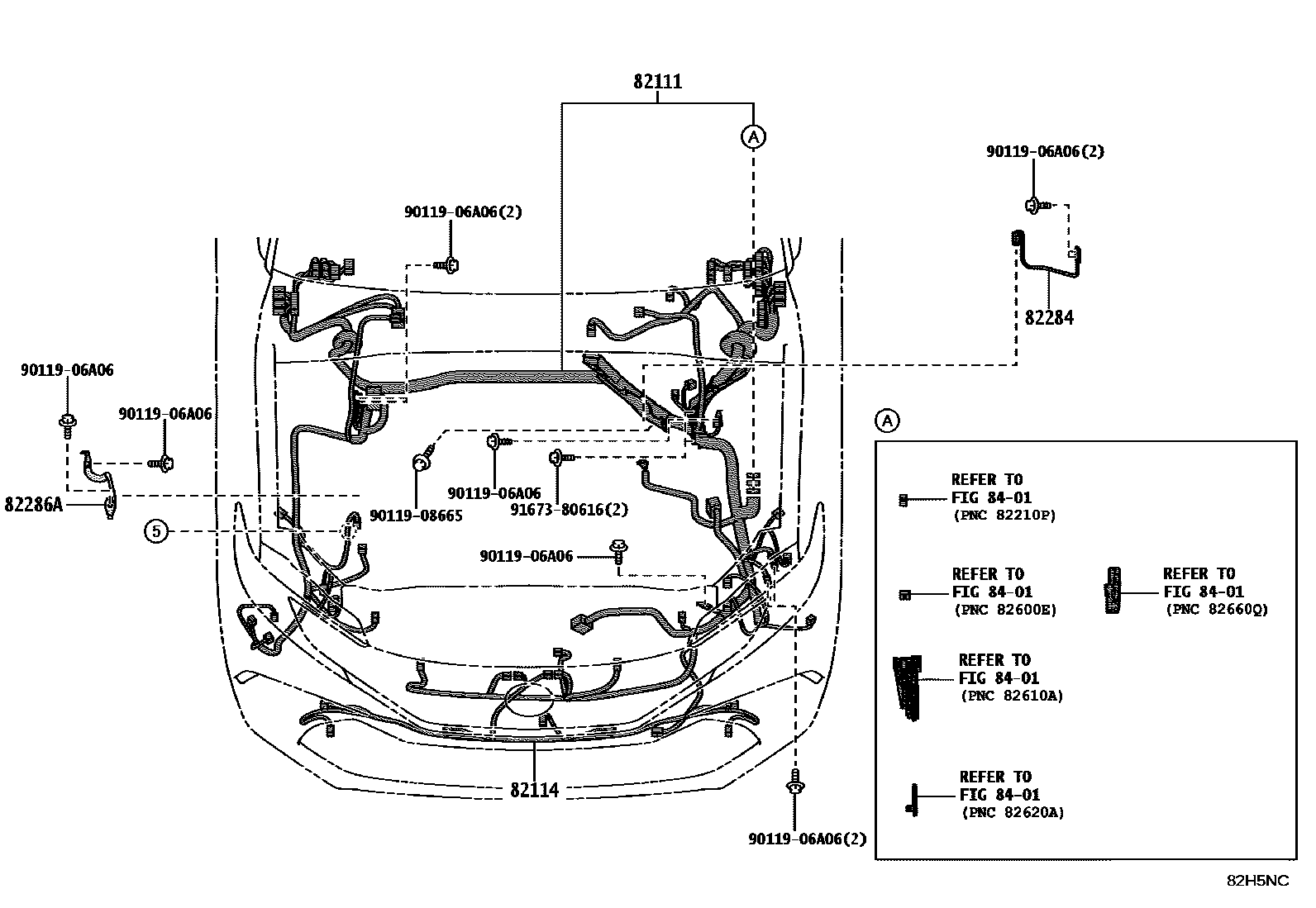

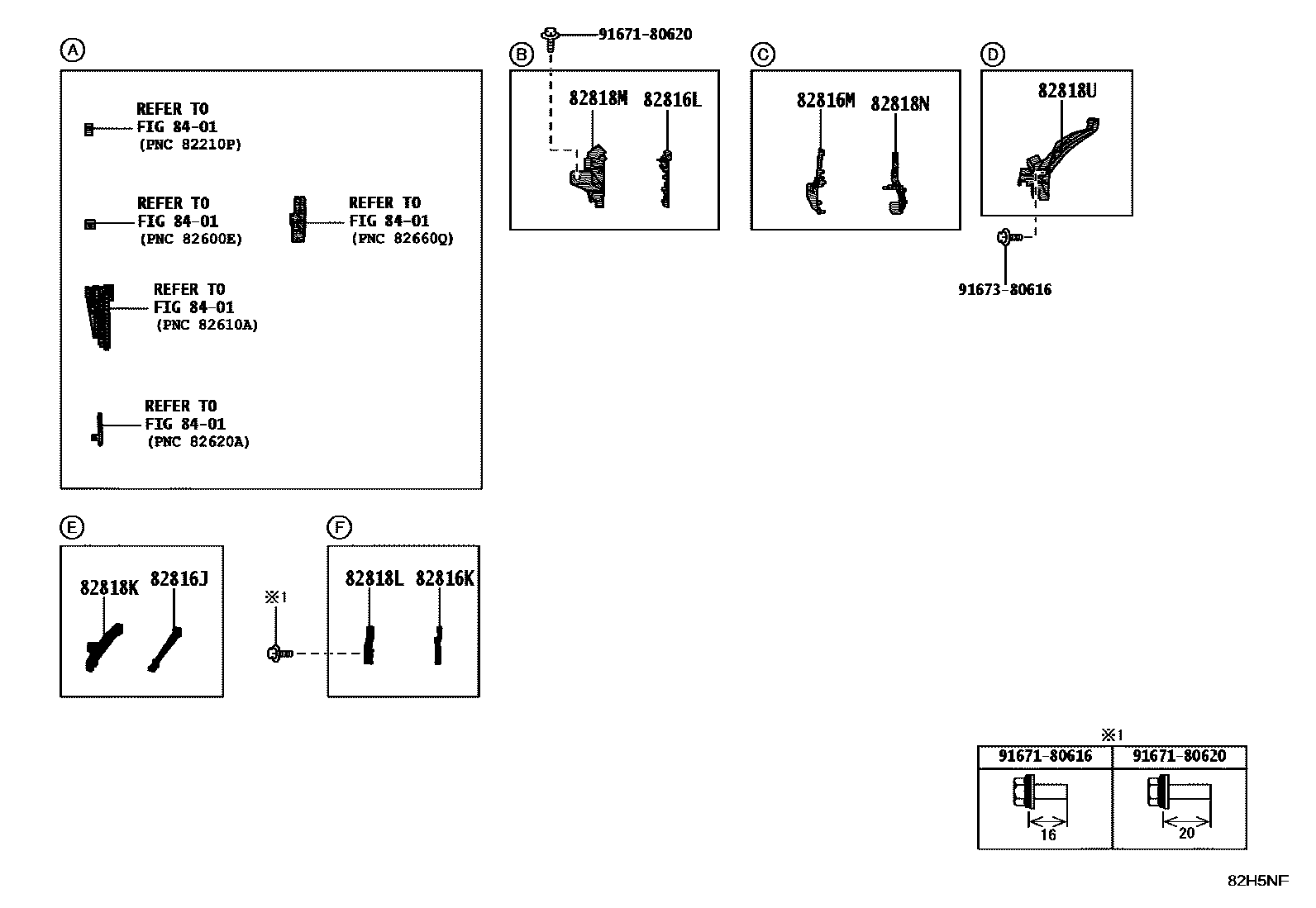

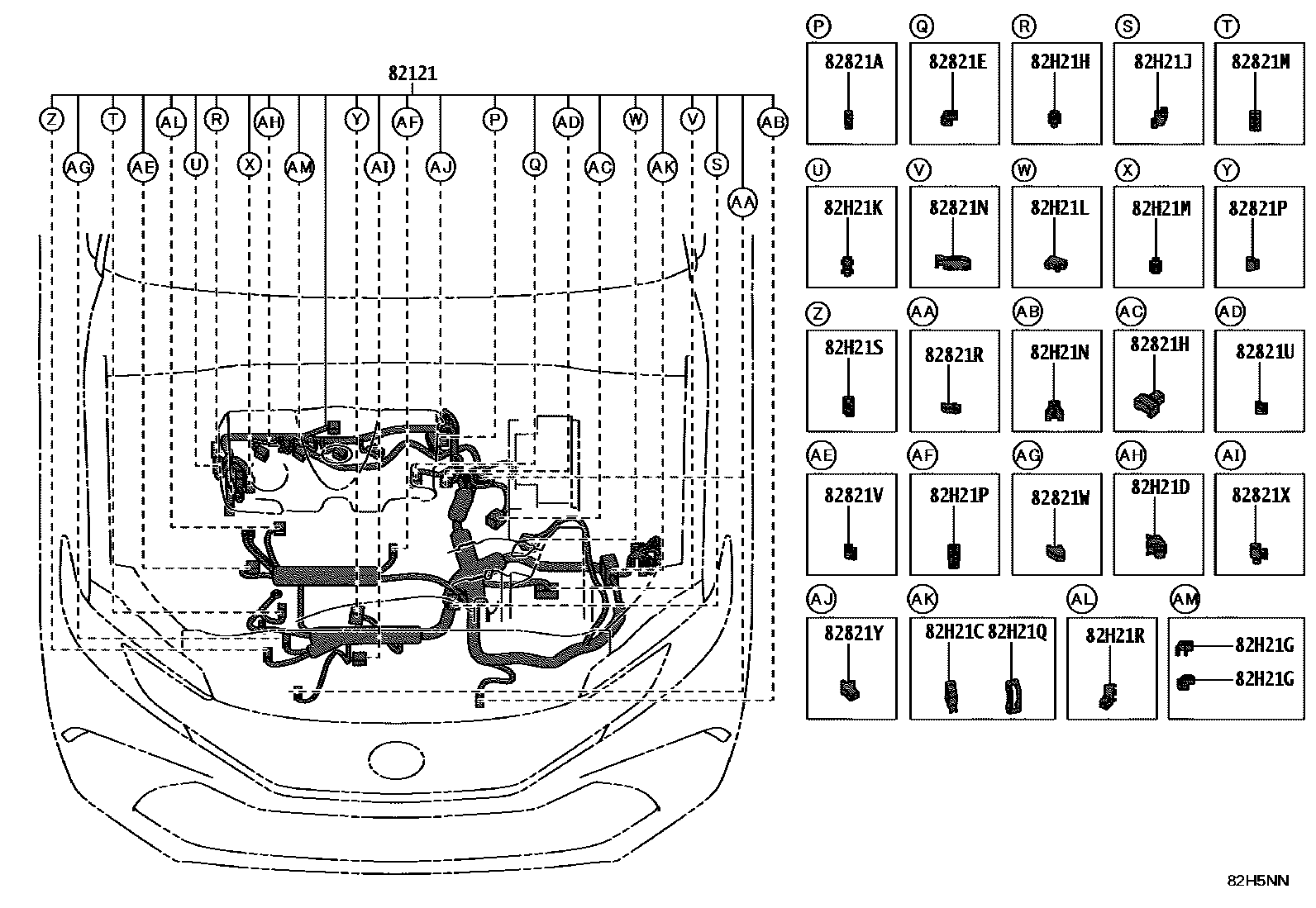

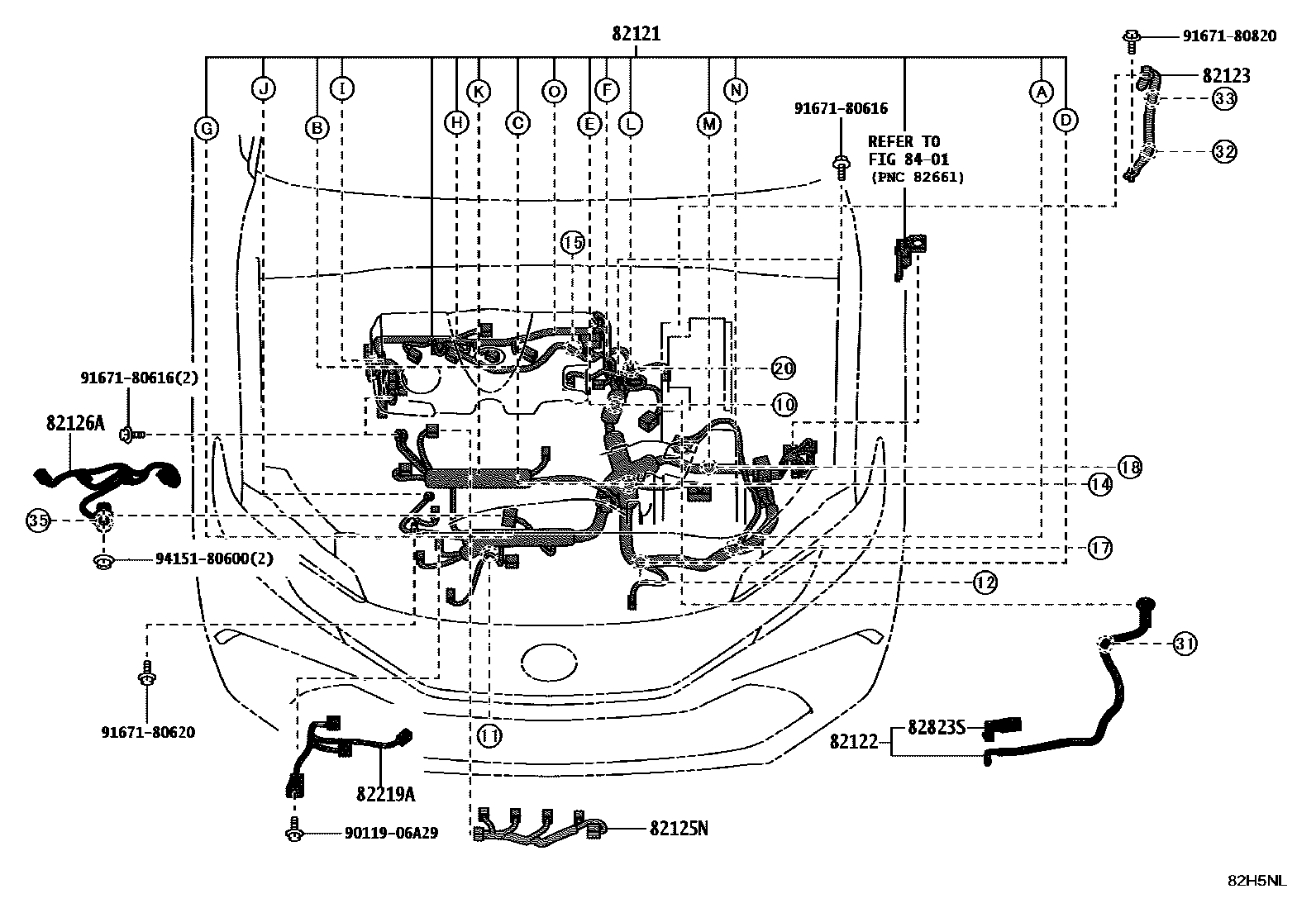

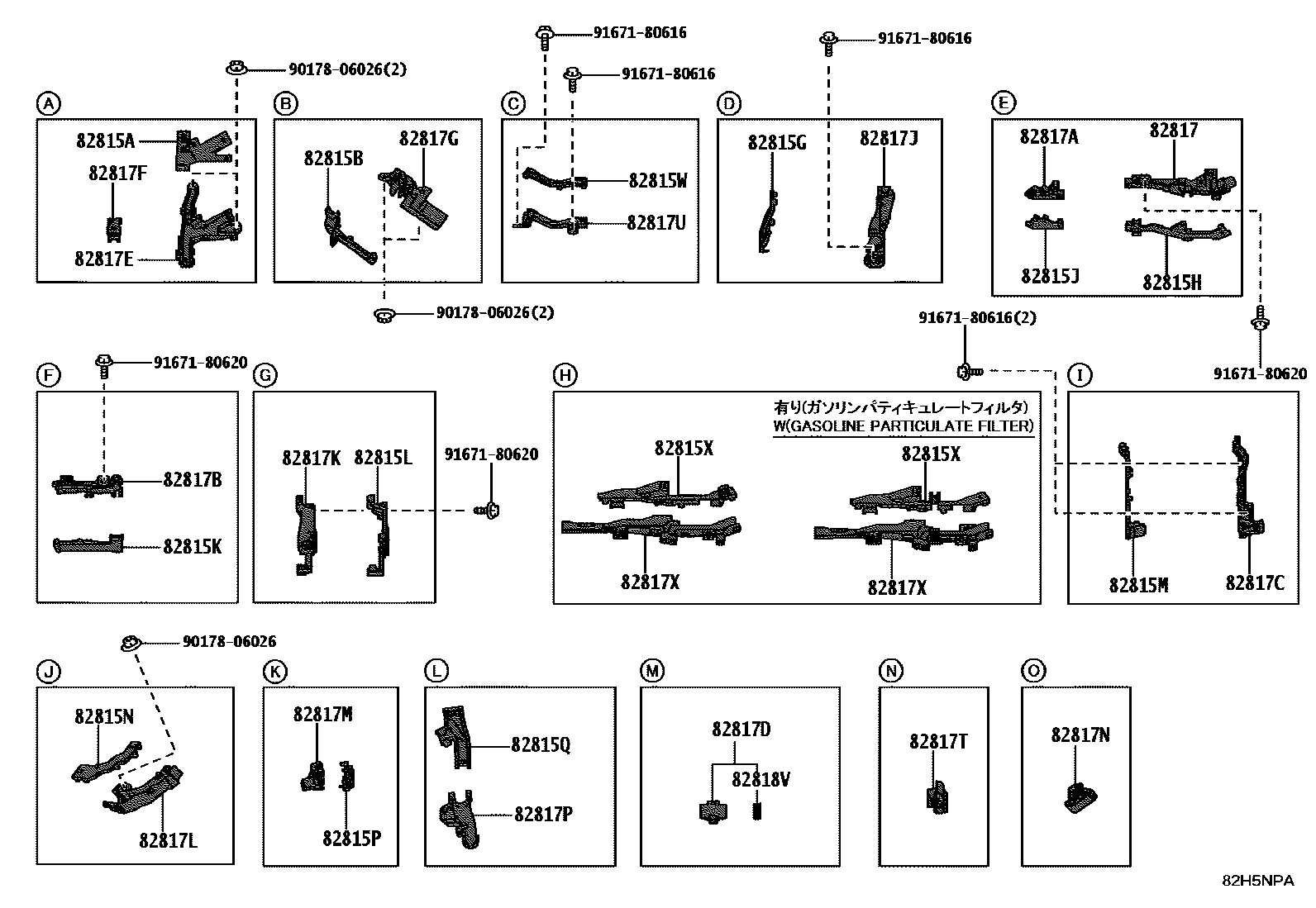

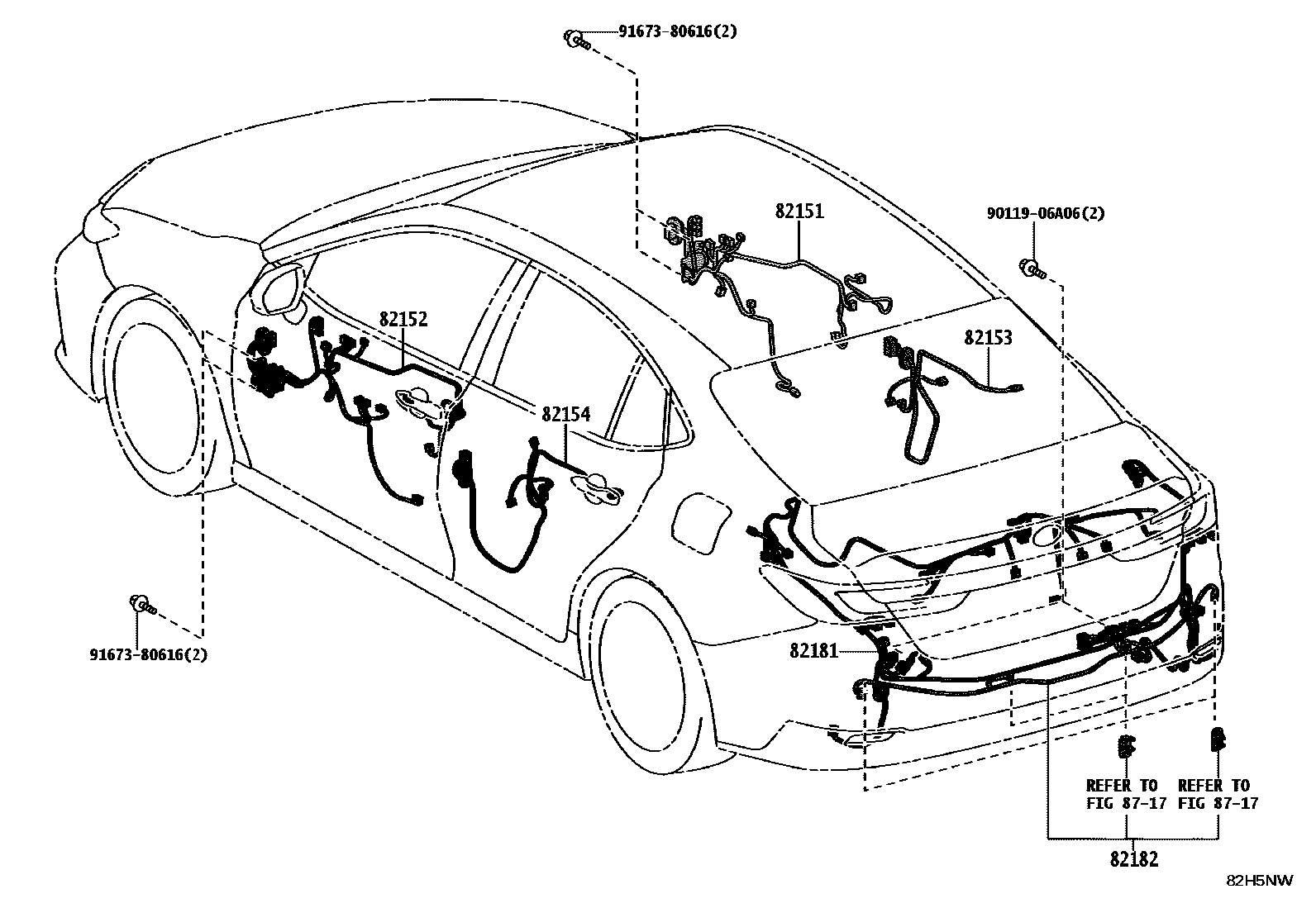

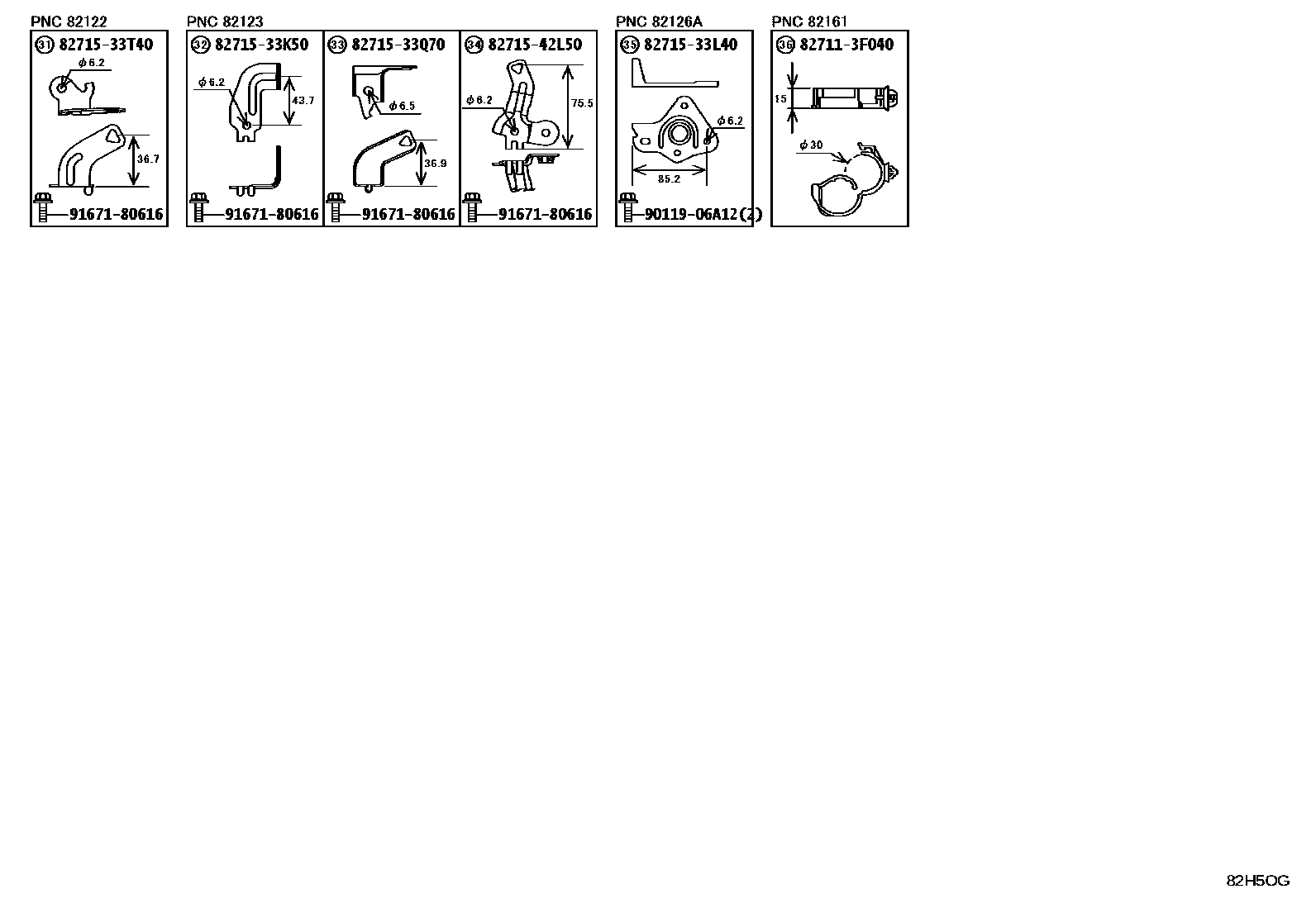

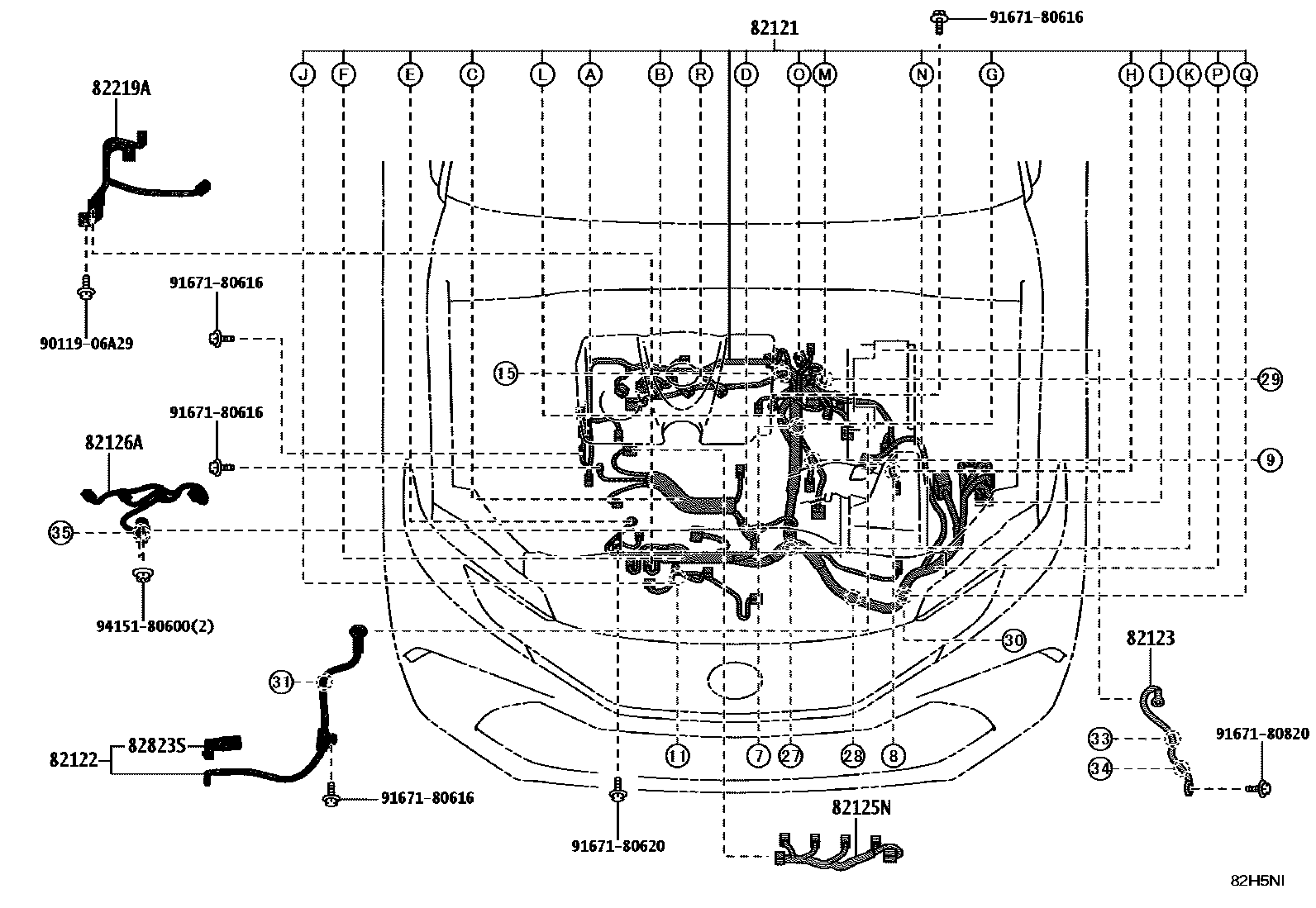

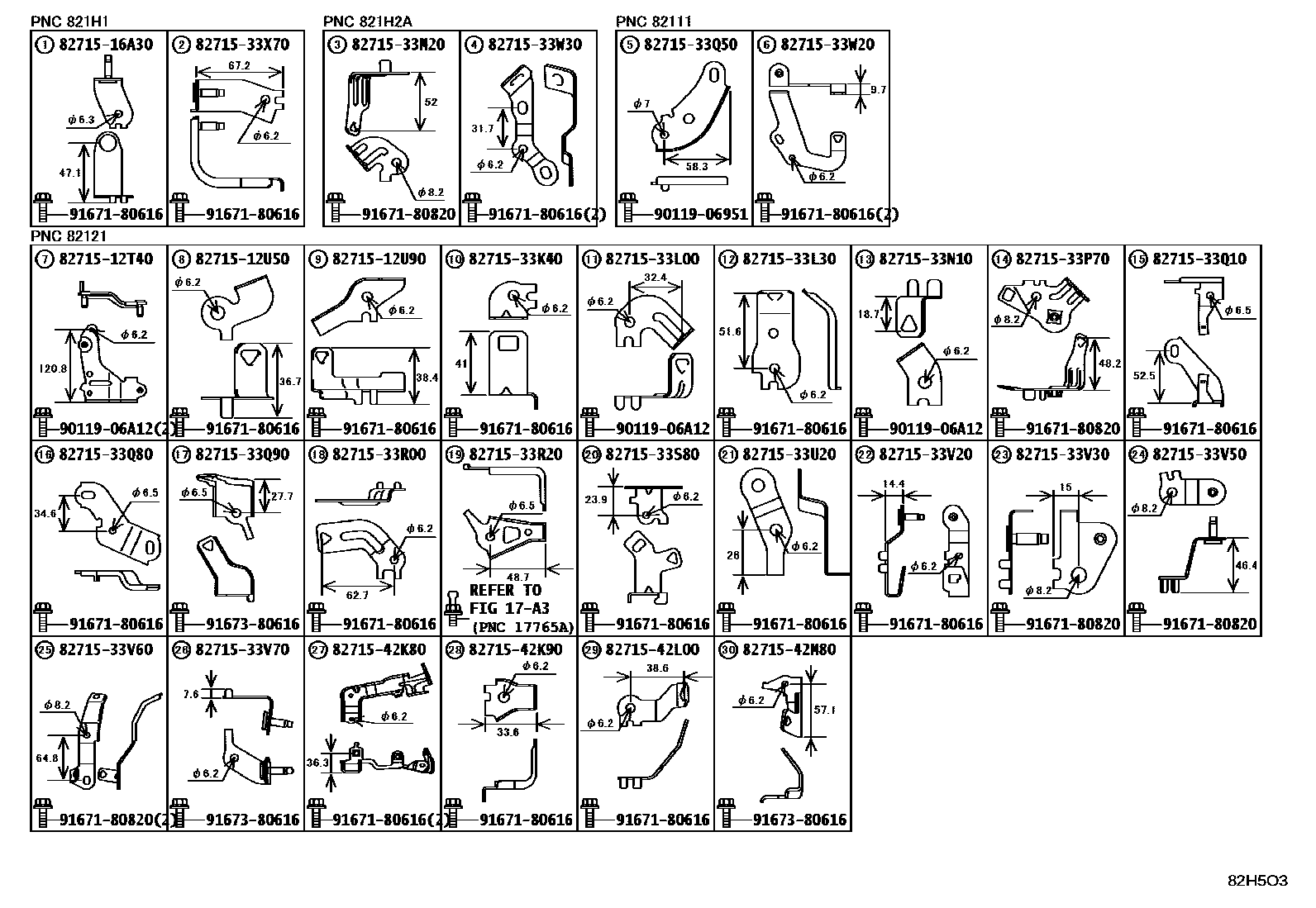

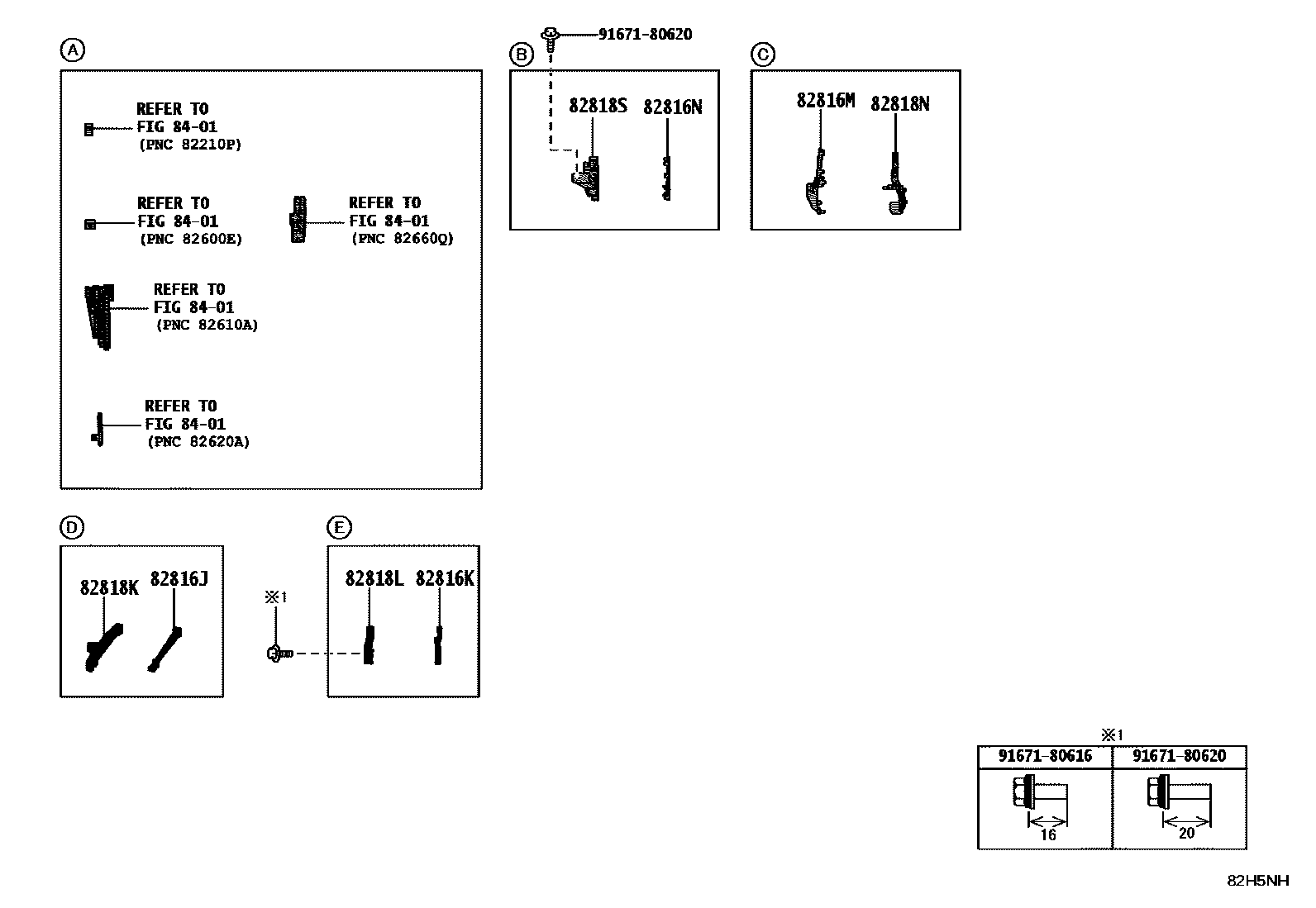

Toyota CAMRY 线束和卡夹 — Figure 8202
Toyota CAMRY EPC diagram 8202, 线束和卡夹, with 31 images and 149 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82090A | Extension cord assembly | 82090-33030 |
| 82111 | Engine room main wiring harness | 82111-3YA00 · 82111-3YG60 · 82111-3YG70 · 82111-3YG80 · 82111-3YG90 · 82111-3YJ00 · 82111-3YM60 · 82111-3YM80 · 82111-3YM90 · 82111-3YN00 · 82111-3YN10 · 82111-3YN20 · 82111-3YN30 · 82111-3YN40 · 82111-3YN50 · 82111-3YN90 · 82111-3YP00 · 82111-3YP10 · 82111-3YP20 · 82111-3YP30 · 82111-3YP40 · 82111-3YP70 · 82111-3YP80 · 82111-3YQ40 · 82111-3YQ90 · 82111-3YR10 · 82111-3YR20 · 82111-3YR40 · 82111-3YR50 · 82111-3YS10 · 82111-3YS60 · 82111-3YS70 · 82111-3YT00 · 82111-3YU50 · 82111-3YU70 · 82111-3YU80 · 82111-3YV00 · 82111-3YV10 · 82111-3YV20 · 82111-3YV30 · 82111-3YV40 · 82111-3YV50 · 82111-3YV60 · 82111-3YV70 · 82111-3YV80 · 82111-3YV90 · 82111-3YW00 · 82111-3YW10 · 82111-3YW20 · 82111-3YX20 · 82111-3YX30 |
| 82114 | Engine room wiring harness No. 4 | 82114-33260 · 82114-33270 · 82114-33280 · 82114-33290 · 82114-33310 · 82114-33320 · 82114-33330 |

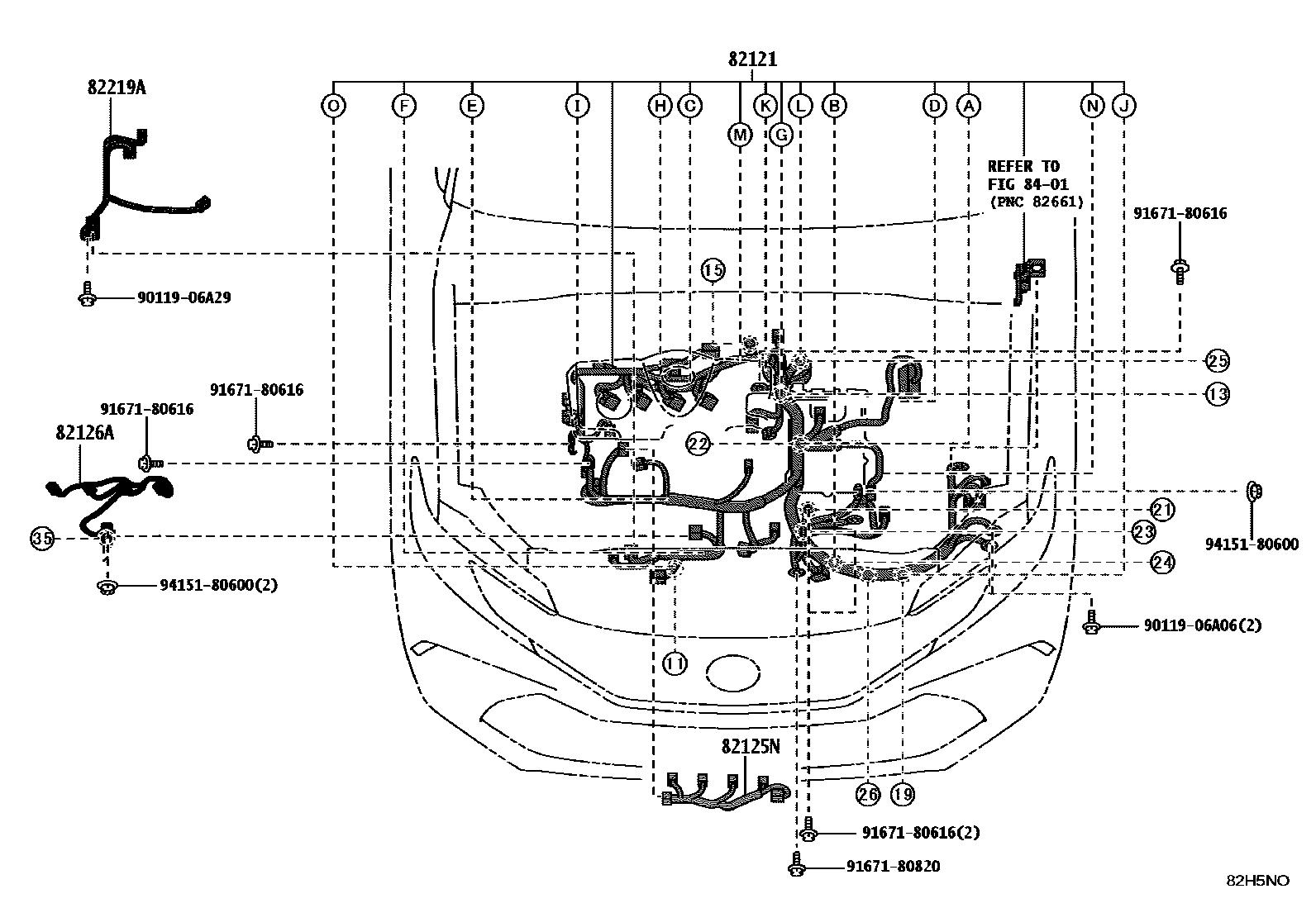

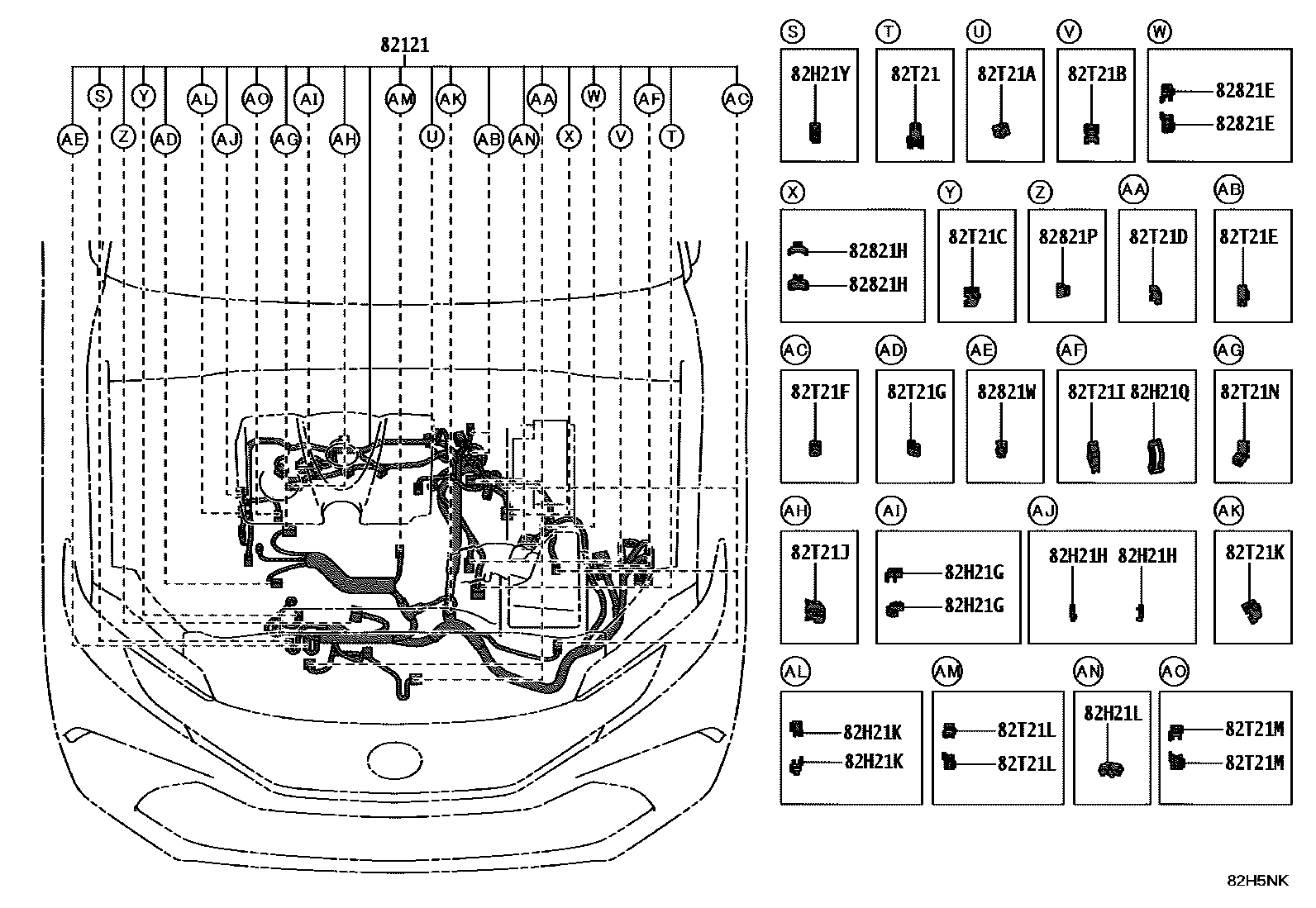

| 82121 | Engine wiring harness | 82121-33P90 · 82121-33Q00 · 82121-33Q10 · 82121-33Q20 · 82121-33Q30 · 82121-33Q40 · 82121-33Q60 |
| 82122 | Engine No. 2 wiring harness | 82122-33130 · 82122-33160 |
| 82123 | Engine No. 3 wiring harness | 82123-33080 · 82123-33110 |
| 82125N | Engine No. 5 wiring harness | 82125-12660 · 82125-33180 |
| 82126A | No. 6 engine wiring harness | 82126-12010 · 82126-33050 |
| 82141 | Dashboard wiring harness | 82145-3TG00 · 82145-3TG20 · 82145-3TJ90 · 82145-3TK00 · 82145-3TK30 · 82145-3TK70 · 82145-3TL00 · 82145-3TL20 · 82145-3TM50 · 82145-3TM60 · 82145-3TM70 · 82145-3TM80 · 82145-3TM90 · 82145-3TQ10 · 82145-3TQ50 · 82145-3TS80 · 82145-3TT10 · 82145-3TT11 · 82145-3TT40 · 82145-3TT70 · 82145-3TT80 · 82145-3TU00 · 82145-3TU10 · 82145-3TU11 · 82145-3TU20 · 82145-3TU30 · 82145-3TU40 · 82145-3TU50 · 82145-3TU60 · 82145-3TU70 · 82145-3TU80 · 82145-3TV00 · 82145-3TV10 · 82145-3TV30 · 82145-3TV40 · 82145-3TV60 · 82145-3TV70 · 82145-3TV80 · 82145-3TV90 · 82145-3TW00 · 82145-3TW10 · 82145-3TW20 · 82145-3TW50 · 82145-3TW60 · 82145-3TW70 · 82145-3TW80 · 82145-3TW81 · 82145-3TW90 · 82145-3TW91 · 82145-3TX10 · 82145-3TX20 · 82145-3TX21 · 82145-3TX30 · 82145-3TX40 · 82145-3TX50 · 82145-3TX60 · 82145-3TX61 · 82145-3TX80 · 82145-3TX81 · 82145-3TX90 · 82145-3TX91 · 82145-3TY00 · 82145-3TY70 · 82145-3TY80 · 82145-3TY90 · 82145-3TZ00 · 82145-3TZ10 · 82145-3TZ20 · 82145-3TZ30 · 82145-3TZ40 · 82145-3TZ50 · 82145-3TZ60 · 82145-3TZ70 · 82145-3TZ80 · 82145-3TZ90 · 82145-3Y010 · 82145-3Y020 · 82145-3Y030 · 82145-3Y040 · 82145-3Y170 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-33092 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-33550 · 82143-33570 |
| 82151 | Right front door wiring harness | 82151-33X70 · 82151-33X80 · 82151-33X90 · 82151-33Y00 · 82151-33Y10 · 82151-33Y20 · 82151-33Y30 · 82151-33Y50 · 82151-33Y80 · 82151-33Z00 · 82151-33Z20 · 82151-33Z40 · 82151-33Z70 · 82151-33Z90 · 82151-3T250 · 82151-3T580 |
| 82152 | Left front door wiring harness | 82152-33Z00 · 82152-33Z30 · 82152-33Z60 · 82152-3T290 · 82152-3T300 · 82152-3T310 · 82152-3T320 · 82152-3T330 · 82152-3T360 · 82152-3T370 · 82152-3T400 · 82152-3T430 · 82152-3T450 · 82152-3T470 · 82152-3T490 · 82152-3T790 |
| 82153 | Rear door wiring harness No. 1 | 82153-33540 · 82153-33550 |
| 82154 | Rear door wiring harness No. 2 | 82154-33480 · 82154-33490 |

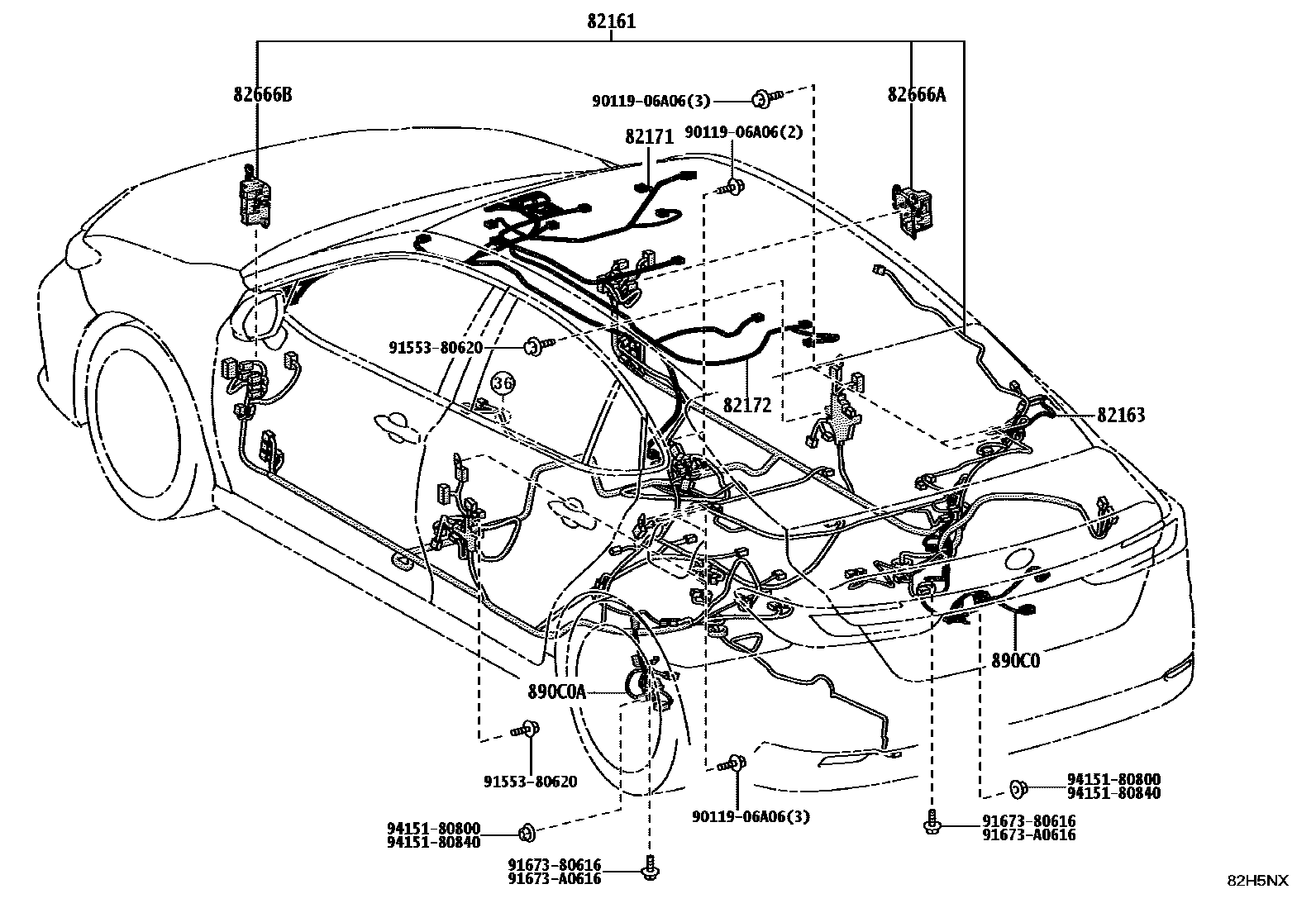

| 82161 | floor wiring harness | 82161-3YU70 · 82199-33750 · 82199-33760 · 82199-33770 · 82199-33780 · 82199-33E70 · 82199-33T30 · 82199-33U40 · 82199-33U80 · 82199-33V10 · 82199-33V20 · 82199-33V30 · 82199-33V40 · 82199-33V50 · 82199-33V60 · 82199-33V90 · 82199-33W00 · 82199-33W10 · 82199-33X10 · 82199-33X30 · 82199-33X80 · 82199-33X90 · 82199-3T250 · 82199-3T260 · 82199-3T280 · 82199-3T290 · 82199-3T300 · 82199-3T310 · 82199-3T330 · 82199-3T350 · 82199-3T360 · 82199-3T370 |
| 82163 | Floor wiring harness No. 3 | 82163-33140 |
| 82165 | No. 2 frame wiring harness | 82165-33110 |
| 82171 | Roof No. 1 wiring harness | 82171-3TD70 · 82171-3TD90 · 82171-3TE00 · 82171-3TE10 · 82171-3TE20 · 82171-3TE30 · 82171-3TE40 · 82171-3TE70 · 82171-3TE90 · 82171-3TF00 · 82171-3TF10 · 82171-3TF20 · 82171-3TF30 · 82171-3TF70 · 82171-3TF80 · 82171-3TG00 · 82171-3TG10 · 82171-3TG50 · 82171-3TG60 · 82171-3TK80 · 82171-3TK90 · 82171-3TL00 · 82171-3TL10 · 82171-3TL20 · 82171-3TL30 · 82171-3TL40 · 82171-3TL50 · 82171-3TL60 · 82171-3TL70 · 82171-3TT30 |
| 82172 | Roof No. 2 wiring harness | 82172-33040 |
| 82176 | Rear armrest box wiring harness | 82176-33030 |
| 82181 | Luggage No. 1 wiring harness | 82181-33J60 · 82181-3T300 · 82181-3T310 · 82181-3T340 · 82181-3T350 · 82181-3T360 · 82181-3T370 · 82181-3T390 · 82181-3T400 · 82181-3T430 · 82181-3T440 · 82181-3T450 · 82181-3T460 · 82181-3T520 · 82181-3T540 · 82181-3T560 · 82181-3T610 · 82181-3T630 · 82181-3T640 · 82181-3T650 · 82181-3TA70 · 82181-3TD90 |
| 82182 | Luggage No. 2 wiring harness | 82182-33300 |

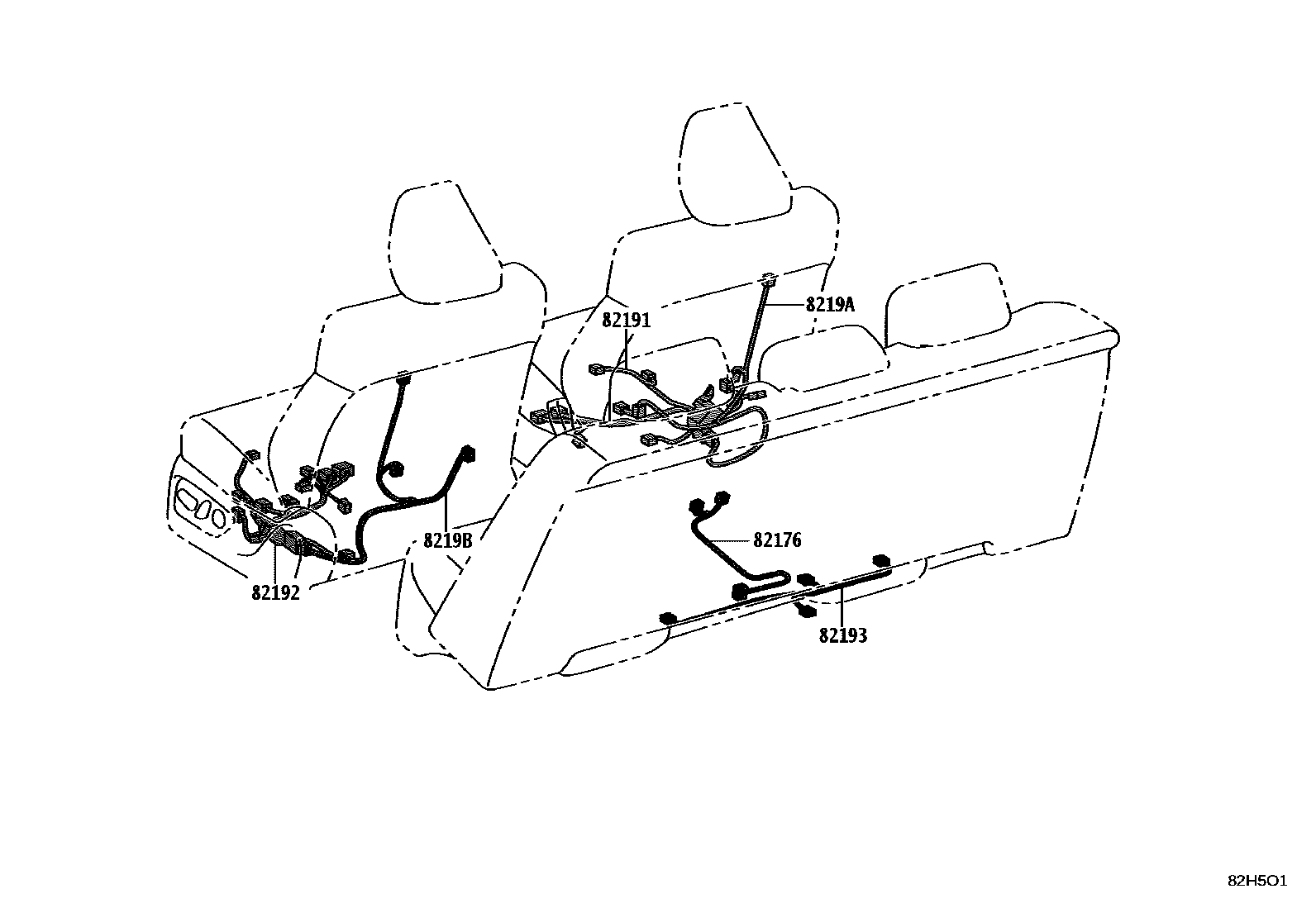

| 82191 | Front right seat wiring harness | 82191-33G10 · 82191-33G30 · 82191-33G40 · 82191-33G50 · 82191-33G60 · 82191-33G70 · 82191-76190 |
| 82192 | Front left seat wiring harness | 82192-33F80 · 82192-33F90 · 82192-33G00 · 82192-33G10 · 82192-33G20 · 82192-33G30 · 82192-33G50 |
| 82193 | Rear right seat wiring harness | 82193-33040 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-33440 · 8219A-42080 · 8219A-60240 · 8219A-60250 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-33350 · 8219B-42100 · 8219B-60160 · 8219B-60170 |

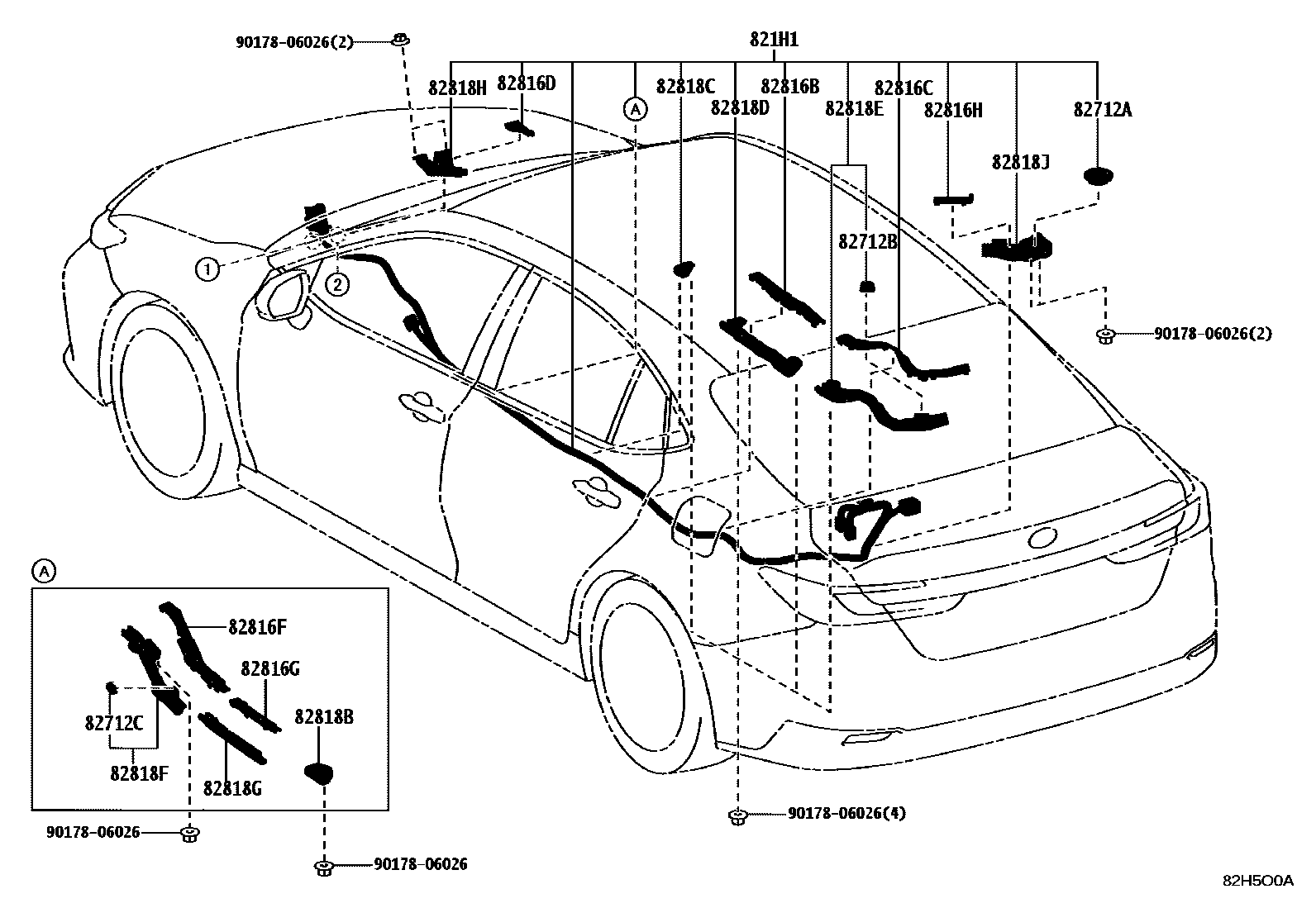

| 821H1 | Underfloor wiring harness | 821H1-33070 |
| 821H2A | CABLE, CLIMATISATION HAUTE TENSION | 821H2-33040 |
| 82219A | sensor harness | 82219-33141 · 82219-76020 |
| 82284 | Ground wire | 82284-33140 |
| 82286A | Line 2 | 82286-33020 |
| 82666A | Connector holder No. 2 | 82666-33650 |
| 82666B | No. 3 connector holder | 82666-33660 |
| 82712A | Wire harness bracket | 82712-16040 |
| 82712B | Wire harness bracket | 82712-33170 |
| 82712C | No. 1 wiring harness bracket | 82712-33170 |

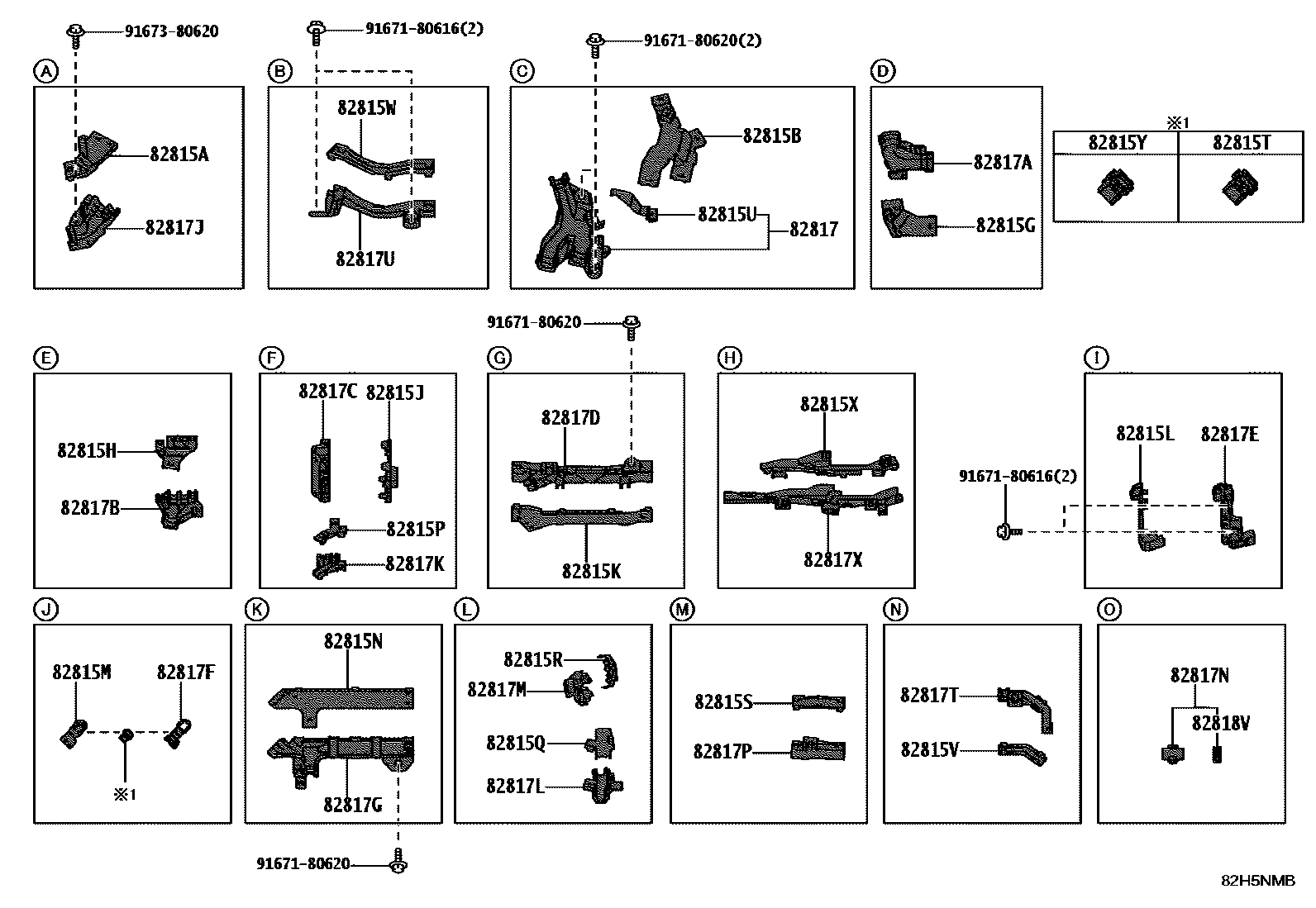

| 82815A | Wiring harness protector cover | 82815-06100 · 82815-33C60 · 82815-33D10 |
| 82815B | Wiring harness protector cover | 82815-12B00 · 82815-33D90 · 82815-33F10 |
| 82815G | No. 5 wire harness protector cover | 82815-12D60 · 82815-33F00 · 82815-33F20 |
| 82815H | No. 6 wire harness protector cover | 82815-12D80 · 82815-33F30 · 82815-33F60 |
| 82815J | No. 7 wire harness protector cover | 82815-12E80 · 82815-33F40 · 82815-33F70 |
| 82815K | No. 8 wire harness protector cover | 82815-33G60 · 82815-33G80 · 82815-33J10 |
| 82815L | No. 9 wire harness protector cover | 82815-33G70 · 82815-33J00 |
| 82815M | No. 10 wire harness protector cover | 82815-33J00 · 82815-33J10 · 82815-33N00 |
| 82815N | No. 11 wire harness protector cover | 82815-33J50 · 82815-33K00 · 82815-42540 |
| 82815P | No. 12 wire harness protector cover | 82815-33J60 · 82815-33L30 · 82815-42740 |
| 82815Q | No. 13 wire harness protector cover | 82815-33J80 · 82815-33R10 · 82815-42750 |
| 82815R | No. 14 wire harness protector cover | 82815-33J90 · 82815-42760 |
| 82815S | No. 15 wire harness protector cover | 82815-33K60 · 82815-42770 |
| 82815T | No. 16 wire harness protector cover | 82815-33L00 · 82815-42790 |
| 82815U | No. 17 wire harness protector cover | 82815-33L60 · 82815-42810 |
| 82815V | No. 1 wire harness protector cover | 82815-33N00 · 82815-42C70 |
| 82815W | No. 2 wire harness protector cover | 82815-33E80 |
| 82815X | No. 3 wire harness protector cover | 82815-33G90 · 82815-42C60 |
| 82815Y | No. 4 wire harness protector cover | 82815-33K90 · 82815-33L00 |
| 82815Z | No. 18 wire harness protector cover | 82815-33K90 |
| 82816B | No. 1 wire harness protector cover | 82815-33A60 |
| 82816C | No. 2 wire harness protector cover | 82815-33A70 |
| 82816D | No. 3 wire harness protector cover | 82815-33L20 |
| 82816F | No. 4 wire harness protector cover | 82815-33L70 |
| 82816G | No. 5 wire harness protector cover | 82815-33N60 |
| 82816H | No. 6 wire harness protector cover | 82815-33P30 |
| 82816J | No. 7 wire harness protector cover | 82815-0EF00 · 82815-33K70 |
| 82816K | No. 8 wire harness protector cover | 82815-VT130 |
| 82816L | No. 9 wire harness protector cover | 82815-33Q80 |
| 82816M | No. 10 wire harness protector cover | 82815-33R00 |
| 82816N | No. 11 wire harness protector cover | 82815-33Q90 |
| 82817 | No. 1 wire harness protection device | 82817-06240 · 82817-33Q70 · 82817-33R20 |
| 82817A | No. 2 wire harness protection device | 82817-12R60 · 82817-33Q80 · 82817-33R30 |
| 82817B | No. 3 wire harness protection device | 82817-12R80 · 82817-33Q90 · 82817-33S20 |
| 82817C | No. 4 wire harness protection device | 82817-12S80 · 82817-33R00 · 82817-33S60 |
| 82817D | No. 5 wire harness protection device | 82817-12V00 · 82817-33S40 · 82817-33Y50 |
| 82817E | No. 6 wire harness protection device | 82817-33S60 · 82817-33S70 · 82817-3T270 |
| 82817F | No. 7 wire harness protection device | 82817-33S70 · 82817-3T250 · 82817-3T280 |
| 82817G | No. 8 wire harness protection device | 82817-33T20 · 82817-3T290 · 82817-42F60 |
| 82817J | No. 9 wire harness protection device | 82817-33V40 · 82817-3T410 · 82817-42J10 |
| 82817K | No. 10 wire harness protection device | 82817-33X30 · 82817-3T490 · 82817-42J20 |
| 82817L | No. 11 wire harness protection device | 82817-33X60 · 82817-3T520 · 82817-42J30 |
| 82817M | No. 12 wire harness protection device | 82817-33X70 · 82817-3T690 · 82817-42J40 |
| 82817N | No. 13 wire harness protection device | 82817-33Y50 · 82817-3T860 · 82817-42J50 |
| 82817P | No. 14 wire harness protection device | 82817-33Y60 · 82817-3T870 · 82817-42J60 |
| 82817T | No. 15 wire harness protection device | 82817-3T250 · 82817-42J70 · 82817-42N60 |
| 82817U | No. 16 wire harness protection device | 82817-33X40 |
| 82817X | No. 17 wire harness protection device | 82817-33S50 · 82817-42P40 |
| 82818B | No. 3 wire harness protection device | 82817-33P30 |
| 82818C | No. 4 wire harness protection device | 82817-33P40 |
| 82818D | No. 5 wire harness protection device | 82817-33U50 |
| 82818E | No. 6 wire harness protection device | 82817-33U60 |
| 82818F | No. 7 wire harness protection device | 82817-3T080 |
| 82818G | No. 8 wire harness protection device | 82817-3T350 |
| 82818H | No. 9 wire harness protection device | 82817-3T680 |
| 82818J | No. 10 wire harness protection device | 82817-3T750 |
| 82818K | No. 11 wire harness protection device | 82817-0EM60 · 82817-33Y70 |
| 82818L | No. 12 wire harness protection device | 82817-VT250 |
| 82818M | No. 13 wire harness protection device | 82817-3T790 |
| 82818N | No. 14 wire harness protection device | 82817-3T810 |
| 82818S | No. 15 wire harness protection device | 82817-3T800 |
| 82818T | No. 16 wire harness protection device | 82817-42J80 |
| 82818U | No. 17 wire harness protection device | 82817-3T760 |
| 82818V | No. 18 wire harness protection device | 82817-33Z40 |
| 82821A | Connector cover | 82821-20510 · 82821-28420 |
| 82821E | Connector cover | 82821-30600 · 82821-33420 |
| 82821H | Connector cover | 82821-33490 |
| 82821M | Connector cover | 82821-33630 · 82821-33A60 |
| 82821N | Connector cover | 82821-33680 · 82821-33B80 |
| 82821P | Connector cover | 82821-33750 |
| 82821R | Connector cover | 82821-33770 · 82821-33C00 |
| 82821U | Connector cover | 82821-33810 |
| 82821V | Connector cover | 82821-33830 |
| 82821W | Connector cover | 82821-33860 |
| 82821X | Connector cover | 82821-33A00 |
| 82821Y | Connector cover | 82821-33A50 |
| 82823S | starter terminal cover | 82823-33070 |
| 82H21C | Connector cover | 82821-33B00 |
| 82H21D | Connector cover | 82821-33C10 |
| 82H21G | Connector cover | 82821-33C20 |
| 82H21H | Connector cover | 82821-33C30 |
| 82H21J | Connector cover | 82821-33C40 |
| 82H21K | Connector cover | 82821-33C50 |
| 82H21L | Connector cover | 82821-33C70 |
| 82H21M | Connector cover | 82821-33C80 |
| 82H21N | Connector cover | 82821-33C90 |
| 82H21P | Connector cover | 82821-33D00 |
| 82H21Q | Connector cover | 82821-42360 |
| 82H21R | Connector cover | 82821-50510 · 82821-52380 |
| 82H21S | Connector cover | 82821-78050 |
| 82H21T | Connector cover | 82821-33D10 |
| 82H21V | CACHE, CONNECTEUR | 82821-V1030 |
| 82H21W | CACHE, CONNECTEUR | 82821-12780 |
| 82H21X | CACHE, CONNECTEUR | 82821-33C40 |
| 82H21Y | CACHE, CONNECTEUR | 82821-12600 |
| 82T21 | CACHE, CONNECTEUR | 82821-12B40 |
| 82T21A | CACHE, CONNECTEUR | 82821-20510 |
| 82T21B | CACHE, CONNECTEUR | 82821-30570 |
| 82T21C | CACHE, CONNECTEUR | 82821-33630 |
| 82T21D | CACHE, CONNECTEUR | 82821-33770 |
| 82T21E | CACHE, CONNECTEUR | 82821-33800 |
| 82T21F | CACHE, CONNECTEUR | 82821-33810 |
| 82T21G | CACHE, CONNECTEUR | 82821-33830 |
| 82T21I | CACHE, CONNECTEUR | 82821-33B00 |
| 82T21J | CACHE, CONNECTEUR | 82821-33C10 |
| 82T21K | CACHE, CONNECTEUR | 82821-33C40 |
| 82T21L | CACHE, CONNECTEUR | 82821-33C60 |
| 82T21M | CACHE, CONNECTEUR | 82821-33C80 |
| 82T21N | CACHE, CONNECTEUR | 82821-52380 |
| 890C0 | Parking brake cable assembly No. 1 | 890C0-33090 |
| 890C0A | Parking brake No. 2 cable assembly | 890C0-33100 |
