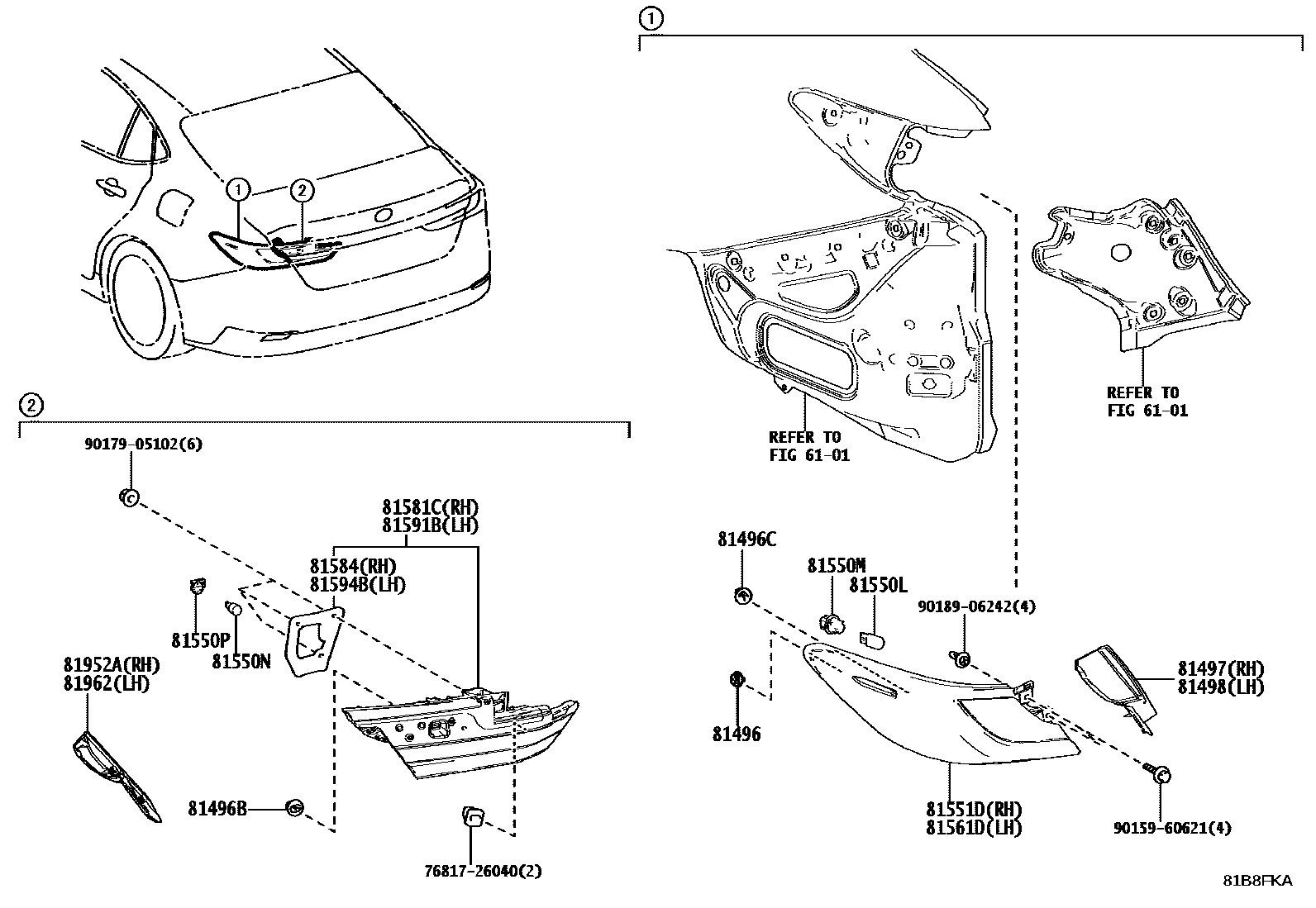

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-60010 |
| 81496B | Rear light guide block | 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-52020 |
| 81497 | Right rear combination lamp cover | 81497-33050 |
| 81498 | Left rear combination lamp cover | 81498-33050 |
| 81536B | LED rear turn signal light | 81965-33010 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550M | Rear turn signal lamp holder | 90075-60028 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550P | Reversing light lamp holder | 90075-99005 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-33A40 · 81551-33A50 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-33A40 · 81561-33A50 |
| 81580D | Right rear light assembly | 81580-33590 · 81580-33600 |
| 81581C | Right rear light lampshade and lamp body | 81581-33570 |
| 81584 | Right rear light seal | 81582-33570 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-33590 · 81585-33600 |
| 81586A | Left rear light lamp holder and wiring harness | 81585-33590 · 81585-33600 |
| 81590A | Left rear light assembly | 81590-33590 · 81590-33600 |
| 81591B | Left rear light shade and body | 81591-33570 · 81591-33580 |
| 81594B | Left rear light seal | 81592-33570 |
| 81952A | Right rear light cover | 81952-33010 |
| 81962 | Left rear light cover | 81962-33010 |
