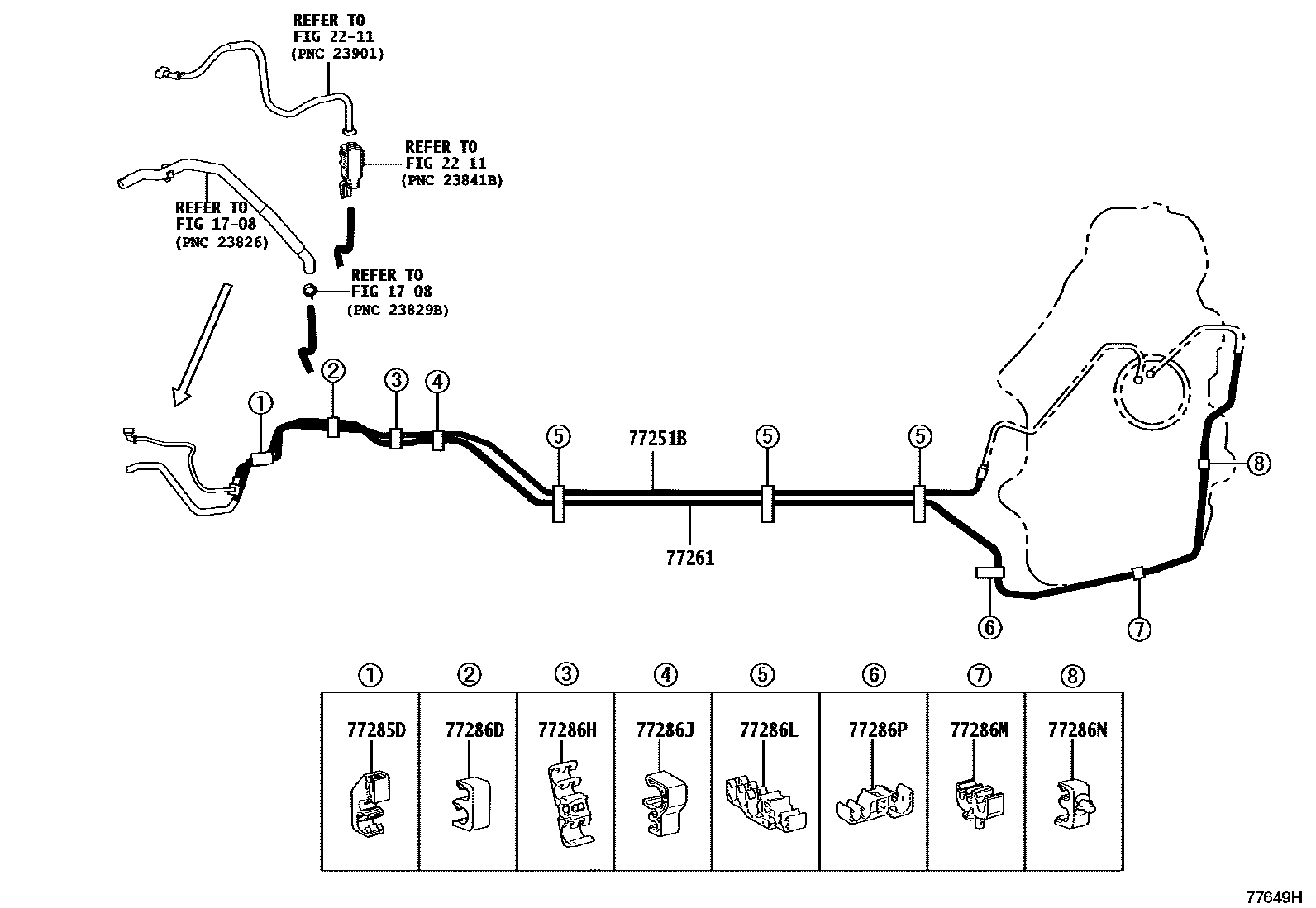

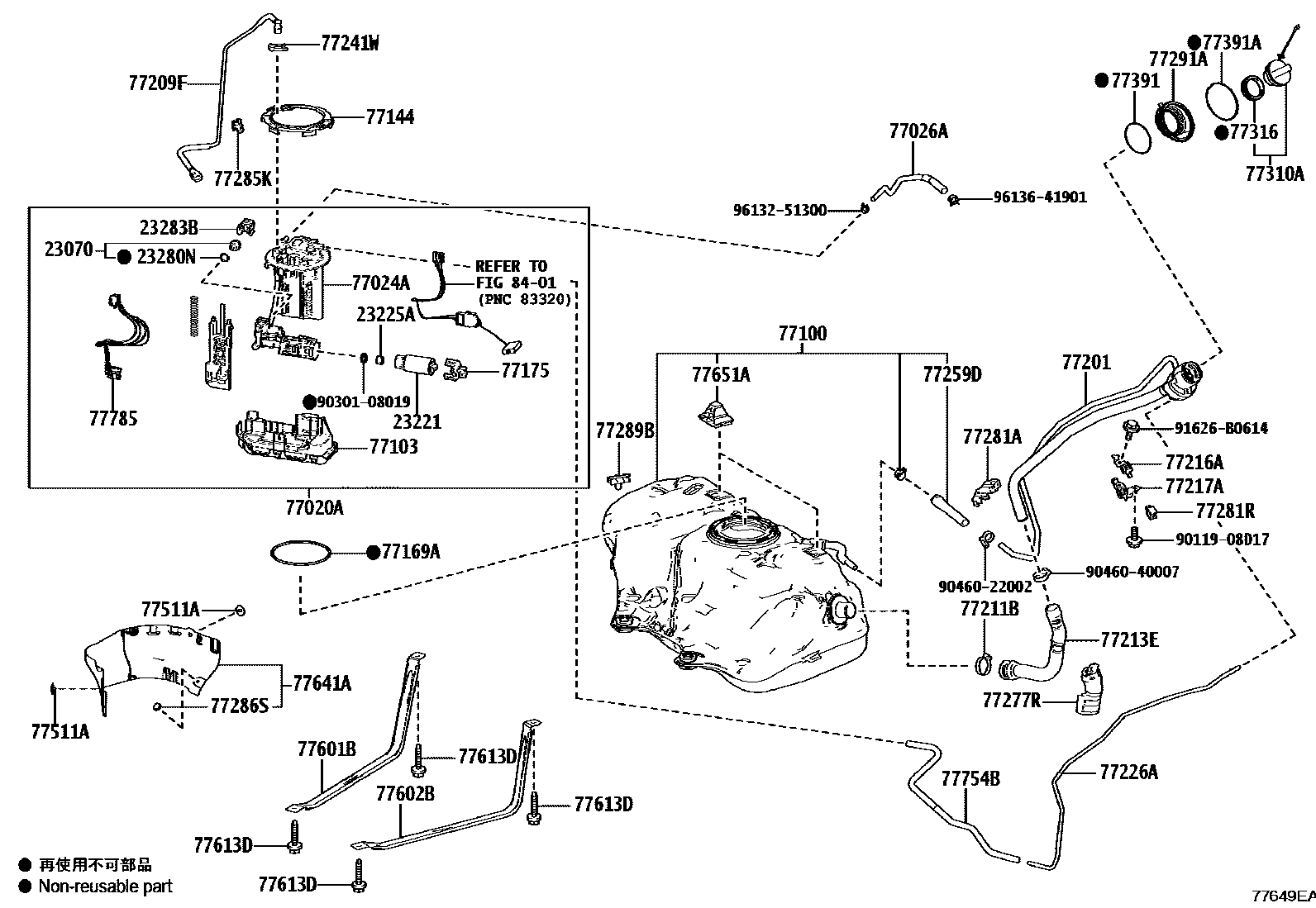

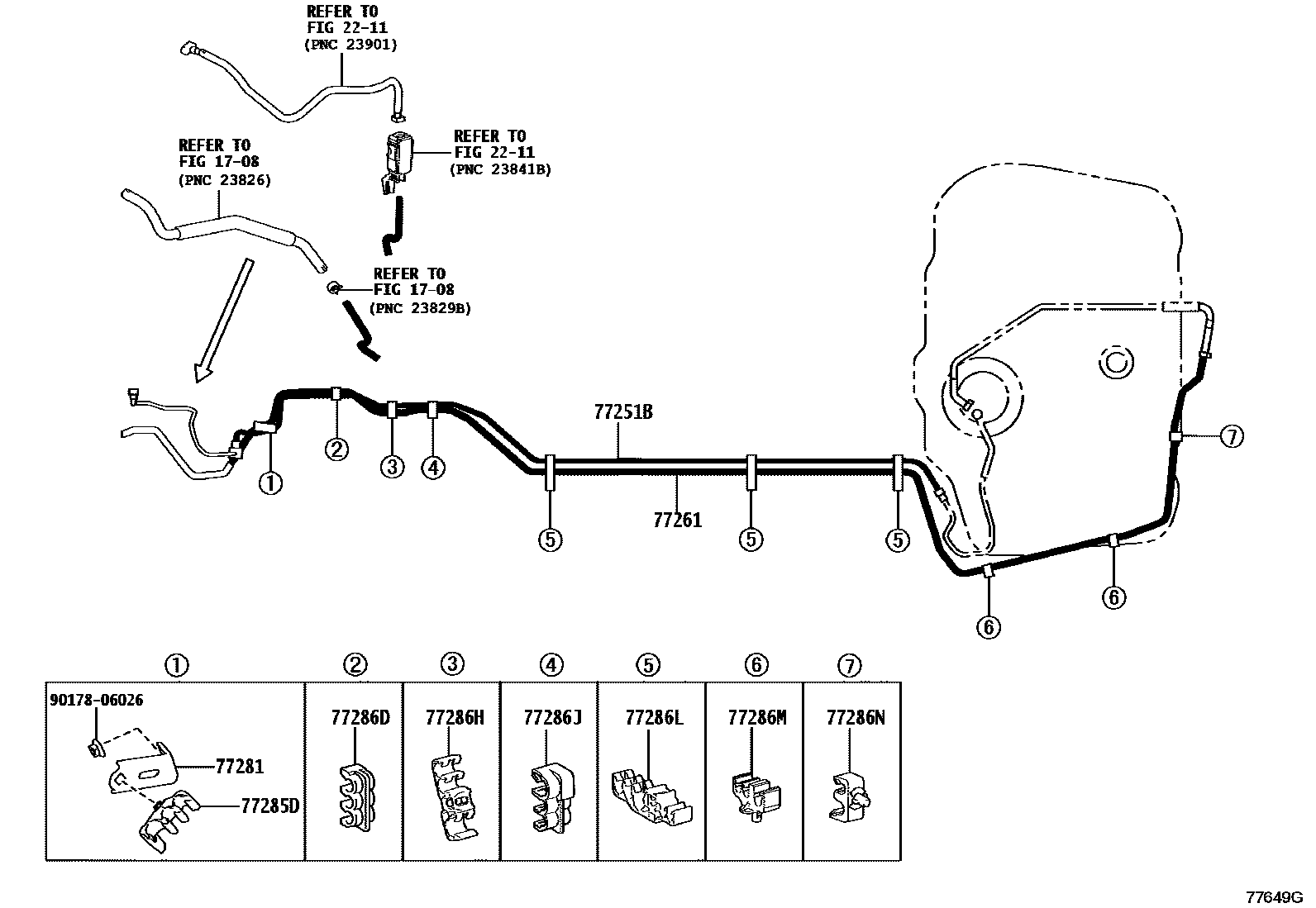

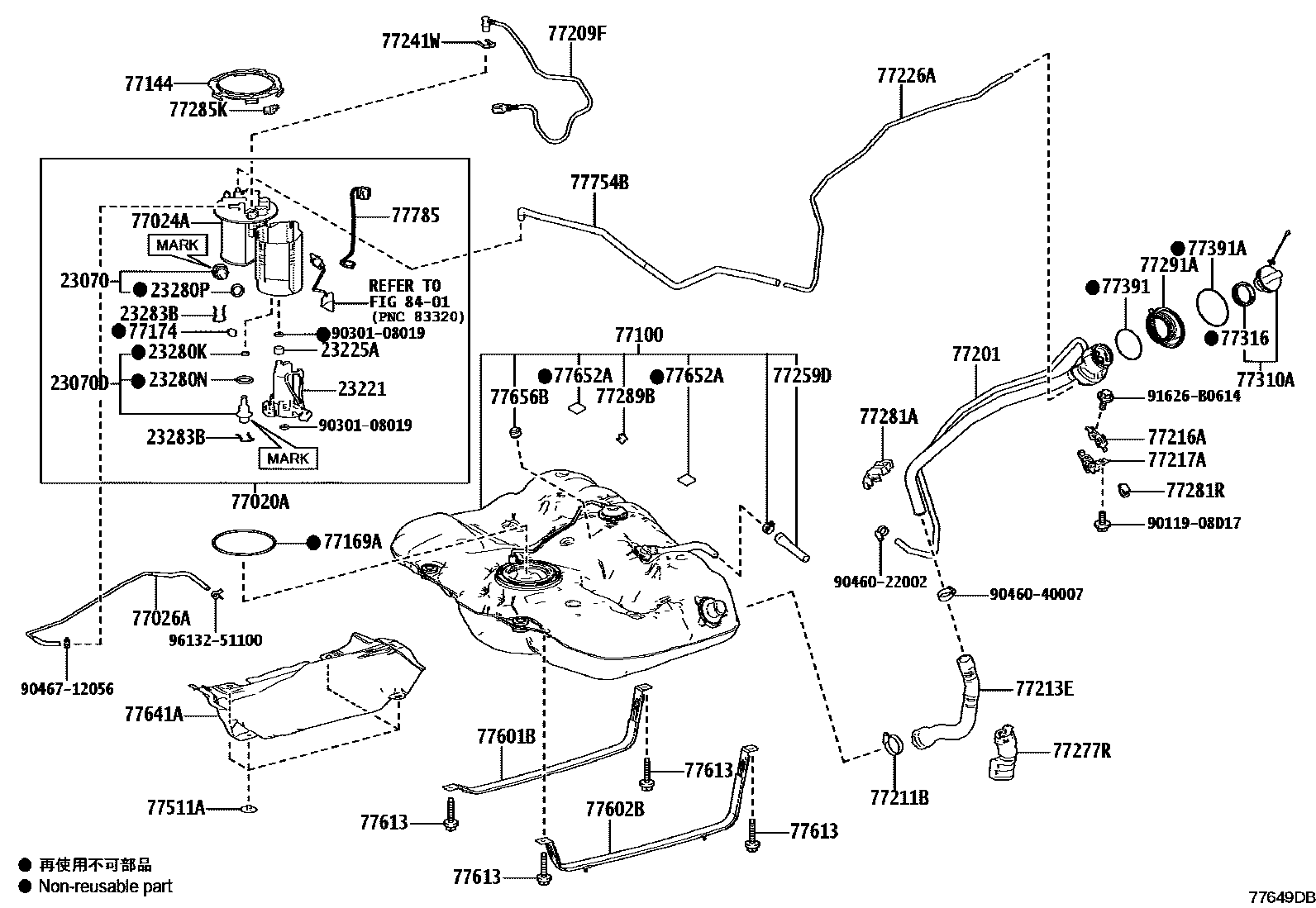

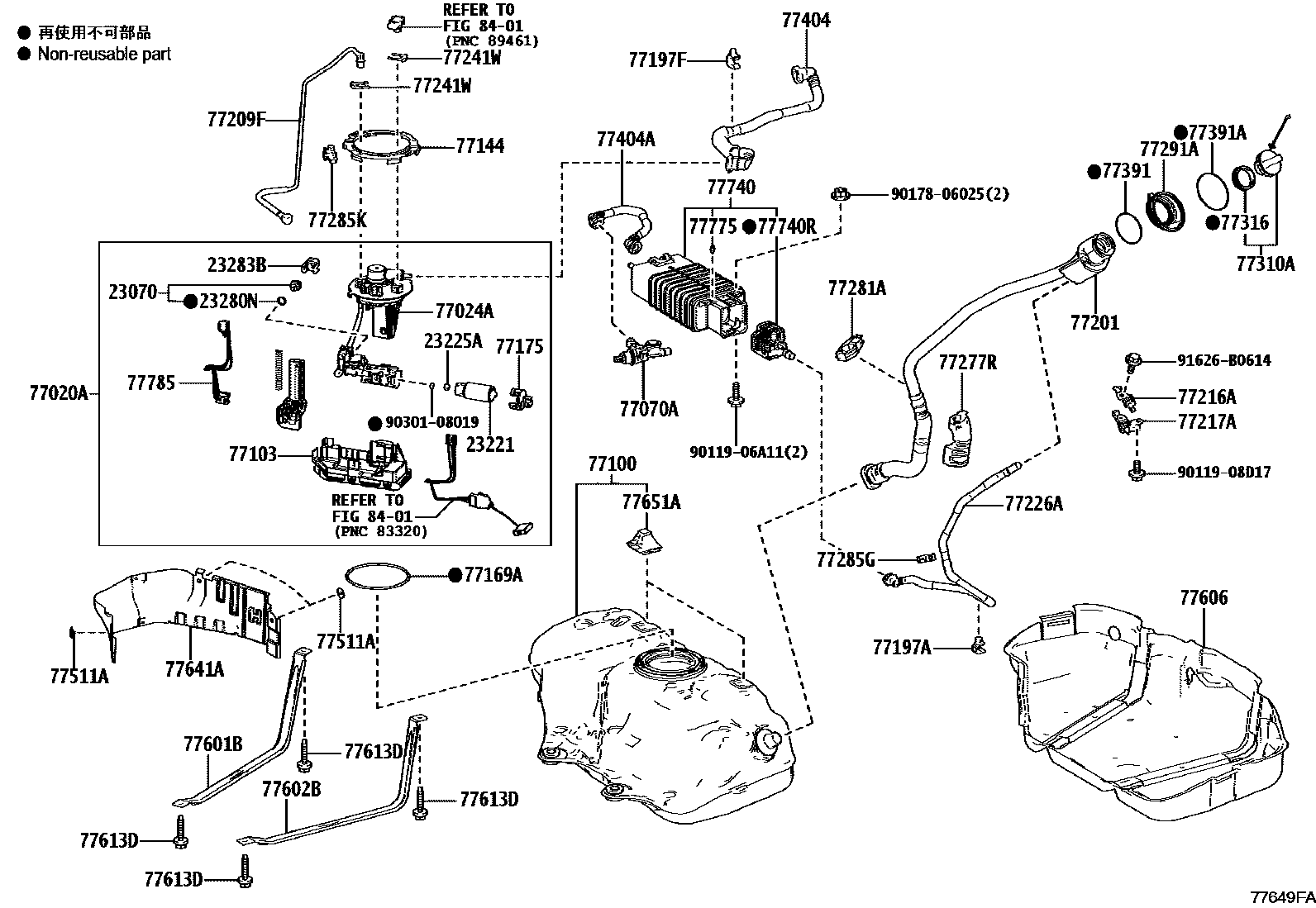

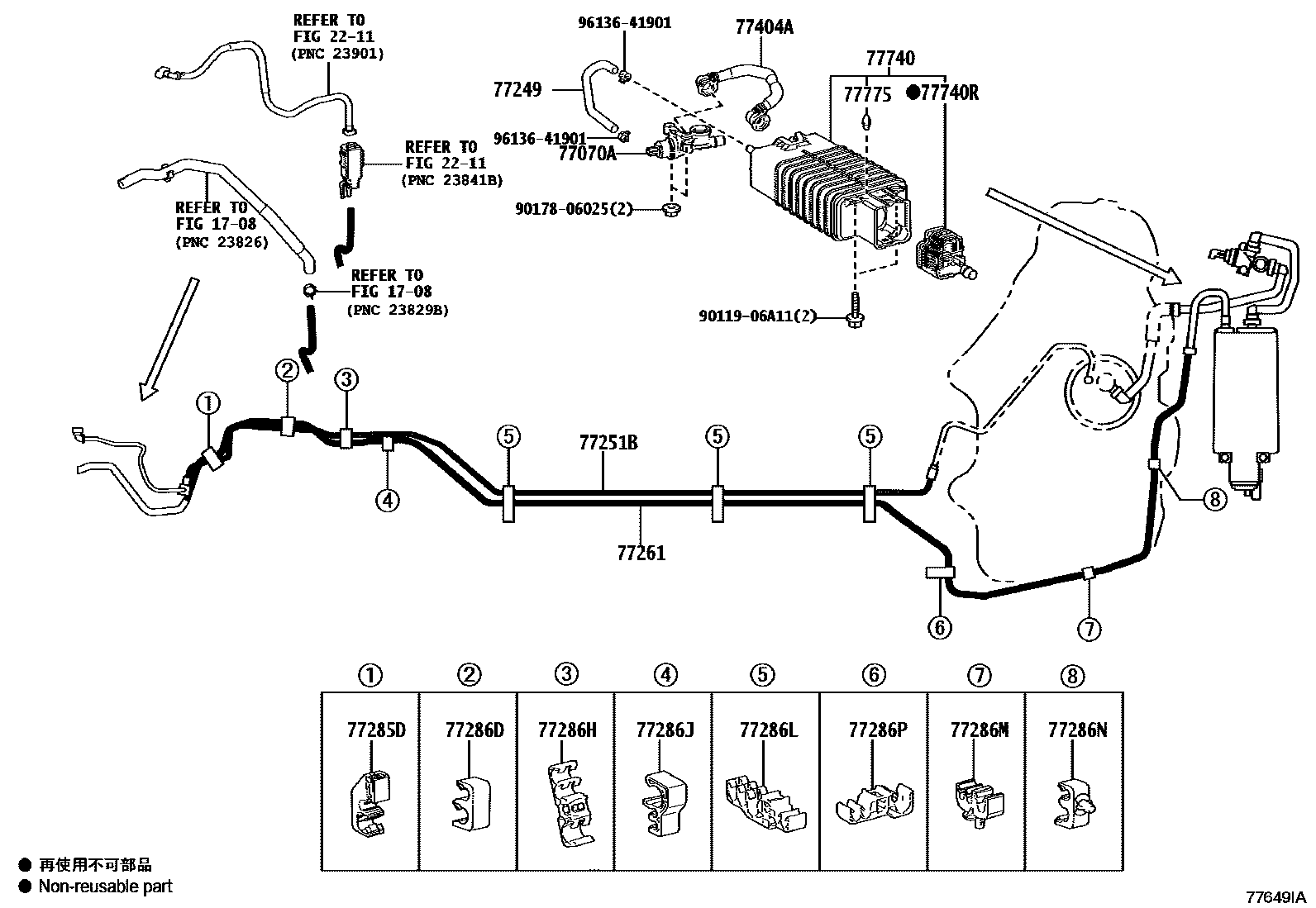

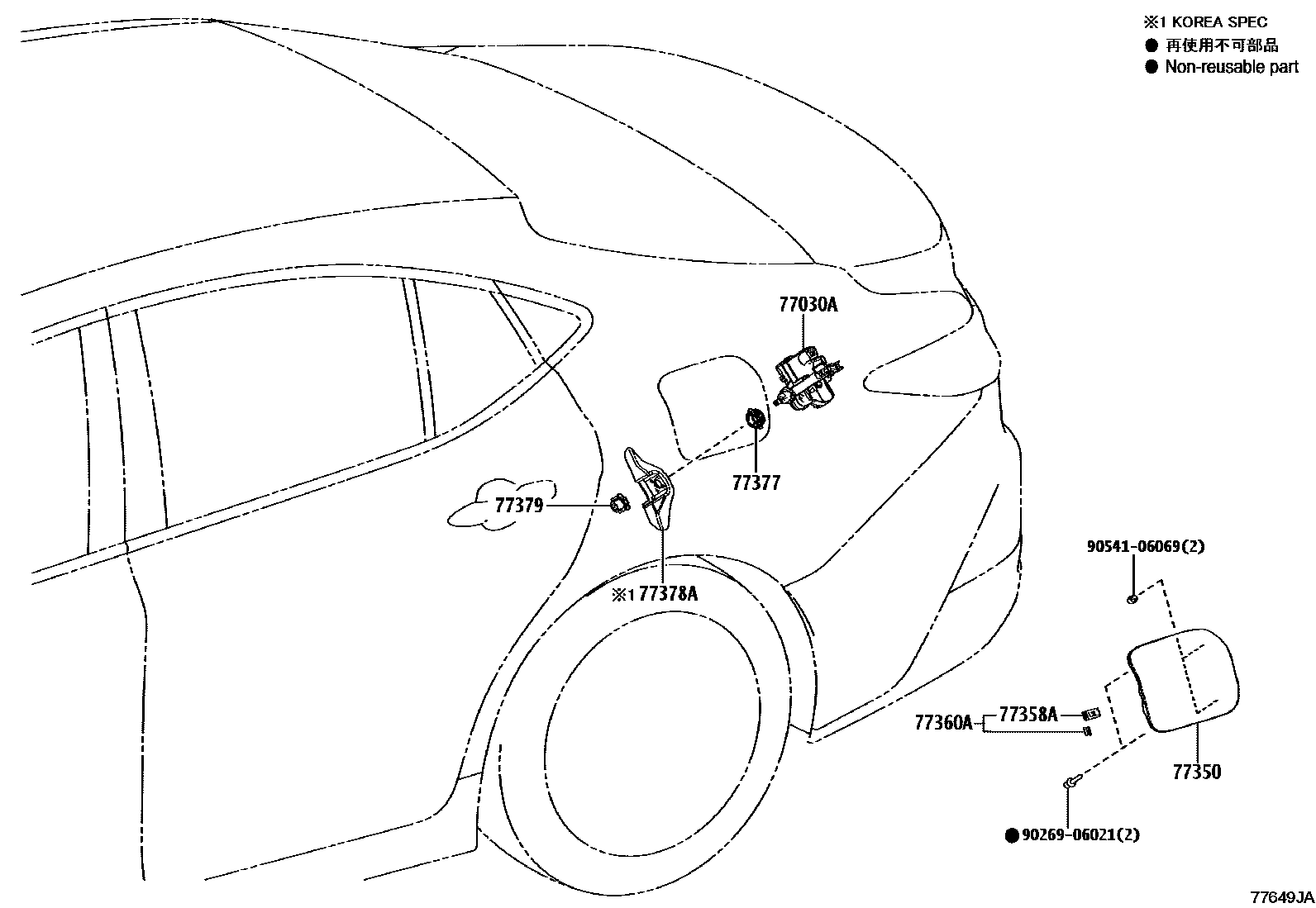

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 7 images and 77 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-25020 · 23070-31030 |
| 23070D | No. 2 main fuel valve assembly | 23070-31030 |
| 23221 | fuel pump | 23220-25020 · 23221-25030 |
| 23225A | fuel pump septum | 23225-31020 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 |
| 23280N | No. 2 O-ring (for fuel pressure regulator) | 90301-15024 |
| 23280P | No. 3 O-ring (for fuel pressure regulator) | 90301-15024 |
| 23283B | Fuel pressure regulator mount | 23283-24011 · 23283-36010 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-33500 · 77020-33512 · 77020-33591 |
| 77024A | Fuel absorber sub-assembly | 77024-33320 · 77024-33421 · 77024-33431 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-33090 · 77026-33100 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-33110 · 77030-33120 |
| 77070A | Closed fuel tank valve assembly | 90910-15089 |
| 77100 | fuel tank assembly | 77001-33270 · 77001-33311 · 77001-33330 · 77001-33430 |
| 77103 | Auxiliary fuel tank sub-assembly | 77103-12151 |
| 77144 | Fuel pump instrument fixture | 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-47030 · 77169-47040 |
| 77174 | No. 1 oil suction pipe bracket | 77174-33060 |
| 77175 | No. 2 oil suction pipe bracket | 77175-12031 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-47010 |
| 77197F | No. 2 evaporation vent pipe clamp | 77197-33080 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-33400 · 77201-33440 · 77201-33490 · 77201-33560 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-33140 · 77209-33160 · 77209-33171 |
| 77211B | Clamp (for fuel filler tube) | 90460-50008 |
| 77213E | Fuel tank to filler pipe hose | 77213-33130 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-33150 · 77216-33160 · 77216-33170 · 77216-33190 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-33090 · 77217-33100 · 77217-33110 · 77217-33130 |
| 77226A | No. 6 fuel tank breather pipe | 77226-33130 · 77226-33150 · 77226-33160 · 77226-33250 |
| 77241W | Pipe joint clip | 77241-60550 |
| 77249 | fuel drain hose | 77249-33200 |
| 77251B | main fuel pipe | 77251-33240 · 77251-33330 · 77251-33390 |
| 77259D | No. 1 fuel hose | 77259-33080 |
| 77261 | Fuel evaporation exhaust pipe sub-assembly | 77261-33390 · 77261-33400 · 77261-33410 |
| 77277R | Fuel tank filler pipe protection device | 77277-33110 |
| 77281 | No. 1 main fuel pipe bracket | 77281-33080 |
| 77281A | Fuel filler pipe clamp | 77281-33050 · 77281-33130 |
| 77281R | No. 2 fuel filler pipe clamp | 77281-30110 |
| 77285D | No. 1 fuel pipe clamp | 77285-33140 · 77285-33210 |
| 77285G | No. 1 fuel pipe clamp | 77285-47120 |
| 77285K | No. 1 fuel pipe clamp | 77285-30350 |
| 77286D | No. 2 fuel pipe clamp | 77286-11070 · 77286-20170 |
| 77286H | No. 3 fuel pipe clamp | 77298-33110 · 77298-33120 |
| 77286J | No. 4 fuel pipe clamp | 77295-42030 · 77298-48190 |
| 77286L | No. 5 fuel pipe clamp | 77298-33040 · 77298-33050 |
| 77286M | No. 6 fuel pipe clamp | 77285-33180 · 77286-47050 |
| 77286N | No. 7 fuel pipe clamp | 77286-33110 · 77286-33120 |
| 77286P | No. 8 fuel pipe clamp | 77298-33100 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77289B | No. 3 fuel pipe clamp | 77289-33080 · 77289-33090 |
| 77291A | Fuel tank filler pipe cover | 77291-33110 |
| 77310A | Fuel tank cap assembly | 77300-12020 · 77300-48020 · 77300-53040 |
| 77316 | fuel tank cap gasket | 77316-52040 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-33260 |
| 77358A | Fuel filler cap stopper | 77358-30060 |
| 77360A | Fuel filler cap spring assembly | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-33040 |
| 77378A | Fuel filler cap lock cover | 77378-33010 |
| 77379 | No. 2 fuel inlet cap gasket | 77379-33010 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-33060 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-06320 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-06330 |
| 77511A | fuel tank bracket | 77512-35140 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-33150 · 77601-33170 · 77601-33180 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-33160 · 77602-33180 · 77602-33190 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-33040 |
| 77613 | Fuel tank strap fixing bolts | 90119-10995 |
| 77613D | No. 2 fuel tank strap fixing bolt | 90119-10995 |
| 77641A | No. 1 fuel tank protective shell | 77606-33030 · 77606-33050 · 77641-33030 |
| 77651A | No. 1 fuel tank liner | 77651-33060 |
| 77652A | No. 2 fuel tank liner | 77652-33060 |
| 77656B | No. 6 fuel tank liner | 77656-33010 |
| 77740 | Carbon canister assembly | 77740-33240 |
| 77740R | Leak detection pump sub-assembly | 90910-14008 |
| 77754B | Carbon canister outlet hose | 77754-33070 · 77754-33080 |
| 77775 | Carbon canister outlet duct | 77775-33010 |
| 77785 | fuel pump wiring harness | 77785-33140 · 77785-33181 · 77785-33220 · 77785-33240 · 77785-42071 |
