Toyota CAMRY 侧防护条 — Figure 7503

Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 25 PNC and OE references.

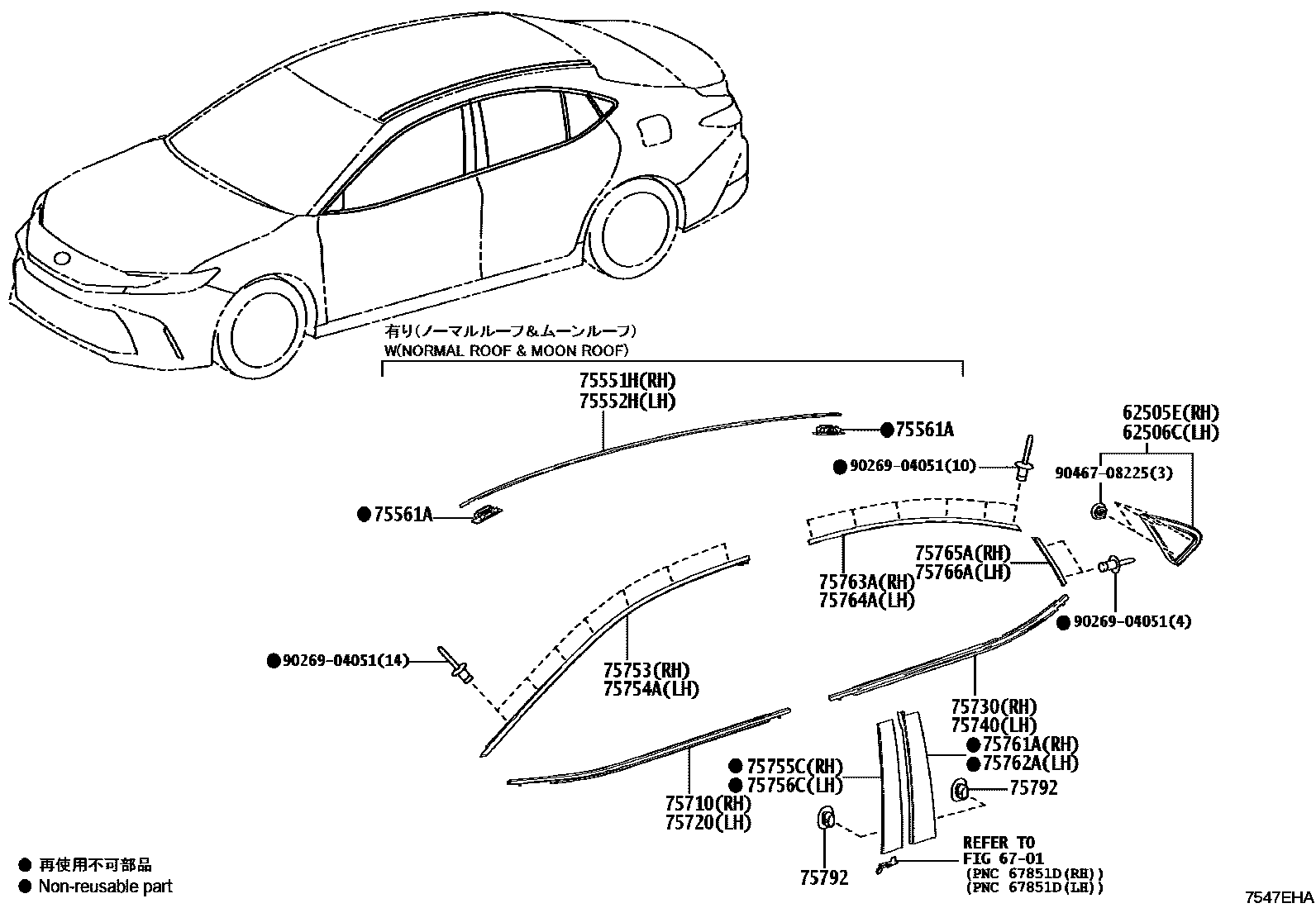

Toyota CAMRY 侧防护条 EPC diagram — 7547EHA
侧防护条 — 7547EHA (202406 – 999999)
Toyota CAMRY 侧防护条 EPC diagram — 7547EI
侧防护条 — 7547EI (202406 – 999999)

PNC and OE references

PNCPart nameOE numbers
62505ERight corner window pillar cover sub-assembly62505-33010
62506CLeft corner window pillar cover sub-assembly62506-33010
75551HDrainage groove side on the right side of the roof75555-33080
75552HDrainage channel side protection strip on the left side of the roof75556-33080
75561ARoof drain channel side decorative strip clip75561-52040
75710Right front door waistline protection strip assembly75710-33170
75720Left front door waistline protection strip assembly75720-33170
75730Right rear door waistline protection strip assembly75730-33240
75740Left rear door waistline protection strip assembly75740-33240
75753Protective strip on right front door window frame75753-33140
75754AProtective strip on left front door window frame75754-33140
75755CRight front door window frame rear protective strip75755-33130
75756CLeft front door window frame rear protective strip75756-33130
75761ARight rear door window frame front protective strip75761-33130
75762ALeft rear door window frame front protective strip75762-33130
75763AProtective strip on right rear door window frame75763-33160
75764AProtective strip on left rear door window frame75764-33160
75765ARight rear door window frame rear protective strip75765-33100
75766ALeft rear door window frame rear protective strip75766-33100
75792Car door window frame protective strip clip75792-47010
75850CGasket No. 190189-06237
75851Right side door sill panel protective strip75850-33904
75851FGasket (for body sill protection strip)90189-06006
75852Left side door sill panel protective strip75860-33905
75867CDoor sill panel protective strip clip75867-68010
